6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
Specifications
Standard :
IEC60076
Operation :
Step-down
Price :
$1000-$150000
Certification :
CE,ISO
Model Number :
S-6300/66
Secondary Voltage :
11000V
Vector group :
Dyn11
Capacity :
6300KVA
Payment Terms :
T/T
MOQ :
1unit
Place of Origin :
CHINA
Delivery Time :
30days
Type :
Substation Power Transformer
Packaging Details :
Plywood case
Primary Voltage :
66 KV
Cooling Class :
ONAN/ONAF
Supply Ability :
500set/month
Brand Name :
WINLEY
Description
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
WINLEY Electric's substation transformers are designed to meet ANSI/IEEE and IEC standards, with capacities ranging from 150KVA to 100MVA and voltage ranges typically from 2.4KV to 145KV. They feature low partial discharge, low loss, low noise, light weight, and long service life.

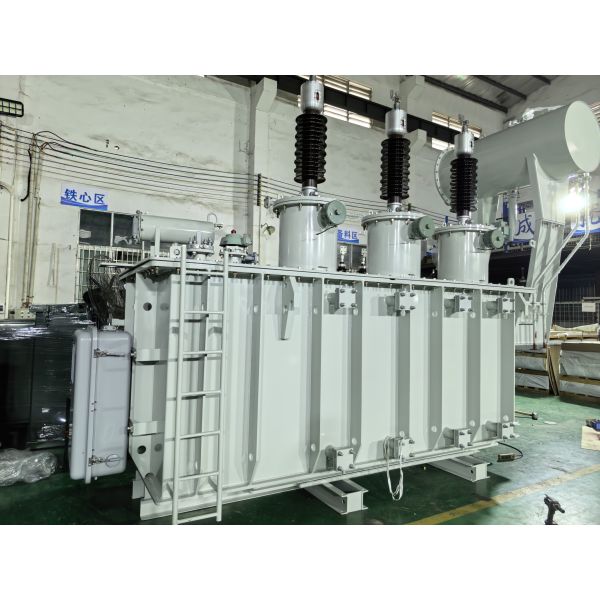

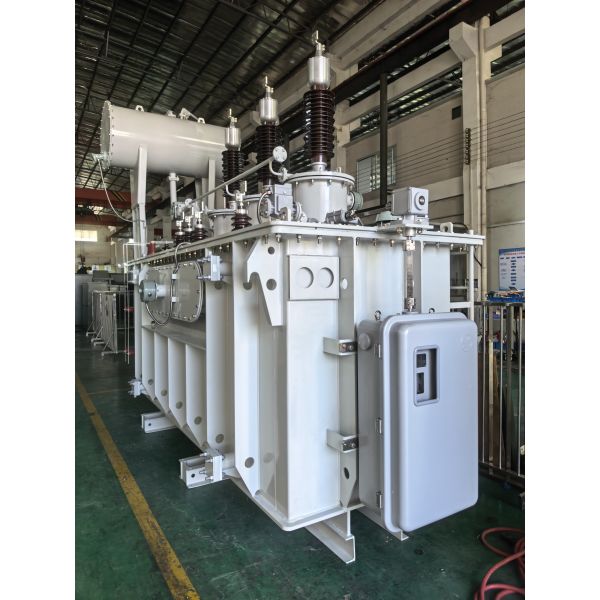

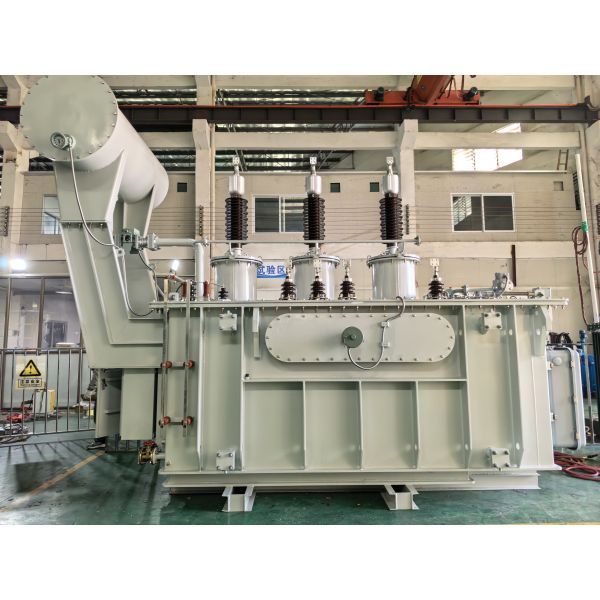

Product photos
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV

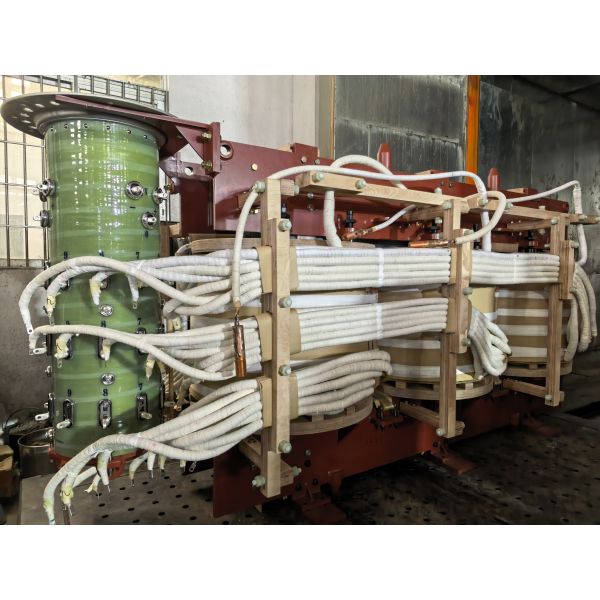

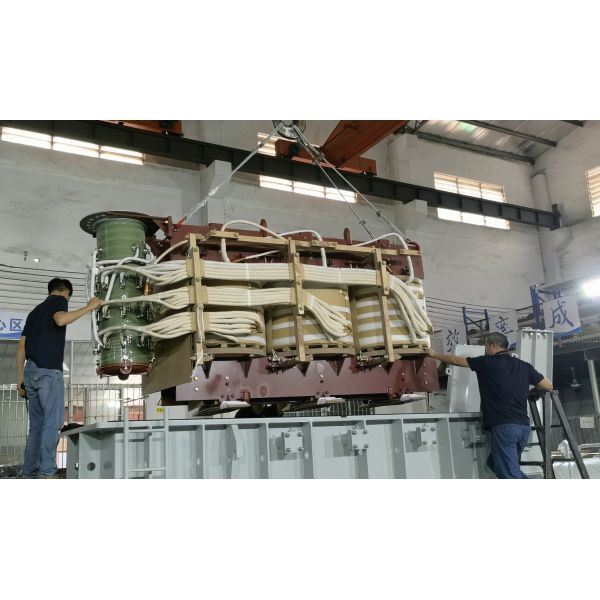

Production process
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV

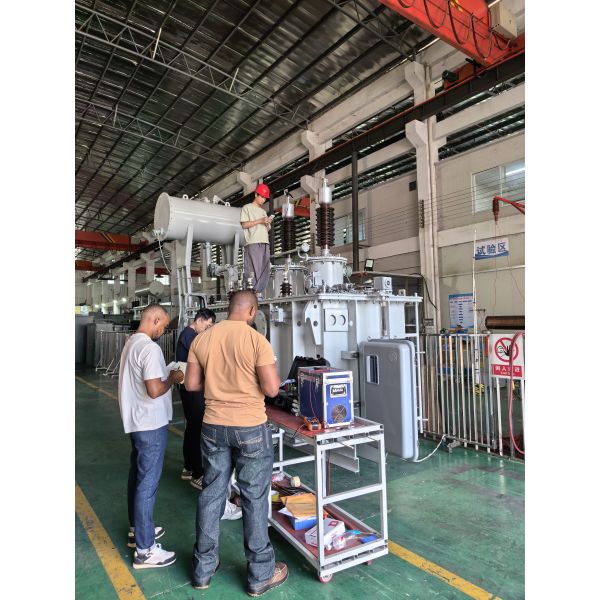

Customer On-site Acceptance
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
Main Data
Application Substation Power Transformer
Phase Three
Rated capacity 6300kVA
Input Voltage 66kV
Output Voltage 11kV
Tap Changer On-load Tap Changer
Frequency 50 Hz, 60Hz
Standard IEC60076
Cooling Method ONAN/ONAF
Vector Group Dyn11 / Yyn0
Winding Material Copper
Warranty 2 Years

Substation Transformer Specification

kVA HV LV Width(mm) Length(mm) Height(mm)
315kVA 11000V 400V 800 696 1336
500kVA 27600V 480GrdY/277V 1730 2300 1510
500kVA 11000V 415V 1700 1700 1650
750kVA 11000V 433V 1850 1845 1465
1000kVA 14400V 415/240V 1085 1860 1570
1200kVA 13800V 240V 2450 1850 1820
1500kVA 24940V 600V 1800 1880 1895
2000kVA 7200V 600GrdY/346 1766 2680 1982
2000kVA 44000V 600V 1260 2090 1700
2500kVA 24940V 480GrdY/277V 2400 2200 2060
3000kVA 11000V 415V 1600 2330 1920
3000kVA 22800V 415/240V 2130 3500 1910
3750kVA 44000V 600V 2240 2650 2700
4000kVA 33kV 600Y/347 2150 3250 2290
5000kVA 34500V 7200V 3780 1850 3450
5000kVA 34500V 4160V 2799 2400 2938
6300kVA 35000V 400V 3520 2820 3470
6800kVA 34500V 800V 3400 2670 3400
7500kVA 27600Y 4160V 3350 3290 2270

6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV

More Substation Transformers
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
6300kVA Substation Power Transformer Oil Immersed Hight Votage 66KV To 11KV
