Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Specifications
Supply Ability :
100set/month
Standard :
ANSI IEEE
Brand Name :
WINLEY
Capacity :
10/11.2/12.5/14 MVA
Model Number :
S-10000/12.47/4.16&2.4&2.4
Primary Voltage :
12470V
MOQ :
1unit
Delivery Time :
90days
Vector Group :
Dd0y1y1
Payment Terms :
T/T
Winding Material :
Aluminum
Price :
$5000-$150000
Cooling Class :
ONAN/ONAF
Certification :
ISO CE
Secondary Voltage :
2400D / 2400Y/1385V / 4160Y/2400V
Place of Origin :
CHINA
Primary Tap Positions :
14400V, 13800V, 13200V, 12870V, 12470V, 12000V, 11500V
Packaging Details :
Plywood case
Description
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
Product Overview

The S-10000/12.47/4.16&2.4&2.4 is a three phase outdoor substation power transformer with a 10/11.2/12.5/14 MVA ONAN/ONAF rating. It is configured for 12470V Delta primary input and multiple medium-voltage secondary outputs, including 2400V Delta, 2400Y/1385V Wye and 4160Y/2400V Wye, making it suitable for utility distribution substations, industrial plants, pump stations, renewable project substations and large outdoor distribution networks that require both 2.4kV and 4.16kV power levels.

Built with mineral oil insulation, aluminum windings, silicon steel core, side-mounted ATC terminal chambers, porcelain bushings and a 7-position off-load tap range from 14400V to 11500V, the transformer helps match site voltage conditions while maintaining medium-voltage distribution flexibility. The ANSI C57.12.00 design, HV BIL 110kV, LV BIL 60kV and 55/65/55F/65F°C temperature rise support outdoor substation operation where insulation coordination, voltage adjustment and load-stage flexibility are important.

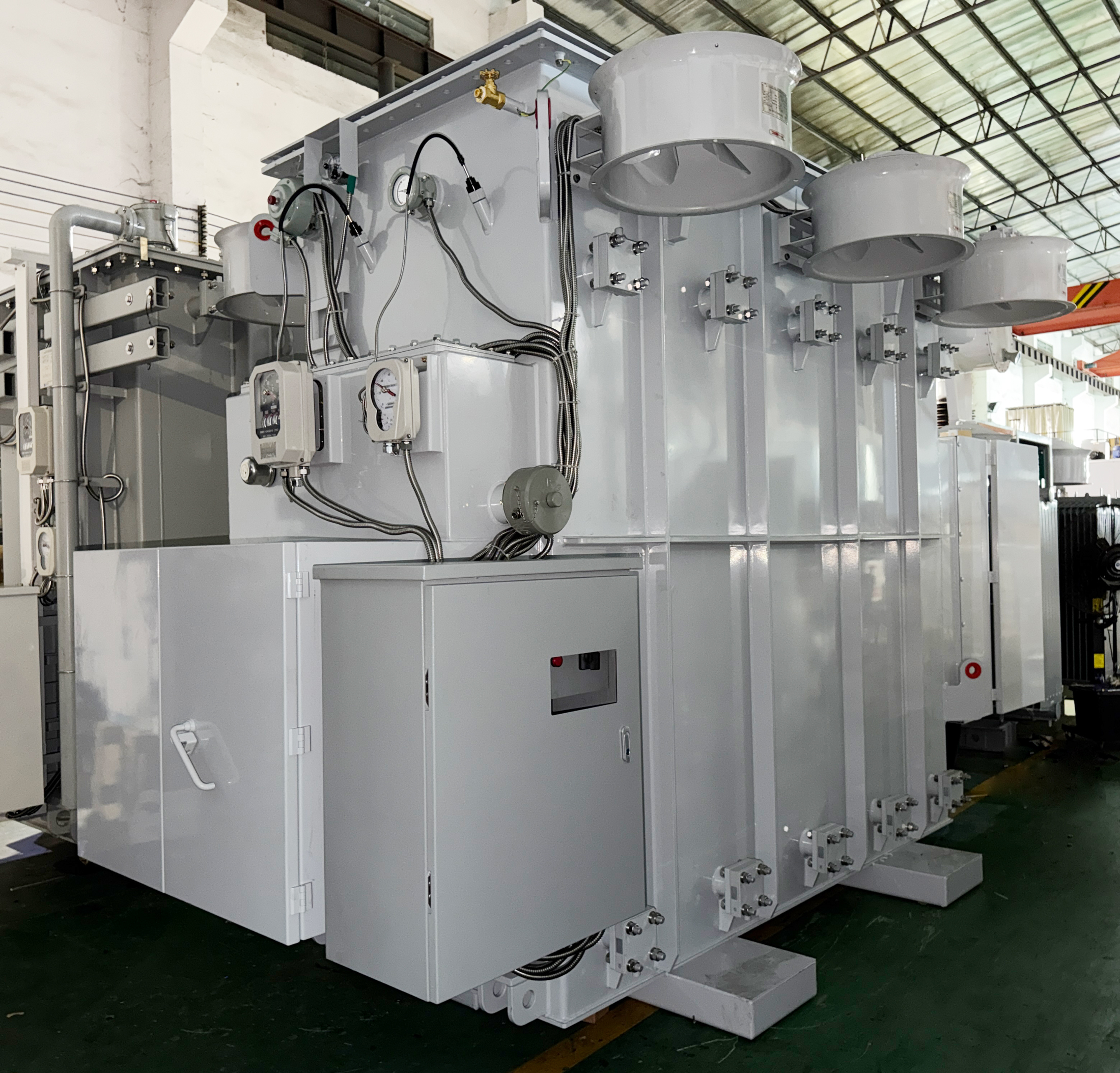

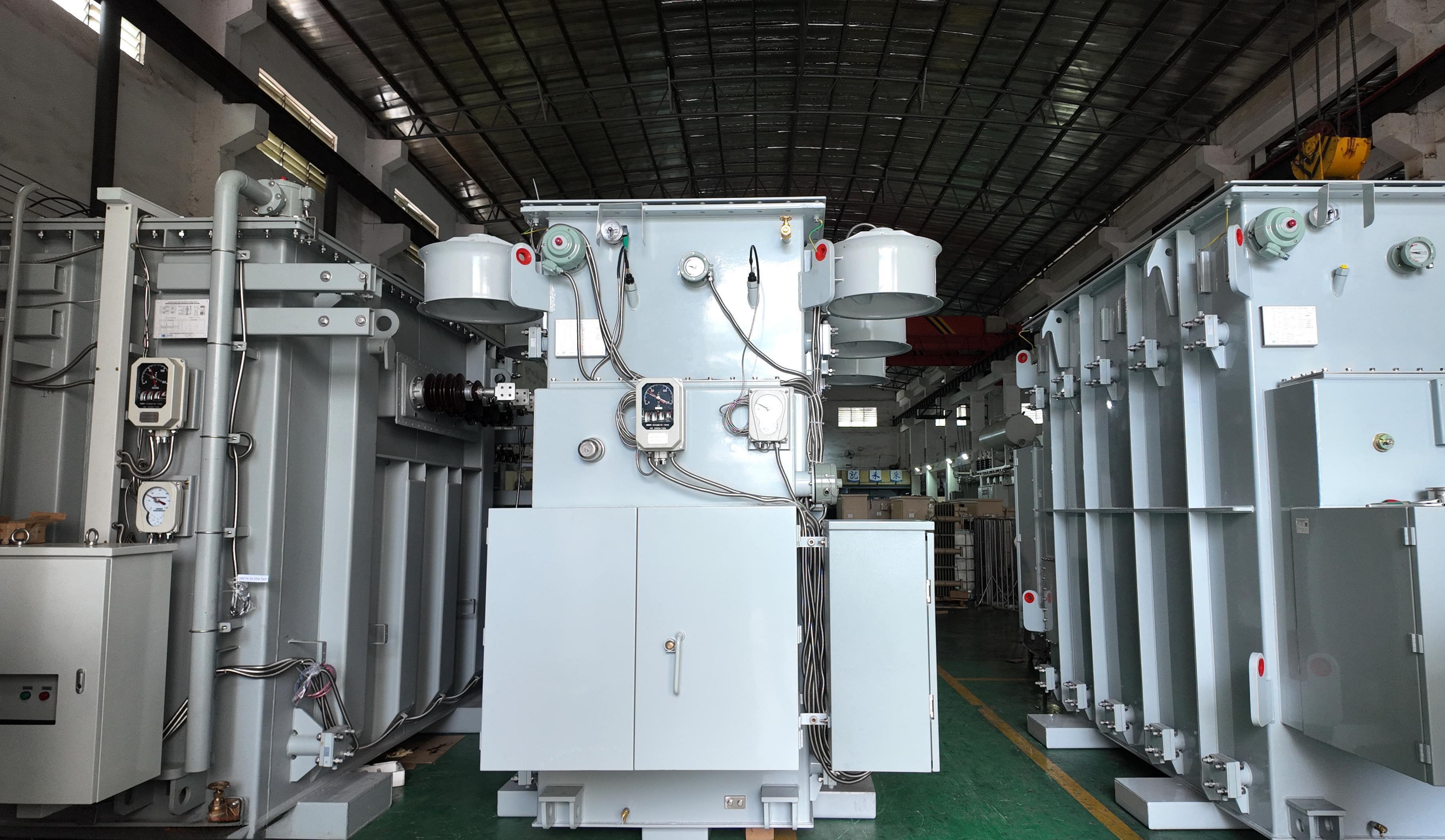

Product photos

Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards

Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards

Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards

Main Data


Item Data
Product type Three phase outdoor substation power transformer
Rated capacity 10/11.2/12.5/14 MVA
Phase 3 Phase
Primary voltage 12470V Delta
Secondary voltage 2400V Delta; 2400Y/1385V; 4160Y/2400V
Frequency 60Hz
Vector group Dd0y1y1
HV BIL / LV BIL 110kV / 60kV
Cooling method ONAN/ONAF
Winding material Aluminum
Temperature rise 55/65/55F/65F°C
No-load loss 8301W
Load loss 64154W at 85°C
No-load current 0.16%
Impedance 6.90%
Dimensions 162 × 102 × 120 in
Weight 54961 lbs



Product Advantages

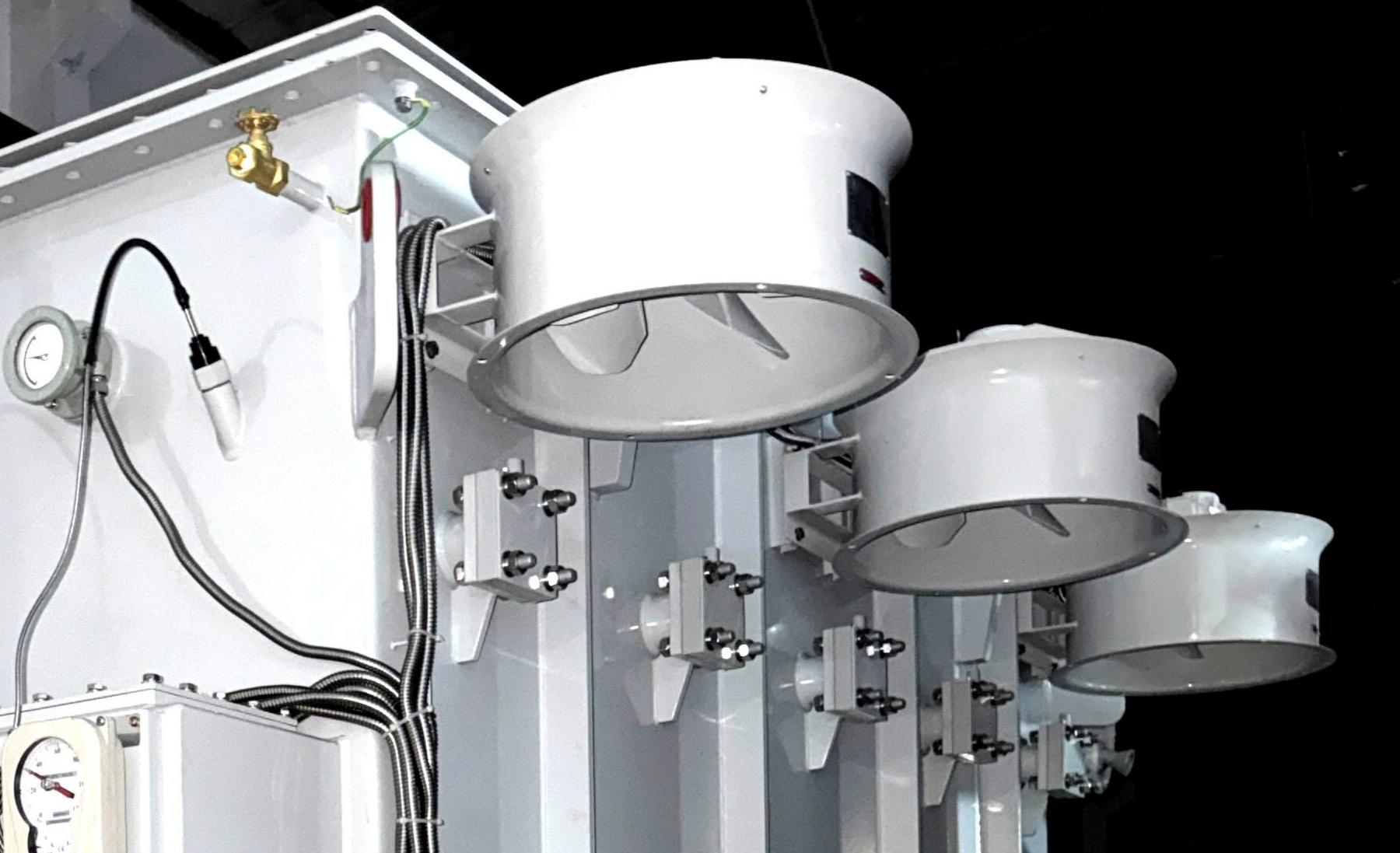

  • Multi-Capacity ONAN/ONAF Cooling Structure
    Rated at 10/11.2/12.5/14 MVA, this transformer uses radiator banks and cooling fan assemblies to support ONAN/ONAF operation. It helps customers cover normal load and fan-assisted peak demand with one unit, reducing the need for immediate transformer replacement when load requirements increase.

Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards


  • Multi-Voltage Secondary Design
    Configured with 12470V primary input and 2400D, 2400Y/1385V and 4160Y/2400V secondary outputs, the transformer helps customers match different medium-voltage distribution requirements with one flexible design.
Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards

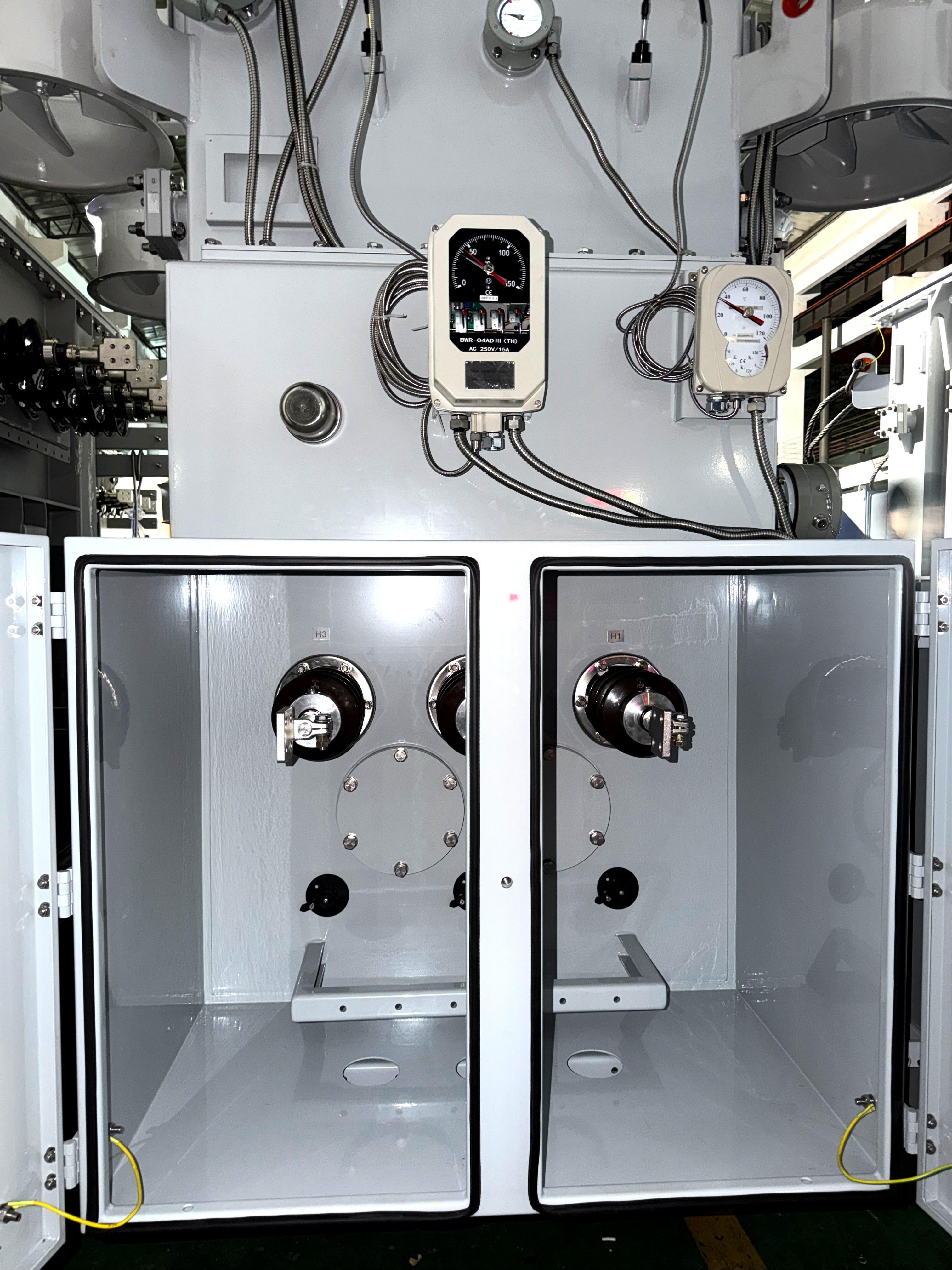

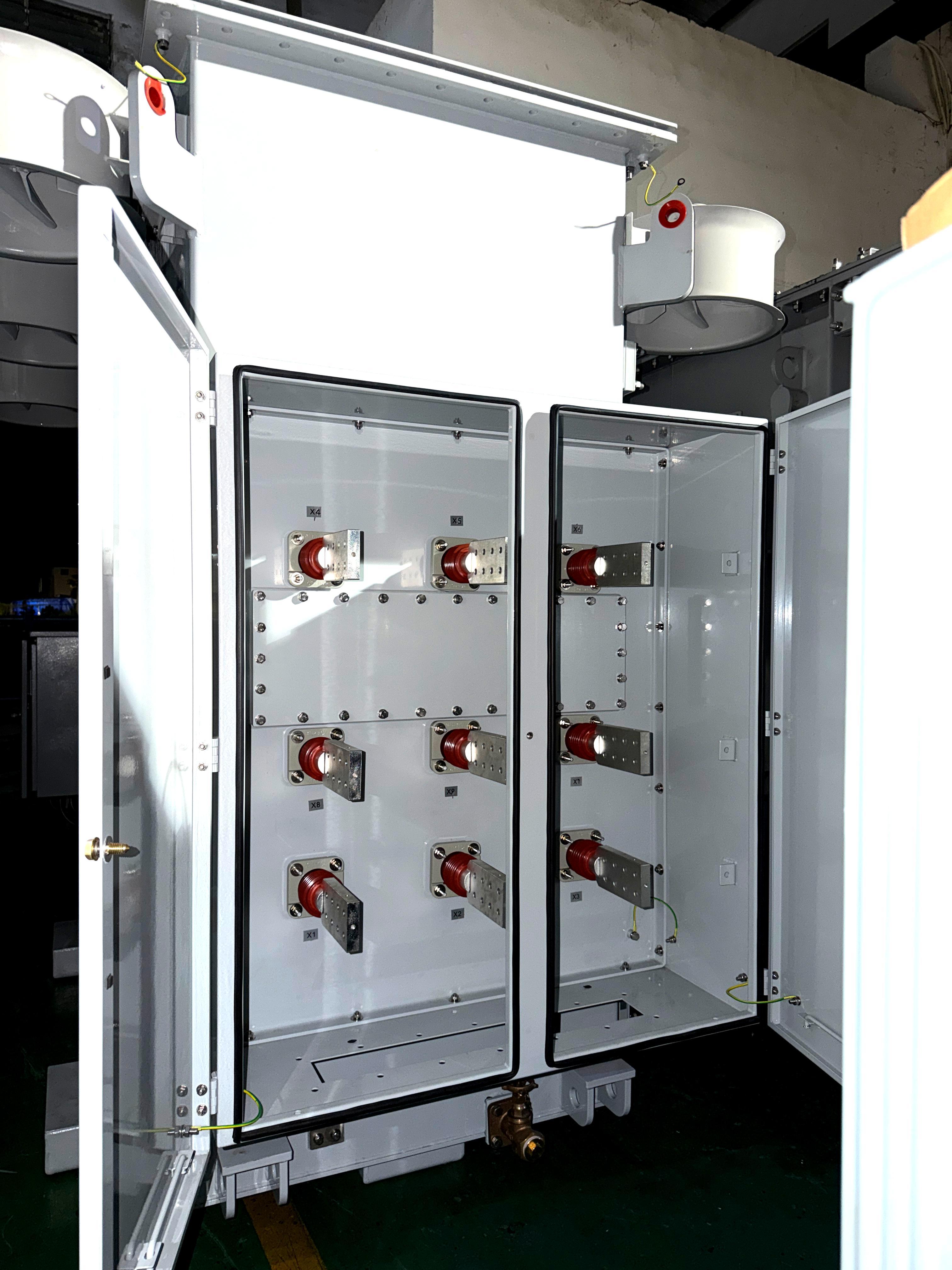

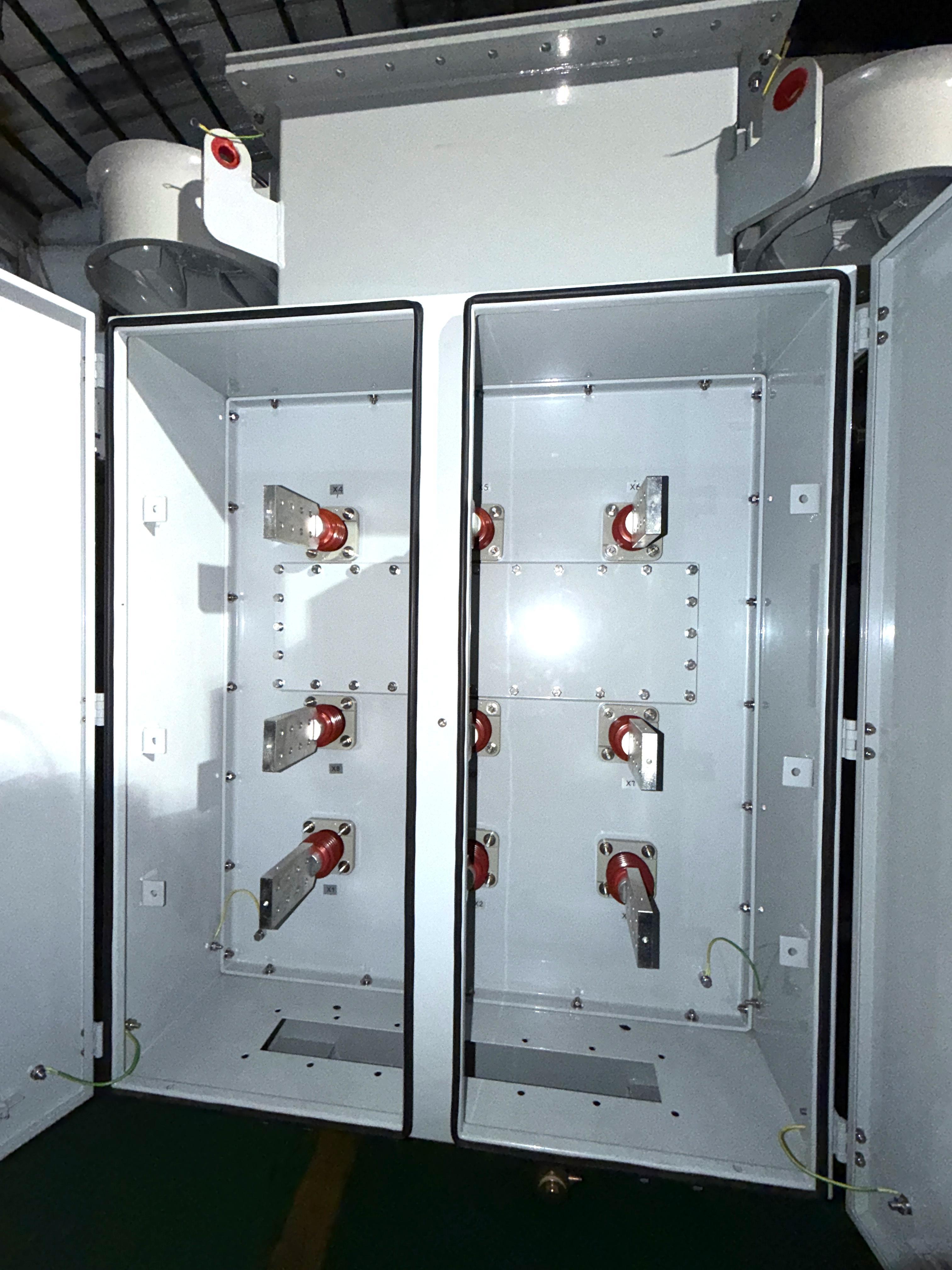

  • Side-Mounted HV and LV ATC Terminal Chambers
    Side-mounted HV and LV ATC chambers provide accessible cable termination space for outdoor substation layouts, helping customers simplify field wiring, inspection and maintenance.

Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards


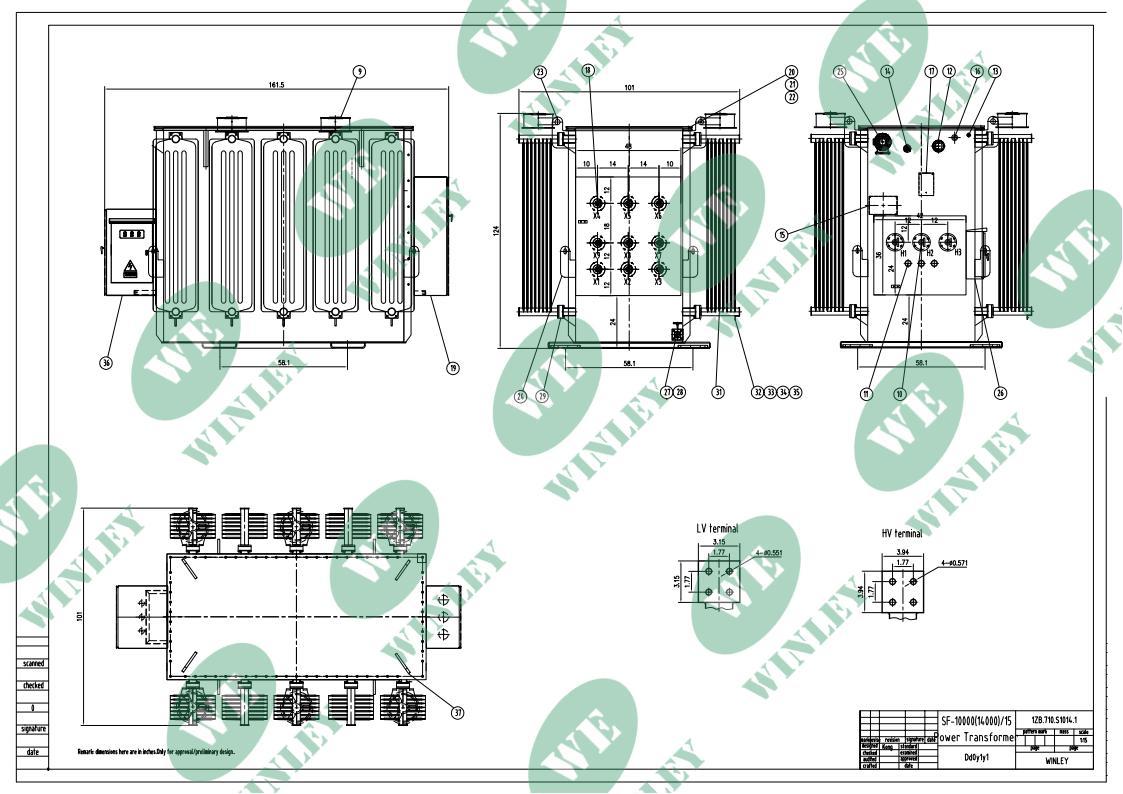

Technical drawings


Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards

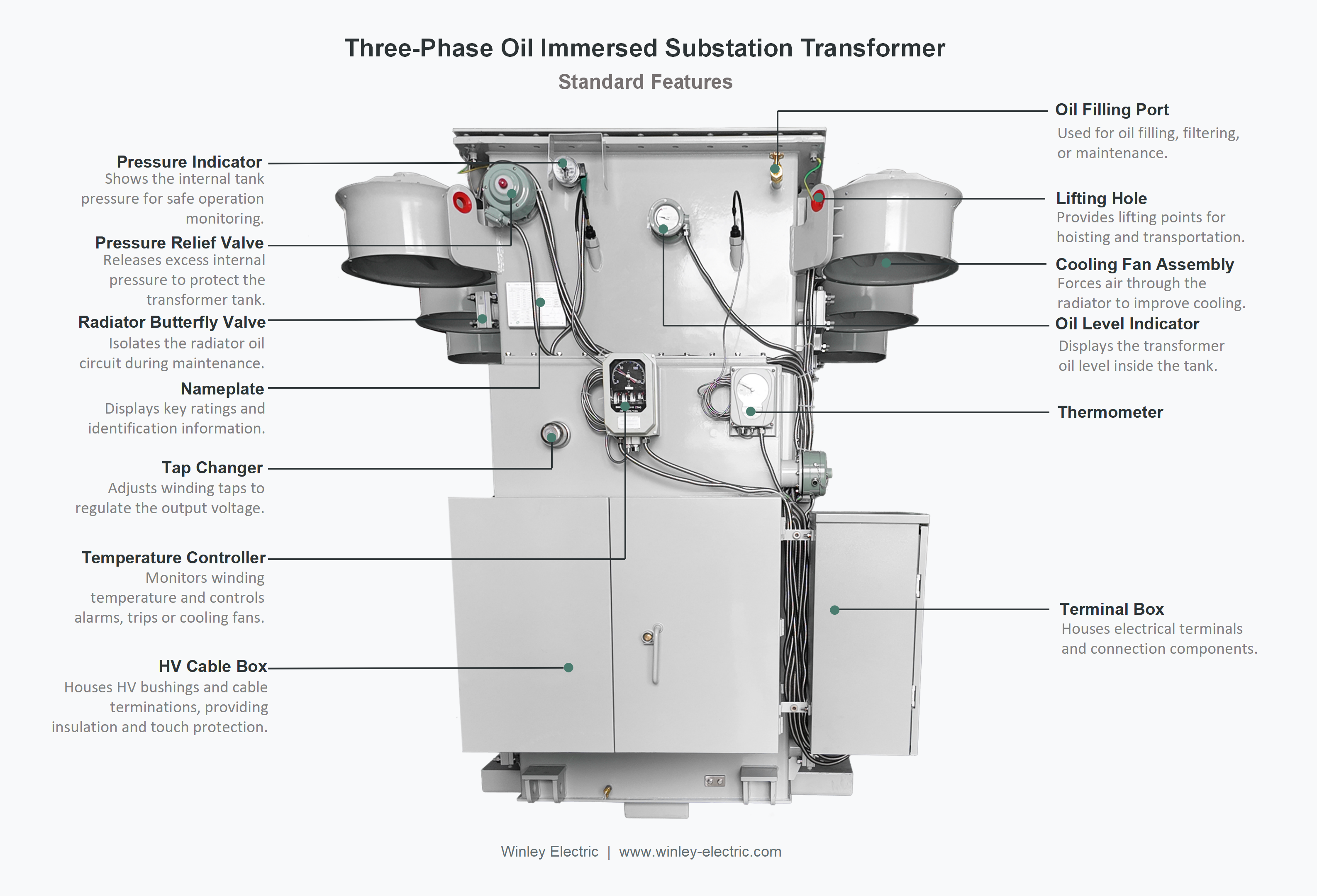

Standard Features


  • Pressure / Vacuum Gauge
    Shows internal tank pressure for safe operation monitoring.
  • Pressure Relief Valve
    Releases excess internal pressure to protect the transformer tank.
  • Radiator Butterfly Valve
    Isolates the radiator oil circuit during maintenance.

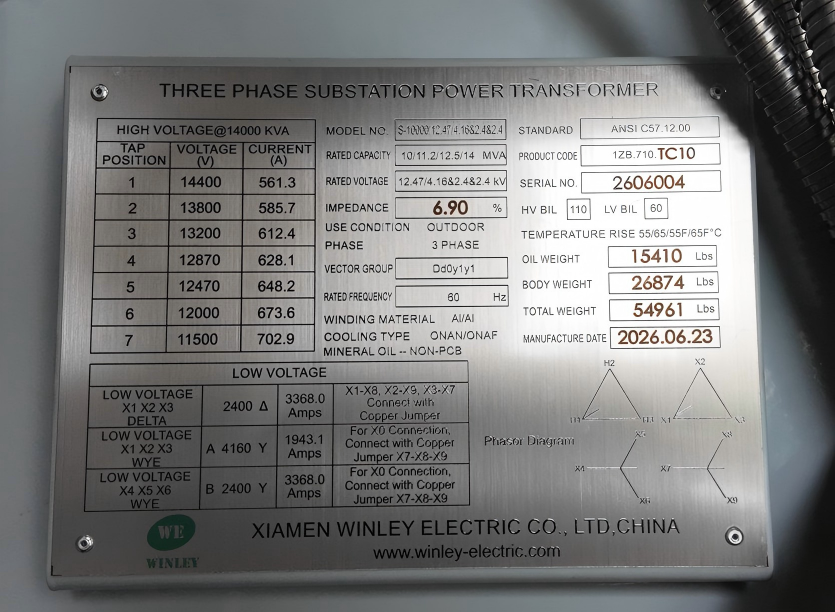

  • Nameplate
    Displays ratings, wiring data, standard and identification information.
  • Under-Oil Arrester Isolation Switch
    Isolates the HV arrester circuit for inspection or maintenance.
  • Temperature Controller
    Monitors temperature and controls alarms, trips or cooling fans.
  • HV ATC Terminal Chamber
    Houses HV bushings and cable termination components.
  • Oil Filling Port
    Used for oil filling, filtering or maintenance.
  • Cooling Fan Assemblies
    Force air through the radiator to support ONAF cooling.
  • Oil Level Indicator
    Displays transformer oil level inside the tank.
  • Oil Temperature Gauge
    Displays transformer oil temperature.
  • Off-Circuit Tap Changer
    Adjusts winding taps to match site voltage conditions.

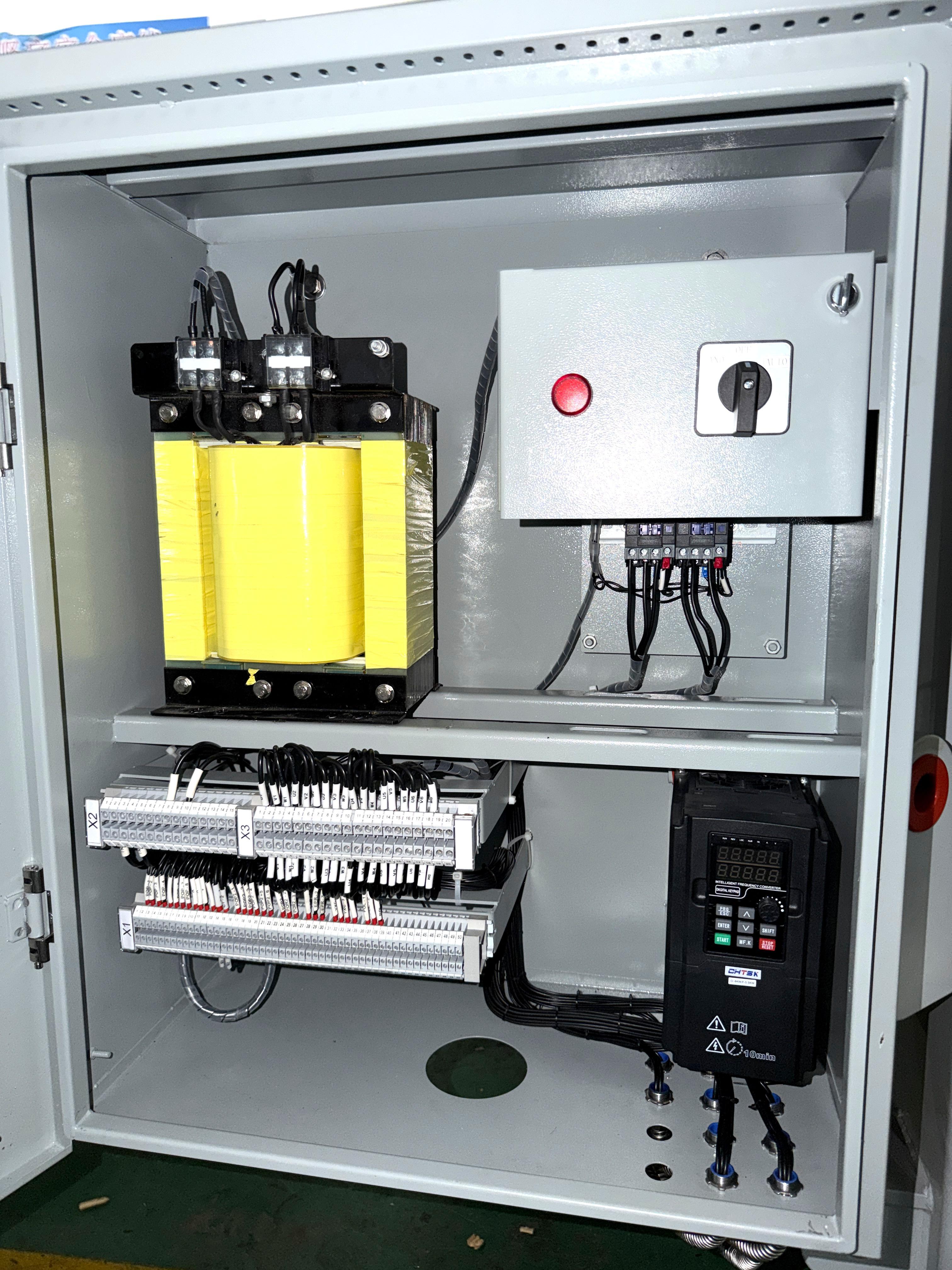

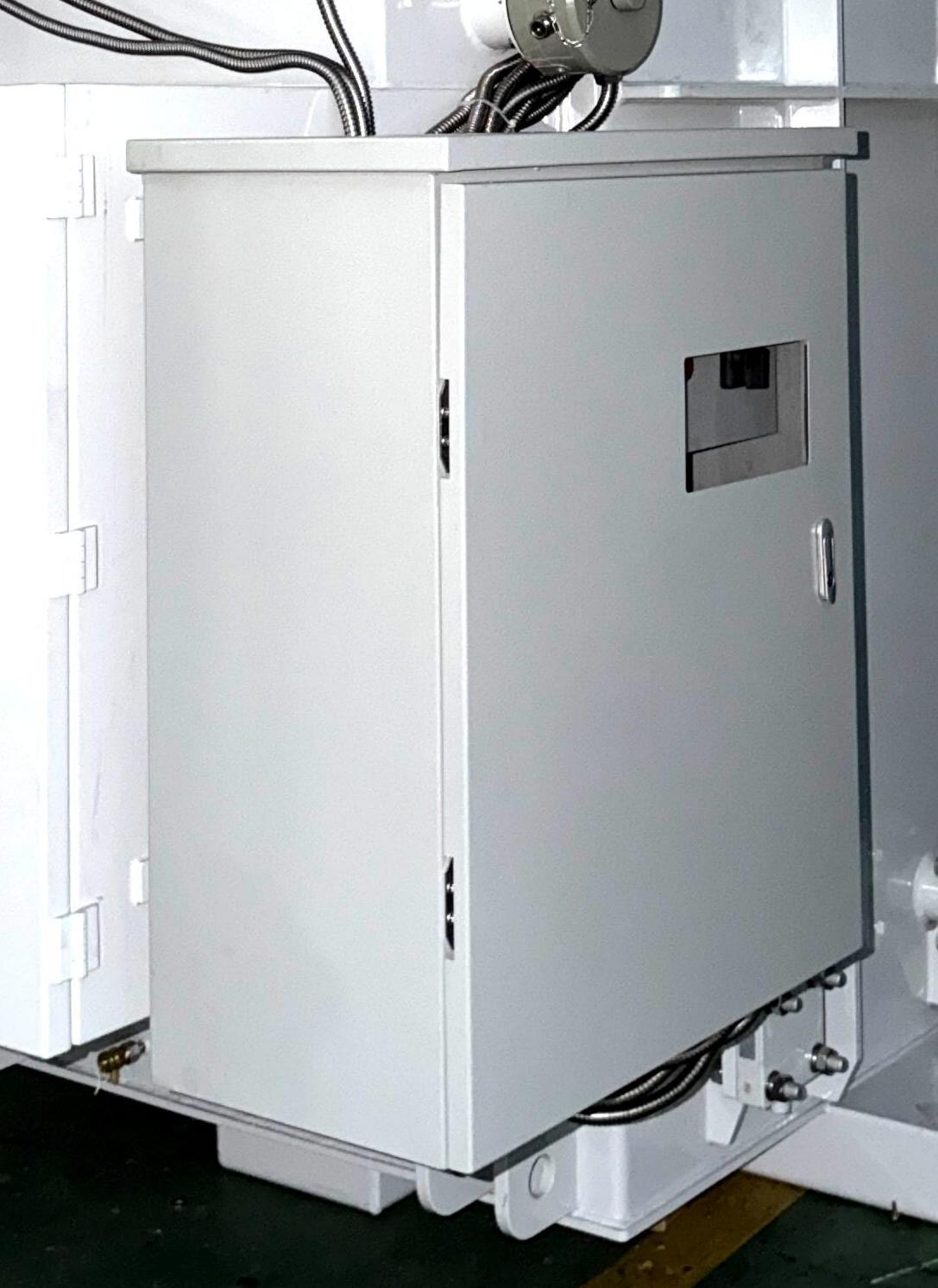

  • Control Terminal Box
    Houses control wiring and accessory terminals.

Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards

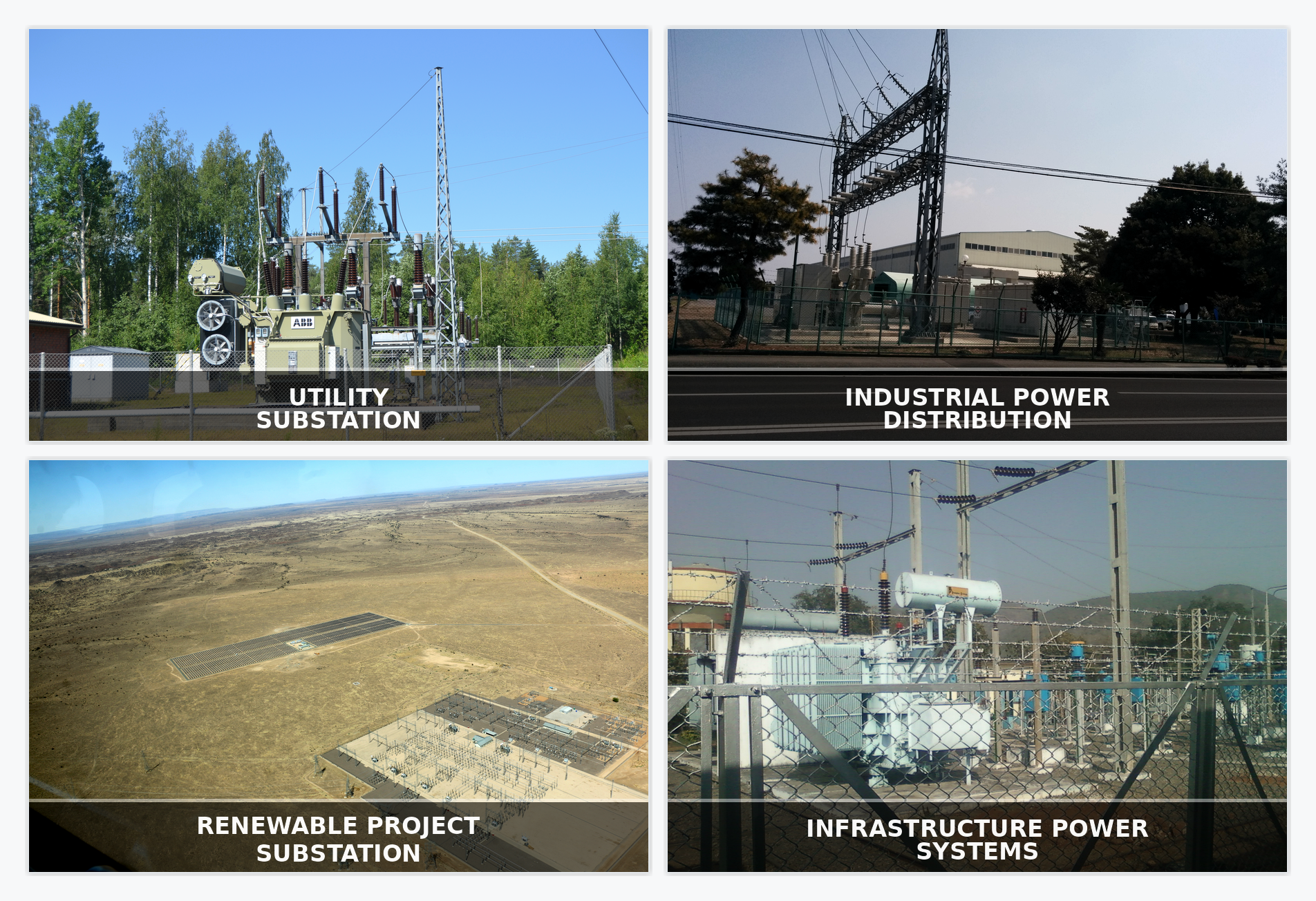

Applications

  • Utility Distribution Substations
    Suitable for 12.47kV feeder substations, municipal distribution points and outdoor medium-voltage networks requiring 2.4kV or 4.16kV secondary power.

  • Industrial Facilities
    Suitable for large plants, processing facilities, pump stations and heavy electrical rooms requiring stable medium-voltage power distribution.

  • Renewable Energy Project Substations
    Suitable for solar, wind and energy storage site distribution substations requiring outdoor transformer solutions for collection, auxiliary power or medium-voltage distribution systems.

  • Commercial and Infrastructure Power Systems
    Suitable for campuses, water treatment facilities, transport infrastructure and large outdoor power supply points requiring centralized medium-voltage power distribution.

  • Replacement and Retrofit Projects
    Suitable for existing outdoor substations requiring transformer replacement with 12.47kV primary input and 2.4kV / 4.16kV secondary output compatibility.

Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards



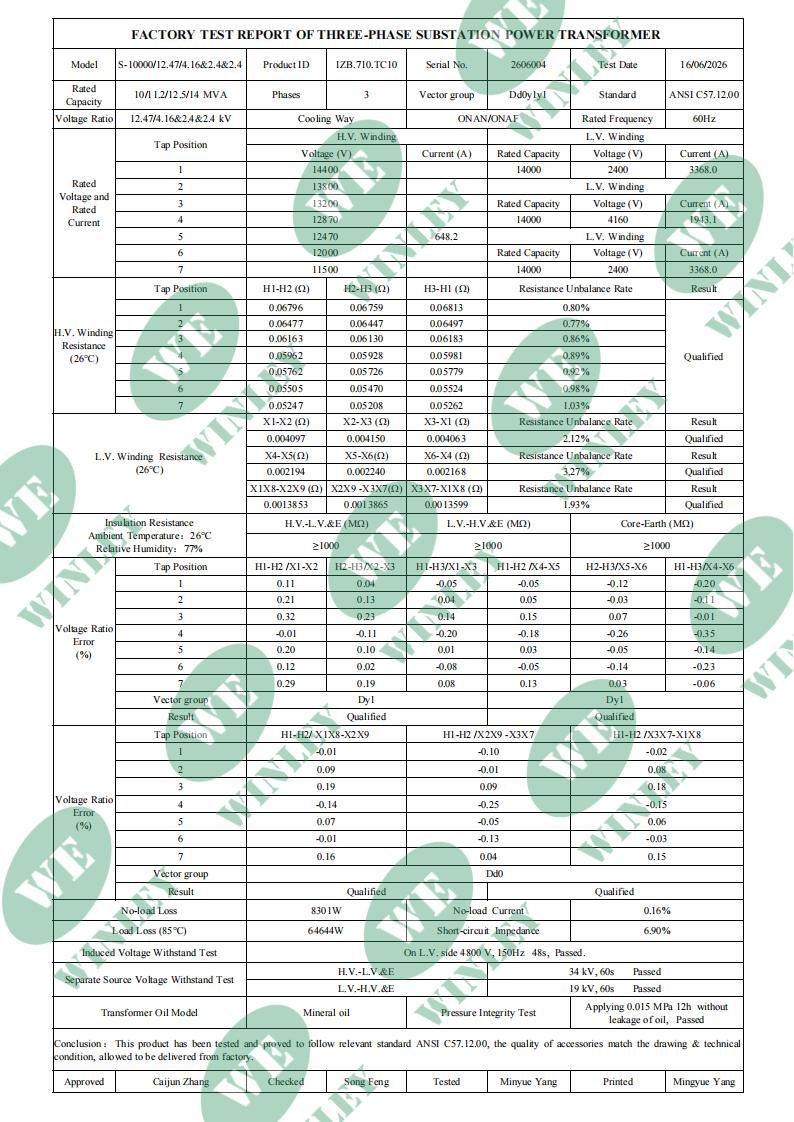

Factory Test Report


Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards



Substation Transformer Specification


Rated Capacity (kVA) High Voltage (kV) Low Voltage (V) Connection Symbol Short Circuit Impedance (%) No-load Loss (W) On-load Loss (W) Dimension W×H×D (mm) Weight (kg)
800 4.16 / 12.47 / 13.2 / 13.8 / 24.94 / 34.5 or others 208/120 / 480/277 / 600 / 12470 / 13200 / 13800 or others Dyn1 / Ynyn0 / Dyn11 / Dd0 / Ynd11 or others 2.7 / 3.1 / 4.35 / 5.75 / 6.0 980 9,350 1060×1500×1780 2,050
1000 1,160 11,500 1085×1570×1800 2,450
1250 1,380 13,900 1160×1610×1890 2,900
1600 1,660 16,600 1190×1630×1950 3,400
2000 2,030 18,300 1260×1700×2090 4,100
2500 2,450 19,600 1150×2150×2250 4,750
3000 3,240 26,500 1900×2600×2150 6,500
5000 4,500 27,000 2500×2210×3180 9,500
7500 7,200 32,000 3660×3100×5100 13,600
10000 8,500 35,500 3830×2640×2216 15,800



Why Choose Us

1. With extensive experience in North American projects, Winley Electric designs substation transformers to meet applicable ANSI/IEEE, CSA, NEMA and related standard requirements.
2. With a stable supply chain, mature production processes, Winley Electric can deliver substation power transformers within 12 weeks after technical confirmation.
3. Winley Electric provides complete English technical documentation, 24/7 technical response, spare parts support, and a 2-year warranty to support project installation and long-term operation.

Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards

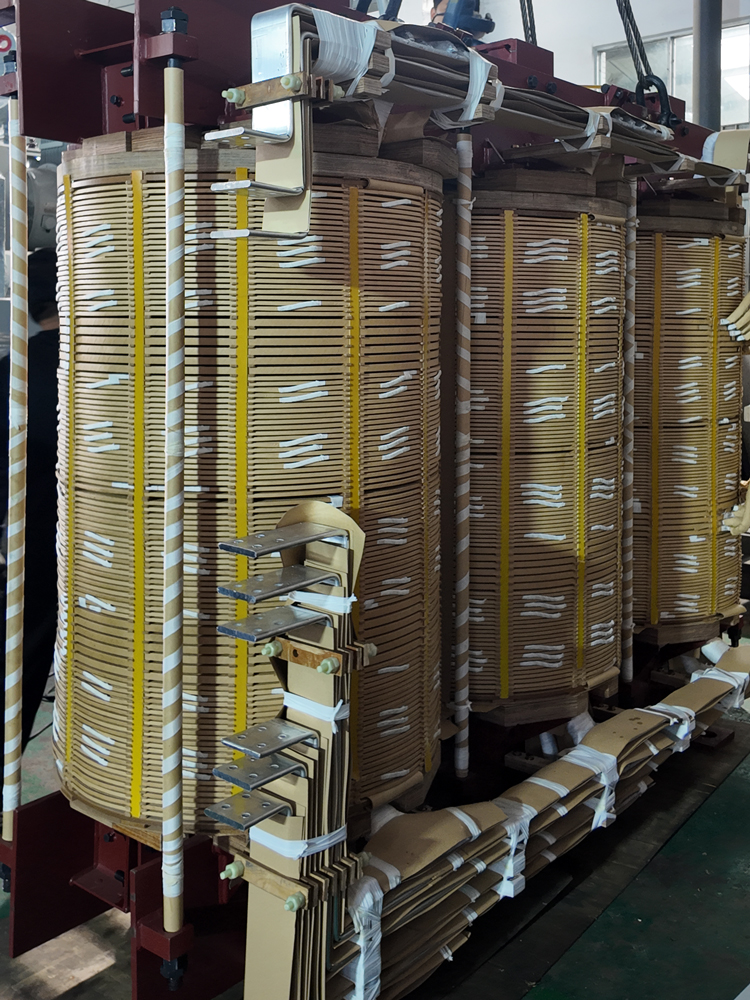

Production Process


Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards



Multi-Capacity Multi-Voltage 10/11.2/12.5/14 MVA Oil Immersed Substation Power Transformer 12470V to 2400D 4160Y/2400V ONAN/ONAF ANSI/IEEE Standards
