10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
Specifications
Brand Name :
WINLEY
Model Number :
D-10/5
Certification :
UL,cUL,CE,ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
5000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Transformer Type :
Pole Mount Transformer
capacity :
10 kVA
Primary Voltage :
2400/4160GrdY
Secondary Voltage :
120/240V
Cooling Class :
KNAN
Frequency :
60 Hz
Winding Material :
Copper
Standard :
ANSI / IEEE Standard C57.12.20
Description

10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer UL/cUL Listed

This 10 KVA Single Phase Pole Mount Overhead Transformer from Winley Electric features a high-efficiency copper winding design and eco-friendly FR-3 insulation oil, delivering a reliable, ANSI-compliant power solution backed by our industry-leading manufacturing expertise and commitment to superior corrosion resistance.

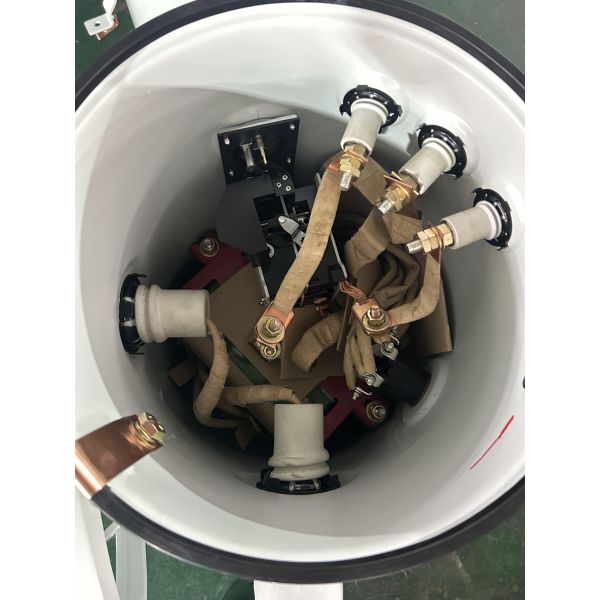

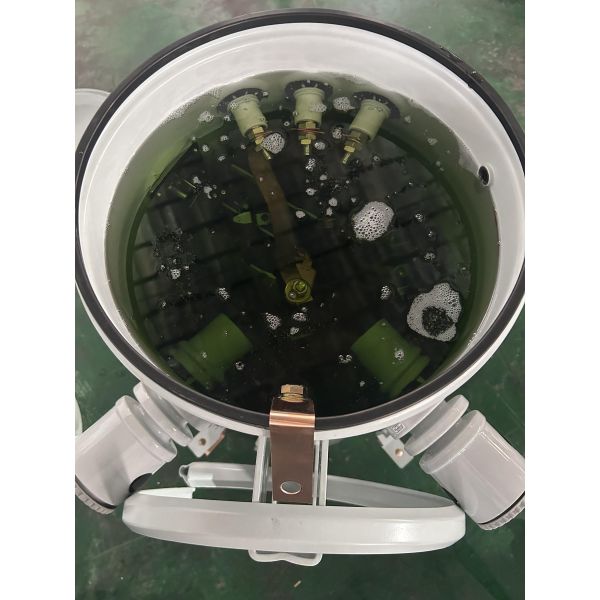

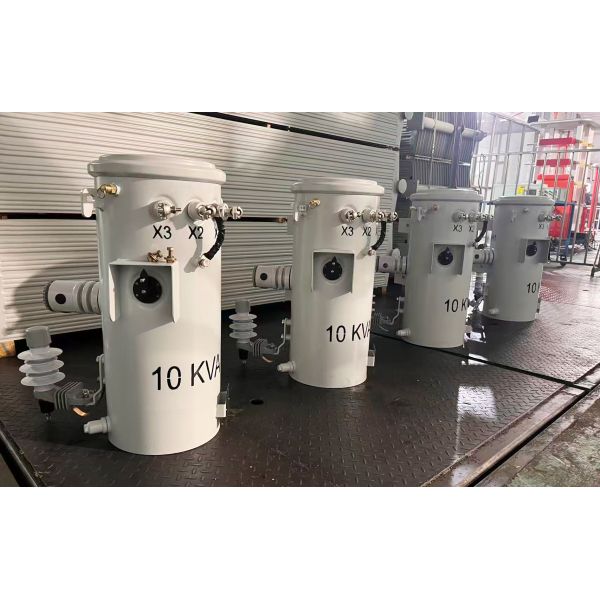

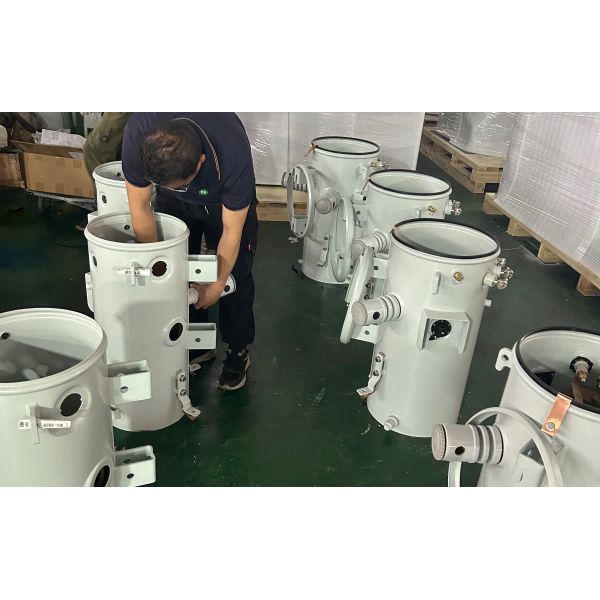

Production process

10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer

10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer

10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer 10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer

Main data

Phase Single Phase
Capacity 10 KVA
Primary Voltage 2400/4160GrdY Grounded Wye (2 Wire)
Primary BIL 75 kV
Secondary Voltage 120/240V (L-L-N)
Secondary BIL 30kV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Fluid FR-3 Oil - Non PCB Fluid
Cooling Class KNAN
No Load Loss 60W
Full Load Loss 156W
Winding Material Copper

Technical drawings

10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer

Customization

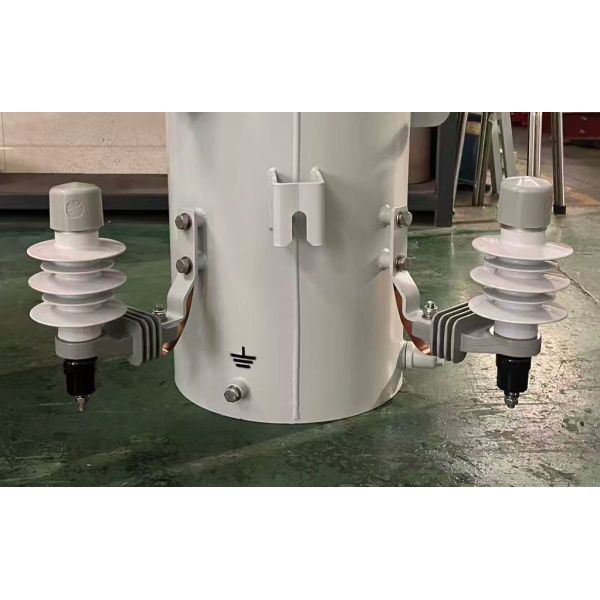

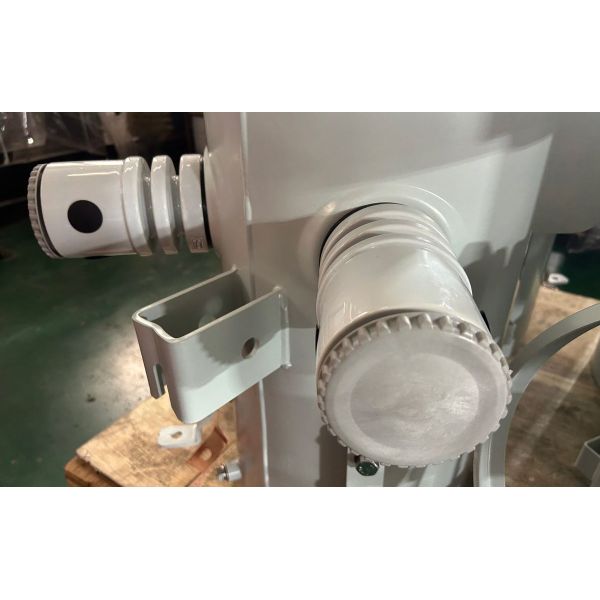

We offer customers the flexibility to select key components — including surge arresters, HV/LV bushings, fuses, and insulators — from internationally recognized brands such as Eaton, based on your specific requirements.

10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer 10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500		 110
220
230
400
480		 II0,II6 IEEE/ANSI/ DOE/CSA 1.0-4.5% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49

Why choose us

1.The pole-mounted transformers produced by WINLEY have obtained UL/cUL certification, with rated capacities ranging from 10 kVA to 333 kVA. The products meet or even exceed ANSI, IEEE, CSA, IEC60076 and other standards.
2.Through optimized electrical design, our products are safe, stable, and efficient, helping you save operating costs
3.Our products have been exported to North America, Central and South America, Southeast Asia and other markets in large quantities. We have rich experience and can provide comprehensive technical support and services.

10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer

10kva Pole Mounted Transformer Oil Immersed 2400/4160grdy To 120/240V Power Pole Transformer
