Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
Specifications
Brand Name :
WINLEY
Model Number :
D-100/34.5
Certification :
UL/cUL, CE, ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Application :
Power Distribution System
phase :
Single
Capacity :
100 KVA
Primary Voltage :
34500Y/19920V
Secondary Voltage :
120/240V
Frequency Rise :
60Hz
Cooling Class :
ONAN
Winding Material :
Copper
Description

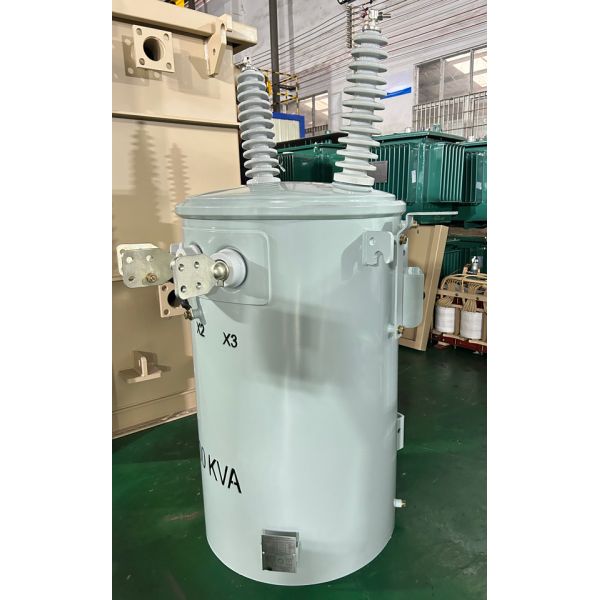

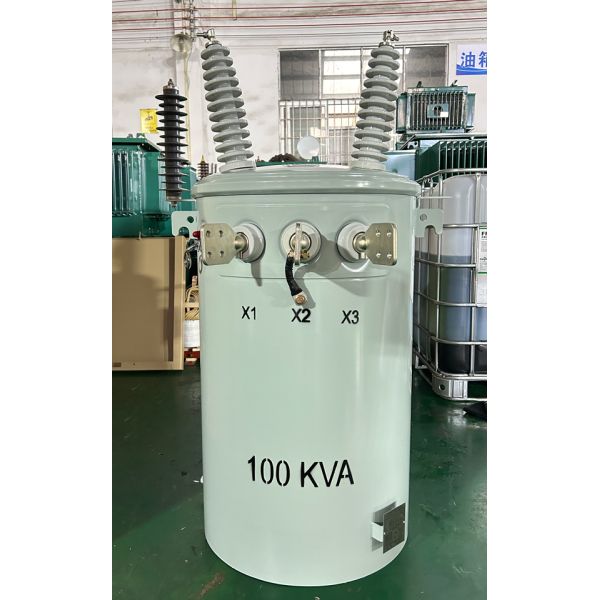

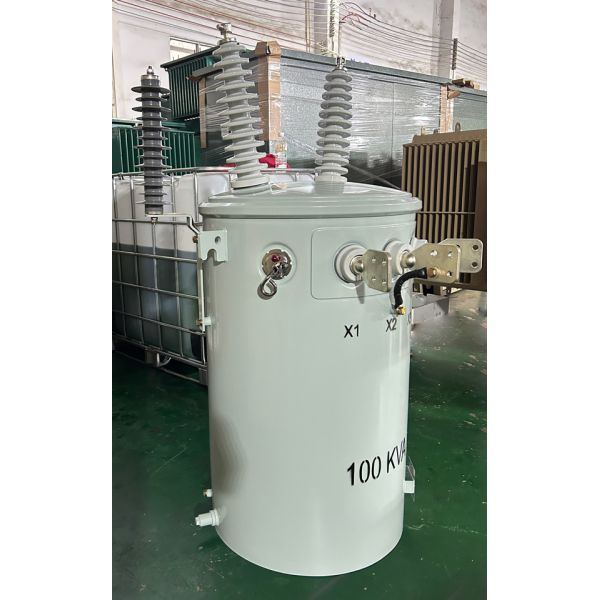

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers

Overview


The Winley 100 kVA overhead distribution transformer is a pole-mounted, liquid-filled, single-phase unit designed for reliable, efficient distribution in overhead networks. Built to industry standards and DOE efficiency requirements, this transformer is ideal for residential, commercial and light industrial distribution, retrofit replacement of legacy units, and new construction where compact, durable pole-mount solutions are required.

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers

Winley Manufacturing & Delivery Capacity

UL/cUL Certified product line: Winley’s single‑phase distribution transformers (10–333 kVA, up to 34.5 kV).
Multi-standard design: Products are engineered to meet or exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other applicable standards.
Production & delivery capability: Monthly delivery capacity exceeds 800 units; standard quick delivery within 4 weeks available depending on configuration and order size.

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers

Main Data

Transformer Type Overhead Distribution Transformer, Conventional Type
Phase Single Phase
Capacity 100 KVA
Primary Voltage 34500GrdY/19920
Primary BIL 125 kV
Secondary Voltage 120/240V
Secondary Voltage Class 1.2 kV Class
Secondary Phasor Dual Winding Single Phase
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E
Cooling Class KNAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 51 dBA
Efficiency 99.00%
No Load Loss (in watts) +/- 268W
Full Load Loss (in watts) +/- 1,095W

Drawing

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers

Why Choose This Unit

High efficiency: Low operating losses reduce lifecycle energy cost and meet DOE requirements.
Durable construction: Quality materials (copper windings, GO steel core, corrosion resistant tank) for long service life.
Field-friendly: External tap handle, removable top cover, internal oil level marking, drain port, and grounding provisions simplify installation and maintenance.
Certified & compliant: UL/cUL certification plus broad standards compliance provide confidence for utilities and contractors.
Fast availability: Strong production capacity and quick-turn delivery reduce project lead times.

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500		 110
220
230
400
480		 II0,II6 IEEE/ANSI/ DOE 1.8-4% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43

Production process

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers


Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers
