Specifications
Type :
Substation Power Transformer
Supply Ability :
100set/month
Certification :
ANSI/IEEE
Place of Origin :
CHINA
MOQ :
1unit
Secondary Voltage :
480V x 480V
Packaging Details :
Plywood case
Vector group :
YNd1
Model Number :
SF-8000/34.5
Cooling Class :
ONAN
Price :
$1000-$150000
Primary Voltage :
34,500Y/19,920V
Brand Name :
WINLEY
Capacity :
8000KVA
Standard :
ANSI C57.12.00
Operation :
Step-down
Payment Terms :
T/T
Delivery Time :
90days
Description
8000kVA 34.5kV/480V Three Phase Substation Power Transformer ONAN Oil Immersed
The 8000kVA 34.5kV/480V three-phase oil immersed substation transformer features a dual low-voltage split winding design (8000/4000-4000kVA), ideal for large-capacity power distribution, renewable energy integration, and industrial use. It improves electrical isolation, limits short-circuit current, and enhances system stability and safety. With aluminum alloy radiators, it ensures efficient cooling, lower weight, and strong corrosion resistance. It is widely used in solar power plants, energy storage systems, manufacturing plants, and utility substations.

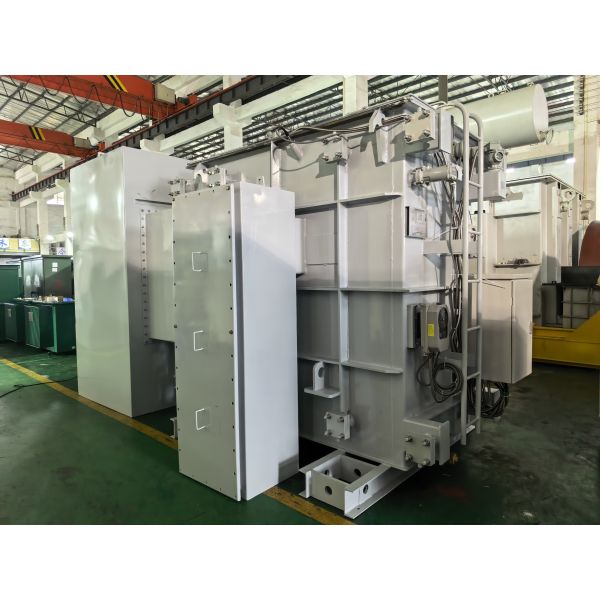

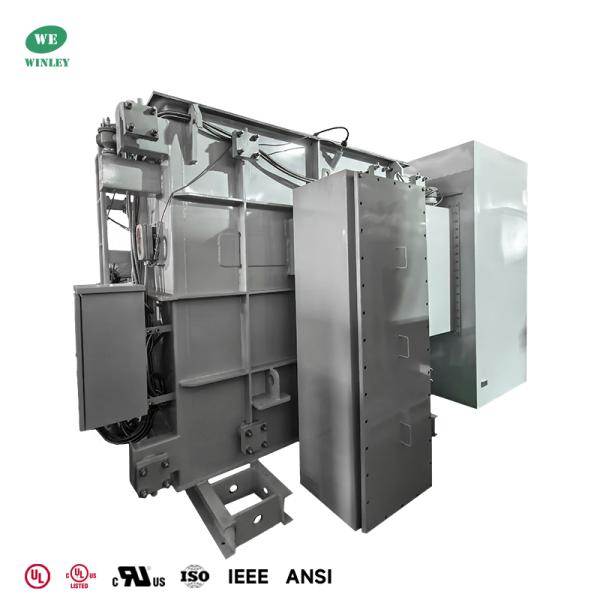

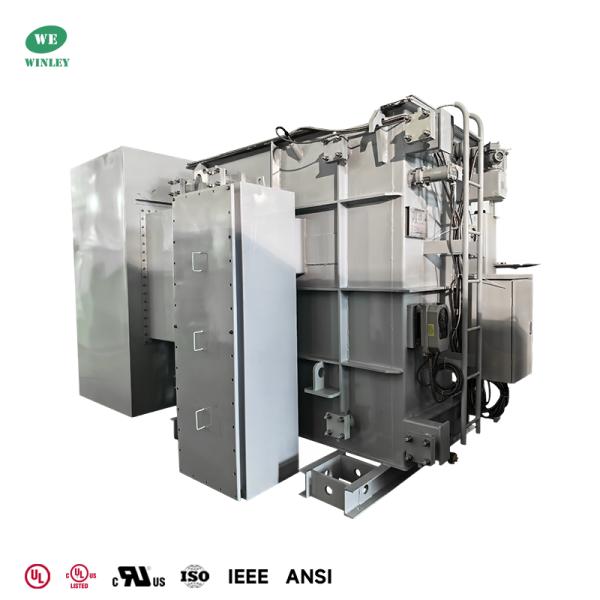

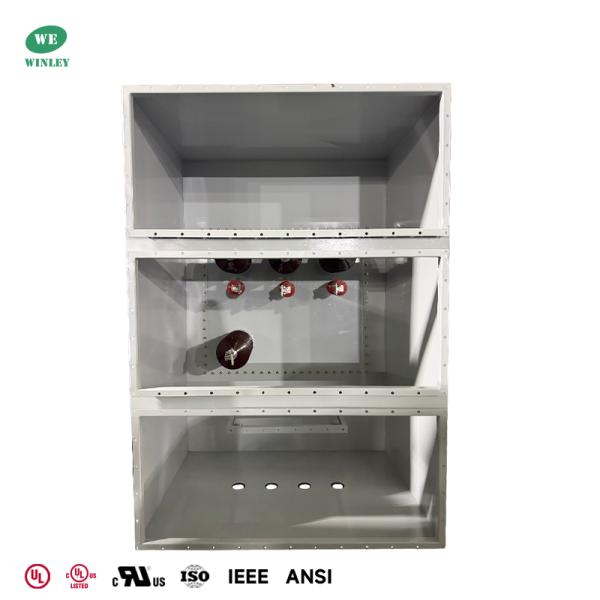

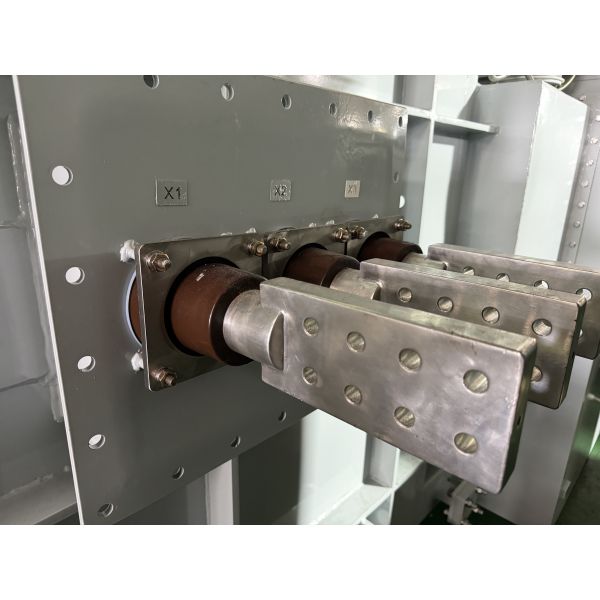

Product photos

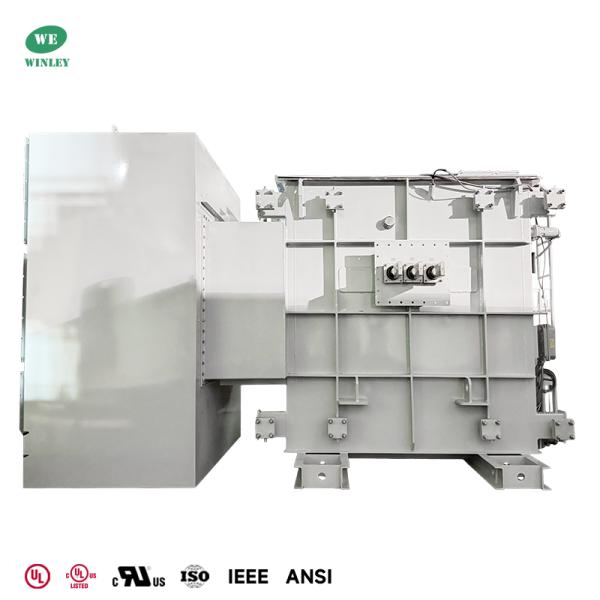

8000kVA 34.5kV/480V Three Phase Substation Power Transformer ONAN Oil Immersed ANSI IEEE Standards

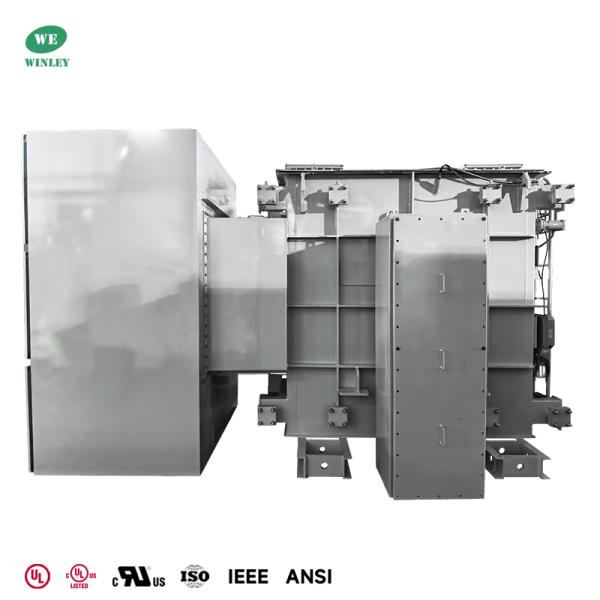

8000kVA 34.5kV/480V Three Phase Substation Power Transformer ONAN Oil Immersed ANSI IEEE Standards

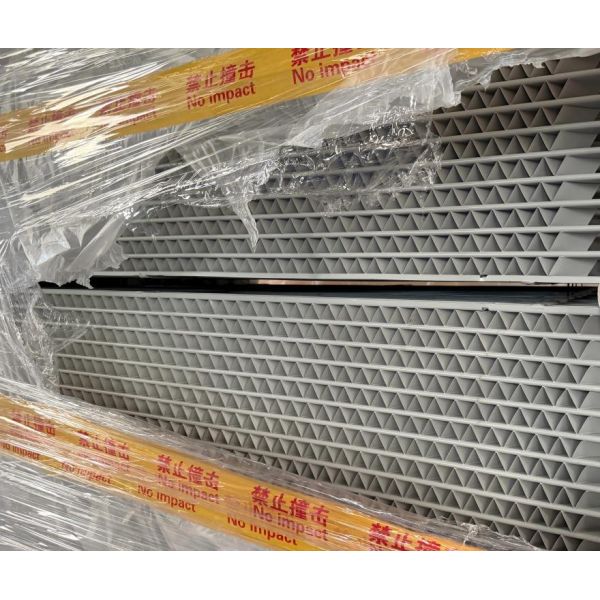

Aluminum alloy Radiators

Main Data
Transformer Type Substation Power Transformer, Hermetically Sealed Type
Transformer Configuration Liquid Filled Pad Mounted
Feed Type Radial Feed
Phase Three Phase
Capacity 8000 kVA
Vector Group YNd1
Cooling Class ONAN; Self-Cooled
Radiator Material Aluminum Alloy
Primary Voltage 34500Y/19920
Secondary Voltage 480V x 480V
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Winding Material Cooper
Efficiency % 99.41%
No Load Loss (in watts) 2,200 Watts
Full Load Loss (in watts) at 100% 23,450 Watts
Dimensions* 83-L x 75-D x 75-W
Total Weight (Liquid Filled)* 31,900 lbs



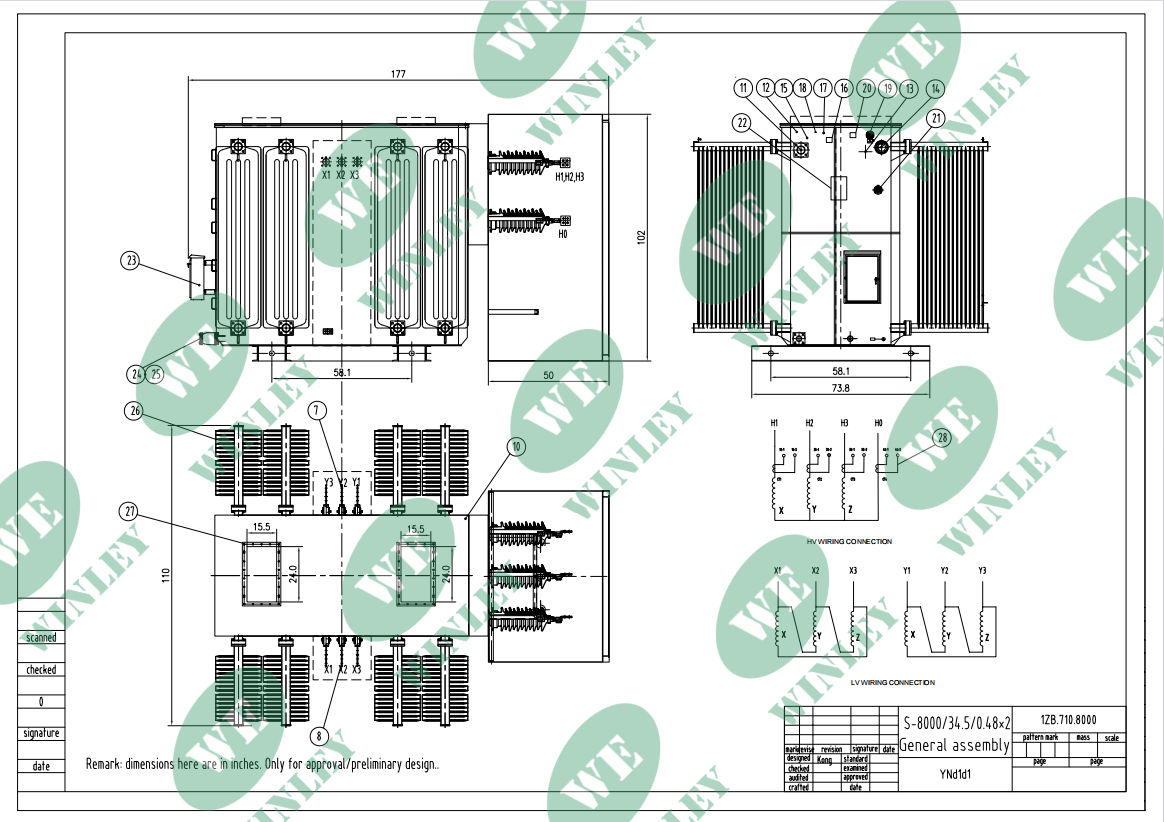

Technical drawings

8000kVA 34.5kV/480V Three Phase Substation Power Transformer ONAN Oil Immersed ANSI IEEE Standards


Standard Features

  • High-Capacity Design - 8MVA three-phase substation transformer for 34.5kV to 480V step-down conversion, ideal for industrial and utility applications.
  • North American Compliant - Fully meets ANSI C57.12.00, CSA C802.1 and DOE 2016 efficiency standards.
  • Ultra-High Efficiency 99.41% - Achieves 99.41% efficiency at 50% load with only 2,200W no-load loss for significant energy savings.
  • Dual Secondary Windings - 480V x 480V dual secondary configuration supports flexible applications including 12-pulse rectifier and dual-load feeds.
  • Premium Copper Windings - High-purity copper windings on both HV and LV sides ensure superior conductivity and low temperature rise.
  • Complete Protection Package - Factory-installed lightning arresters (36kV), current transformers, pressure relief device, and temperature gauges.
  • Aluminum Rolly Radiator - High thermal efficiency, lightweight design, and corrosion resistance.

8000kVA 34.5kV/480V Three Phase Substation Power Transformer ONAN Oil Immersed ANSI IEEE Standards


Applications


Sector Applications
Indusrial Manufacturing plants, heavy machinery, assembly lines
Utility Distribution substations, power grid, renewable energy farms
Commercial Large office buildings, hospitals, data centers
Infrastructure Airports, railway systems, water treatment



Substation Transformer Specification

kVA HV LV Width(mm) Length(mm) Height(mm)
315kVA 11000V 400V 800 696 1336
500kVA 27600V 480GrdY/277V 1730 2300 1510
500kVA 11000V 415V 1700 1700 1650
750kVA 11000V 433V 1850 1845 1465
1000kVA 14400V 415/240V 1085 1860 1570
1200kVA 13800V 240V 2450 1850 1820
1500kVA 24940V 600V 1800 1880 1895
2000kVA 7200V 600GrdY/346 1766 2680 1982
2000kVA 44000V 600V 1260 2090 1700
2500kVA 24940V 480GrdY/277V 2400 2200 2060
3000kVA 11000V 415V 1600 2330 1920
3000kVA 22800V 415/240V 2130 3500 1910
3750kVA 44000V 600V 2240 2650 2700
4000kVA 33kV 600Y/347 2150 3250 2290
5000kVA 34500V 7200V 3780 1850 3450
5000kVA 34500V 4160V 2799 2400 2938
6300kVA 35000V 400V 3520 2820 3470
6800kVA 34500V 800V 3400 2670 3400
7500kVA 27600Y 4160V 3350 3290 2270
