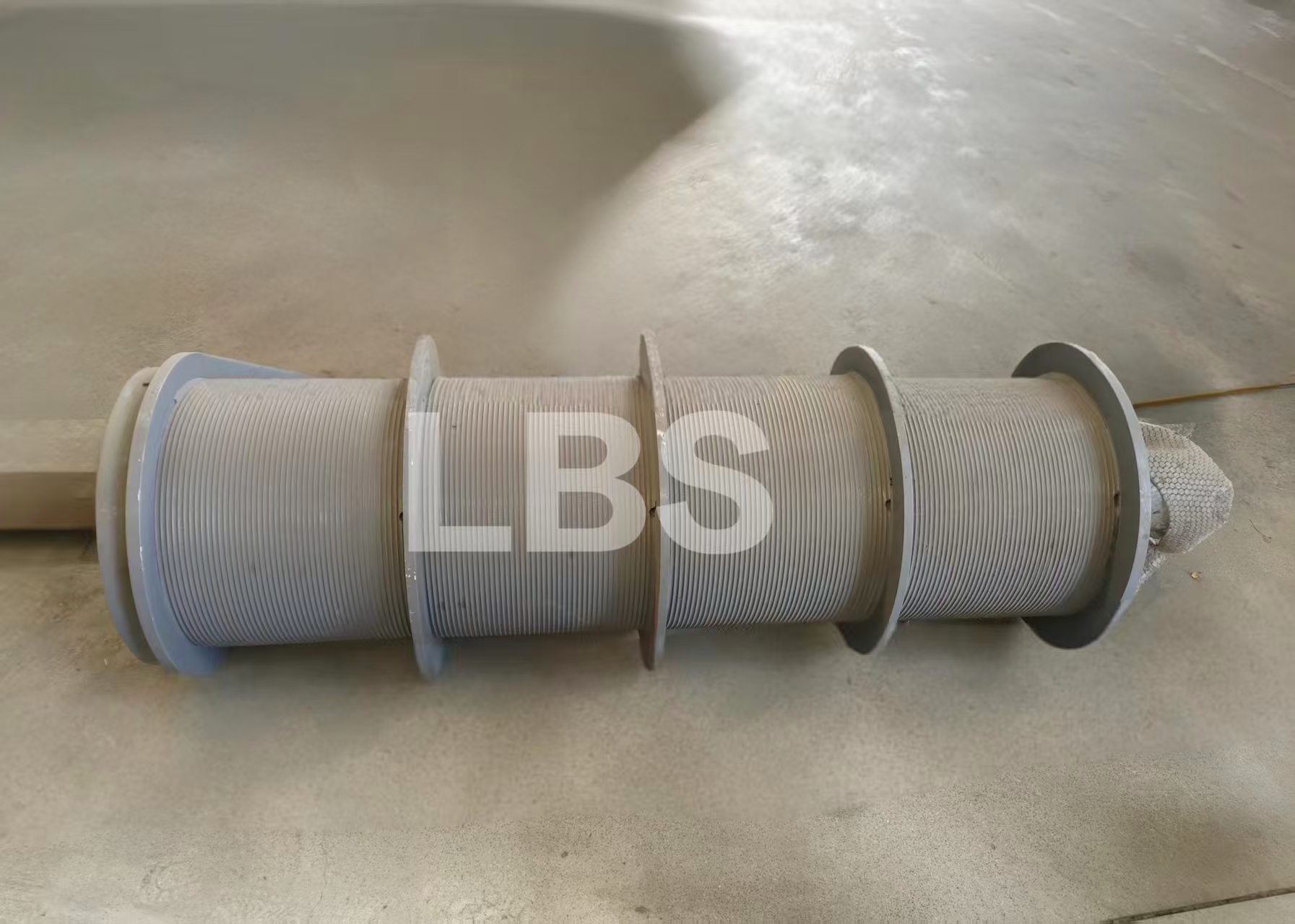

Multi-section Drum Steel Integrated Through Shaft For Heavy-duty Lifting Winch Equipment

Product Description

This multi-section drum is integrally fabricated from steel. Its separate segmented rope grooves allow synchronous winding and unwinding of multiple steel wire ropes. Partition baffles isolate each cable group to avoid rope tangling and guarantee independent lifting movements. Equipped with an integrated transmission shaft end, it features stable structure and high load capacity, widely used for multi-channel winches of large cranes and port machinery.

Technical Parameter

Matters Need to Attention

• Ensure concentricity of the shaft head during installation, tighten fixing bolts diagonally and evenly to prevent eccentric wear of segmented grooves.
• Keep balanced tension of wire ropes in each section; overload on single segment is forbidden to avoid barrel distortion.
• Prevent cross tangling of ropes from different sections, clear debris on partitions regularly to avoid rope jamming and breakage.
• Inspect partitions and rope grooves for cracks or abrasion regularly, stop operation for maintenance once damage occurs.
• Apply anti-corrosion paint regularly for outdoor service to avoid rust weakening structural strength.

About Us

Shijiazhuang Jun Zhong Machinery Manufacturing Co., Ltd, located in shijiazhuang city, hebei province, china, covers an area of more than 80 square meters, the geographical position is superior, transportation is convenient. Factory existing staff more than 3000, more than 600 professional and technical personnel, We have skilled workers, advanced processing equipment.

Our factory has casting, forging, gear machining, sheet metal stamping, welding, heat treatment, machining and other advanced equipment more than 2000 sets. In recent years, we has introductioned Germany CW1000 processing center, CNC four axis, five-axis linkage machining center, CNC punching machine, large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and 80 machine and other advanced processing equipment.
