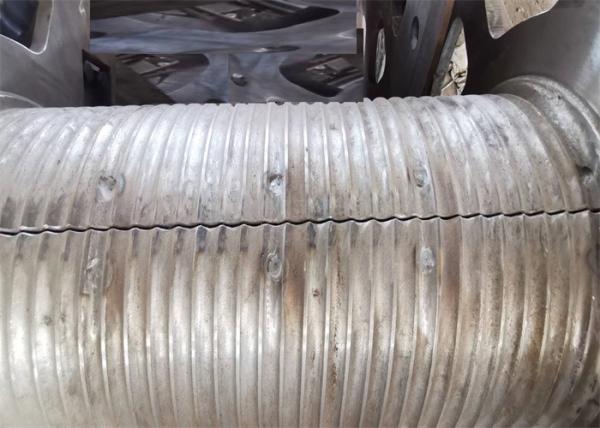

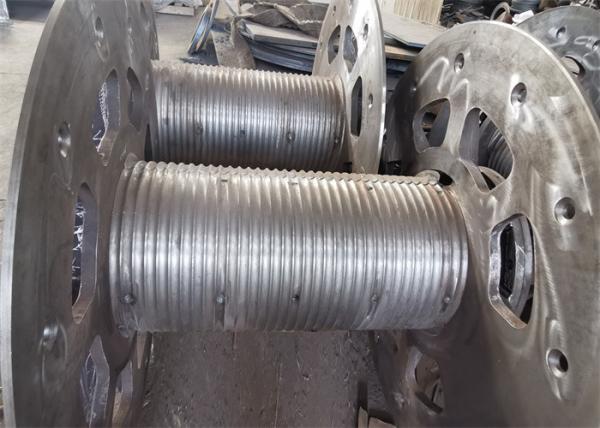

Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Specifications
Brand Name :
LBS
Model Number :
Custom design
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Pieces/Sets Per Month
Delivery Time :
20 to 30 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Name :
Split Type Lbs Groove Sleeves Wraps Smooth Drums
Key words :
lbs groove sleeves
Grooving Type :
LBS Groove
The material :
Q355B
Product Condition :
Fully Machined
Drum diameter :
20mm-5000mm
warranty :
1 year
structure :
smooth drum and gooved sleeves
connection type; :
welding
Description

Split Type LBS Groove Sleeves Wraps Smooth Drums Welded Together

Product introduction
LBS system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove,LBS drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.

Product attributes
name LBS grooved drum
rotation direction lefthand or righthand
wire rope diameter 3mm-190mm
processing equipment CNC machining center
drum type LBS spooling system-based on unique geometry of the drum grooving
material alloy steel
ceertified DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR

Product application:
1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
Product advantage:

LBS grooved drum, solved the problem of wire rope spooling.
Compared with ordinary cordless groove (smooth) drum and helical rope groove drum, LBS rope groove has obvious advantages in the multi-layer wire rope spooling, LBS special groove system makes the spooling of wire rope smooth, and the load of each layer evenly distributed, extend the service life of rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.


TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc
LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc

The use of environment:

1. Outdoor use is allowed;

2. The altitude does not exceed 2000M;

3. Ambient temperature -30℃ ~ +65℃;

4. It is allowed to work under rain, splash and dust conditions.

Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
Split Type Lbs Groove Sleeves Wraps Smooth Drums Welded Together
