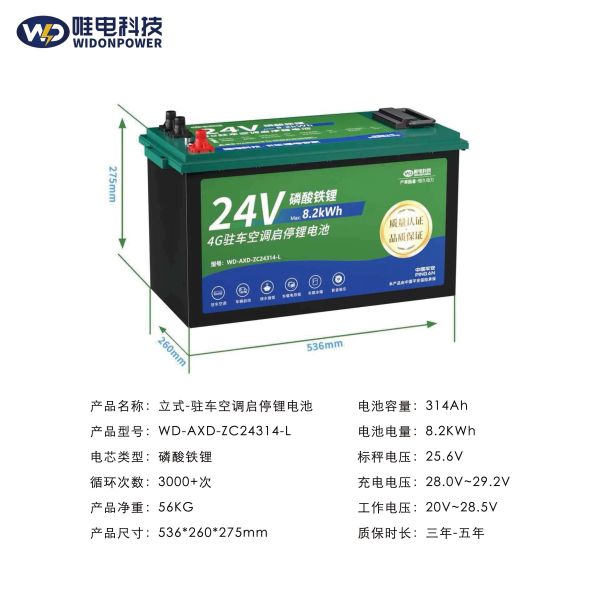

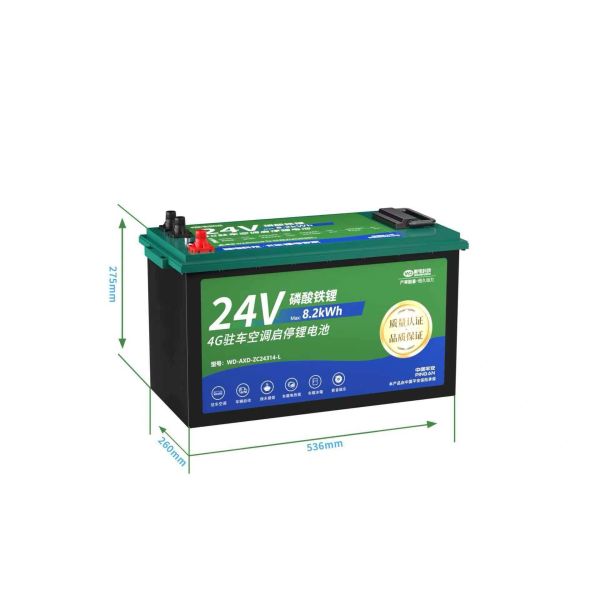

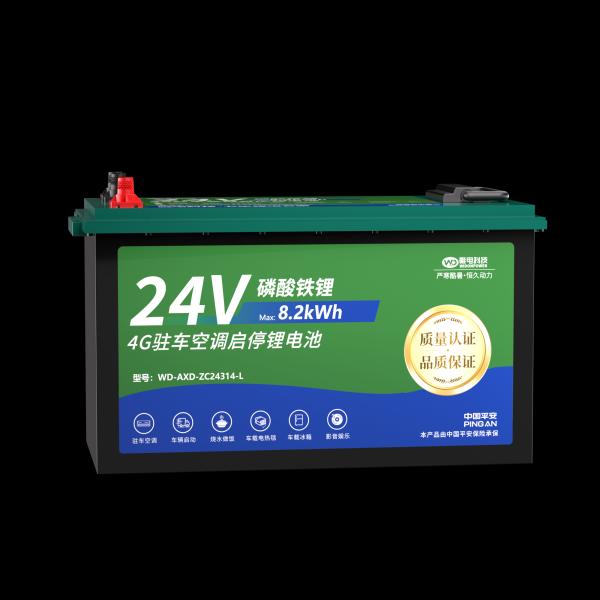

The 24V 8.2kWh LiFePO4 lithium battery pack is specially designed for truck parking air conditioning systems and vehicle start-stop power supply applications.

With high energy density and stable output performance, it provides reliable power support for vehicle electrical systems during parking, eliminating the need for engine idling and significantly reducing fuel consumption.

• Advanced LiFePO4 (Lithium Iron Phosphate) battery technology
• Large capacity: 8.2kWh high energy output
• High capacity design: 314Ah long-lasting power supply
• Designed for truck parking air conditioner systems
• Stable performance for start-stop vehicle power systems
• Built-in intelligent BMS protection system
• Long cycle life with 3000+ cycles
• Strong safety performance and thermal stability

• Model: WD-AXD-ZC24314-L
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 25.6V
• Energy Capacity: 8.2kWh
• Battery Capacity: 314Ah
• Charging Voltage: 28.0V–29.2V
• Operating Voltage: 20V–28.5V
• Cycle Life: 3000+ cycles
• Net Weight: 56kg
• Dimensions: 536 * 260 * 275 mm
• Waterproof rating: IP67

• Standard Discharge Current: 200A
• Peak Discharge Current: 2500A
• Undervoltage Discharge Protection: 20V
• Overcurrent Charging Protection: 150AOvervoltage Charging Protection: 30.4V

• Truck parking air conditioning system
• Sleeper cab cooling system
• Commercial vehicle idle power supply
• Logistics trucks & long-distance transport vehicles
• Vehicle start-stop auxiliary power system
• Onboard appliances: refrigerator, cooking, entertainment system

• No engine idling → save fuel cost
• Stable cooling during parking
• High safety LiFePO4 chemistry
• Long service life and low maintenance
• Strong adaptability for commercial vehicles
• IP-grade protection (based on system configuration)

3–5 years warranty
