Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Price :
Negotiate
Model Number :
WD-AXD-ZC24206-W
MOQ :
Negotiate
Delivery Time :
25-45days
Supply Ability :
3000pcs/month
Packaging Details :
Wooden Box
Output Power :
Customized
Brand Name :
Wisdom
Certification :
CE
Place of Origin :
China
Description
1. Product Overview

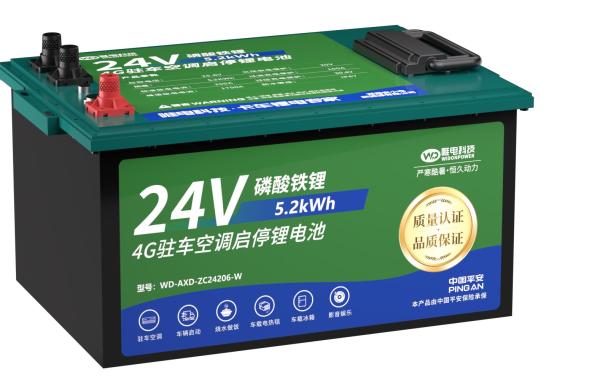

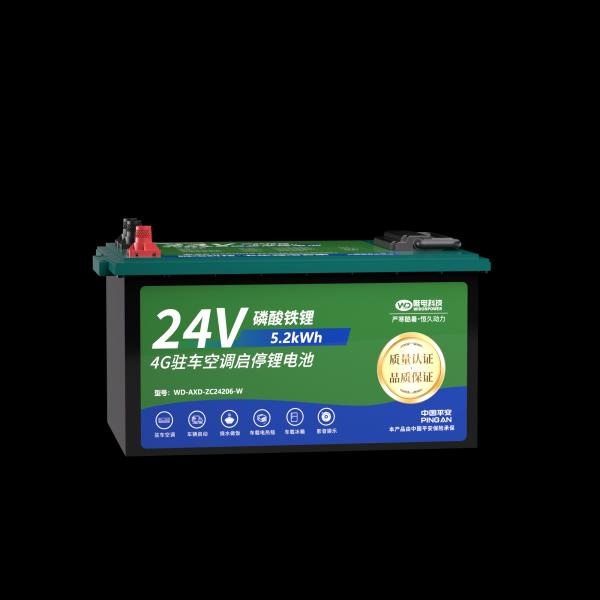

The 24V 5.2kWh LiFePO4 lithium battery pack is specially designed for vehicle parking air conditioning and start-stop power systems.

It provides stable and reliable power support for truck and commercial vehicle applications, ensuring comfortable parking environment without engine idling.

Model: WD-AXD-ZC24206-W
Brand: Wisdom Technology

2. Key Features
  • High-performance LiFePO4 (Lithium Iron Phosphate) battery technology
  • Large capacity: 5.2kWh stable energy output
  • Designed for truck parking air conditioner & start-stop system
  • Strong safety performance with built-in BMS protection system
  • Long cycle life & high thermal stability
  • Supports continuous power supply during parking
  • Maintenance-free operation

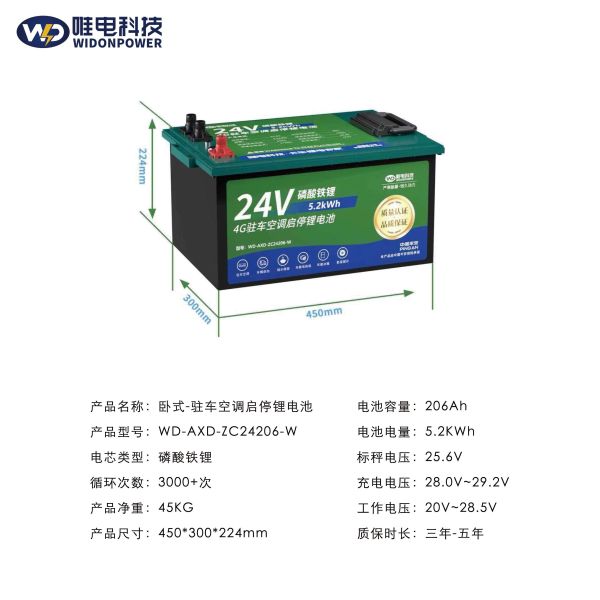

3. Technical Specifications
Nominal Voltage 25.6V
Energy Capacity 5.2kWh
Battery Type LiFePO4 (Lithium Iron Phosphate)
Model WD-AXD-ZC24206-W
Charging Voltage 28.0V–29.2V
Operating Voltage: 20V–28.5V
Standard Discharge Current 200A
Peak Discharge Current 1700A
Undervoltage Discharge Protection 20V
Overcurrent Charging Protection 100A
Overvoltage Charging Protection 30.4V
Waterproof rating IP67
Cycle Life 3000+ cycles
Net Weight 45kg
Dimensions 450 * 300 * 224 mm
Warranty 3–5 years
4. Application

This battery pack is widely used in:

  • Truck parking air conditioning system
  • Commercial vehicle idle power supply
  • Logistics trucks & long-distance transport vehicles
  • Bus / fleet parking cooling systems
  • 4G intelligent vehicle energy systems

Application Scenarios:

  • Parking Air Conditioner System
  • Vehicle Engine Start Support
  • Cooking / Water Boiling Appliances
  • Car Electric Blanket
  • Vehicle Refrigerator
  • Audio & Video Entertainment System
5. OEM / ODM Service

We support:

  • OEM branding
  • Capacity customization
  • Voltage system adjustment
  • Housing & structure design customization
