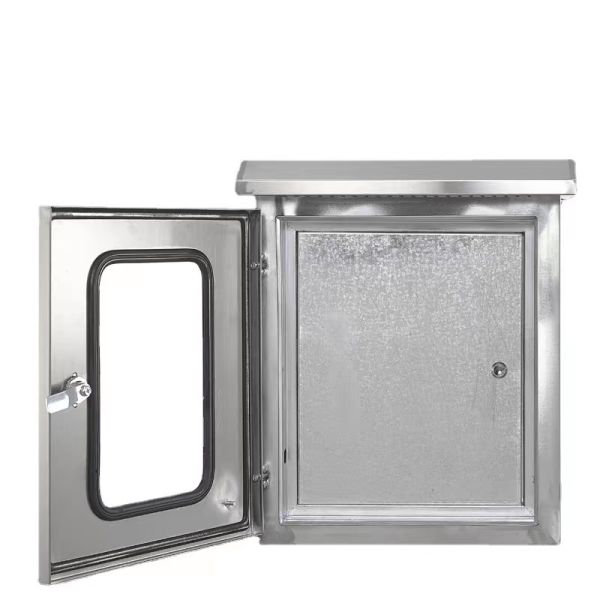

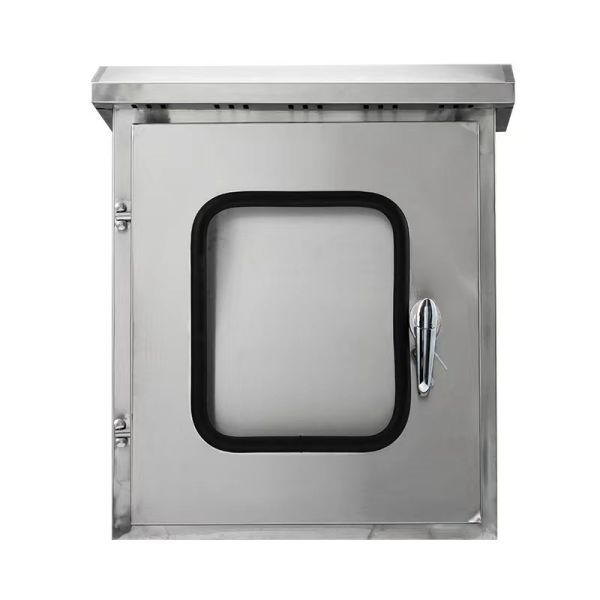

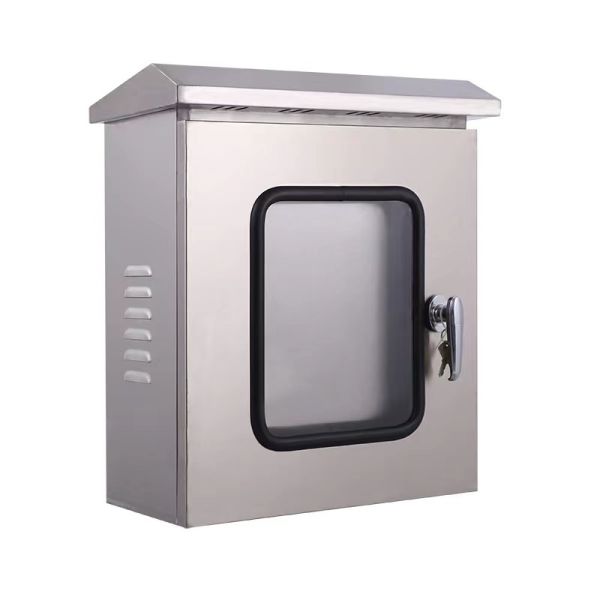

The Outdoor Stainless Steel IP65 Rainproof Electric Box is a premium-grade enclosure designed for high-reliability power distribution in challenging environments. Engineered to house switchgear ranging from 63A to 1000A, this cabinet provides a robust shield against rain, snow, salt spray, and industrial pollutants.

Fabricated from high-density SUS304 or SUS316 stainless steel, our cabinets offer a "lifetime" solution compared to standard painted carbon steel. The specialized slope-top (rain hood) design and seamless welding ensure that water is diverted away from the door seals, maintaining a bone-dry interior for your breakers, PLCs, and busbars. This makes it the industry standard for coastal infrastructure, wastewater treatment plants, and rooftop solar installations.

• Superior Corrosion Resistance: Available in SS304 for standard outdoor use or SS316L for marine-grade applications. Stainless steel eliminates the risk of rust, even if the surface is scratched or dented.

• IP65/IP66 Waterproof Sealing: Features a high-performance, CNC-poured Polyurethane (PU) gasket. This seamless seal ensures a dust-tight and water-jet-resistant environment for internal electronics.

• Slanted Rain-Shield Design: The integrated 15° slope-top prevents water accumulation on the roof, significantly reducing the chance of moisture ingress through the top seams or seals.

• Rugged Vandal-Proof Hardware: Equipped with stainless steel heavy-duty hinges and a secure 3-point locking system. The 130° door opening allows for effortless wiring and maintenance access.

• Advanced Passive Cooling: Stainless steel naturally reflects solar radiation, helping to keep internal temperatures lower than dark-painted enclosures. Optional ventilation louvers with insect-proof mesh are available for high-load applications.

1. Marine & Coastal Infrastructure: Ideal for seaports, beachside resorts, and offshore platforms where salt-air corrosion is constant.

2. Solar & Wind Energy: Outdoor combiner boxes and DC/AC distribution for renewable energy collection points.

3. Food & Chemical Processing: Wash-down areas where equipment must survive high-pressure cleaning and harsh sanitizing chemicals.

4. Mining & Industrial Sites: Protecting power controls in dusty, humid, or acidic environments.

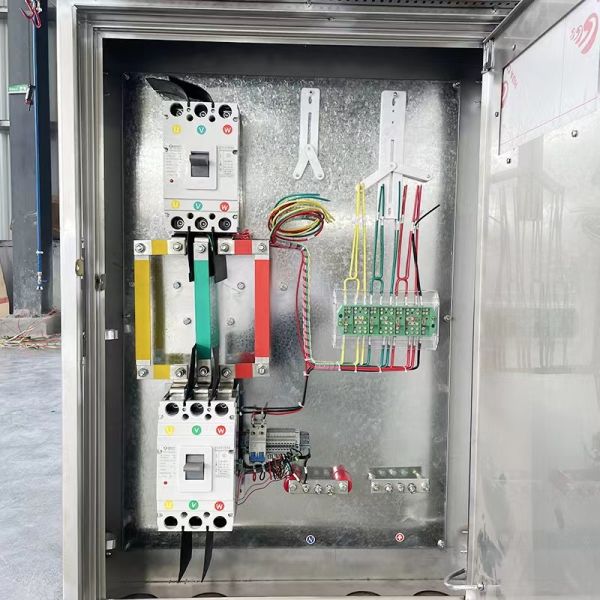

• Fully Customizable Interior: We offer custom-drilled gland plates, internal partitions, and adjustable mounting rails to fit your specific switchgear layout.

• Zero Maintenance: Unlike painted cabinets that require regular touch-ups to prevent rust, our stainless steel cabinets are essentially maintenance-free for their 25+ year lifespan.

• Grounding Safety: Every cabinet includes welded copper earthing studs on both the door and the body to ensure total electrical continuity and safety.

• Precision Fabrication: Utilizing high-speed fiber laser cutting and CNC bending, we guarantee millimeter-perfect dimensions and smooth, burr-free edges for every unit.

Q: Is SUS316 necessary for my outdoor project?

A: If your installation is within 5km of the sea, we highly recommend SS316. It contains molybdenum, which specifically prevents "pitting" corrosion caused by chloride (salt). For inland projects, SS304 is usually sufficient.

Q: How do you prevent internal condensation?

A: For humid environments, we can integrate IP55 breather vents or anti-condensation heaters. These allow the cabinet to "breathe" without letting in liquid water or dust.

Q: Can these boxes handle high-current 1000A busbars?

A: Yes. We design the internal structure and thickness of the mounting plates to handle the weight and thermal stresses of high-capacity copper busbar systems.
