The 63A Outdoor Industrial Switchgear Cabinet is a robust, low-voltage power distribution solution specifically engineered for demanding exterior environments. Built from high-strength, cold-rolled steel or galvanized plates, this cabinet is designed to house a 63A main breaker along with various branch circuits, providing centralized control and protection for industrial machinery and lighting.
This "ready-to-install" cabinet is ideal for projects requiring a localized power hub that can withstand the elements. Featuring a UV-resistant powder coating and an advanced sealing system, it protects internal components from rain, dust, and mechanical impact, ensuring long-term operational stability for factories, construction sites, and agricultural facilities.

• High-Strength Metal Enclosure: Constructed from 1.5mm to 2.0mm thick metal plating with a multi-stage anti-corrosion treatment, ensuring the cabinet remains rust-free in humid or outdoor settings.

• Weatherproof IP-Rated Sealing: Equipped with high-elasticity polyurethane foam gaskets and a sloped rain hood (drip shield) to maintain an IP55 or IP65 rating against water jets and dust.

• Integrated 63A Protection: Comes standard with a high-performance 63A circuit breaker, providing reliable overcurrent and short-circuit protection for 380V/415V systems.

• Flexible Internal Layout: Features a modular DIN-rail and adjustable mounting plate, allowing for easy customization of additional MCBs, contactors, or industrial sockets.

• Anti-Vandal Security: Designed with a heavy-duty, lockable handle and internal concealed hinges to prevent tampering and unauthorized access in public or remote areas.

1. Construction Sites: Reliable temporary power distribution for heavy tools, cranes, and site office units.

2. Industrial Yards: Managing outdoor lighting, pumping systems, and peripheral machinery power.

3. Agricultural Facilities: Protecting motor starters and irrigation controls in dusty or damp farm environments.

4. Renewable Energy: Small-scale AC combiner box for solar arrays or remote monitoring stations.

• Full Customization: We offer tailored solutions for cable entry (bottom or side), internal component brands (Schneider, ABB, or CHINT), and custom dimensions to fit tight spaces.

• Efficient Heat Management: Engineered with natural ventilation louvers that allow for heat dissipation while maintaining strict ingress protection against rainwater.

• Safe Grounding System: Includes pre-installed high-conductivity copper grounding studs on both the cabinet body and the door to ensure total electrical safety.

• Installer-Friendly Design: Ample internal space allows for easy cable termination and clean wire management, significantly reducing field installation time.

Q: Can this cabinet be upgraded to a higher amperage later?
A: Yes. While it comes standard with a 63A breaker, the internal busbar and DIN-rail are rated to accommodate upgrades up to 100A if your future power requirements increase.
Q: Is the paint resistant to fading in the sun?
A: Absolutely. We use a specialized outdoor polyester powder coating that is UV-stabilized, preventing chalking and fading even under intense direct sunlight.
Q: Does the unit come with pre-cut holes for cables?
A: We can provide the cabinet with custom CNC-cutout entry points or with a solid removable gland plate, giving your installers the flexibility to drill exact holes on-site.

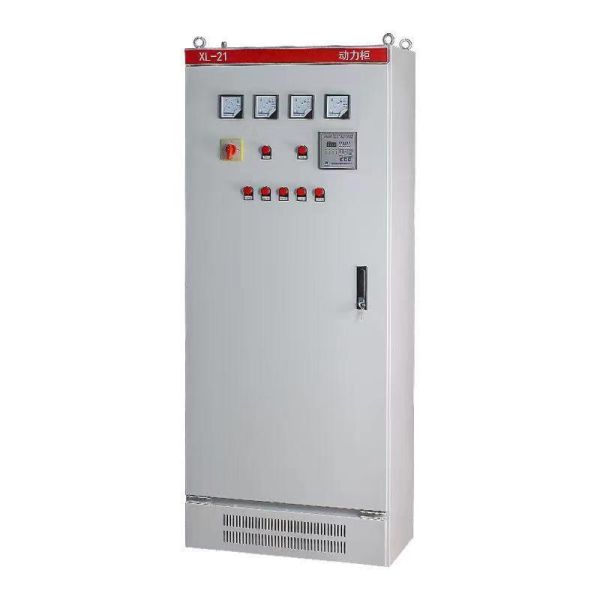

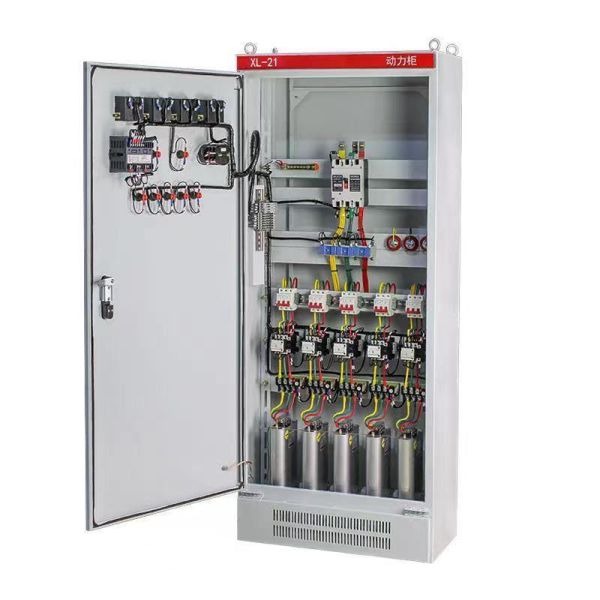

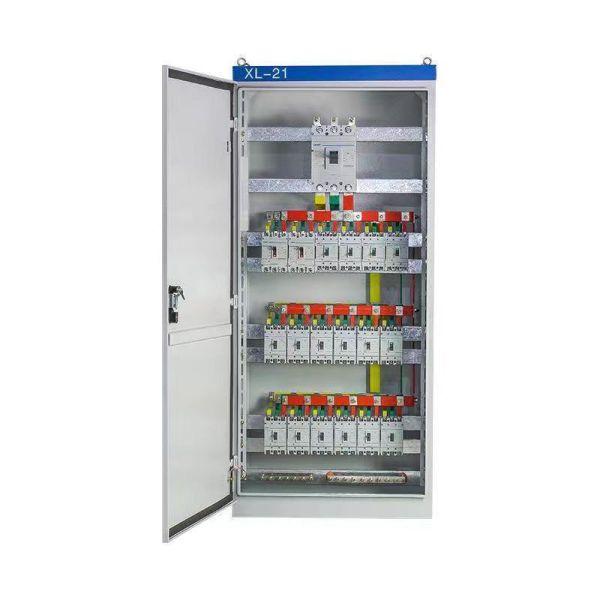

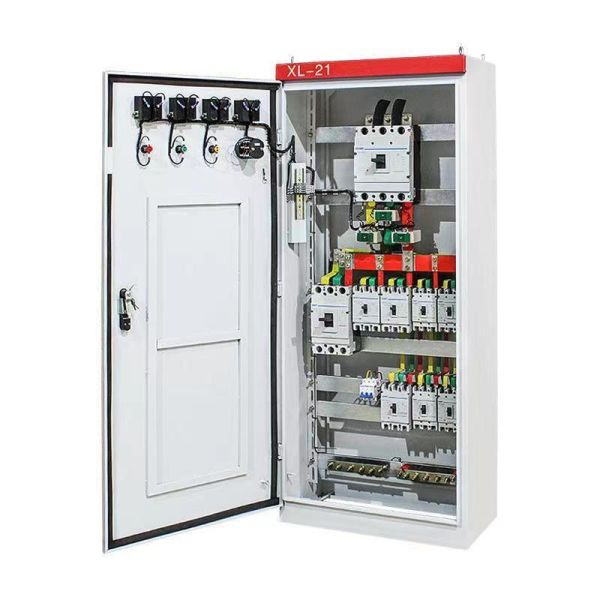

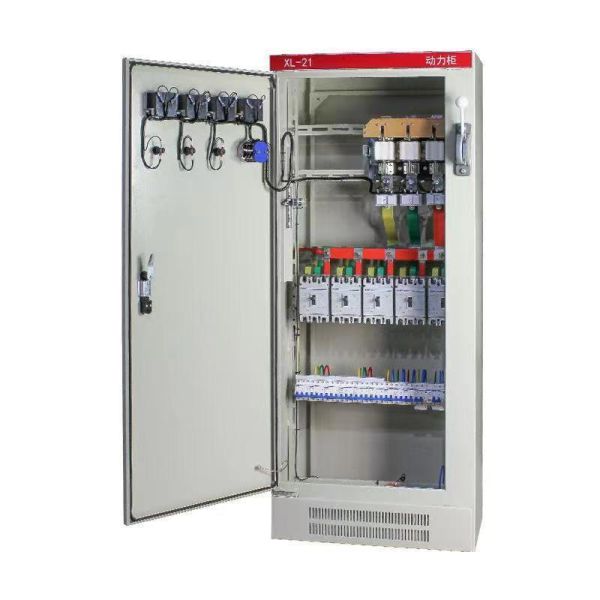

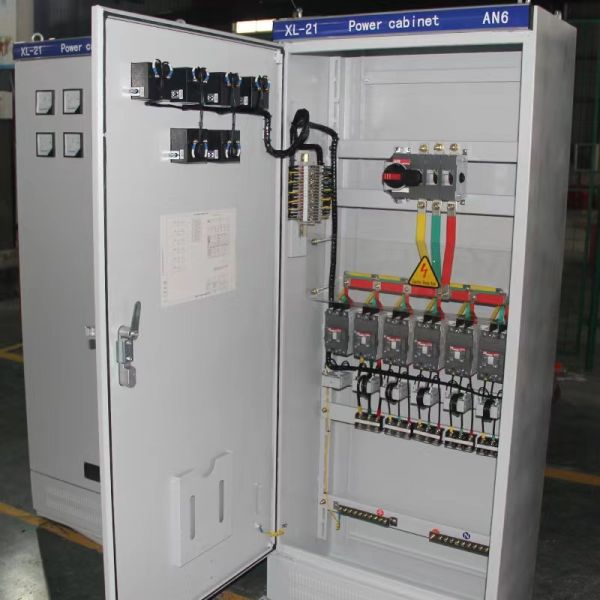

XL-21 Low-voltage power distribution cabinet is suitable for power distribution of three-phase four-wire or three-phase five-wire system with AC voltage of 500 volts and below in power plants and industrial and mining enterprises. XL-21 low-voltage power distribution cabinet is installed against the wall of the indoor device, and inspected in front of the screen. The shell IS made of steel plate bending, and the knife switch handle is on the upper part of the right column in front of the box, which can be used for switching power supply. According to the needs of users, different types of circuit breakers with different current levels can be selected to meet the needs of different users.
