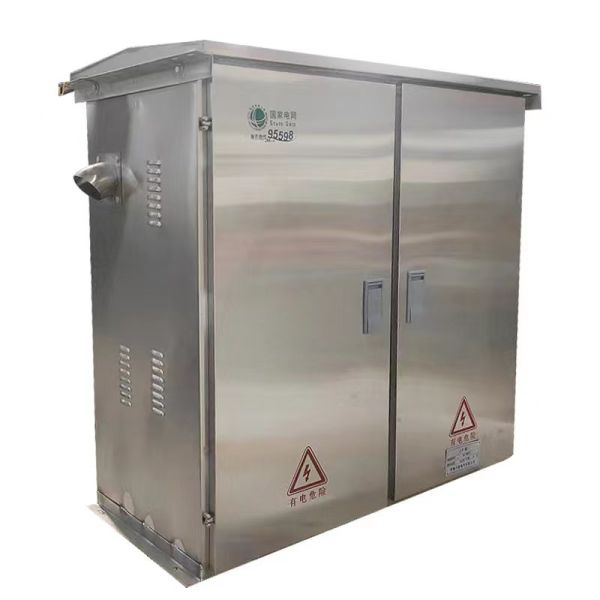

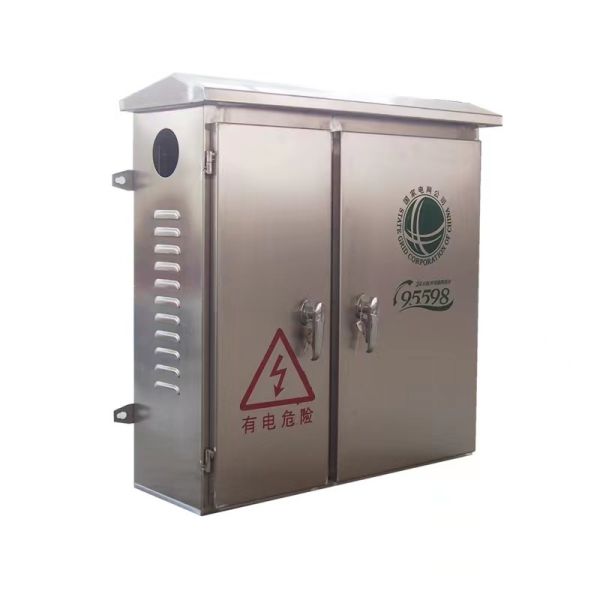

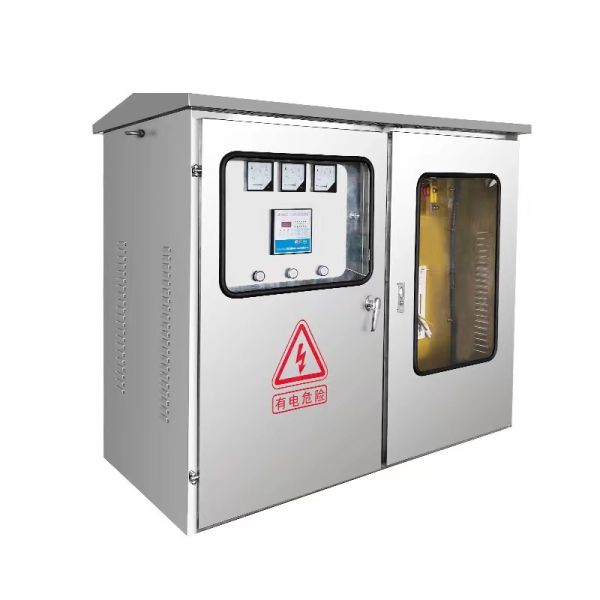

The Outdoor Stainless Steel Distribution Cabinet Shell is a high-performance protective enclosure engineered for primary power distribution in the harshest environments. Designed as a versatile "Cubicle" shell, it provides the structural integrity required to house low-voltage and medium-voltage switchgear, control systems, and communication equipment in outdoor settings.

Fabricated from premium Grade 304 or 316L Stainless Steel, this cabinet shell is inherently resistant to salt spray, UV radiation, and chemical pollutants. Whether deployed in coastal substations, industrial yards, or municipal street-lighting networks, the cabinet's double-door design and integrated rain hood ensure that internal components remain dry and secure for decades of service.

• Superior Corrosion Resistance: Unlike galvanized or painted steel, our SS304/SS316 shells do not rust or peel. This is critical for coastal infrastructure where salt-air corrosion is the leading cause of equipment failure.

• IP65/IP66 Weatherproof Rating: Features a continuous, CNC-poured Polyurethane (PU) gasket system. Combined with a precision-engineered door labyrinth, it prevents the ingress of driving rain, wind-blown dust, and insects.

• Integrated Thermal Management: The "Cubicle" design includes a slanted rain roof (slope top) to prevent water pooling and can be customized with internal insulation, ventilation louvers, or forced-air cooling fans to maintain stable operating temperatures.

• Vandal-Proof & Secure: Equipped with high-security 3-point locking mechanisms and hidden heavy-duty hinges. The reinforced cabinet walls provide excellent IK10 impact resistance against physical damage or unauthorized access.

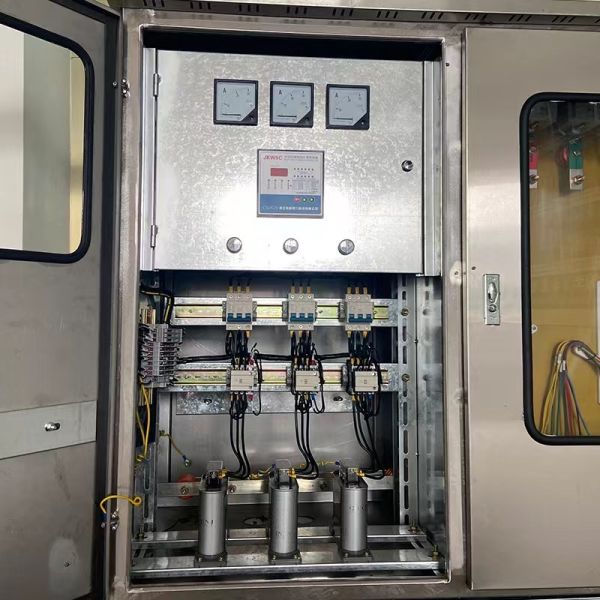

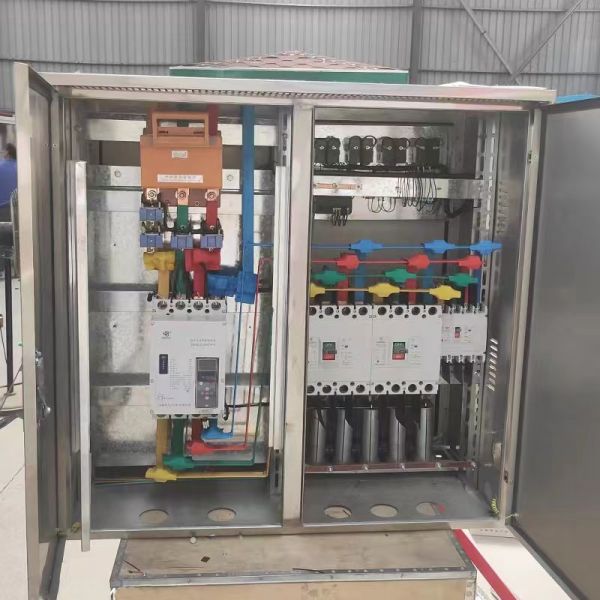

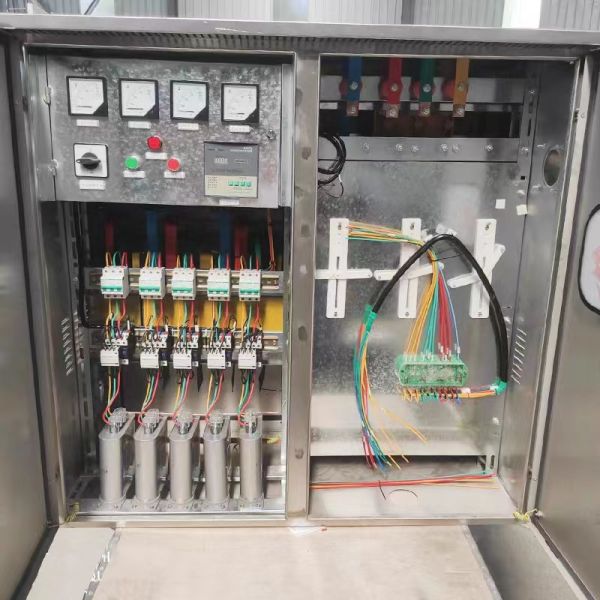

• Modular Internal Mounting: Includes adjustable vertical rails and a removable galvanized or stainless steel mounting plate, allowing for the flexible installation of circuit breakers, busbars, and PLC units.

1. Utilities & Substations: Serving as a "Feeder Pillar" or auxiliary control cabinet for outdoor step-down transformers.

2. Renewable Energy Plants: Housing for AC combiner boxes and string inverters in large-scale solar farms and wind parks.

3. Marine & Coastal Sites: Protecting electrical controls at seaports, wastewater treatment plants, and offshore platforms.

4. Urban Infrastructure: Secure distribution cabinets for street lighting, traffic control systems, and 5G telecommunication hubs.

• Manufacturer-Direct Customization: We offer full-service fabrication. From custom dimensions to specialized laser-cut knockouts for cable glands, we build the shell exactly to your engineering specifications.

• High-Purity Surface Treatment: All shells undergo professional pickling and passivation. This process removes surface contaminants and restores the chromium oxide protective layer, maximizing the lifespan of the stainless steel.

• Enhanced Safety Grounding: Pre-installed copper grounding studs are welded to both the cabinet body and the doors, ensuring total electrical continuity and safety for maintenance personnel.

• Seismically Reinforced Design: Our floor-standing cubicles can be reinforced with internal bracing to meet specific seismic zone requirements for critical infrastructure.

Q: Can the cabinet shell be painted or powder coated?

A: While stainless steel is typically left in its natural brushed finish for maximum durability, we can apply high-quality electrostatic powder coating in any RAL color to meet aesthetic or municipal requirements.

Q: How do you handle cable entry for outdoor units?

A: We provide a removable bottom gland plate as standard. This can be pre-drilled or left blank for on-site drilling to ensure a perfectly sealed fit for your specific cable diameters.

Q: Is the 316 grade necessary for my project?

A: If your installation is within 5km of the sea or in a high-chloride industrial area, SS316 is the only way to prevent "tea-staining" and pitting corrosion. For standard inland applications, SS304 offers excellent value and protection.
