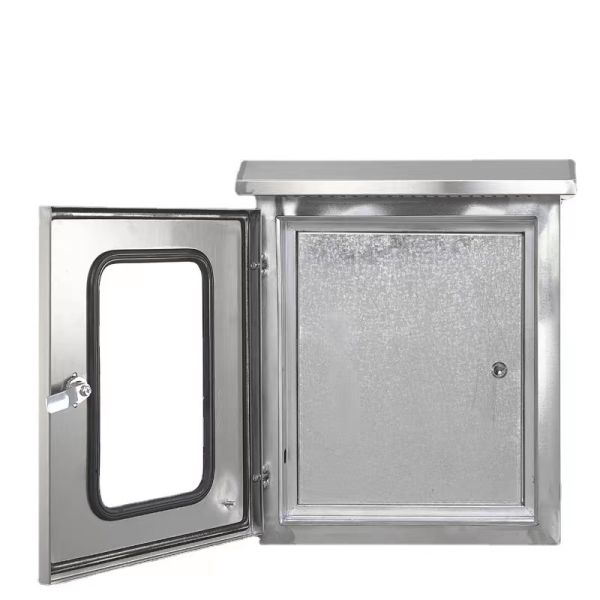

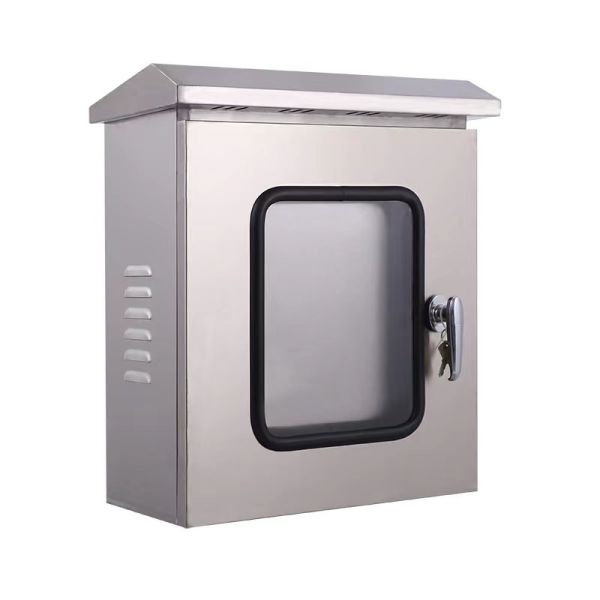

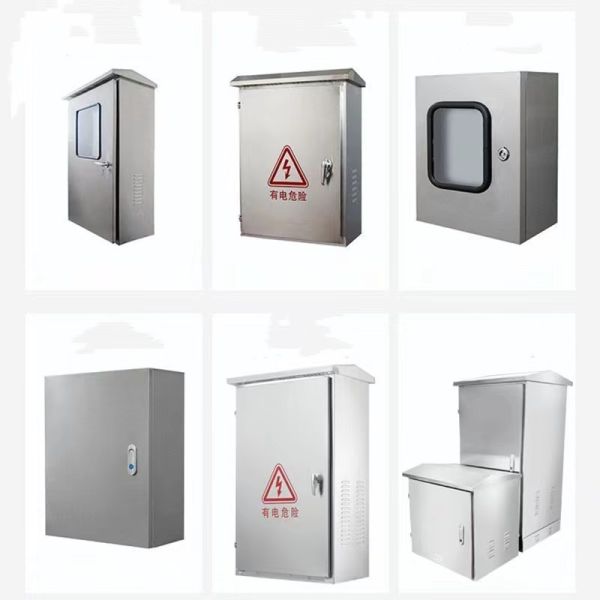

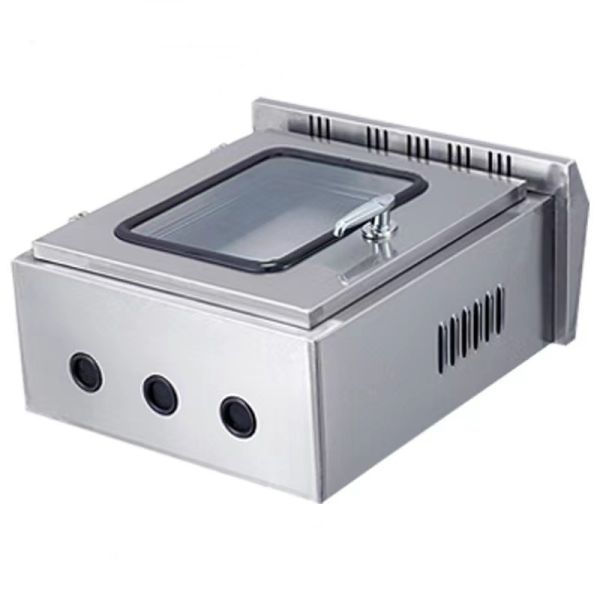

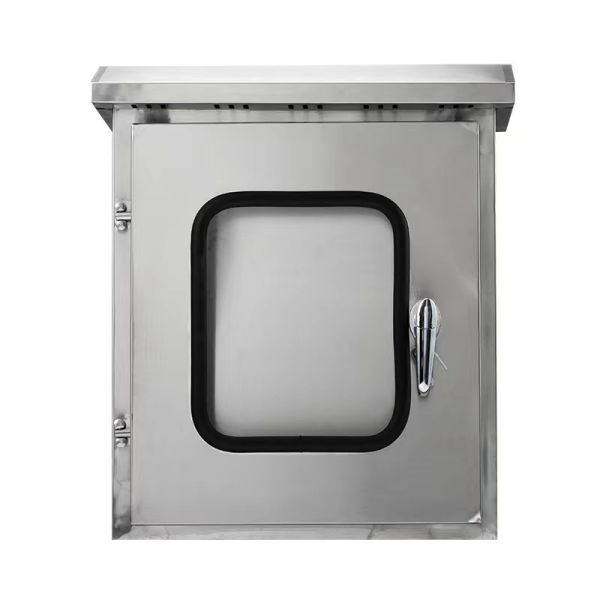

The Outdoor Stainless Steel Distribution Box is a premium protection solution engineered for the most demanding environmental conditions. Unlike standard painted steel boxes, our stainless steel enclosures offer permanent protection against rust, oxidation, and chemical exposure, making them the industry standard for coastal areas, chemical plants, and municipal street lighting.

Designed with a specialized Rainwater-Proof Slope Top (Slanted Roof), these boxes ensure that water, snow, and debris shed off immediately, preventing pooling and moisture ingress at the door seal. With an IP65/IP66 rating, this enclosure provides a dust-tight, water-resistant haven for your low-voltage switchgear, PLC controllers, and power distribution components.

• Superior Corrosion Resistance: Fabricated from high-grade SUS304 or SUS316L stainless steel. This is essential for preventing structural failure in high-salinity coastal zones or industrial sites with acidic vapors.

• Hydrophobic Sealing System: Features a CNC-applied Polyurethane (PU) foam-in-place gasket. This continuous, seamless seal maintains its elasticity over decades, ensuring a perfect airtight barrier against driving rain and fine dust.

• Advanced Rainproof Design: The integrated 15°–30° slanted roof (Rain Hood) and a protective "gutters" edge design divert water away from the door opening, keeping the interior bone-dry during maintenance.

• Vandal-Resistant Hardware: Equipped with high-strength stainless steel hinges and a heavy-duty 3-point locking system. The hinges allow for a 130° door opening, providing ample space for wiring and component installation.

• Passive Thermal Management: The natural finish of the stainless steel reflects a significant portion of solar radiation, reducing the internal temperature rise during peak daylight hours.

1. Municipal Street Lighting: Centralized control for LED street lamps, traffic signals, and smart city sensors in urban environments.

2. Water Treatment & Pumping: Housing for VFDs and pump controllers in humid, chlorine-heavy wastewater facilities.

3. Marine & Coastal Infrastructure: Power distribution for seaports, oil rigs, and beachfront resorts where salt-air corrosion destroys standard steel.

4. Food & Beverage Industry: Wash-down environments where cabinets must withstand high-pressure cleaning and caustic sanitizers.

• Fully Welded Integrity: All seams are continuously TIG welded and ground smooth, eliminating gaps where moisture could enter or bacteria could grow.

• Customization Ready: We provide factory-direct laser cutting for cable glands, HMI cutouts, and ventilation louvers. We can also integrate internal mounting plates in either galvanized steel or matching stainless steel.

• Grounding Safety: Pre-installed copper earthing studs on both the door and the body ensure total electrical continuity, meeting all international safety codes.

• Heavy-Duty Accessories: Optional accessories include document pockets, pole-mounting brackets, and internal swing-out panels for auxiliary controls.

Q: Should I choose 304 or 316 Stainless Steel?

A: SS304 is perfect for most outdoor industrial and street applications. However, if your site is within 5km of the ocean or handles corrosive chemicals, SS316 is highly recommended due to its added molybdenum content which prevents "pitting" corrosion.

Q: How do you prevent condensation inside the box?

A: For high-humidity areas, we recommend adding our IP55 Breather Plugs or a small internal anti-condensation heater. This balances the internal/external pressure and keeps the dew point below the condensation level.

Q: Can these boxes be custom-sized?

A: Yes. As a manufacturer-direct supplier, we can fabricate enclosures to your exact millimeter specifications with no minimum order quantity for standard sizes.
