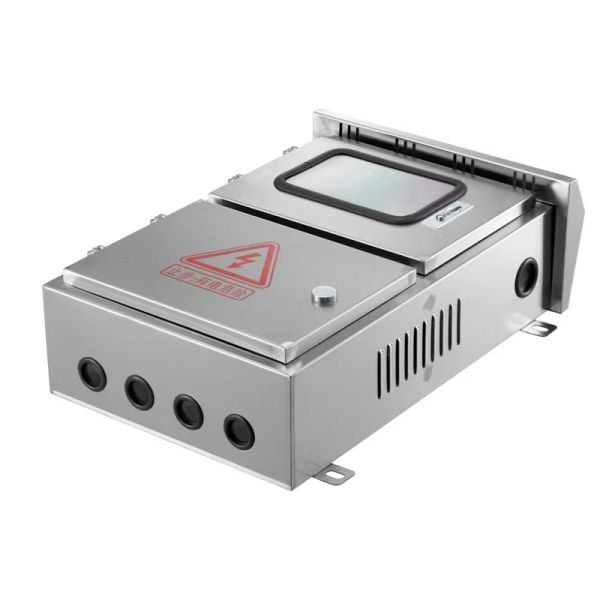

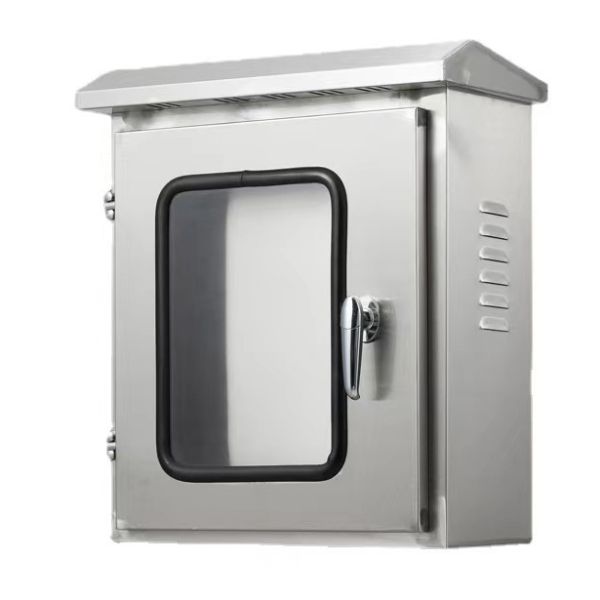

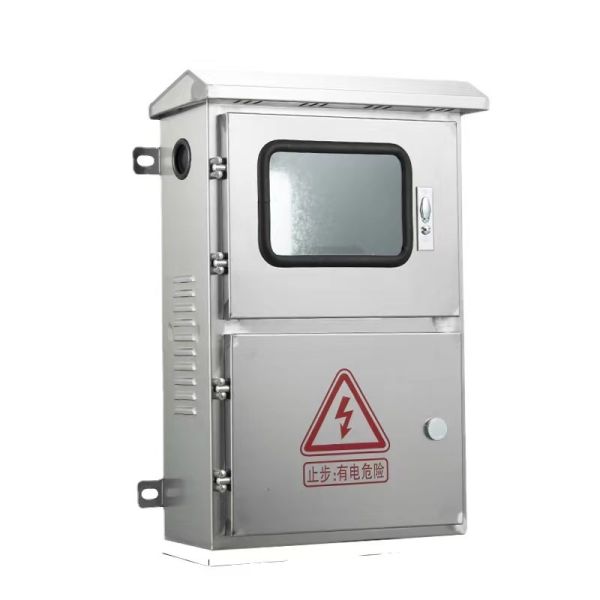

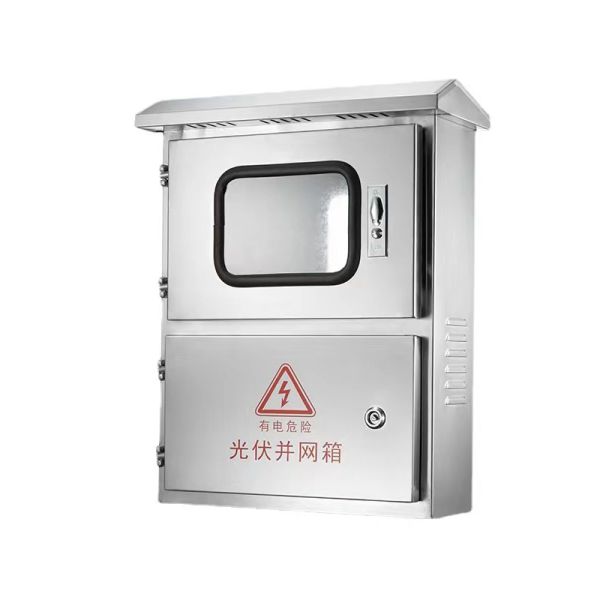

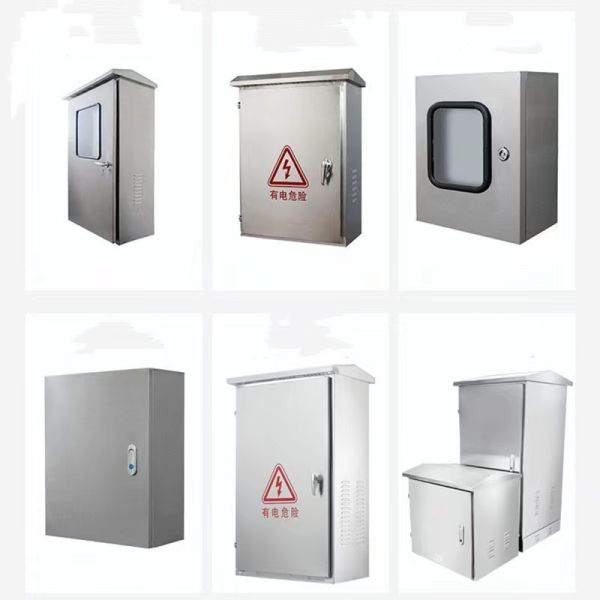

Our Outdoor Low-Voltage Electrical Distribution Cabinet is engineered to provide reliable power control and protection in the most demanding external environments. Built to withstand extreme weather, UV radiation, and industrial pollutants, this cabinet serves as the primary interface for outdoor power grids, industrial plants, and large-scale infrastructure projects.

Fabricated from high-strength cold-rolled steel or stainless steel, each cabinet features a specialized double-door design and a slanted rain roof (slope top) to ensure maximum water shedding. Whether you require a localized motor control center (MCC) for a pump station or a main distribution hub for a construction site, this cabinet provides the thermal management and ingress protection necessary for continuous 24/7 operation.

• Advanced Weatherproofing: Rated IP54 or IP55, utilizing a CNC-poured polyurethane (PU) sealing gasket and a "labyrinth" frame design to prevent the ingress of driving rain, wind-blown dust, and insects.

• Corrosion-Resistant Surface: Treated with a multi-stage chemical cleaning process followed by an electrostatic epoxy powder coating (Standard RAL 7035). This finish is specifically formulated for UV stability and resistance to salt spray.

• Intelligent Thermal Design: Features integrated ventilation louvers with dust filters and optional automatic cooling fans or heaters. This prevents condensation in cold climates and heat accumulation in high-ambient regions.

• Heavy-Duty Structural Frame: Constructed with a 2.0mm thick reinforced framework to support heavy internal switchgear and busbars without mechanical deformation.

• Operator Safety & Security: Includes a high-security 3-point locking system and internal dead-front shields to prevent accidental contact with live parts during field inspections.

1. Industrial Infrastructure: Power distribution for mining sites, oil & gas facilities, and outdoor pumping stations.

2. Renewable Energy Sites: Centralized AC collection and distribution for solar farms and wind turbine auxiliary systems.

3. Construction & Temporary Power: Ruggedized, portable-ready cabinets for large-scale building sites and civil engineering projects.

4. Utilities & Municipalities: Street lighting control, water treatment plant distribution, and urban grid modernization.

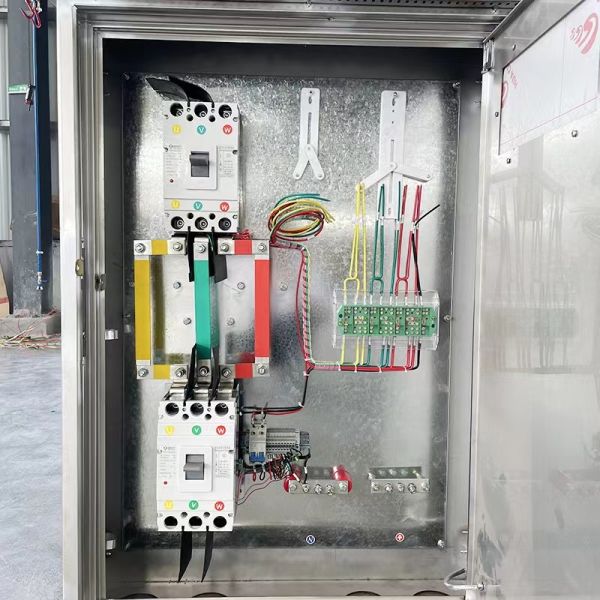

• Fully Customized Internals: We provide turnkey solutions pre-wired according to your Single Line Diagram (SLD). We integrate world-class components from ABB, Schneider, Siemens, or Chint.

• Precision Engineering: Utilizing fiber laser cutting and CNC bending, we guarantee millimeter-perfect accuracy for all cable entries and mounting points.

• Marine-Grade Options: For coastal installations, we offer SS316L stainless steel builds that provide total immunity to salt-air corrosion.

• Direct Factory Support: Benefit from manufacturer pricing and dedicated engineering support. We provide detailed CAD drawings for approval before production begins to ensure 100% project compliance.

Q: Can the cabinet be customized with a specific color?

A: Yes. While RAL 7035 is our standard, we can provide any RAL color to match your facility's branding or specific environmental camouflage requirements.

Q: Do you provide the base/pedestal for floor mounting?

A: Every outdoor cabinet can be supplied with a matching 100mm or 200mm high plinth/base for secure floor anchoring and easier cable management.

Q: How do you prevent internal condensation?

A: We offer anti-condensation heaters controlled by hygrostats or thermostats to maintain internal temperatures just above the dew point, protecting your electronics from moisture.
