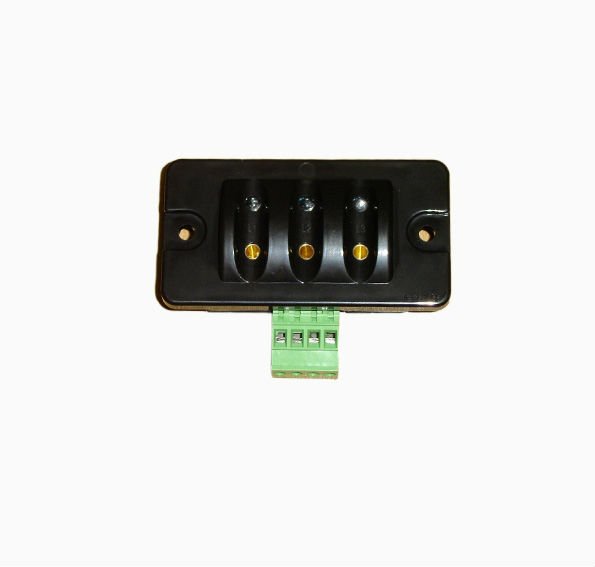

DXN-TQ/III indoors high voltage electrified display device

-

Specification:

-The product manufactured by our corporation contains insulating cylinder for VS1 vacuum circuit breaker., fix-sealing terminal .
The product manufactured by our corporation contains insulating cylinder for VS1 vacuum circuit breaker., fix-sealing terminal for VSM vacuum circuit breaker, complete set of contact box for GZS1 built-in cabinet,insulator.sensor,35kv contact box.35kv wall bushing,FN12 high-volt composite switch bell. support. bracket. ring main unit. insulating components for high volt cabinet etc.Application:

-

DXN series high voltage indicator is adapted for indoor.rated voltage 3~40.5kv,operation frequency 50Hz network to display the electrifying situation of the high voltage loop where the HVLDD is mounted,combine a high voltage equipment with live display device.

- 1.application range and characteristic

----- The indoor high volt charged display device is composed of three sensors and display(through lead connection),it is applied to certain indoor high volt electric equipment of rated frequency 50Hz and rated volt below 40.5KV,by this device,it could indicate charged condition in circuit,besides,it can be coordinate-operated with electromagnetic lock,which realizes forced lockout of switch handle and controlled by one high volt signal,while,its circuit system is stand-alone and not interfered one another.Just needing the high volt circuit electrified,even if display circuit and latching circuit arise fault simultaneously,the electromagnetic lock still stay in locking state,which could prevent from mishandle or entering into charged spacing.

-

-

-- 2.execution norm

DL/T538----------(high volt charged display device)-

DL/T593----------(share technical demand of high-volt switching equipment and control equipment)-

JB/T10305---------(3.6KV~40.5KV high volt equipment indoor organic material post insulator’s technical condition)-

GB/T7354---------(partial discharge measuring)

-

-

------

------
