Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
Specifications
Brand Name :
wenyou
Model Number :
8316L
Certification :
ISO9001, ISO14001, SGS, and UL
Place of Origin :
China
MOQ :
20kg/pail as sample
Price :
Negotiable
Payment Terms :
Normally T/T, L/C
Supply Ability :
Plenty of raw material in stock
Delivery Time :
7 -10 work days
Packaging Details :
20kg/pail, 220kg/barrel, 1200kg/tank
Classification :
Double Components Adhesives
Usage :
sealing and connecting insulation products, current and voltage transformers, etc.
Application :
Low-voltage electrical applications, electronics, cable insulation, bonding, sealing, etc.
Appearance of epoxy resin :
Light yellow transparent viscous liquid
Viscosity at 25°C :
3000 - 7000mPa.s
Density at 25°C :
1.15 - 1.19g/cm3
Vapor Pressure at 25°C :
< 0.01Pa
Flash point :
around 110°C
Discription :
Low - Viscosity Cast Resin for Dry Type Transformers: Ideal for Precise Casting
Description
Low - Viscosity Cast Resin for Dry Type Transformers: Ideal for Precise Casting​
Precision is key when it comes to casting resin in dry type transformers. Our low - viscosity cast resin is the perfect choice for achieving accurate and detailed casting. The low viscosity allows the resin to flow easily into every nook and cranny of the transformer mold, ensuring complete coverage of the windings and other components. This results in a uniform and high - quality casting, free from voids and imperfections. In the manufacturing of dry type transformers with complex geometries or delicate components, the low - viscosity cast resin shines. It enables manufacturers to produce transformers with precise dimensions and excellent surface finishes. Despite its low viscosity, the resin has good mechanical and electrical properties. It hardens to form a strong and durable structure, providing reliable insulation for the dry type transformer. The low - viscosity cast resin is also compatible with a wide range of casting techniques, making it versatile for different manufacturing processes. Whether you are producing small - scale or large - scale dry type transformers, this resin can help you achieve the highest level of casting precision.

Brief Introduction

LE-8316L is a modified BPA-type epoxy resin, combined with LH-8316L, a liquid modified carboxylic anhydride hardener. This system is designed for mold forming and APG injection processes, providing high-temperature curing capabilities.

Applications

This epoxy resin is ideal for low-voltage electrical applications, including electronics, cable insulation, bonding, and sealing. It is particularly suited for sealing and connecting insulation products, as well as current and voltage transformers.

Processing Methods

Processing can be carried out using a conventional gravity casting method under vacuum conditions. The production process can also be tailored to align with the client's existing manufacturing techniques.

Properties

This two-component epoxy resin system consists of LE-8316L and LH-8316L, both in liquid form at room temperature. It is suitable for casting processes, with a glass transition temperature (Tg) ranging between 60-80°C, ensuring durability under elevated temperatures.

Formulation

Epoxy resin LE-8316L 100 pbw
Hardener LH-8316L 100 pbw
Filler Silica powder 300 - 400 pbw
Color paste LC series * Appropriate pbw

Advantage

Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting

Package Image

Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting

Shipment image

Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting

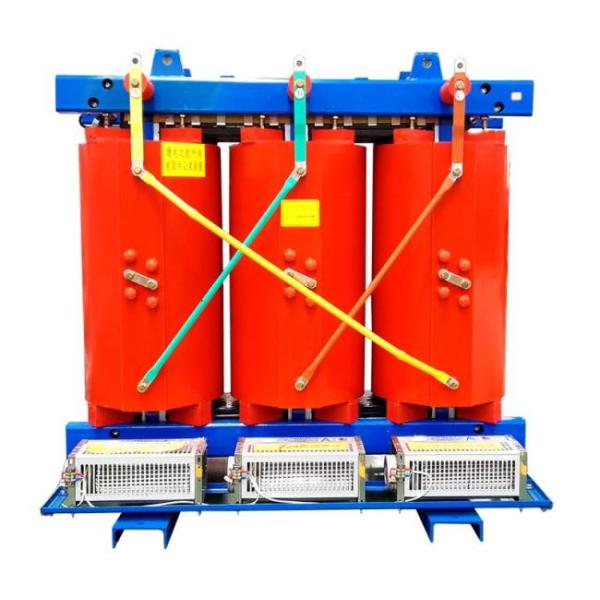

Example application image

Low - Viscosity Cast Resin For Dry Type Transformers For Precise Casting
