Specifications
Brand Name :
wenyou
Model Number :
8217F
Certification :
ISO9001, ISO14001, SGS, and UL
Place of Origin :
China
MOQ :
20kg/pail as sample
Price :
Negotiable
Payment Terms :
Normally T/T, L/C
Supply Ability :
Plenty of raw material in stock
Delivery Time :
7 -10 work days
Packaging Details :
20kg/pail, 220kg/barrel, 1200kg/tank
Classification :
Double Components Adhesives
Usage :
insulators, transformers, and other insulation products
Application :
Electrical insulators for medium and high voltage applications
Appearance of epoxy resin :
Transparent viscous liquid
Viscosity at 25°C :
3000 - 6000mPa.s
Density at 25°C :
1.16 - 1.20g/cm3
Vapor Pressure at 25°C :
< 0.01Pa
Flash point :
around 135°C
Discription :
Dimension fixed electric insulator transformer epoxy resin material test function well
Description

Brief Introduction

LE-8217F is a modified BPA (bisphenol A) epoxy resin, paired with LH-8217F, a liquid modified carboxylic anhydride hardener. This system is designed for applications requiring precise dimensional stability in electric insulators.

Applications

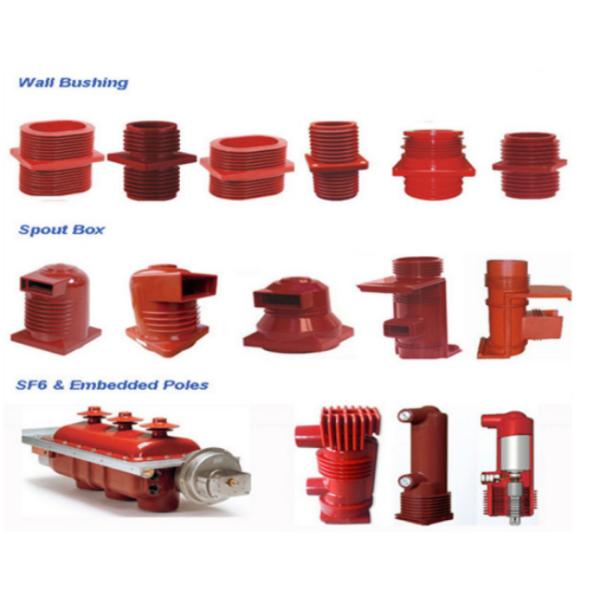

This epoxy resin is suitable for medium and high voltage electrical insulators, including various insulators, transformers, and insulation products.

Processing Methods

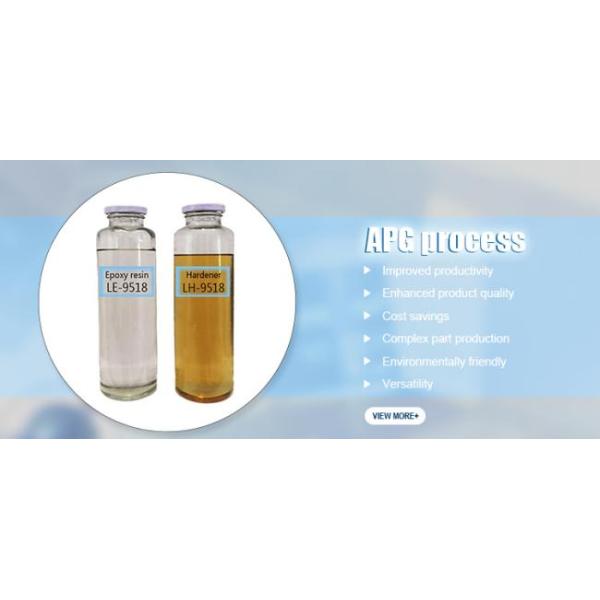

Processing can be accomplished using a conventional gravity casting method under vacuum or through an Automatic Pressure Gelation (APG) process. The production methods can be customized to meet the client's existing manufacturing practices.

Properties

This two-component system is a saturated cyclic epoxy resin without pre-mixed fillers, remaining in liquid form at room temperature. It features low curing shrinkage, ensuring good dimensional stability, excellent processing characteristics, and superior mechanical and electrical properties.

Formulation

Epoxy resin LE-8217F 100 pbw
Hardener LH-8217F 100 pbw
Filler Silica powder 300 - 350 pbw
Color paste LC series * 3 pbw

Advantage

Dimension fixed electric insulator transformer epoxy resin material test function well

Package Image

Dimension fixed electric insulator transformer epoxy resin material test function well

Shipment image

Dimension fixed electric insulator transformer epoxy resin material test function well

Example application image

Dimension fixed electric insulator transformer epoxy resin material test function well
