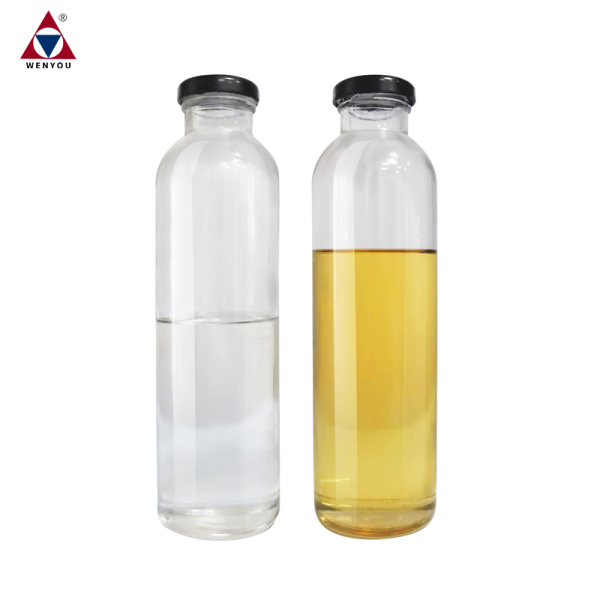

Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Specifications
CAS No. :
11070-4-3
Brand Name :
WENYOU
Place of Origin :
Shanghai, China
Classification :
Double Components Adhesives
EINECS No. :
216-823-5
Main Raw Material :
Epoxy
MF :
C21H24O4
Other Names :
Epoxy resin potting compound GLUE
Type :
Epoxy resin compound A & B
Usage :
Electrical insulation
Model Number :
9219K
Keywords :
fast curing epoxy hardener
Material :
Epoxy Resin+hardener
Product name :
Epoxy AB Glue for transformers
Application :
Indoor used
Packing :
20KG or 200KG or1200KG
Delivery time :
Within 7 Days
Certificate :
ISO14001 19001:2015 ISO45001
Advantage :
REACH,UL, other certificate
Component :
Double Components: Epoxy+ Hardener
Mixing Ratio :
A:B=1:1
MOQ :
5000
Price :
$3.18-3.20
Description
Mechanical and physical properties
Properties
Value
Properties
Value
Tg（DSC）
75-95℃
Thermal conductivity
0.8-0.9W / mk
Tensile strength
65-85N/mm2
Thermal decomposition
＞320℃
Flexural strength
100-140N/ mm2
Water absorption
(23℃×10days)
0.10-0.20 % by wt.
Compressive strength
140-180N/ mm2
Water absorption (100℃×60 mins)
0.08-0.15 % by wt.
Impact strength
9-16kJ/ m2
Surface resistivity
1014Ω
Curing shrinkage
0.8-1.0%
Volume resistivity
1015Ω.cm
Flammability（4mm）
HB Class
Dielectric strength
30 kV / mm
Flammability（12mm）
HB Class
Loss factor
0.02

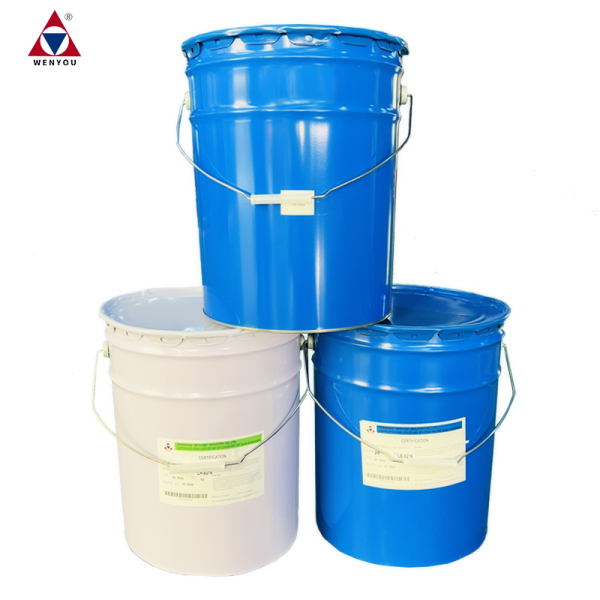

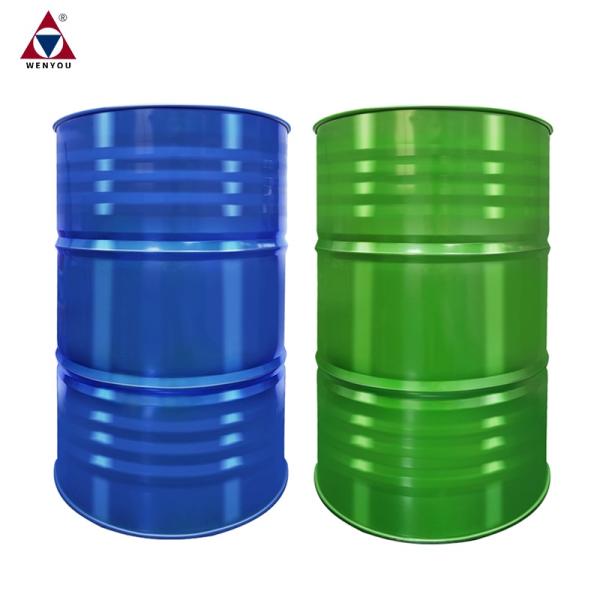

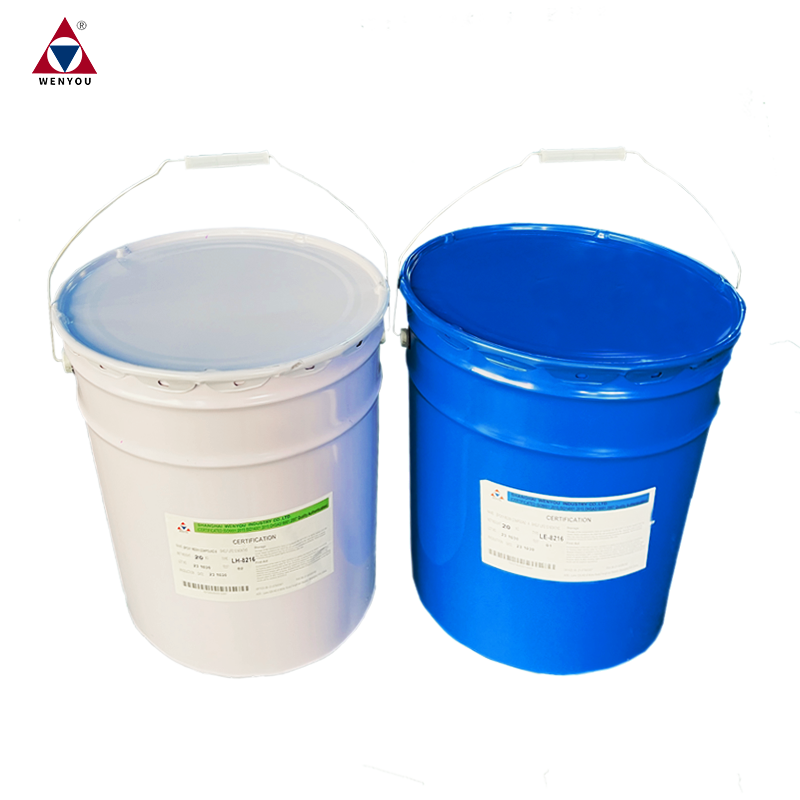

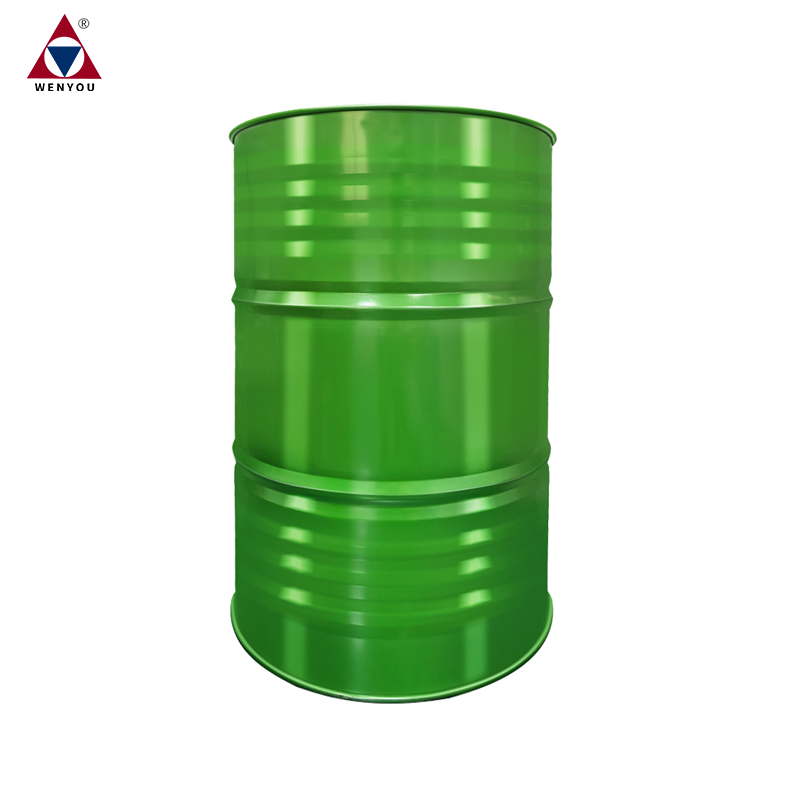

Detail images
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Product Show
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

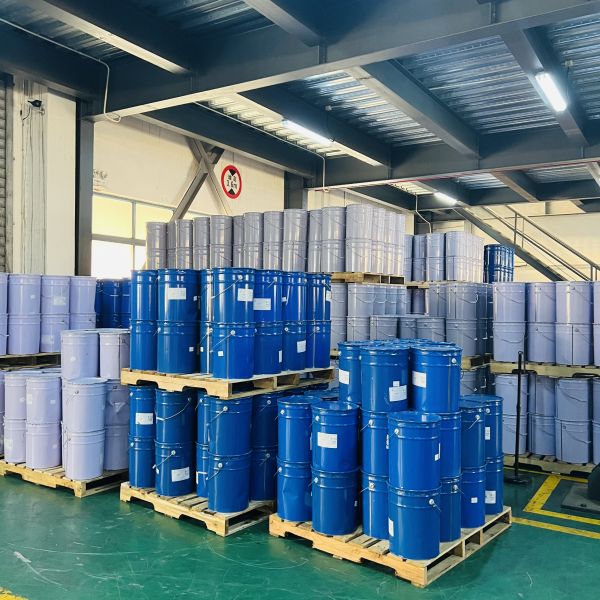

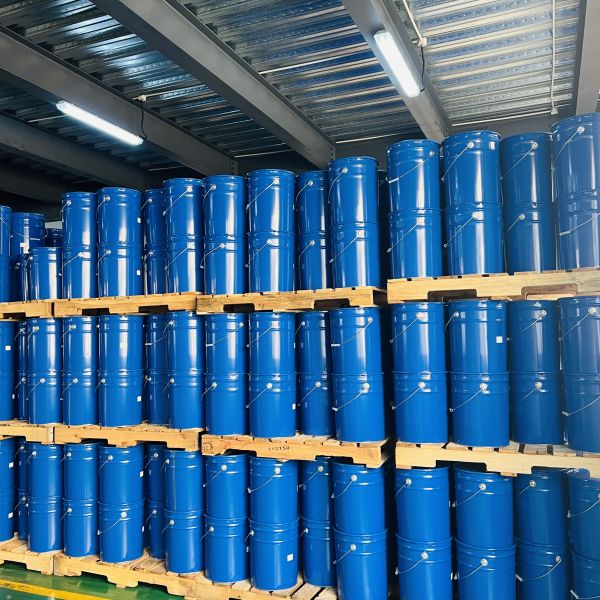

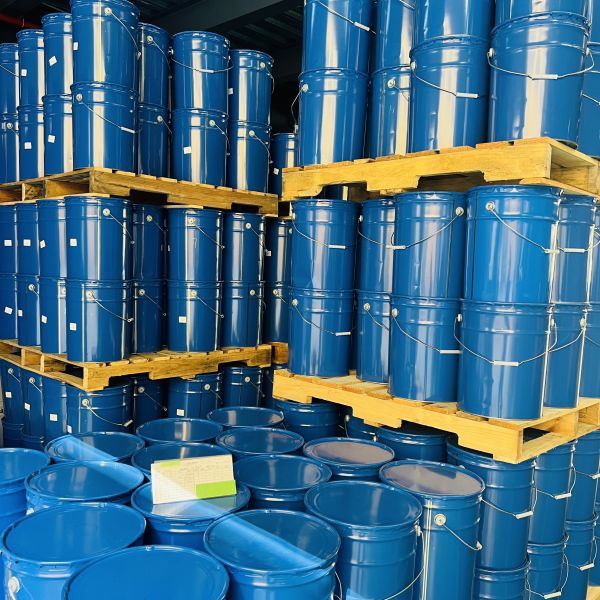

Work shop
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

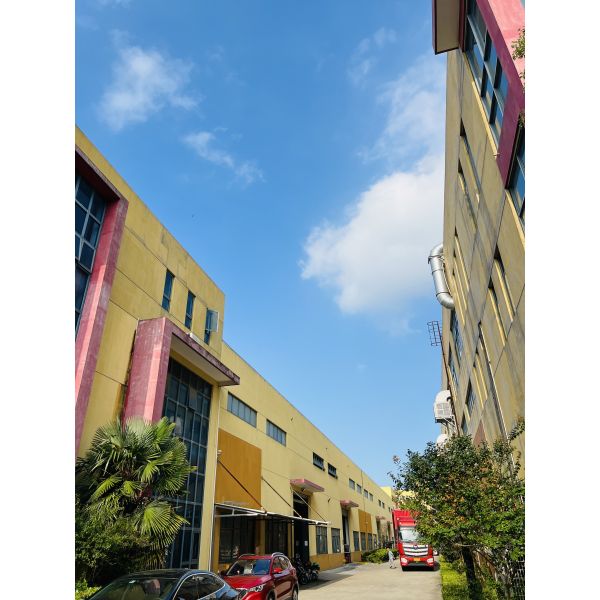

Our factory
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

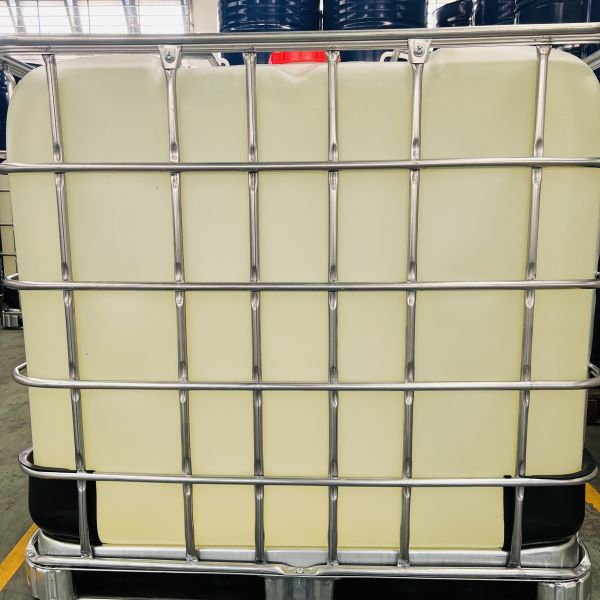

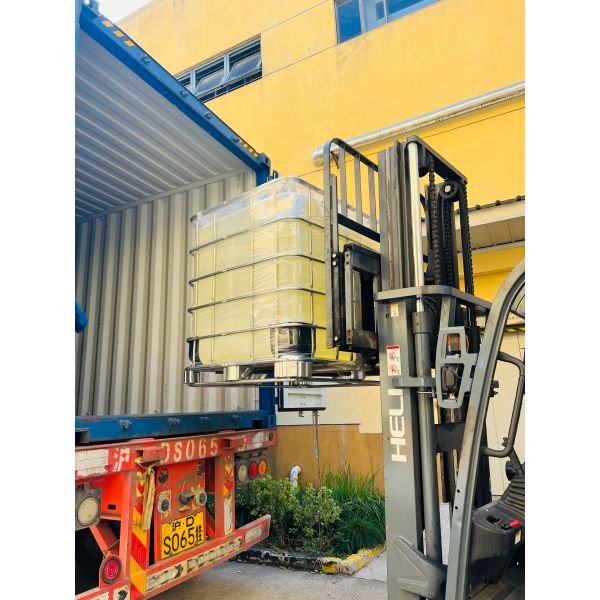

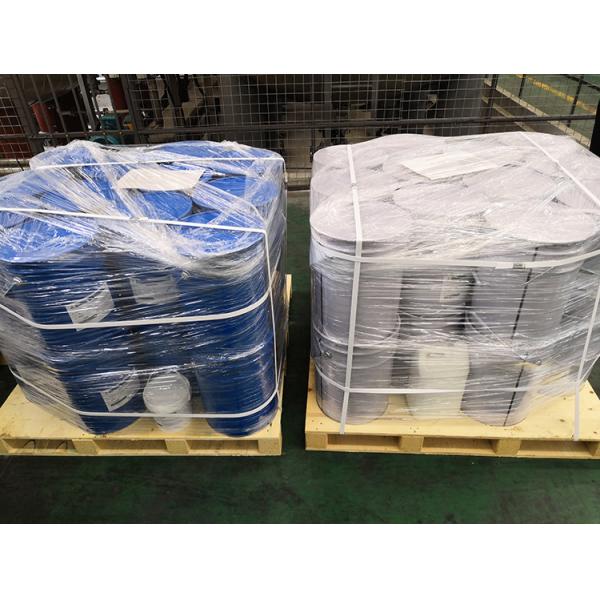

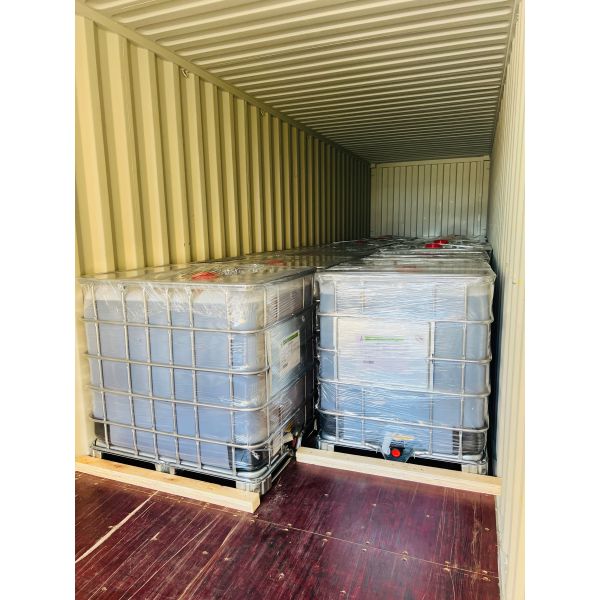

Packing & Delivery
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Exhibition
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Company profiles
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Our company
We are specializing in the manufacturing, R&D, and sales of epoxy resin, curing agents, and related products.
Our wide range of products includes epoxy resin, flame retardant resin, curing agents, outdoor modifiers, toughening agents, epoxy
paste, demoulding agents, and fillers. Our high-quality products are used in high voltage electrical insulation applications and
are exported globally. We are committed to providing stable products and excellent service to the global electricity industry.
