Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
Specifications
Length :
1-30m
Model Number :
SGS202309255555
Wire Diameter :
0.023-2.8mm
MOQ :
100 PCS
Delivery Time :
10-15 days
Payment Terms :
L/C,T/T,Western Union
Mesh Counts :
1-2300 meshes
Price :
18$-25$
Hole Shape :
Square Hole
Certification :
ISO9001-2015
Supply Ability :
10000 rolls per month
Weaving Type :
Plain weave, twill weave, dutch weave, bamboo weave, Hollander weave
Brand Name :
Bingze
Width :
0.5-2m
Place of Origin :
China
Packaging Details :
1.Plastic wrapping,wooden pallet 2.Customized according to customer requirements
Description

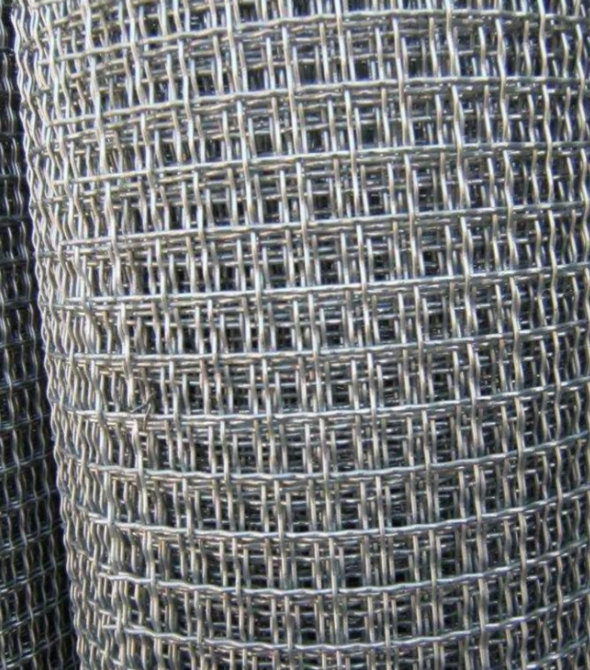

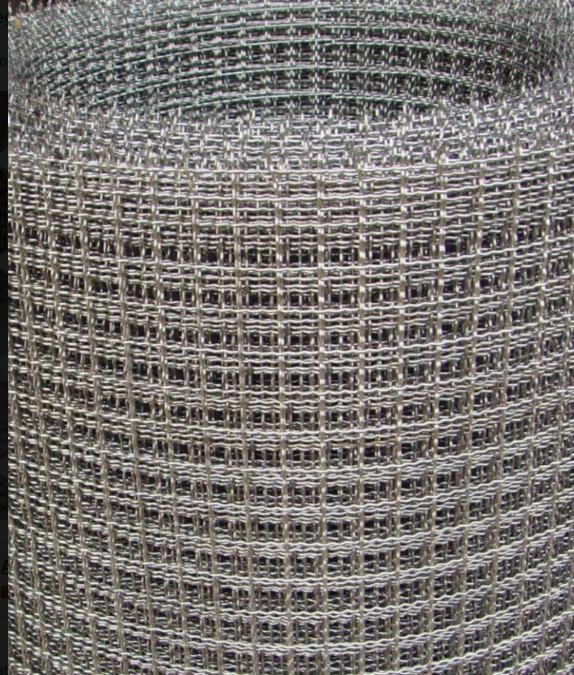

304 316 Crimped Wire Mesh - Crimped Corrugated Wire Mesh For Filter And Sieve
Product Overview
Crimped wire mesh, also known as pre-crimped woven mesh, is manufactured through a unique pre-crimp process: metal wires are pressed into regular waves first, then interwoven with interlocked crimps without welding spots. The interlocking wave structure fixes every wire firmly, delivering stable mesh openings, high structural strength and outstanding deformation resistance, far superior to welded wire mesh.
We offer multiple weaving types including double crimp, lock crimp, flat top crimp and single crimp to fit light filtration, medium separation and heavy-duty mining screening respectively. All sizes, materials and processing methods can be fully customized.
Technical Specifications
Material Stainless steel 304, 316, 904L, 2205, 2207, 430, 310, 317, 309, 304L, 316L, etc.
Pure nickel wire, Ni-Cr wire, Monel, Inconel wire, etc.
Wire Diameter 0.023-2.8mm
Weaving Type Plain weave, twill weave, Dutch weave, bamboo weave, Hollander weave, etc.
Mesh Counts 1-2300 meshes
Micron Size 500, 400, 300, 200, 100, 80, 70, 25 micron
Technique Woven wire mesh
Mesh Rolls Size 1x30m, 2x30m, 1.524x30m, 0.914x30m, etc.
Sample Free and available
Surface Flat and bright
Packing & Shipping
Each specification on one plywood pallet, iron pallet or rolls. Surface treatment is processed with anti-rust paint or as per your request.
Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
About Our Company
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. We are a manufacturer integrating production, processing, distribution and wholesale. Our stainless steel wire mesh, galvanized crimped wire mesh, stainless steel filters and other products are in a leading position in the industry.
In addition to a large inventory of stainless steel wire mesh, we can also produce various special-shaped stainless steel wire mesh and deep-processed products according to customer needs.
Our Capabilities:
  • 25 years of manufacturing experience
  • 80+ sets of automated production equipment
  • Comprehensive quality management system
  • Strong R&D and technological innovation capabilities
  • Global trade relations with 20+ countries
Shipping & Payment
Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
Company Certification
Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration Stainless Steel 304 316 Crimped Wire Mesh with Square Hole and Customizable Weaving Types for Industrial Filtration
Frequently Asked Questions
Q1. Are you a manufacturer or trading company?
We are a professional crimped wire mesh factory, guaranteeing first-hand prices, stable quality, and fast production efficiency.
Q2. Are samples acceptable and what is the MOQ?
Yes, sample orders are acceptable and custom samples are supported. There is no fixed MOQ - both small trial orders and bulk orders are available.
Q3. Can I customize the size and material?
Yes. Wire diameter 1.0mm-6.0mm and aperture 5mm-80mm are all customizable. We support customized materials including stainless steel, galvanized steel, and manganese steel.
Q4. What is the lead time?
Sample Order: 3-5 days after receipt of full payment. Bulk Order: 5-20 days after receipt of deposit, depending on order quantity and production progress.
Q5. How can I get samples?
Please confirm wire diameter, aperture, material and other requirements with our salesman first, then we will arrange sample production and delivery.
Q6. What are your product advantages?
Our crimped wire mesh features sturdy structure, not easy to deform, high temperature resistant, wear-resistant and anti-corrosion. Uniform mesh opening and high tensile strength make it suitable for electronics, pharmaceutical and machinery industries.
Q7. What processing services can you provide?
We support cutting, edging, welded frame processing, OEM customization and custom packaging to meet different customer's deep processing demands.
Q8. How do you guarantee product quality?
We have strict production inspection and quality control systems. All products are inspected before shipment to ensure qualified quality and stable performance.
