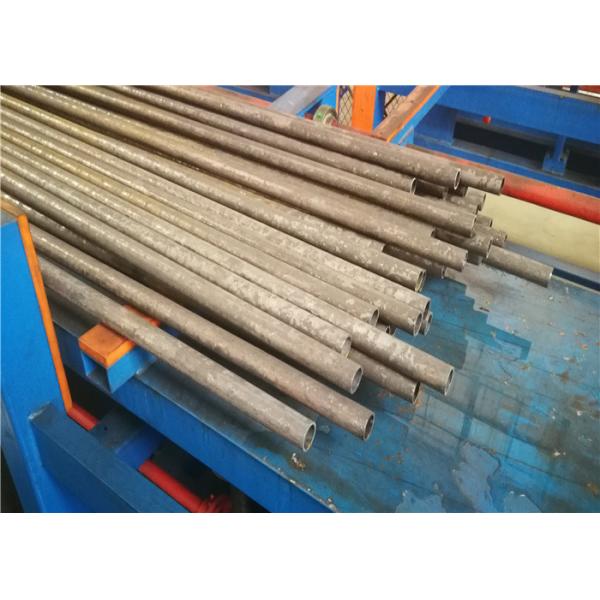

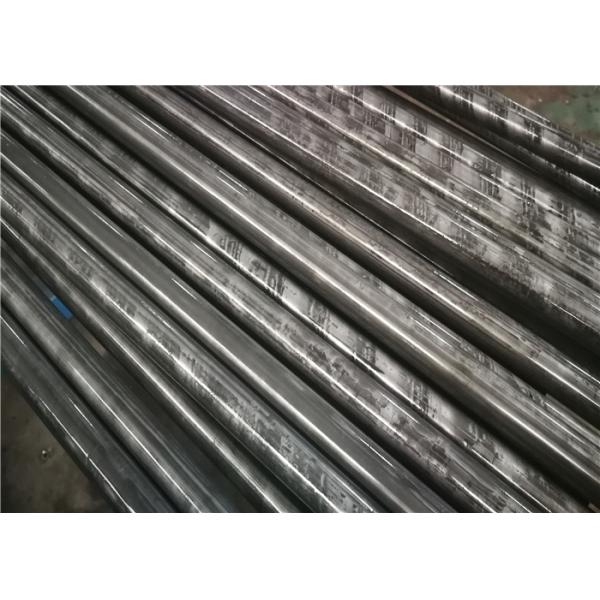

EN10305-1 E235 Cold Drawn Precision Steel Tube for Hydraulic Cylinder Tubing
EN10305-1 E235 Cold Drawn Precision Steel Tube for Hydraulic Cylinder Tubing
EN10305-1 E235 Cold Drawn Precision Steel Tube for Hydraulic Cylinder Tubing
EN10305-1 E235 Cold Drawn Precision Steel Tube for Hydraulic Cylinder Tubing
Specifications
Brand Name :
Hongbao
Model Number :
HBPST-1
Certification :
TS16949, DNV
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
Negotiable
Supply Ability :
30000MT per year
Delivery Time :
Within 50 days if production
Packaging Details :
seaworthy plywooden case packing.
Payment Terms :
L/C,T/T
Material: :
ST37.4, ST52.4, E235, E355, 26MnB5, 34MnB5
Brand: :
Hongbao
Origin: :
Jiangsu,China
OD: :
6-120mm
Thickness: :
0.5-15mm
Processing: :
Cold Drawn, Cold Rolled
Description
EN10305-1 E235 WT35 Precision Steel Tube Black Hydraulic Cylinder Tubing For Automotive
Product Overview

Our EN10305-1 E235 precision steel tube is a high-quality black hydraulic cylinder tubing for automotive applications. Made from cold-drawn and cold-finished steel, this tube features precise dimensions, tight tolerances and excellent mechanical properties. Ideal for use in hydraulic systems, fuel lines and brake lines where corrosion resistance and high pressure resistance are required.

Product Name EN10305-1 E235 Precision Steel Tube Black Hydraulic Cylinder Tubing
Material Carbon steel
Color Black
Standard DIN EN
Grade E155, E195, E235, E275, E355, other materials upon agreement with customers
Application Hydraulic cylinder manufacture raw material and engineering purposes
Heat Treatment Options
  • +C: No heat treatment after the final cold drawing process
  • +LC: After the final heat treatment there is a suitable drawing pass
  • +SR: After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
  • +A: After the final cold drawing process the tubes are annealed in a controlled atmosphere
  • +N: After the final cold drawing operation the tubes are normalized in a controlled atmosphere
Technical Specifications

Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes for Hydraulic Cylinder/Oil Cylinder Tube/Excavator Chains and Parts

Size Range: O.D.: 6-380mm | W.T.: 1-35mm | Length: max 12000mm

Product Features
  • High precision (can reduce machining costs)
  • Excellent surface finish
  • Good mechanical performance (Annealing, Bright Annealing, QT heat treatment available to meet customer mechanical requirements)
  • Cutting to specified lengths available
Applications
  • Automotive components
  • Tubes for structural applications
  • Standard mechanical tubing
  • Hydraulic cylinder applications
  • Heavy equipment and agriculture
EN10305-1 E235 Cold Drawn Precision Steel Tube for Hydraulic Cylinder Tubing
