High Precision EN10305 Standard Cold Drawn Seamless Steel Tube Carbon Steel Pipe
High Precision EN10305 Standard Cold Drawn Seamless Steel Tube Carbon Steel Pipe
High Precision EN10305 Standard Cold Drawn Seamless Steel Tube Carbon Steel Pipe
High Precision EN10305 Standard Cold Drawn Seamless Steel Tube Carbon Steel Pipe
Specifications
Brand Name :
Hongbao
Model Number :
HBPST-1
Certification :
TS16949, DNV
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
Negotiable
Supply Ability :
30000MT per year
Delivery Time :
Within 50 days if production
Packaging Details :
seaworthy plywooden case packing.
Payment Terms :
L/C,T/T
Material: :
ST37.4, ST52.4, E235, E355
Brand: :
Hongbao
Certificate: :
TS16949, DNV, PED, ISO
Origin: :
Jiangsu, China
Type: :
Welded or Seamless
Processing: :
Cold Drawn, Cold Rolled
Description

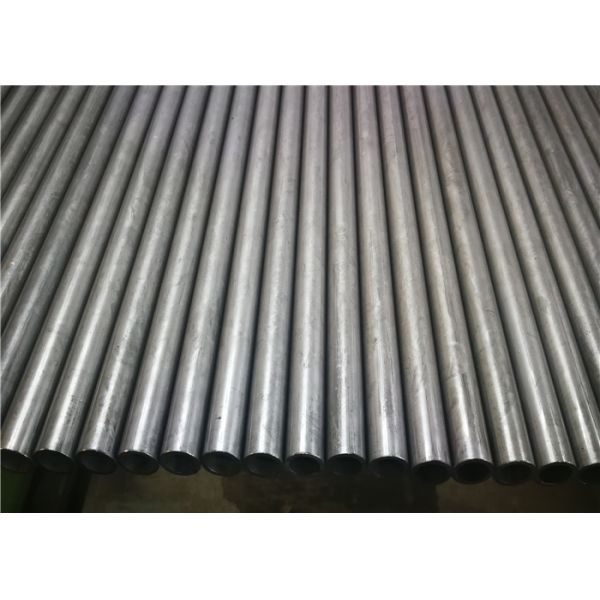

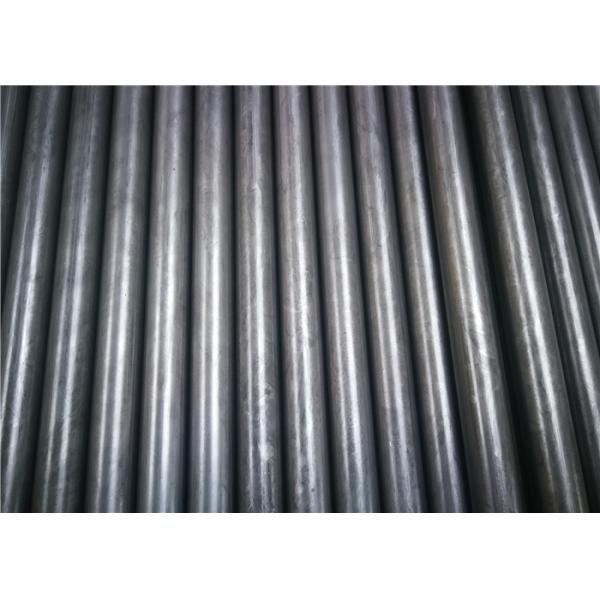

E235 EN10305 WT1.2 High Precision Steel Tube Seamless Carbon Steel Pipe
Product Overview

E235 steel tubes, conforming to EN10305 standards, are manufactured under precise controls to ensure high precision and consistent quality. These seamless carbon steel pipes undergo cold drawing and multiple annealing processes to achieve exact dimensions and smooth surfaces. Manufacturers rigorously test them to meet stringent DIN2391 and EN10305 specifications, ensuring their reliability for critical applications in hydraulic and pneumatic systems.

Chemical Composition
Steel Grade C Si Mn P S Cr Ni Al
20# 0.17-0.24 0.17-0.37 0.35-0.65 0.035 0.035 0.250 0.250 /
45# 0.42-0.50 0.17-0.37 0.50-0.80 0.035 0.035 0.250 0.300 /
Q345B ≤0.2 ≤0.5 1.00-1.60 0.030 0.030 0.300 0.250 /
Q345D ≤0.2 ≤0.5 1.00-1.60 0.030 0.030 0.250 0.250 0.015
25Mn 0.22-0.29 0.17-0.37 0.70-1.00 0.035 0.035 / / /
27SiMn 0.24-0.32 0.10-0.14 1.10-1.40 0.035 0.035 0.300 0.300 /
E355/St52 ≤0.22 ≤0.55 ≤1.6 0.025 0.025 0.250 0.250 /
SAE1026 0.22-0.28 0.15-0.35 0.60-0.90 0.050 0.050 / / /
Mechanical Properties
Steel Grade Rm (MPa) Reh (MPa) Elongation (MPa) Rm (MPa) Elongation
20# ≥520 ≥375 ≥15 ≥550 ≥8
45# ≥600 ≥520 ≥10 ≥640 ≥5
16Mn Q345B Q345D ≥600 ≥520 ≥14 ≥640 ≥5
25Mn ≥600 ≥510 ≥15 ≥640 ≥5
27SiMn ≥760 ≥610 ≥10 ≥800 ≥5
St45 ≥520 ≥375 ≥15 ≥550 ≥5
E355(st52) ≥600 ≥520 ≥14 ≥640 ≥5
SAE1026 ≥600 ≥510 ≥15 ≥640 ≥5
Manufacturing Process Specifications
Process Diameter Length Precision Inner Hole Roughness
Cold Rolled 30-100mm ≤12 m H8-H10 0.4-1.6
Cold Draw 30-250mm ≤12 m H8-H10 0.8-1.6
Honing 40-500mm ≤12 m H8-H9 0.4-0.8
Rolling 40-400mm ≤7 m H8 0.4
Key Specifications
  • OD: 10mm-219mm
  • WT: 1.2mm-45mm
  • Good supplier, perfect steel brand
  • High quality, high precision, favorable price, good after-sale service
Product Advantages
  • Our company produces various specifications and models according to standards
  • Using high-quality materials and advanced production technology and equipment for processing
  • Applicable to humid climates and harsh corrosive environments
  • Products have been exported to Europe, North America, the Middle East, Southeast Asia, Africa, Asia, and other countries and regions
  • We are a Trade-assurance company - place orders online with full protection
