Specifications
Brand Name :
Bitvisus
Model Number :
BIT-MSE-209Pro
Certification :
CE/FCC/RoHS/ANSI C63
Place of Origin :
Guangdong China
MOQ :
1
Price :
1unit USD322,>10units USD275
Payment Terms :
T/T,PayPal
Supply Ability :
1000,1unit 3 days,10units 7 days
Delivery Time :
7 Days
Packaging Details :
1.8KG, 37mm*23mm*9mm
Product name :
BIT-MSE-209Pro
Input Port :
2*HDMI 2.0, 2*DP 1.2 (copper wire ≤ 3m), Support HDCP 2.2
Output Port :
9*HDMI 1.3 (copper wire ≤ 15m)
Maximum Input Pixel Clock Frequency :
600MHz
Maximum Output Pixel Clock Frequency :
165MHz
HDCP :
HDCP 2.2
Maximum input resolution :
1*8:15360*1200P60,8*1:1920*9600P60,2*4:7680*2400P30,etc.
Output resolution :
Firmware A:1920*1200P60,1920*1080P60.Firmware B:1920*1200P60,etc.
Color depth :
8bit
Warranty :
1 Year
Description

Product Overview

4K60 Any Splicing Mode Within 9 Screens Multi-Screen Viewer

⇒BIT-MSE-209Pro is an industrial-grade high-performance product developed specifically for the fusion of multi-desktop operation and multi-channel projection. It uses HDMI/DP input interface and HDMI output interface;

⇒The interface supports a maximum of 2 inputs and 9 outputs, and can be combined with any splicing mode within 9 screens;
⇒A single input channel supports maximum resolution within 3840x2400@60Hz bandwidth, and the input resolution is downward compatible according to the multiple of the splicing mode for the output single screen;
⇒Output single channel maximum support 1920x1200@60Hz downward compatible with conventional resolution (output support customized special resolution)；
⇒Fixed EDID design, can customize the input resolution;
⇒Support 1xN, Nx1, NxN, point to point, no stretch, no deformation, no compression, clear picture;

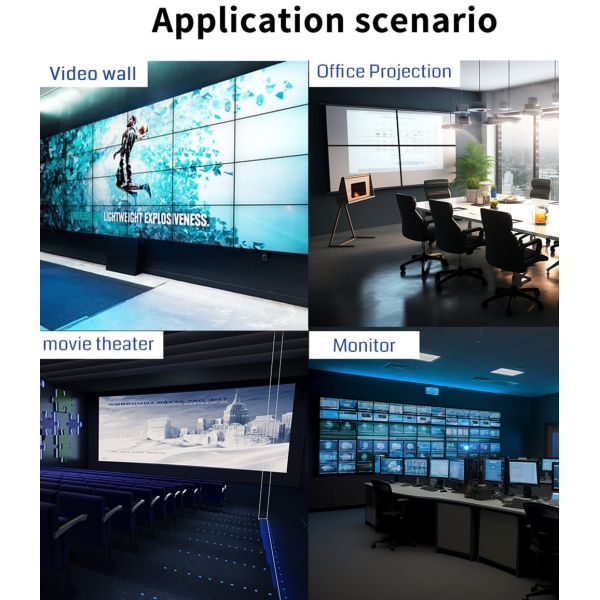

⇒Diversified application scenarios, strong compatibility. It supports computers, Android boxes, game consoles and other devices as input sources, and can be used with all kinds of video extenders or splitters for more complex scene applications.

⇒Welcome to contact us to consult about the products required by your project!

4K60 2 Input 9 Output Video Wall Controller with Any Splicing Mode for Professional Multi-Screen Viewer


Technical Specifications

Product Name BIT - MSE - 209Pro
HDCP HDCP2.2
Input interface type 2 - way HDMI 2.0/DP 1.2 (choose one of two)(≤ 5 meters)
Input Maximum resolution 3840x2160@60Hz/3840x2400@60Hz 5760 x 3240 @ 3 0Hz/7680x 216 0@ 3 0Hz (4Kx2K@60Hz Resolution within bandwidth)
Input color format RGB888, 24bit
Output interface type 9 - way HDMI 1.3
Output interface maximum video pixel frequency 165MHz
Output resolution 1920x1080@60Hz 1920x 1 20 0@60 H z (customizable)
Audio HDMI output, 3.5mm audio port (audio separation
Power supply DC 12V/ V/ 2A
Power comsumption 22 W
Storage/working temperature - 10 to 50 º C/0 to 50 º C
Product size Length 300mm* width 142mm* height 35mm
Net weight 1.8 KG
Accessories list 12V/2A power supply *1, HDMI/DP cable *2, certificate *1, warranty card *1
After-saleswarranty 3 yearws warranty

4K60 2 Input 9 Output Video Wall Controller with Any Splicing Mode for Professional Multi-Screen Viewer

4K60 2 Input 9 Output Video Wall Controller with Any Splicing Mode for Professional Multi-Screen Viewer


Features

1.Supports 2-channel 4K60 signal input, choosing between HDMI and DP, with priority access to HDMI interfaces that support diversity, ensuring clear images and rich details.
2.Ultra-high resolution, single channel input supports up to 4096X2160P60.
3.Supports 9-channel HDMI interface output, supports resolutions such as 1920X1200P60, 1920X1080P60, etc., compatible with multiple display devices and resolution requirements, can be flexibly adjusted according to specific application needs and device configurations, providing more choices and adaptability.

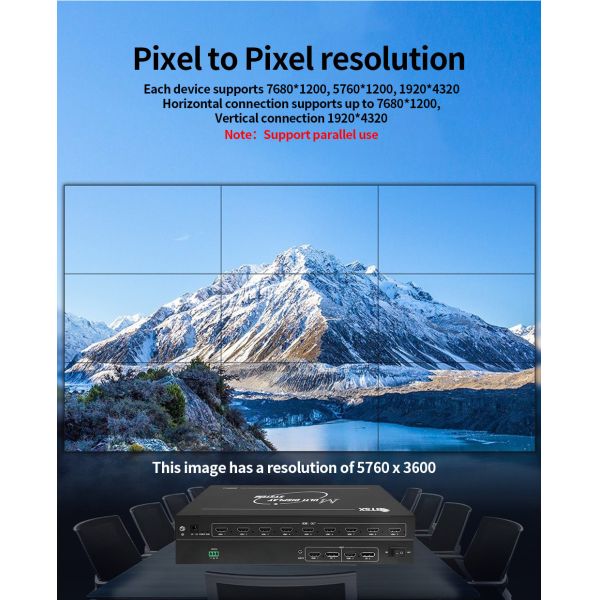

4.Supports point-to-point splicing of 1X8, 8X1, 9X1, 2X4, 3X3, etc., without stretching or deformation, providing a wider field of view.
5.Supports writing EDID, locking with DIP switch, and customizable input resolution.
6.Supports 3.5mm interface audio separation and HDMI audio output.
7.Supports combination with 1U rack, installed in the cabinet for centralized management, or can be installed on the desktop and wall with desktop small hanging ears.
8.Adopting a high-end programmable FPGA chip with 28nm technology and a fully hardware real-time processing architecture, the ultra-fast processing speed is not delayed and does not require any software.
9.Industrial grade design, thickened 6-layer PCB board, 16KV ultra-strong anti-static ability, ultra-strong product stability.
10.Supports parallel use of multiple devices to ensure real-time display requirements on large screens.
11.Low power consumption, energy-saving and environmentally friendly design, equipped with overheating protection and anti-interference design, using 18W thermal conductivity material, internal heat dissipation, ensuring long-term stable operation of the equipment, suitable for long-term use in various environments.
12.Paired with Bitvisus Window Opening Software, it can achieve 4K60 multi-screen display.
