Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
CN¥7,867.49-10,848.85
Input interface :
12 x HDMI 2.0
Input pixel clock :
600MHz
Input resolution :
3840x2160P60
Color depth :
8bit
Color format :
RGB444, YUV444, YUV422, YUV420
Output interface :
12 x HDMI 2.0
Output pixel clock :
600MHz
Output resolution :
4096x2160P60
Control mode :
RS232 serial port, Web, key pad
Audio frequency :
HDMI output audio with out, separate
Power source :
220V
Power dissipation :
72W
Product weight :
5KG
Product size :
483mm×200mm×130mm
Material :
Metal
Description
Industrial 12x12 HDMI Matrix Splicer
No Input Compression 600MHz Pixel Clock FPGA Chip for Critical Display Environments
Product Overview
The BIT-VWC-MD1212Ma is a professional splicing and seamless matrix switching device developed by Bitvisus. Featuring high-definition processing chips, this system provides 12-channel 4K60 HDMI 2.0 inputs and 12-channel 4K60 HDMI 2.0 outputs. The modular design supports insertion of up to 3 boards, with each board containing 4 HDMI 2.0 interfaces for flexible configuration. With exceptional image quality, superior stability, and intuitive operation, this solution is ideal for command centers, conference facilities, commercial displays, and exhibition environments.
Key Features
  • 12-channel 4K60 HDMI 2.0 input and output capability for multiple source and display configurations
  • Advanced audio matrix functionality with external audio input support and flexible switching
  • Modular plug-in chassis structure with 4-way input/output per board, scalable from 1-3 boards
  • Multi-platform control via keypad, RS232, network WEB, and API interfaces
  • Seamless signal switching technology eliminates black screens and screen flickering
  • Flexible screen splicing configurations up to 12 displays with custom layouts
  • Custom resolution support with EDID management and creation capabilities
  • Blind plug-in output interface configuration with adjustable output sequencing
  • 12 pre-programmed scene storage and recall functionality
  • Independent three-screen operation for flexible multi-scene configurations
  • WEB API interface enables custom integration and secondary development
  • Built-in output signal enhancement ensures stability during long-distance transmission
Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments Industrial 12x12 HDMI Matrix Splicer with 600MHz Pixel Clock and FPGA Chip for Critical Display Environments
Technical Specifications
Product Name BIT-VWC-MD1212Ma
Input Interface 12x HDMI 2.0
Maximum Pixel Clock Frequency 600MHz
Maximum Input Resolution 3840x2160P60
Color Depth 8bit
Color Format RGB444, YUV444, YUV422, YUV420
Output Interface 12 x HDMI 2.0
Output Maximum Pixel Clock Frequency 600MHz
Output Resolution 4096x2160P60
Control Methods RS232 serial port, Web, key pad
Audio Support HDMI output audio with separate audio processing
Power Supply 220V
Power Consumption 72W (3 input cards, 3 output cards)
Product Weight 5KG
Packing Weight 5.7 KG

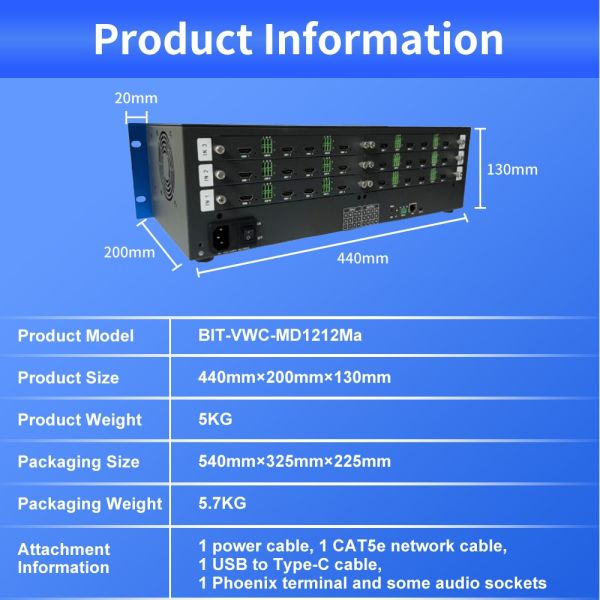

Product Dimensions 483mm × 200mm × 130mm
