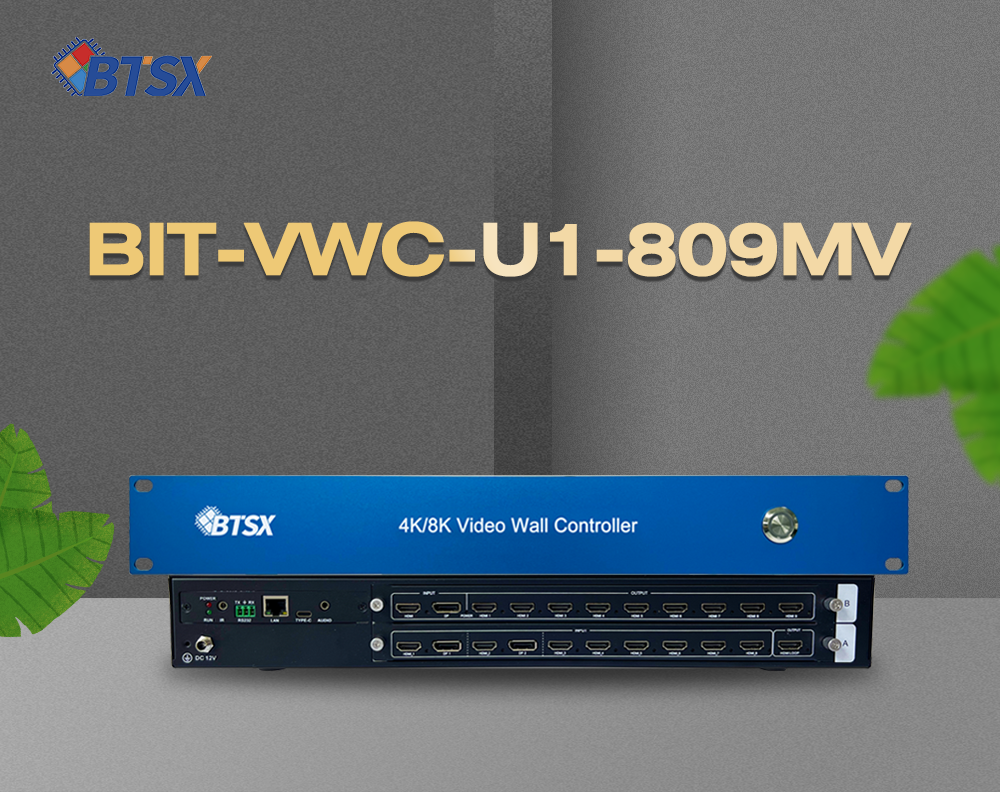

4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
Specifications
Model Number :
BIT-VWC-U1-809MV
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
RM 2,436.47-3,354.67
Aspect ratio :
16:9
Brightness :
1000cd
Input Interface :
2 HDMI2.0/DP1.2, 2 HDMI2.0, 4 HDMI1.3
Maximum Input Frequency :
600MHz
Output Interface :
9 X HDMI 1.3, 1 X HDMI 2.0
Maximum Output Frequency :
154MHz
Output Resolution :
1920X1080P60,1920X1200P60
Control Method :
RS232, network port web
Power Supply :
12V5A
Power Consumption :
40W
Input Resolution :
IN1-4: 3840×2160P60, IN5-8: 1920×1080P60
Color Depth :
8bit
Input Color Format :
RGB444, YUV444, YUV422, YUV420
Product Dimensions :
483mm×200mm×60mm
Product Weight :
2.8KG
Description
Multi-Screen Video Wall Processor 4K60 8Input 9Output
Advanced Video Wall Control Solution

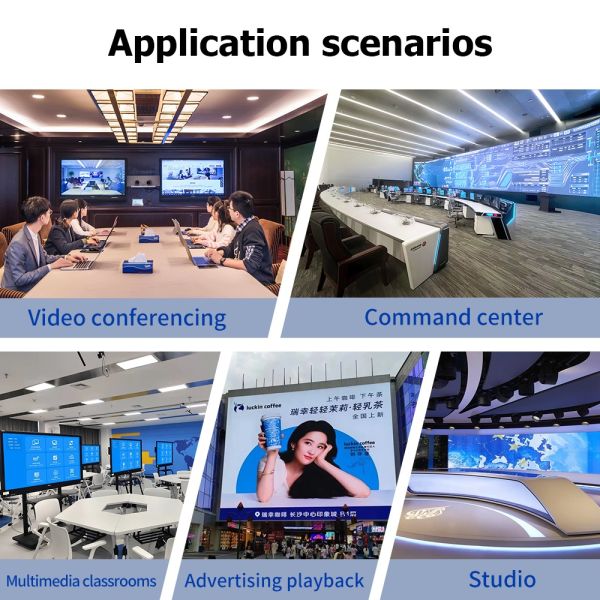

Professional hardware video wall processor featuring bezel adjustment, RS232 and web control capabilities, designed for command center applications.

Key Features
  • 8 Input Channels - 4× 4K60 (HDMI/DP option) + 4× 1080P60 inputs with 9× 1080P60 outputs
  • Multi-Control Options - Remote control, RS232, and network WEB control compatible with Windows, Apple, mobile devices

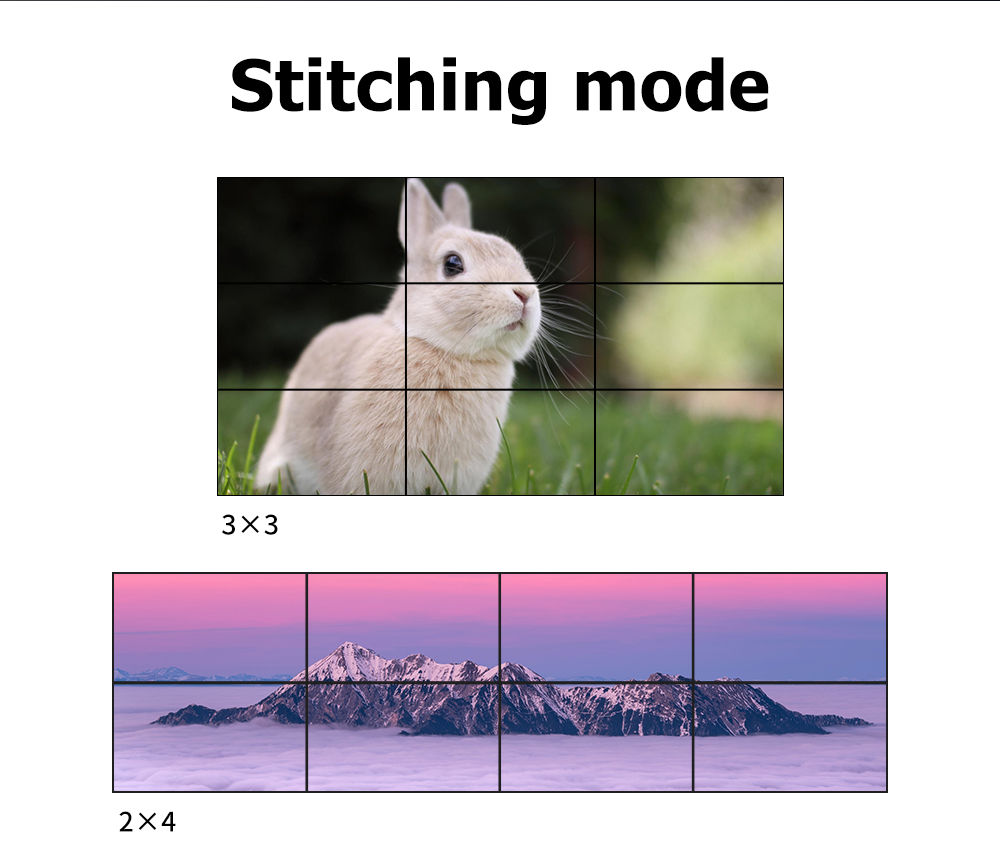

  • Flexible Display Modes - Multi-screen display with signal combination or independent content display
  • Seamless Switching - No black screen or flashing during input signal transitions
  • Signal Enhancement - Built-in output signal strengthening for long-distance transmission stability
  • Industrial Reliability - Imported 28nm process chips with advanced heat dissipation for continuous operation
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
4K60 8Input 9Output Video Wall Processor with RS232 Web Control for Multi-Screen Display
Technical Specifications
Product Name BIT-VWC-U1-809MV
Input Maximum Pixel Clock Frequency 600MHz
Input Interface IN1-2: 2×HDMI 2.0, 2×DP 1.2
IN3-4: 2×HDMI 2.0
IN5-8: 4×HDMI 1.3
Input Resolution IN1-4: 3840×2160P60
IN5-8: 1920×1080P60
Color Depth 8bit
Input Color Format RGB444, YUV444, YUV422, YUV420
Output Interface 9×HDMI 1.3, 1×HDMI 2.0
Output Maximum Pixel Clock Frequency 154MHz
Control Interface Remote control, RS232, Network Web interface
Audio 3.5MM Audio Split
Power Supply 12V5A
Power Consumption 40W
Storage/Operating Temperature -10～50ºC / 0～50ºC
Product Dimensions 483mm × 200mm × 60mm (L×W×H)
Product Weight 2.8KG
Accessory List 1×12V5A power adapter, 1×Phoenix terminal, 1×Blue network cable, 1×IR infrared head, 1×Remote control
Company Profile

Professional manufacturer specializing in video wall controllers, multi-screen expanders, multi-viewers, and embedded projector fusion solutions.
