Specifications
Place of Origin :
Guangdong, China
MOQ :
1
Price :
CN¥4,658.38-6,411.31
Input Interface :
1 X HDMI 2.1, 1 X DP 1.4
Output Interface :
15 X HDMI 1.4
Input Pixel Clock :
1200MHz
Output Pixel Clock :
165MHz
Output Resolution :
1920×1200P60, 1920×1080P60
Power Supply :
DC 12V5A
Power Consumption :
48W
Package Weight :
2.6KG
Package Dimensions :
530mm×260mm×80mm
Operating Temperature :
0～50ºC
Storage Temperature :
-10～50ºC
Control Mode :
Serial Port RS232, Network Port WEB
HDCP Support :
HDCP 2.2
Material :
Metal
PCB Layers :
6-layer
Description

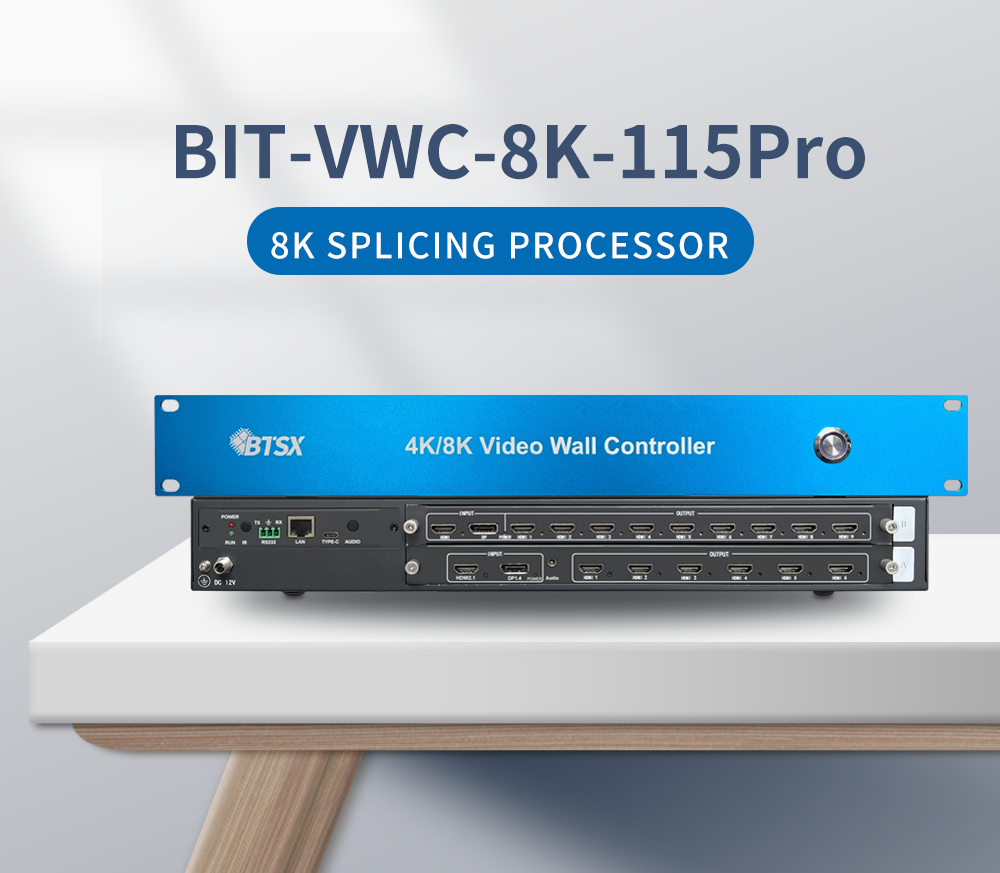

Industrial Grade 8K Splicing Processor
High-performance FPGA real-time hardware processor designed for large screen display walls, supporting 8K60 input and 15x HDMI outputs.
Key Features
  • Single 8K signal input with HDMI 2.1 or DP 1.4 interface options
  • Supports 1080P60 and 1200P60 output resolutions

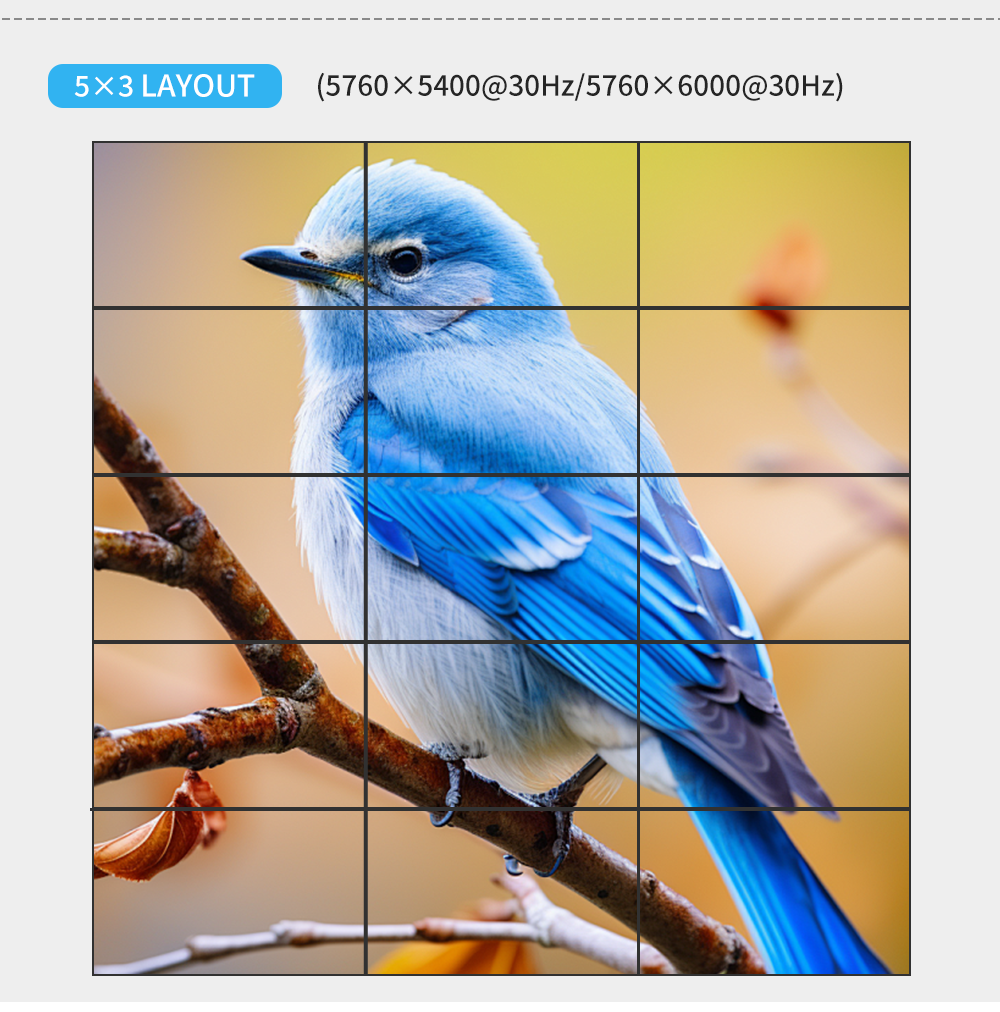

  • Ultra-high resolution input up to 5760×6000P30
  • Flexible 1×N, N×1, and M×N point-to-point splicing without distortion

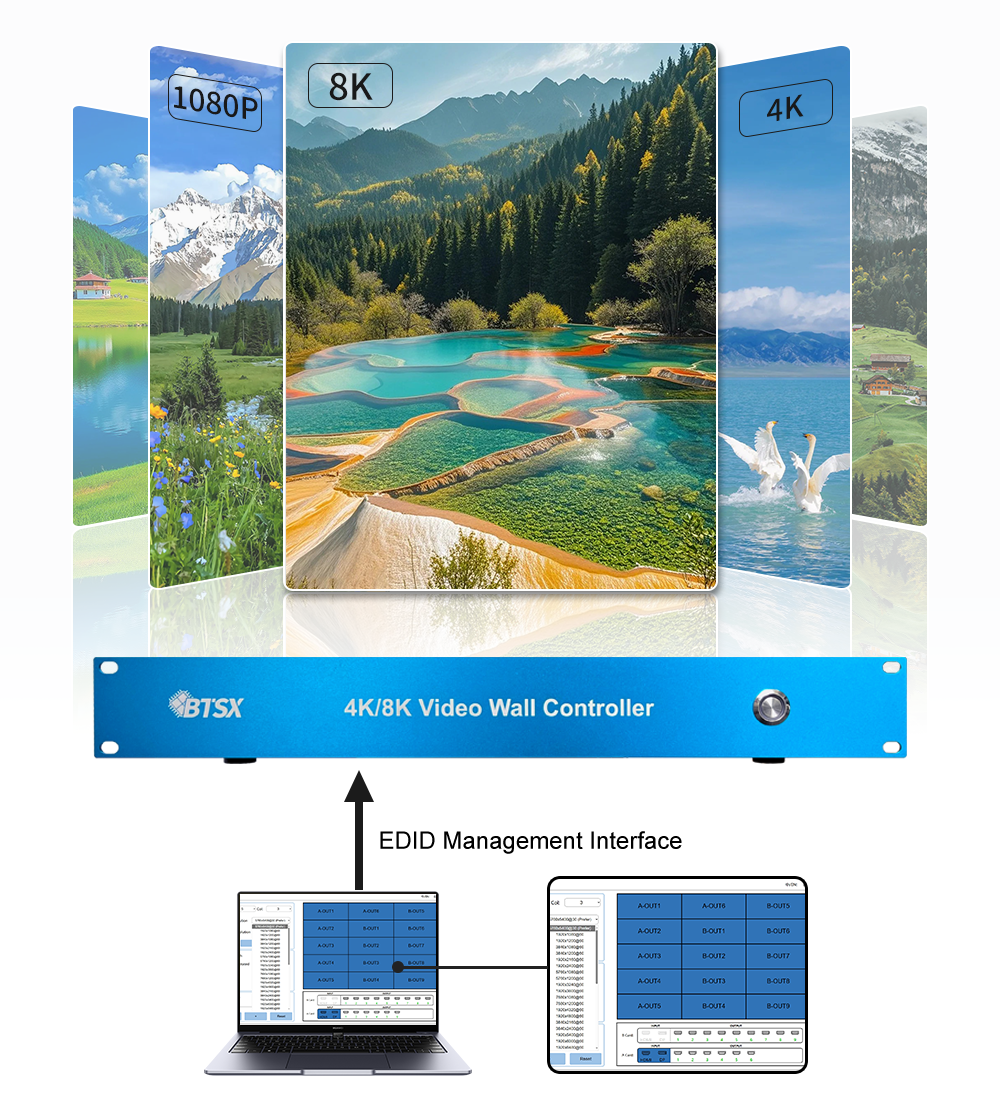

  • Advanced EDID management for optimal display compatibility
  • Dual control options: Serial Port RS232 and Network Port WEB Control

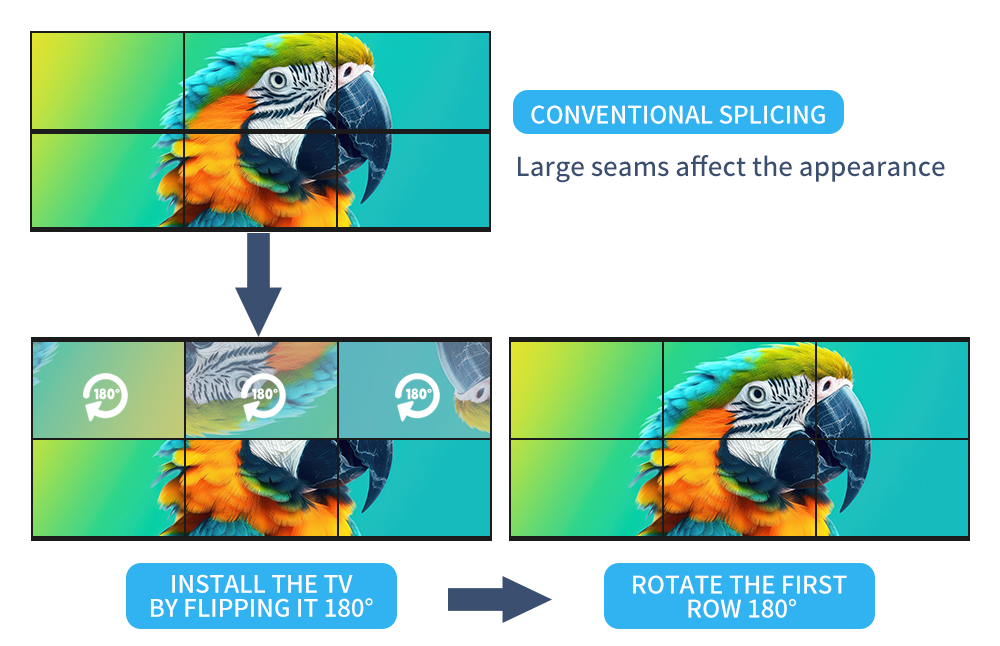

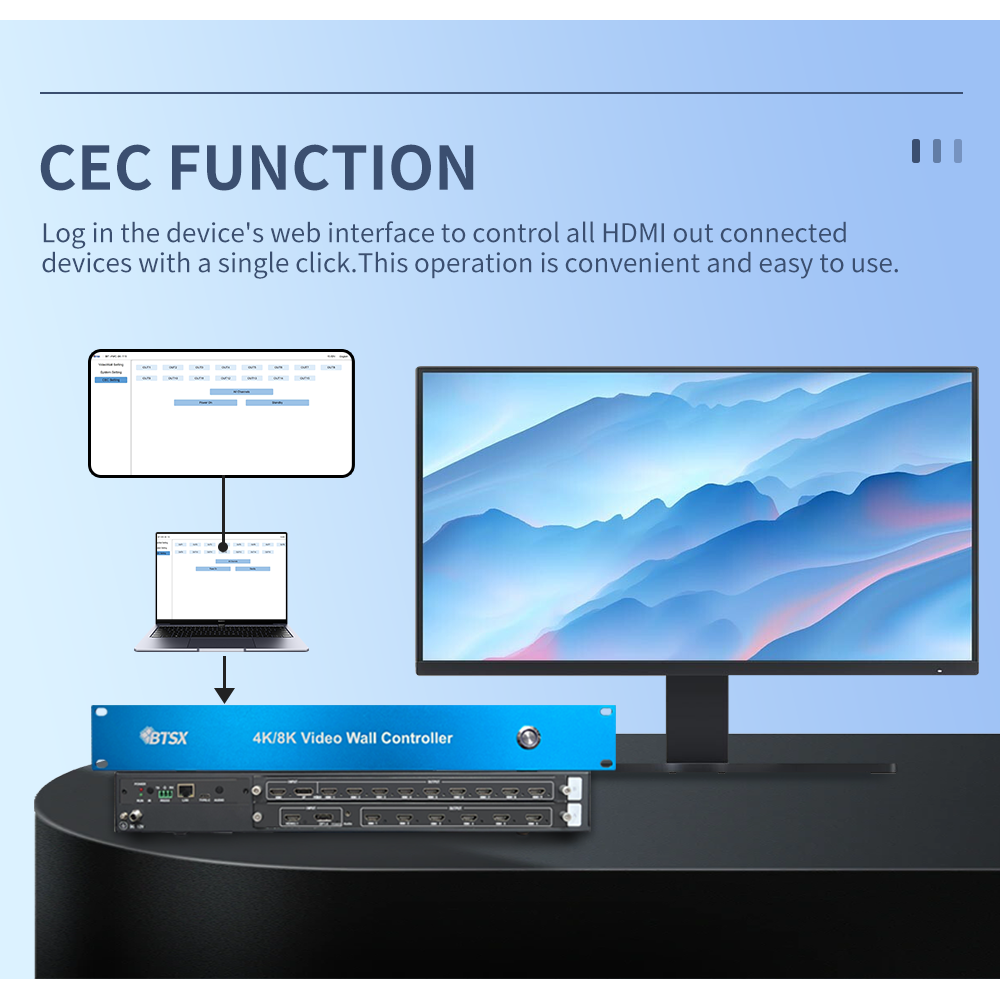

  • Bezel setup and CEC control support
  • High-end 28nm FPGA chip with full hardware real-time processing
  • Industrial-grade design with 6-layer PCB and 16KV anti-static protection
  • Parallel operation capability for large screen real-time display
  • Low power consumption with overheat protection and anti-interference design
  • Compatible with Bitvisus windowing software for multi-picture 8K display
Product Images
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Technical Specifications
Product Name BIT-VWC-8K-115
Input Interface 1×HDMI 2.1, 1×DP 1.4 (copper cable ≤ 3 meters)
Output Interface 15×HDMI 1.4 (copper cable ≤ 10 meters)
Input Maximum Pixel Clock Rate 1200MHz
Output Resolution 1920×1200P60, 1920×1080P60
Control Mode Serial Port RS232 Control, Network Port WEB Control
Power Supply DC 12V5A

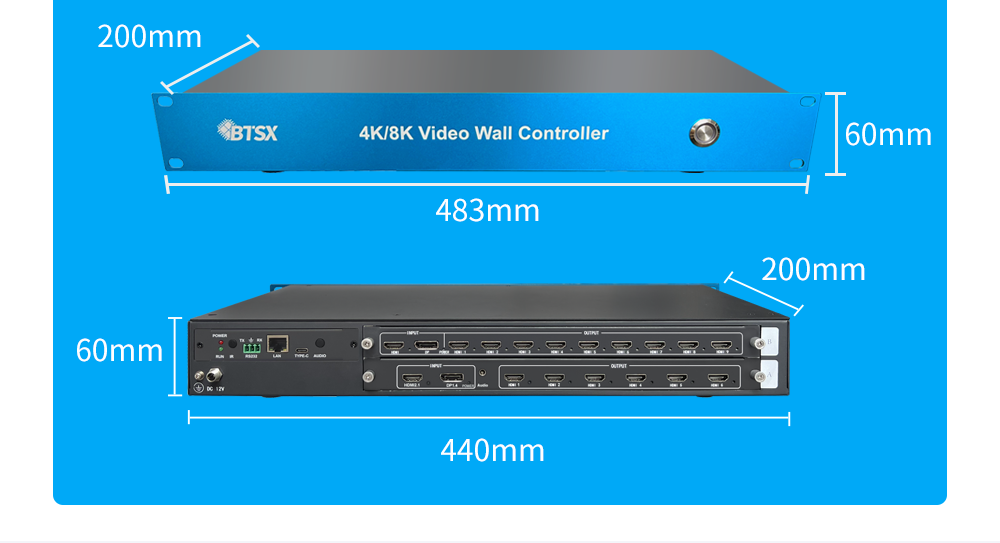

Package Dimensions 530mm×260mm×80mm (L×W×H)
Package Weight 2.6KG
Storage/Operating Temperature -10～50ºC/0～50ºC
Power Consumption 48W
Audio Audio Output
After-sales Service 3 years
Company Profile
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Frequently Asked Questions
Why Choose Bitvisus?
  • Own warehouse ensuring 48-hour shipping after payment (excluding weekends and holidays)
  • OEM/ODM services available for custom requirements
  • Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems
  • Proven R&D experience and product quality assurance
Shipment & Payment
  • Payment Methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping Options: DHL, UPS, EMS, FedEx, Air Freight, Sea Freight
How to Order?
  1. Contact us via email or chat (TM, WhatsApp, Skype) with your order requirements
  2. We will provide a proforma invoice based on your specifications
  3. After PI confirmation and payment, we will expedite delivery
