Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
€1,337.22-1,347.50
Input interface :
12 X HDMI2.0
Input resolution :
3840X2160P60
Color format :
RGB444,YUV444,YUV422,YUV420
Output interface :
12 X HDMI2.0
Output resolution :
4096x2160P60
Control mode :
RS232 serial port,Web,key pad
Package size :
540mmX325mmX225mm
Packing weight :
5.7KG
Input pixel frequency :
600MHz
Input depth :
8bit
Output pixel frequency :
600MHz
Power source :
220V
Power dissipation :
72W
Product size :
483mm×200mm×130mm
Product weight :
5KG
Description
Product Overview

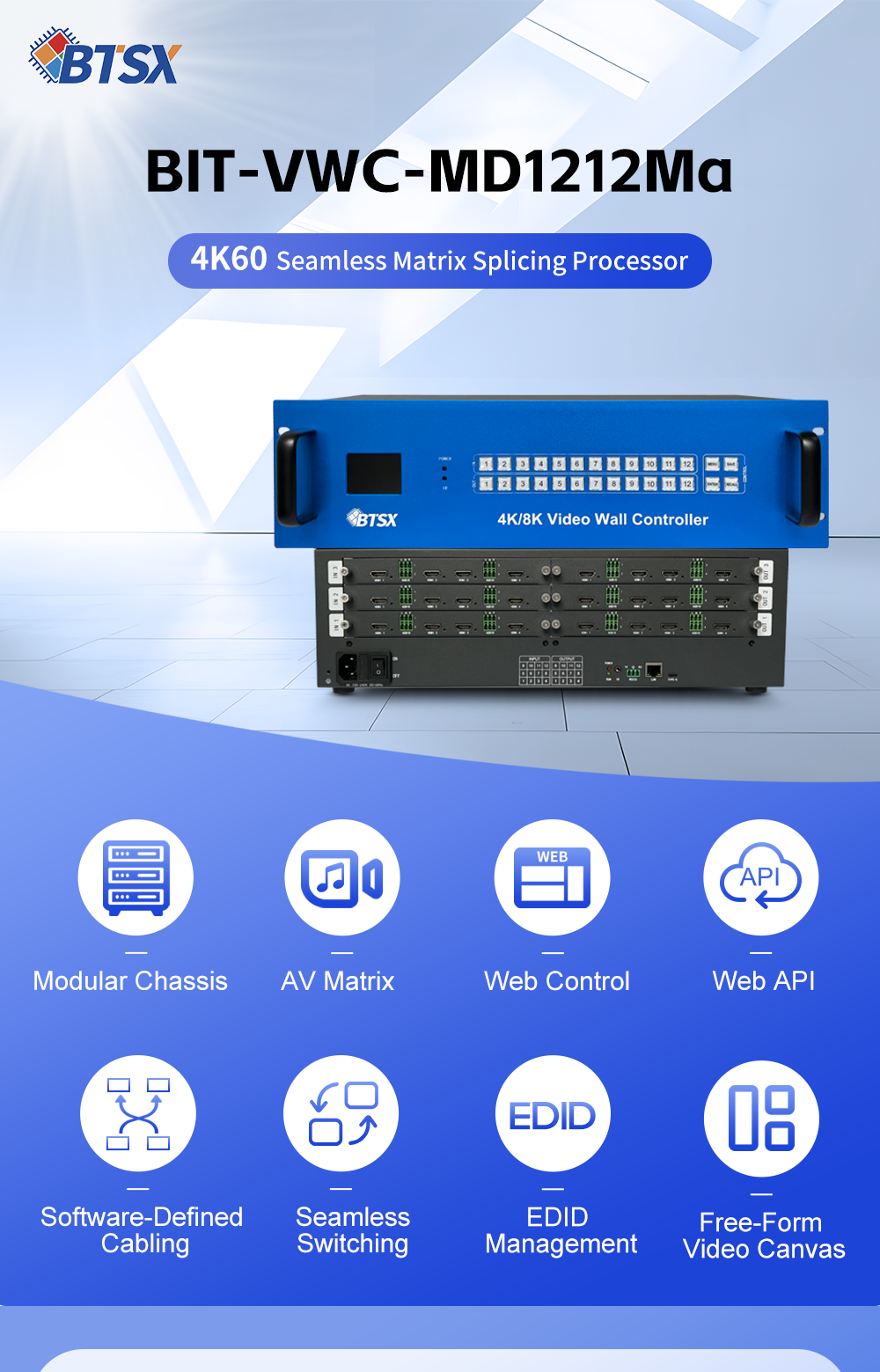

12-in 12-out 4K60 Seamless Matrix Splicer

⇒Supports 12 HDMI inputs and 12 HDMI outputs;

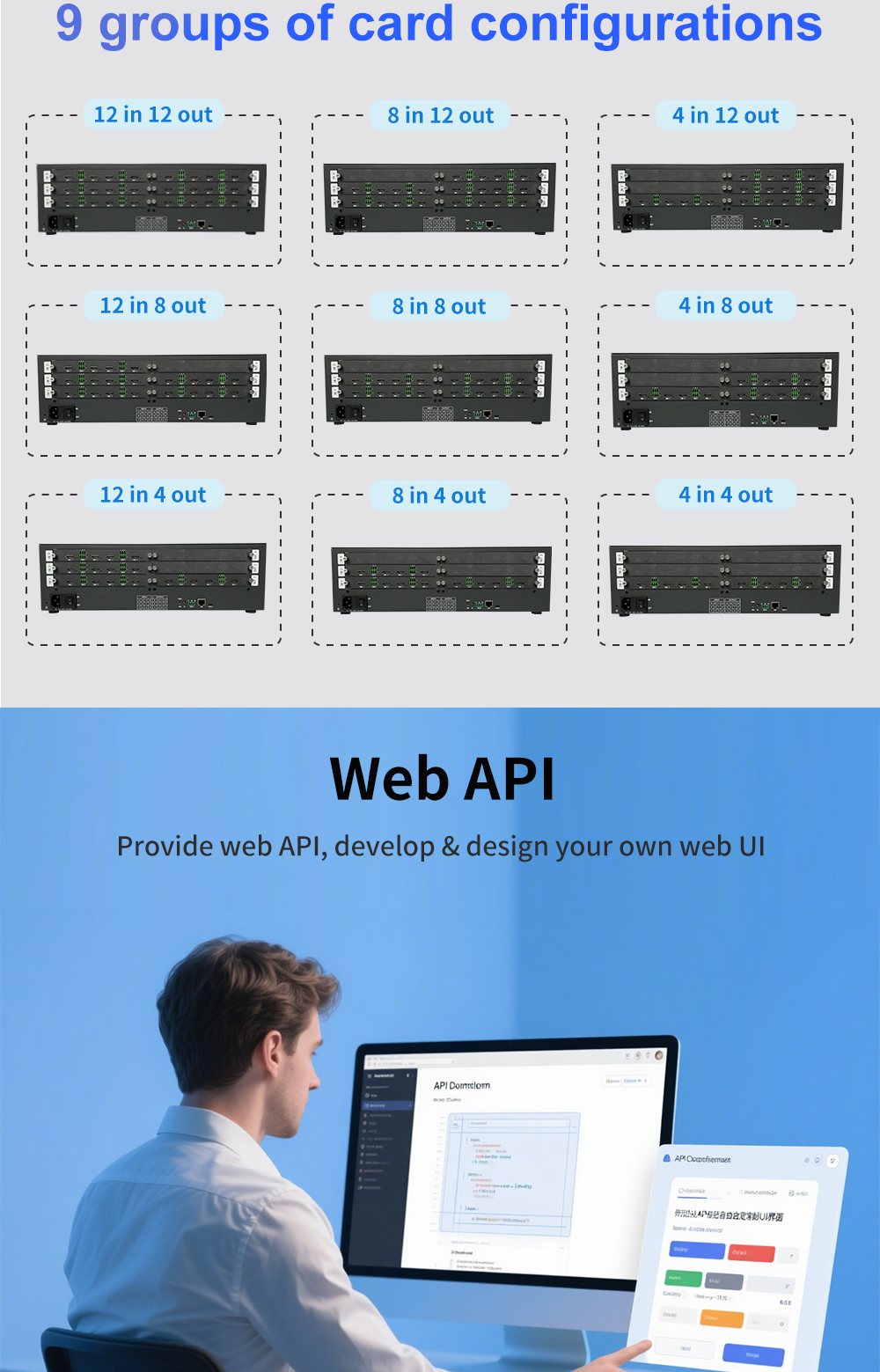

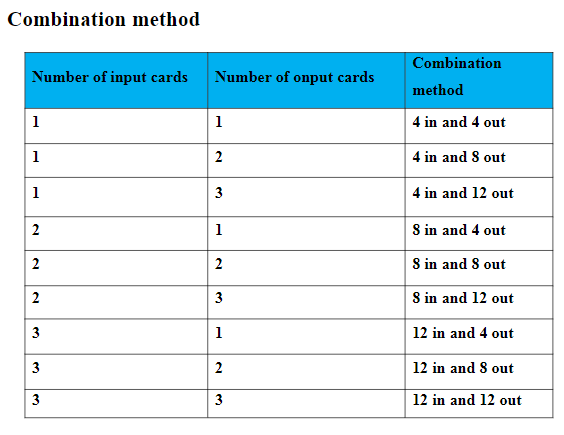

⇒Device input and output support 3 boards, each board 4 HDMI port;

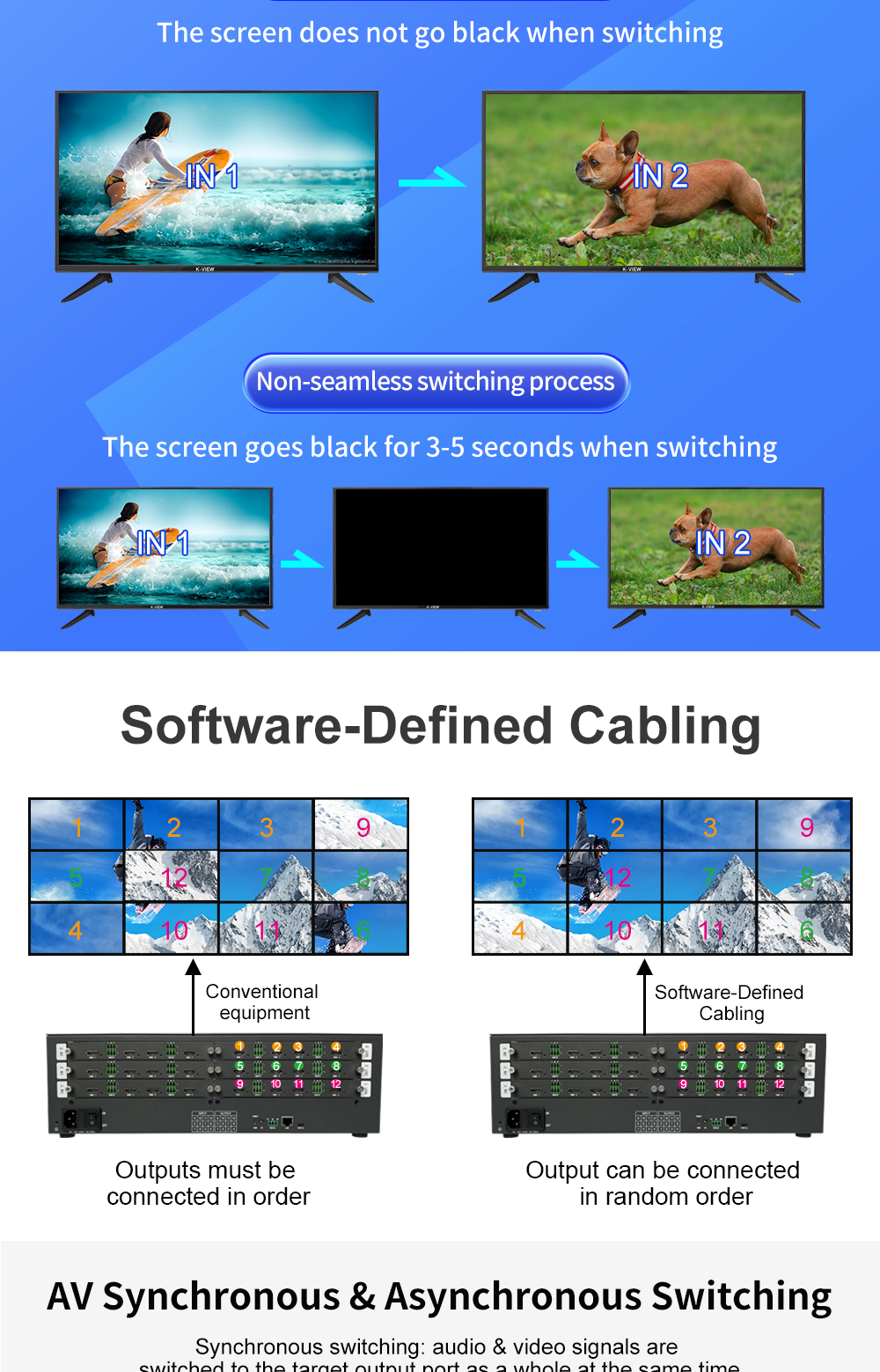

⇒Single device,12 in 12 out, can be combined 12 rectangular splicing mode 12 input source seamless switching, horizontal screen/vertical screen/field shape,and support large-scale parallel use;
⇒The maximum value of the input is 3840x2160P60, backward compatible. The maximum output output is 4096x2160P60;

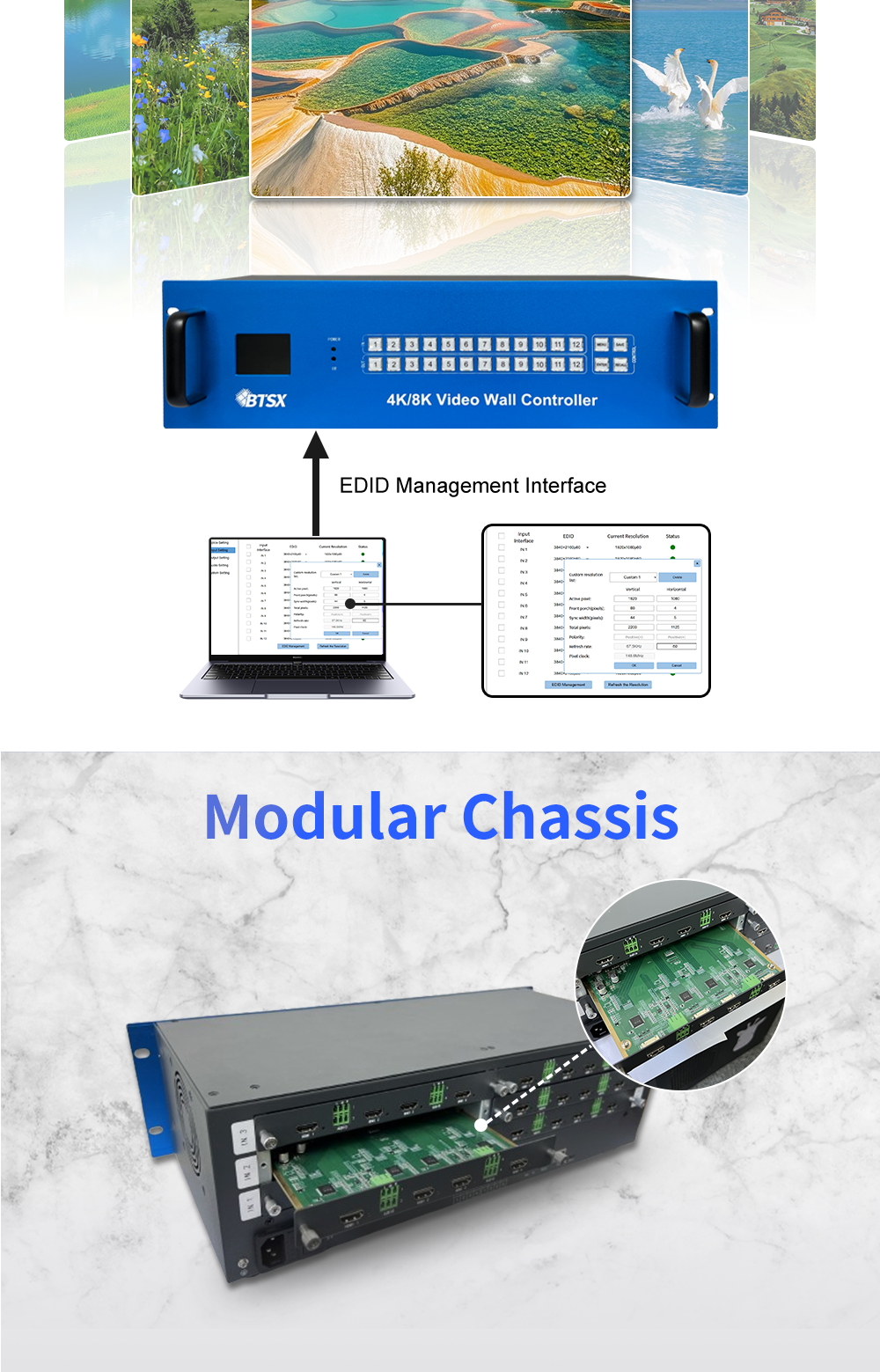

⇒Supports custom resolution of an independent graphics card and EDID management. You can create and save custom EDID using the WEB UI;
⇒Splicing does not require compression of the input source, and the picture is clear;

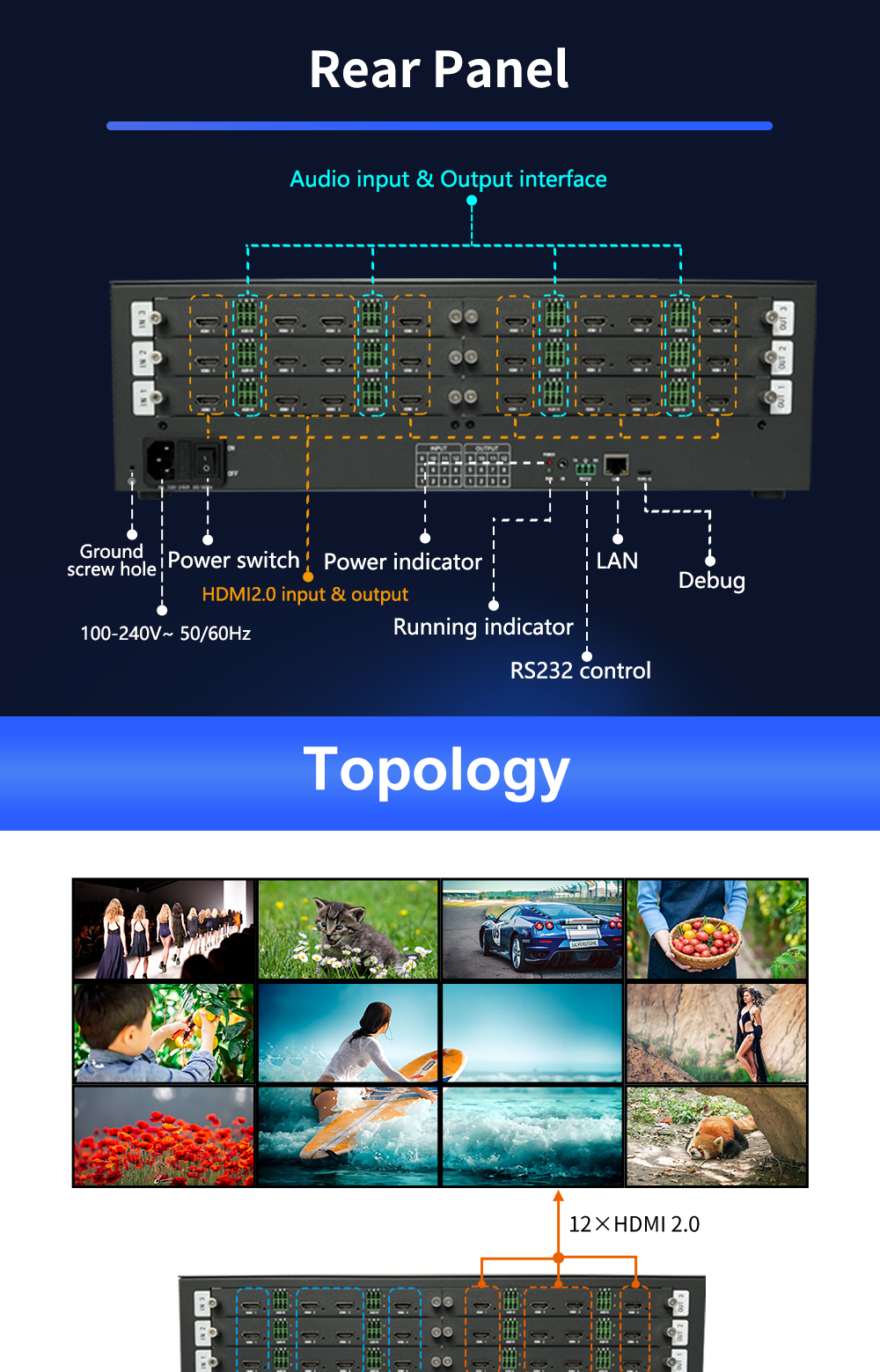

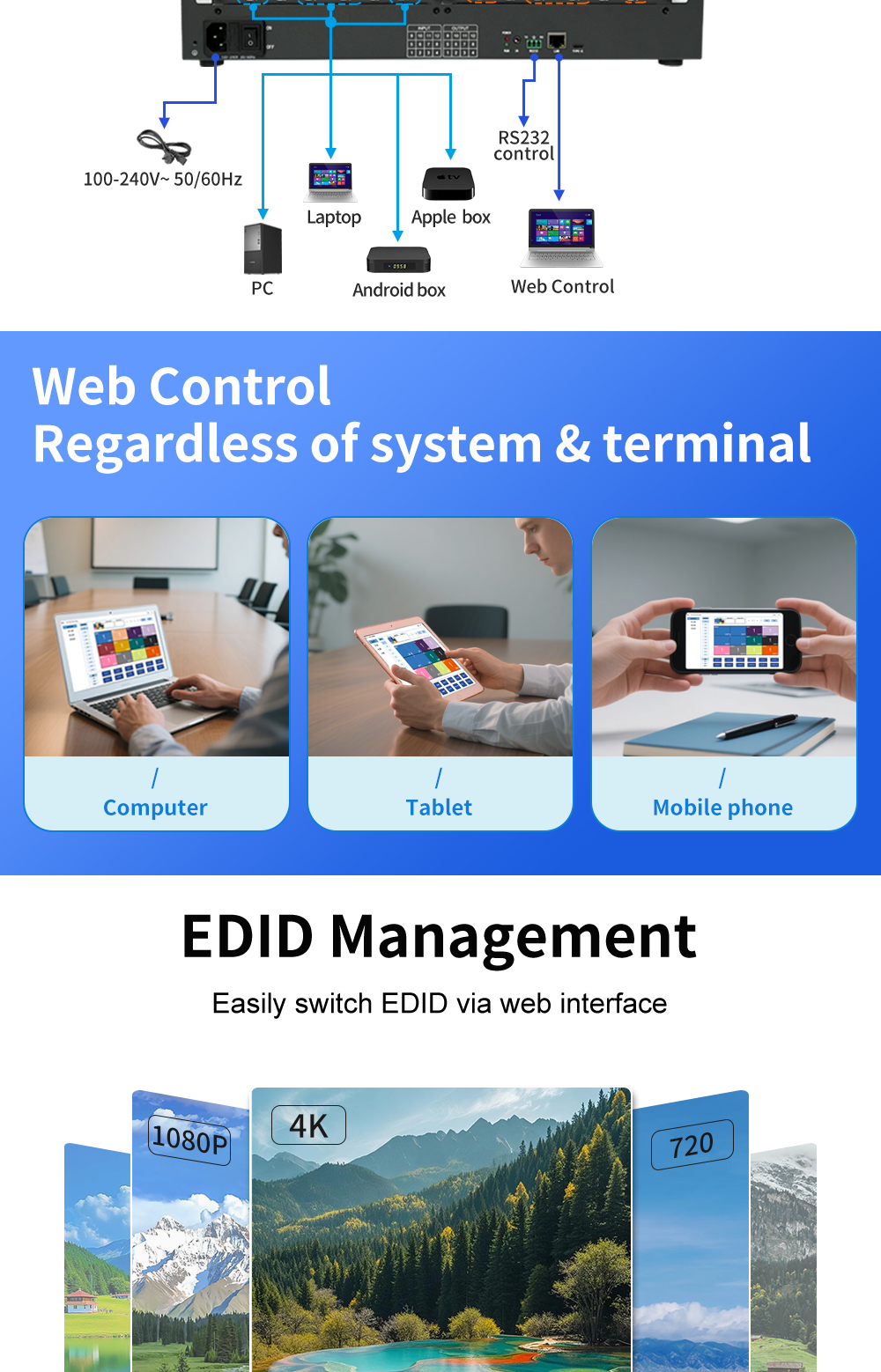

⇒Support infrared remote control, serial port RS232, network port WEB interface, key board control;
⇒Uses HD video process in chip;

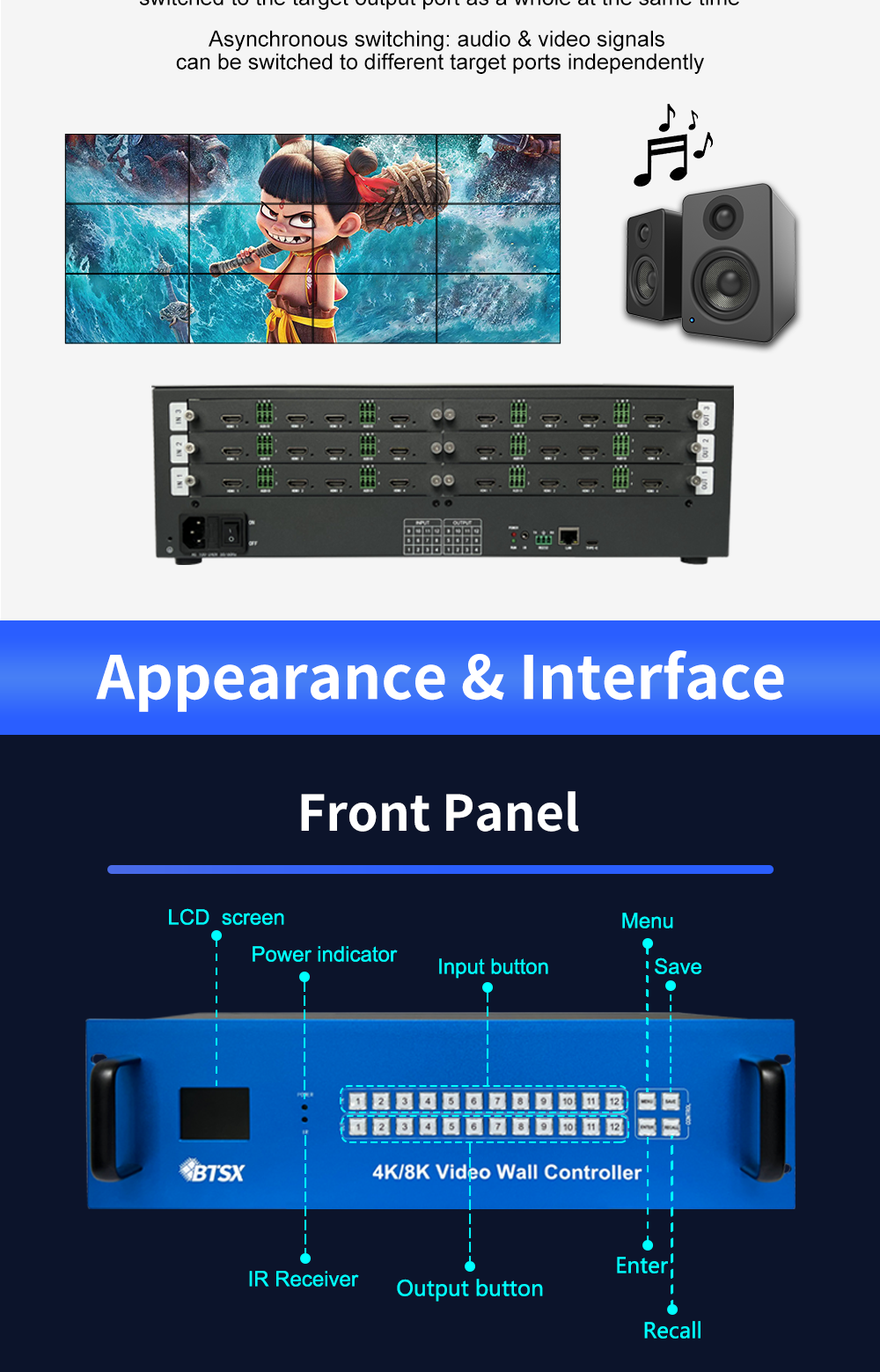

⇒The chassis comes with an LCD display. You can switch the source, set the resolution, and switch the dynamic and static IP addresses by pressing the button.

⇒Welcome to contact us to consult about the products required by your project!
FEATURES AT A GLANCE
4K60 Video Wall Controller Seamless Switching Extension Slicing Roaming 4 in 9 out 1X2 2X2 1X3 3X3 HDMI Port
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
Display Video Processor 2X3 2X4 3X1 4X1 4X2 Roaming HDMI Switch for Audio Seamless Switching
PRODUCT SPECIFICATIONS
Product Name
BIT-VWC-MD1212Ma
Input interface type
12xHDMI2.0
Input interface maximum video pixel frequency
600MHz
Input Maximum resolution
3840x2160P60
Input depth
8bit
Color format
RGB444, YUV444, YUV422, YUV420
Output interface type
12xHDMI2.0
Output interface maximum video pixel frequency
600MHz
Output resolution
4096x2160P60
Control mode
RS232 serial port, Web, keypad
Audio
HDMI output audio with out,separate
Power source
220V
Power dissipation
72W(3 input cards,3 output cards)
Storage/working temperature
- 10 to 50 º C/0 to 50 º C

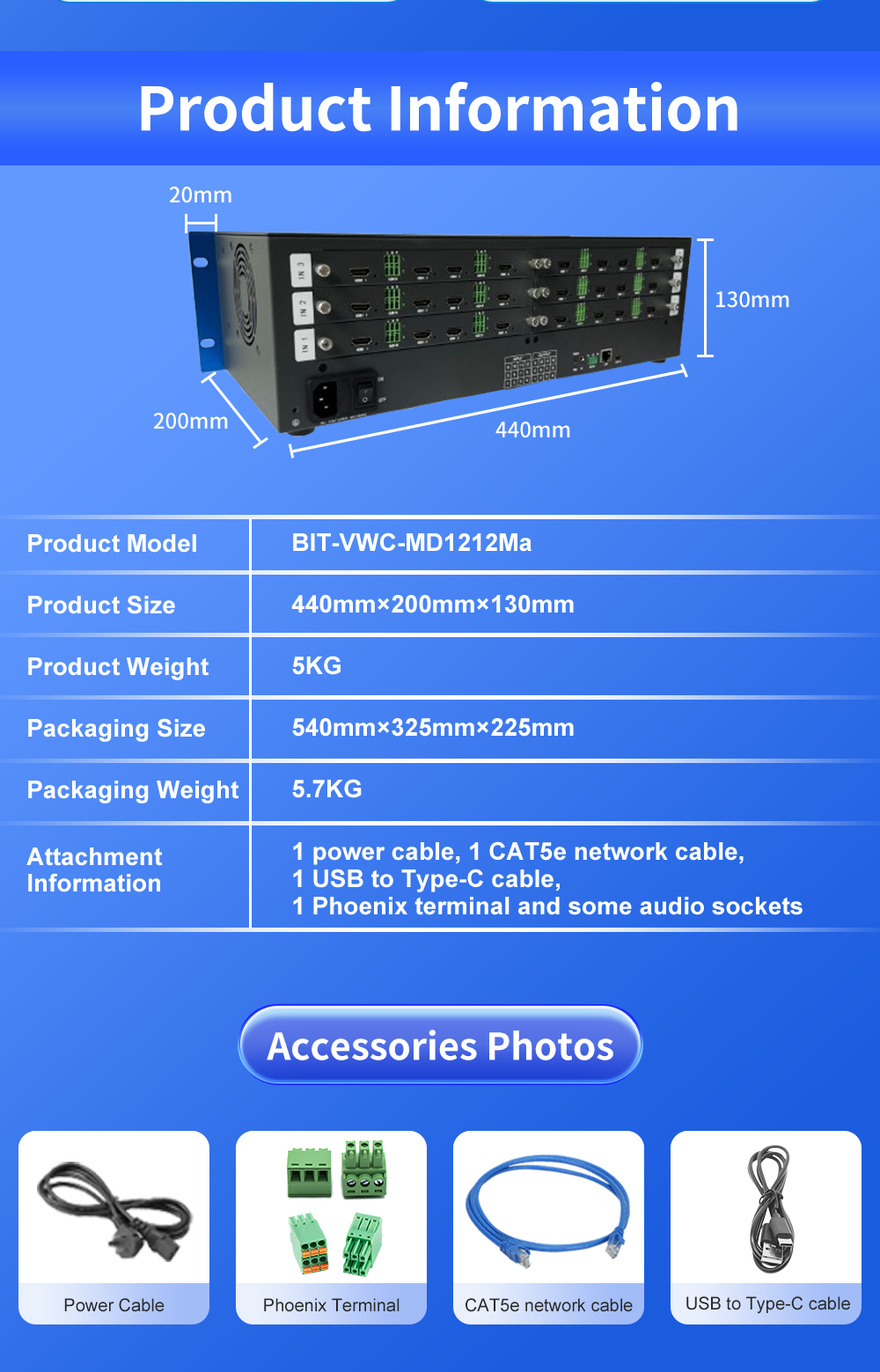

Product size
Length×width×height:483mm×200mm×130mm
Package size

Length×width×height:540mm×325mm×225mm
Product weigh
5KG
Packing weight
5.7KG
Accessories list
1×220V power cable, 13×Phoenix terminal(Selection of 25×Phoenix Terminals), 1-meter Ethernet Cable,USB-AtoType-C(Optional)
After-saleswarranty
3 yearws warranty
PRODUCT CONFIGURATION
Arbitrary Picture Overlay Audio Separation Supports EDID Management Reading Modification and Customization of EDID
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
Video Processor 4K60 UHD Video Wall Controller 4-channel Signal Input Switching 9 Channel Output Port Expansion
Company Profile
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
Support Input and Output Rotation
FAQ
Why Choose Bitvisus ？
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
