Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$262-370
Material :
Metal
Input interface :
3 x HDMI1.4, 1 x HDMI2.0, 1 x DP1.2
Color depth :
24 bit, RGB444, YUV420
Output Interface :
9 x HDMI1.3, 1x DP1.2 loop out
Audio interface :
3.5 mm
Control method :
Infrared remote, RS232, PC
Power supply :
DC 12V 2A
Size :
270mm x 122.5mm x 20.5mm
Weight :
1kg
Input resolution :
3840x2160@60Hz
Output resolution :
1920x1080@60Hz
Video pixel frequency :
Input: 600MHz, Output: 165MHz
Default resolution :
HDMI: 3840x2160@30Hz, DP: 3840x2160@60Hz
HDCP support :
HDCP2.2
Input rotation :
90° (single-picture mode)
Description

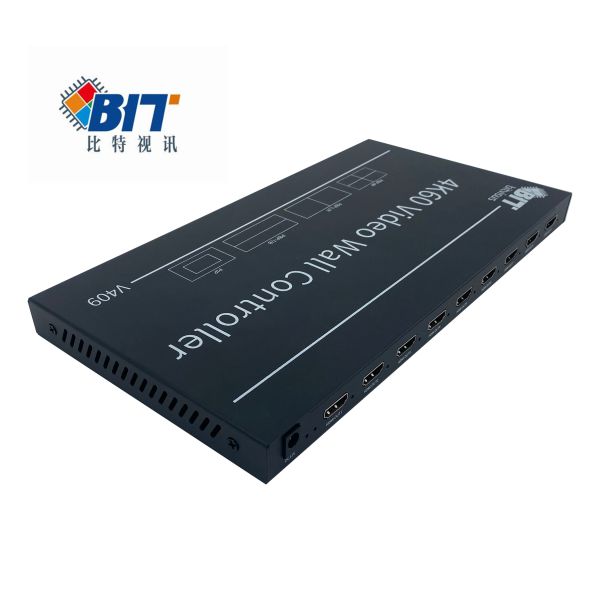

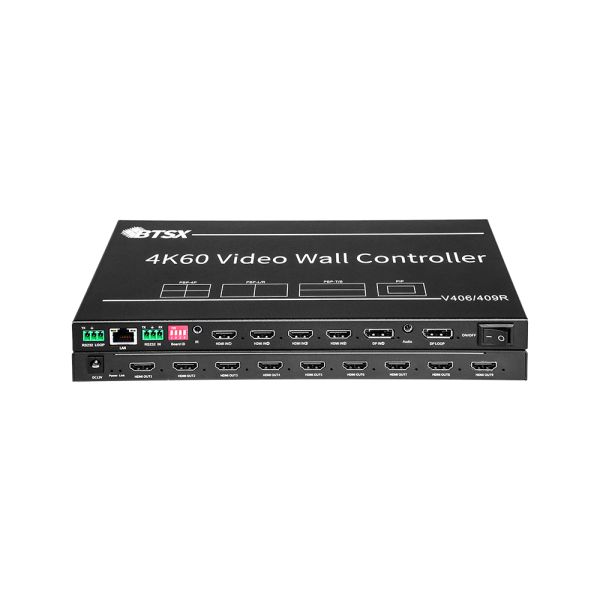

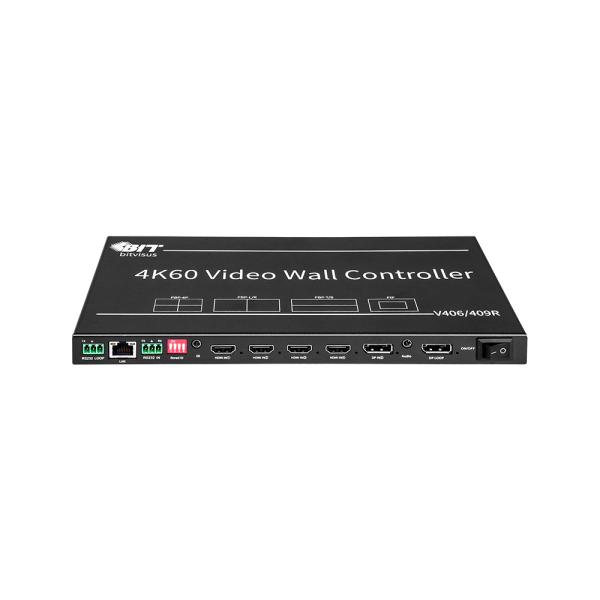

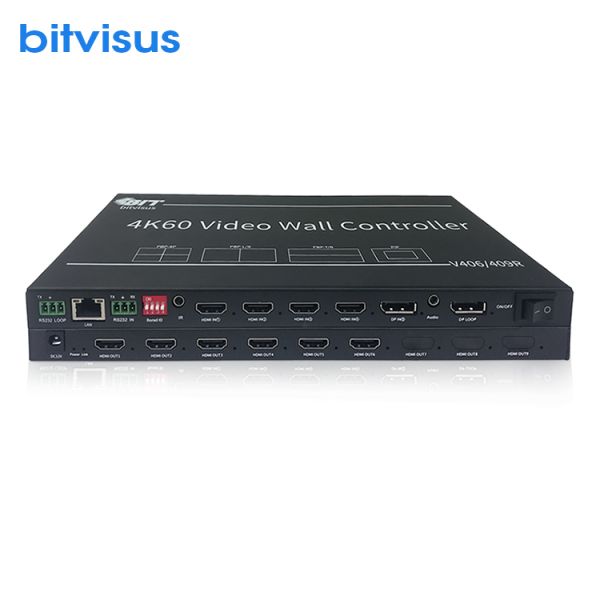

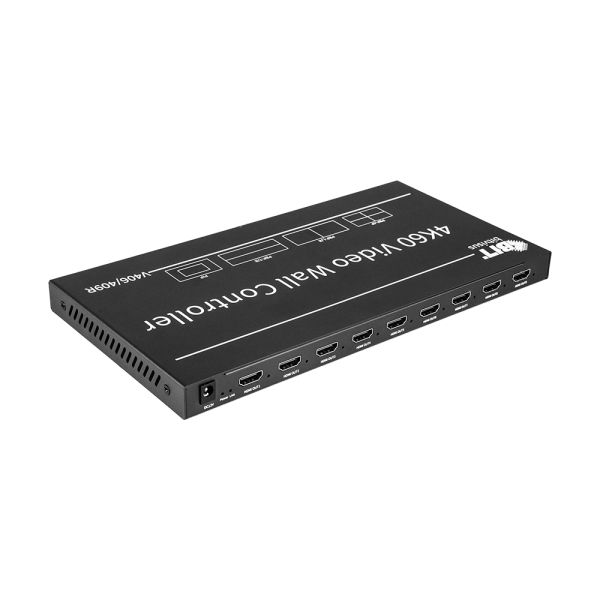

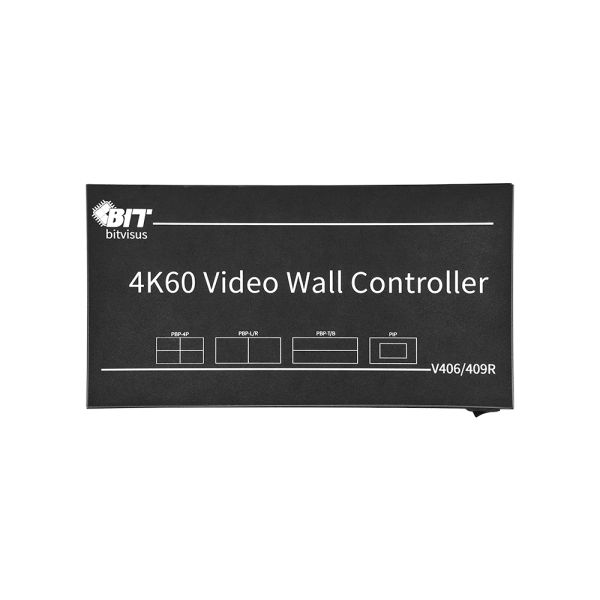

BIT-VWC-409R Ultra HD Rotary Video Wall Controller
Factory direct 2x2 4K60 video wall controller with 4 inputs and 9 outputs, featuring HDMI 2.1 video splitting technology for large screen video walls.
4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing
Product Overview
The BIT-VWC-409R is an ultra HD rotary splicer manufactured by Shenzhen Bitvisus Technology Limited, designed for professional video wall applications.
Key Features
  • Supports 4 HDMI inputs (1 channel 4K@60Hz, 3 channels 4K@30Hz) and 1 DP input (4K@60Hz)
  • 9 HDMI outputs supporting 1080p@60Hz resolution

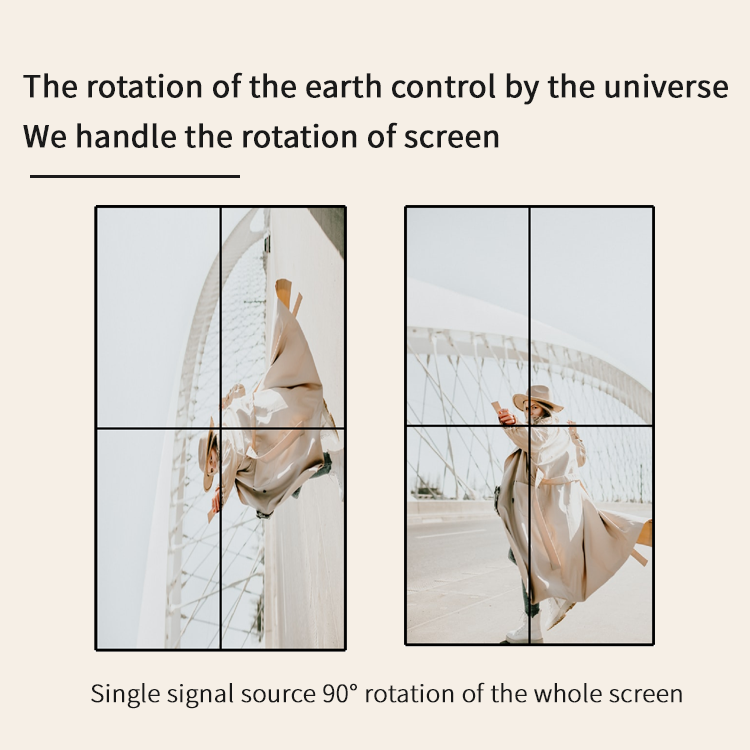

  • Input supports full screen rotation of 90° in single-picture mode

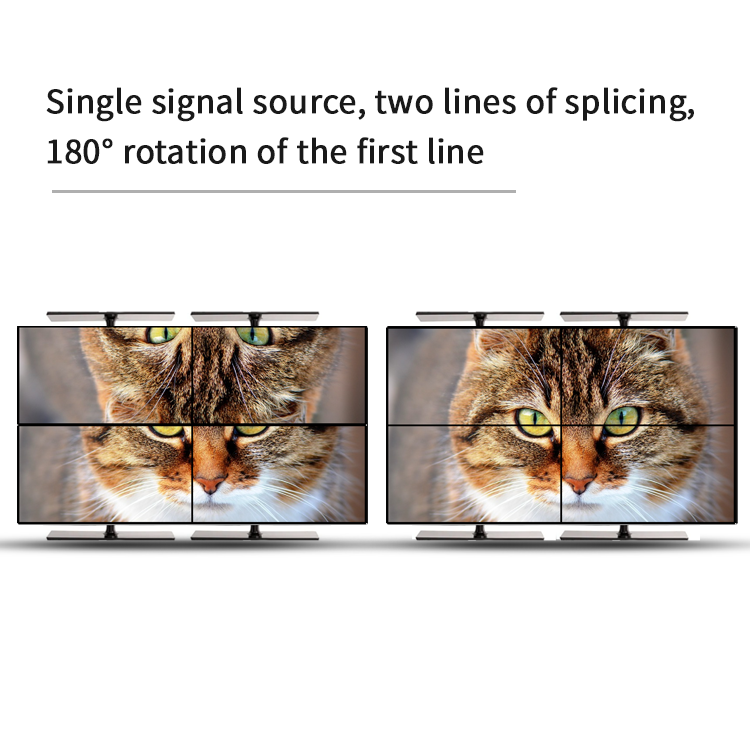

  • Output supports 180° rotation for the first line in two-line stitching mode
  • Single display mode (1x1) support
  • Infrared remote control and serial RS232 control compatibility
  • Low power consumption with conductive heat dissipation
  • No external cooling required with high reliability

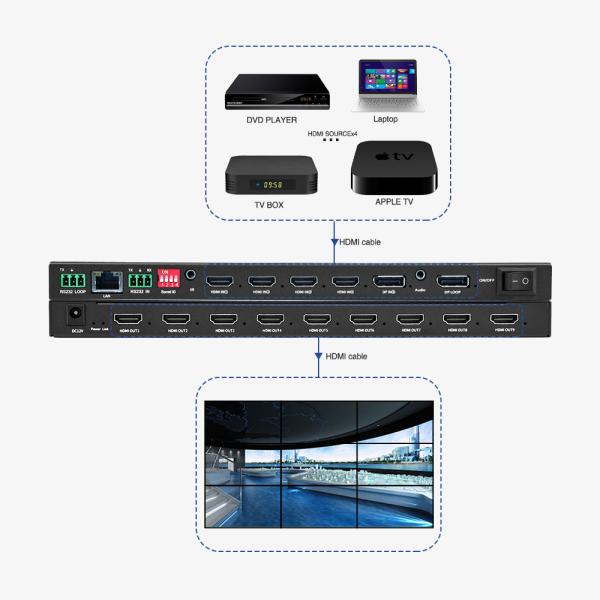

  • Supports computers, Android boxes, game consoles and other input sources
  • DHCP function for automatic IP address assignment in multi-device setups
Product Images
4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing 4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing 4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing 4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing 4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing 4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing
Customer Reviews
4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing
Frequently Asked Questions
Does it support RS232 control?
Yes, RS232 control is supported.
What power supply specifications are available?
American, British, European, South African and Chinese specifications are available.
Do both input and output support 4K?
The 4th HDMI input port and 5th DP input port support 4K@60Hz. Output single port supports 1080P@60Hz, with the output supporting whole screen 4K60Hz display.
What is the maximum wiring distance supported?
Input supports HDMI up to 3 meters, and output supports HDMI up to 10 meters.
How many input sources can be displayed simultaneously?

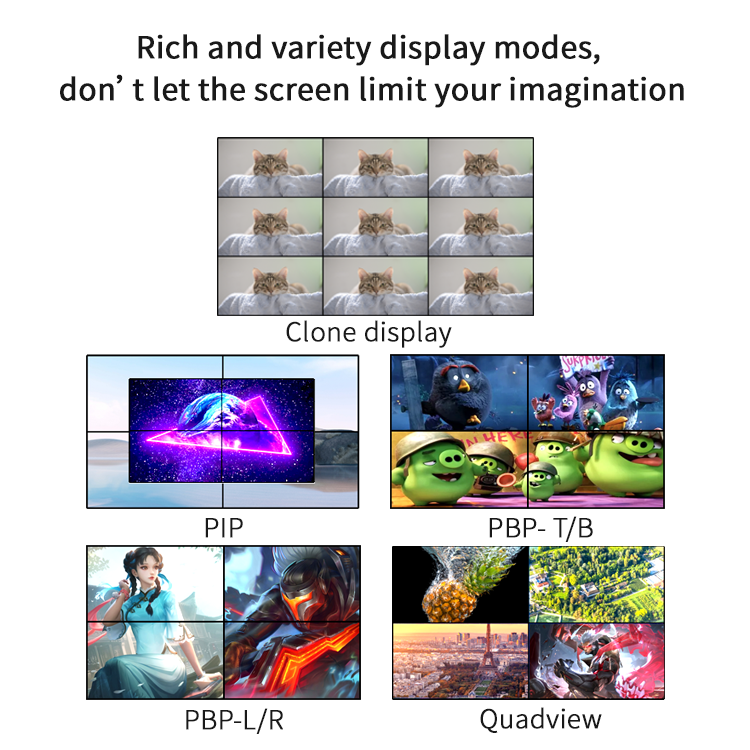

It can support 4 input sources displayed on the video wall simultaneously.
Why Choose Bitvisus?
  • Own warehouse ensuring shipping within 48 hours after payment (excluding weekends and holidays)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in the video wall controller field
Ordering Process
Contact via email or chat platforms with your requirements. We will provide a proforma invoice, and goods will be delivered promptly after payment confirmation.
Warranty & Support
12 months warranty with lifetime service support. Returns and exchanges available for faulty, damaged, or incorrect models.
Payment & Shipping
T/T, Visa, PayPal, Western Union, L/C accepted. Shipping via DHL, UPS, EMS, FedEx, air freight, and sea freight.
Company Profile
4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing 4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing 4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing 4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing
Technical Specifications
Specification Details
Product Name BIT-VWC-409R
Input Interface Maximum Video Pixel Frequency 600MHz
Output Interface Maximum Video Pixel Frequency 165MHz
Maximum Input Resolution 3840*2160@60Hz
Maximum Output Resolution 1920*1080@60Hz
Input Interface 1*DP1.2, 1xHDMI2.0, 3xHDMI1.4
Output Interface 9xHDMI1.3
Factory Default Resolution HDMI: 3840*2160@30Hz, DP: 3840*2160@60Hz
Control Mode IR Control, RS232, PC
Power Specification 12V@2A
Dimensions 270mm x 143.5mm x 20.5mm (L x W x H)
