4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
CN¥1,552.80-2,132.51
Material :
Metal
Input Interface :
1x HDMI 2.0
Output Interface :
4x HDMI 1.3
Input Wire Length :
4K60:5m; 1080P60:10m
Output Audio :
3.5mm audio separation
Control Protocol :
RS232/RS485/TTL
Window Layout :
Arbitrary window opening *10, overlay, roam
Power Supply :
DC 12V 2A
Weight :
0.7 kg
Video Decoding :
4K60 (3840x2160@60Hz)
Memory :
64G
Material Overlay :
Up to 10 layers
Operating Temperature :
≤60℃
Power Consumption :
≤14W
Product Size :
440mm*160mm*45mm
Description

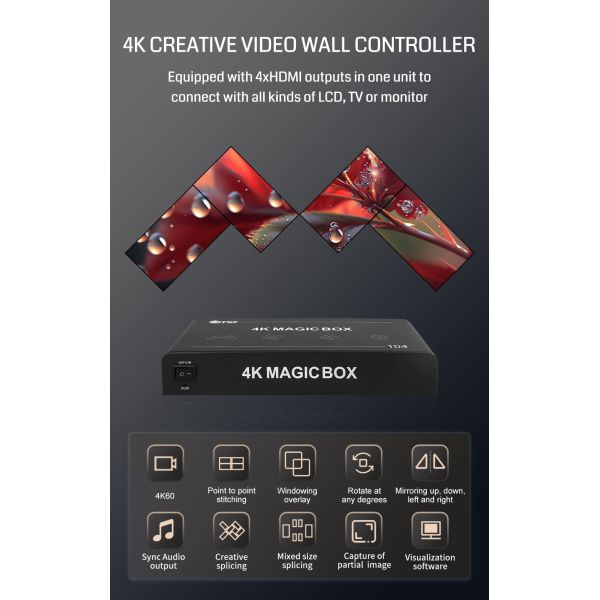

Creative Video Processor 4K60 Magic Control Device
Advanced 4-screen splicing processor with 10-layer overlay and built-in player for professional digital signage applications.
Product Overview
The Creative Irregular Splicing Video Processor combines 4K playback control, shaped splicing, multi-window layouts, 10-layer material overlay, roaming, slicing, and edge effects in one powerful control splicer.
Key Features

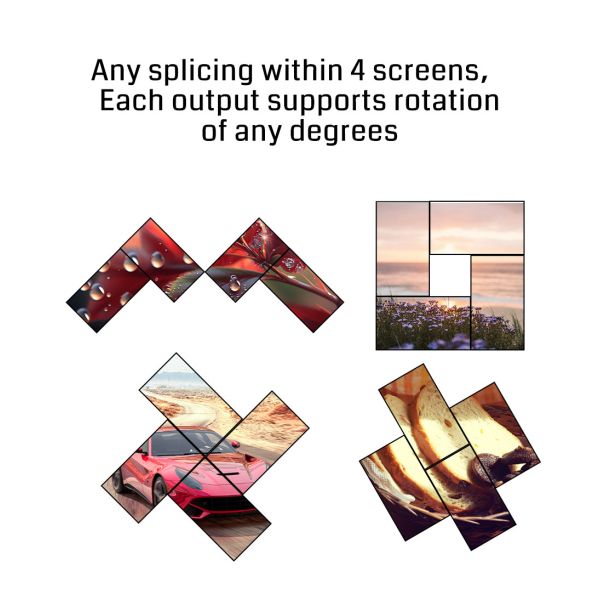

  • 4 screens in any angle and any shape splicing capability

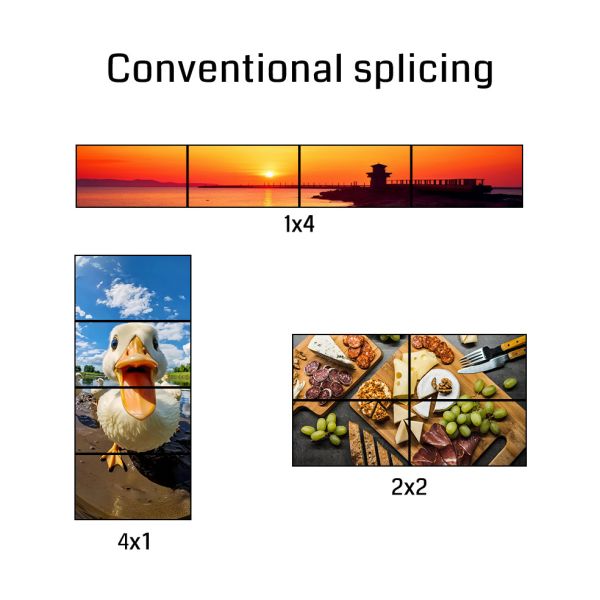

  • Support for normal splicing layouts: 1×4, 4×1, 2×2 and more
  • 4K60 (3840x2160@60Hz) video decoding with built-in 64GB memory

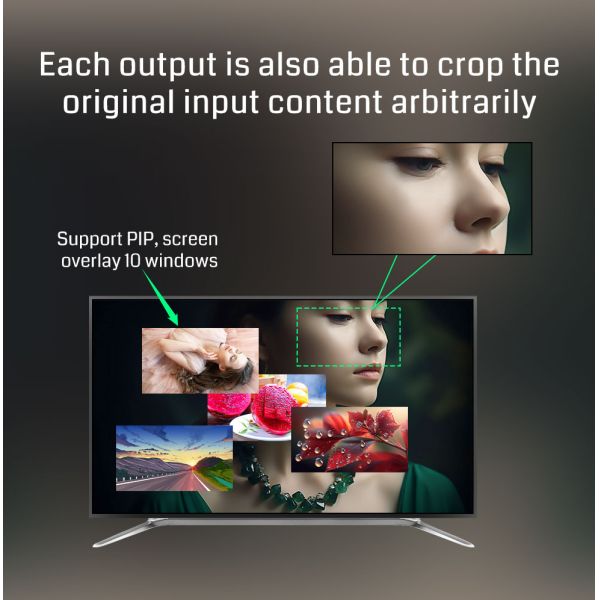

  • Multi-layer material overlay with picture-in-picture (PIP) support
  • Up to 10 layers of material overlay for complex presentations
  • RS232/RS485/TTL multiple control protocols and interfaces
  • Network screen display monitoring and scrolling subtitle functions

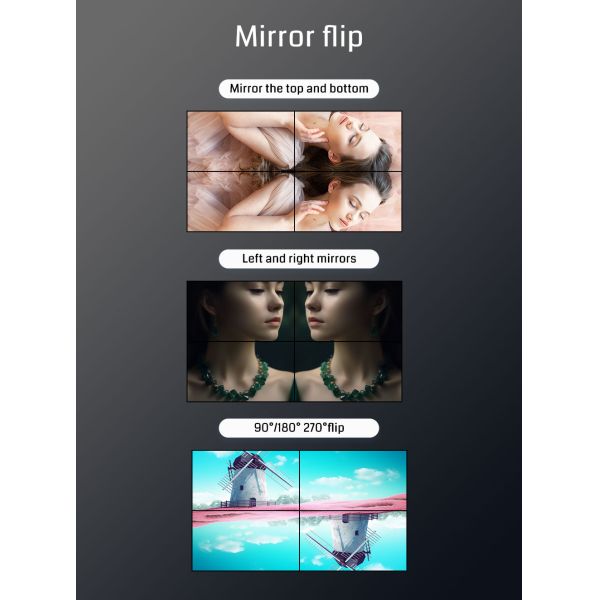

  • Advanced edge effects: indentation, blur, matte, zoom, and mirror
Application Scenarios
Ideal for commercial display (splicing, LED), advertising media, bars, catering, entertainment, culture and tourism, exhibition and display industries.
Product Images
4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device 4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device 4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device 4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device 4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device 4K60 Video Wall Controller with 10-Layer Overlay and 4-Screen Splicing Magic Control Device
Technical Specifications
Product Name4K Creative Special-shaped Splicing Processor
Input Line Length4K60: 5m, 1080P: 10m
Output Line Length1080P: 10m
Audio3.5mm audio separation interface
Control MethodPC computer
Window LayoutAny window opening ×10, overlay, roaming
Material ManagementVideo and picture playback control
Operating Temperature≤60℃
Power SupplyDC12V2A
Power Consumption≤14W
Product Size440mm × 160mm × 45mm
Product Weight1.8KG
CertificationCE, FCC, ROHS
SupportODM, OEM
Warranty2 years
Packing List
  • Equipment ×1
  • Power supply ×1
  • Network cable ×1
  • Certificate ×1
  • Warranty card ×1
Frequently Asked Questions
Why Choose Bitvisus?
  • Own warehouse ensuring shipping within 48 hours after payment
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in the video processing field
How to Order?
  • Contact via email or chat with order requirements
  • Receive proforma invoice based on your request
  • Fast delivery after payment confirmation
Warranty & After-sale Service
  • 12 months warranty with lifetime service support
  • Return or exchange for faulty, damaged, or wrong models
Shipment & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
