Specifications
Model Number :
BIT-VWC-U2-436
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
CN¥7,543.13-10,441.67
Input Interface :
4 X HDMI 2.0, 4 X DP 2.0 (HDMI/DP Either/or input)
Input Max Resolution :
17280x4320P30
Output Interface :
36xHDMI 1.3
Output Resolution :
1920x1080P60
Color Depth :
8-Bit
Color Format :
RGB444, YUV444, YUV422, YUV420
Power Supply :
220V
Power Consumption :
80W
Product Dimensions :
483mm x 200mm x 100mm
Package Dimensions :
570mm x 340mm x 180mm
Package Weight :
7.5KG
Brightness :
1000cd
Material :
Metal
Control Method :
Remote Control, RS232 Serial Port, Web
Audio Output :
HDMI Audio Follow-Out, 3.5MM Audio Separation
Description
Products Description

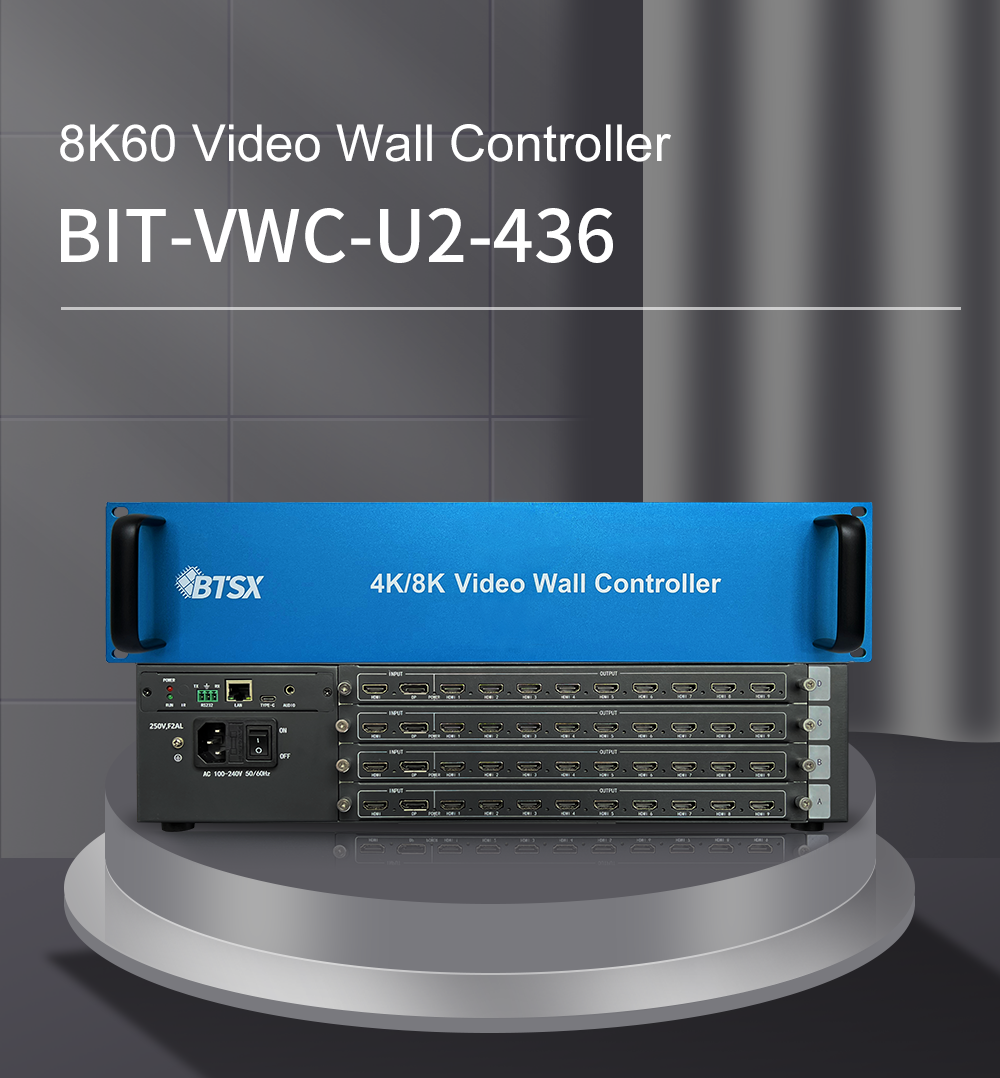

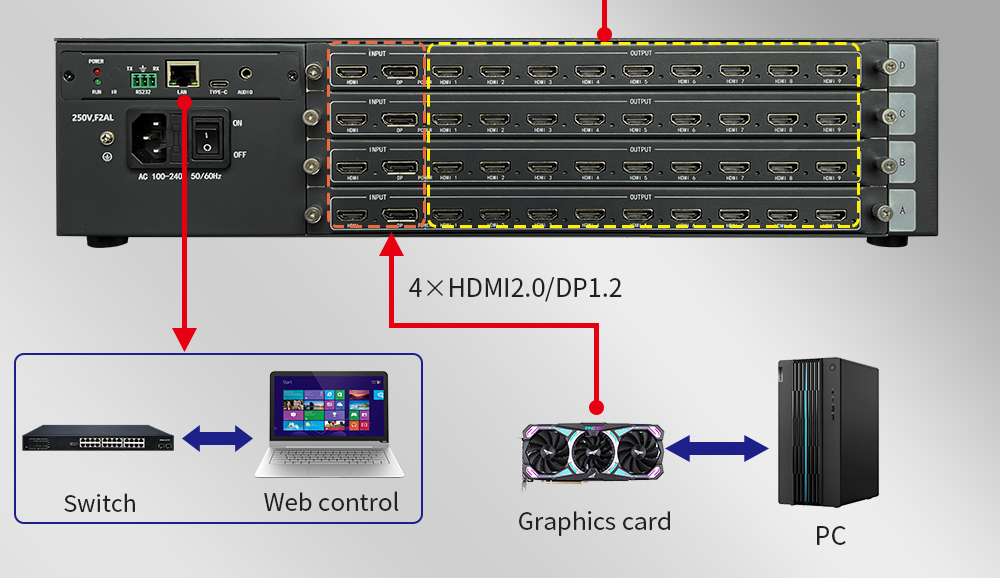

BIT-VWC-U2-436 is a 8K60 splicing processor independently developed and produced by Bitvisus, through an independent graphics card input 4-way 4K60, the interface can be selected HDMI or DP, the output of 32-way 1080P60 HDMI interface, a single device to support the insertion of 4 boards and cards, the plug-in card structure design, according to the needs of a flexible configuration to provide a remote control, serial port, network port control Remote control, serial port, network port control interface.Ultra-high picture quality, great stability, extremely simple operation, widely used in meeting rooms and conference centers,command centers, monitoring rooms, commercial displays and advertising, public information dissemination, museums and exhibition halls and other places.

* Support 4-way HDMI/DP input, 36-way HDMI output;

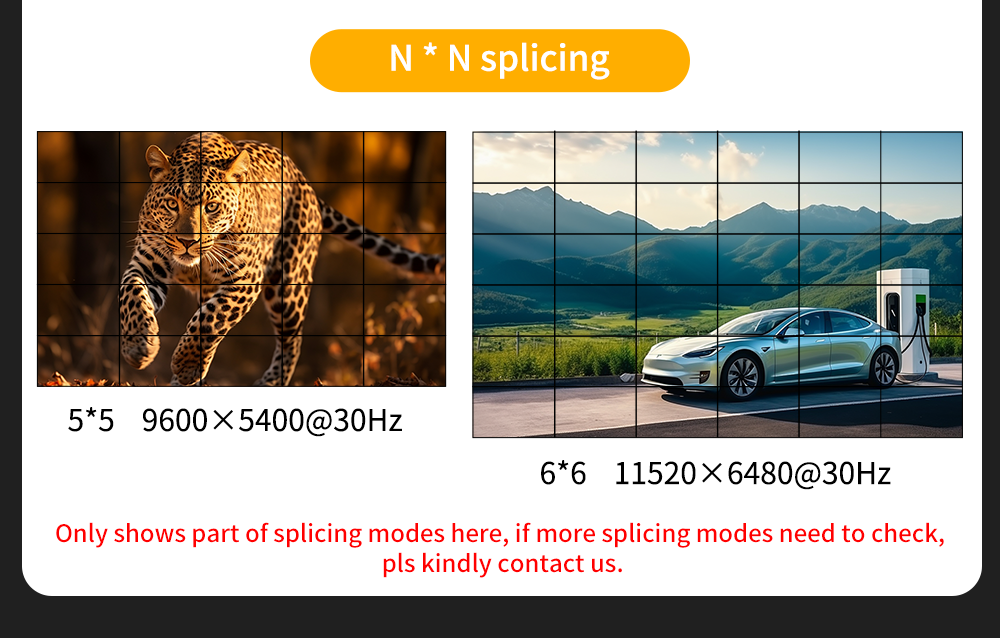

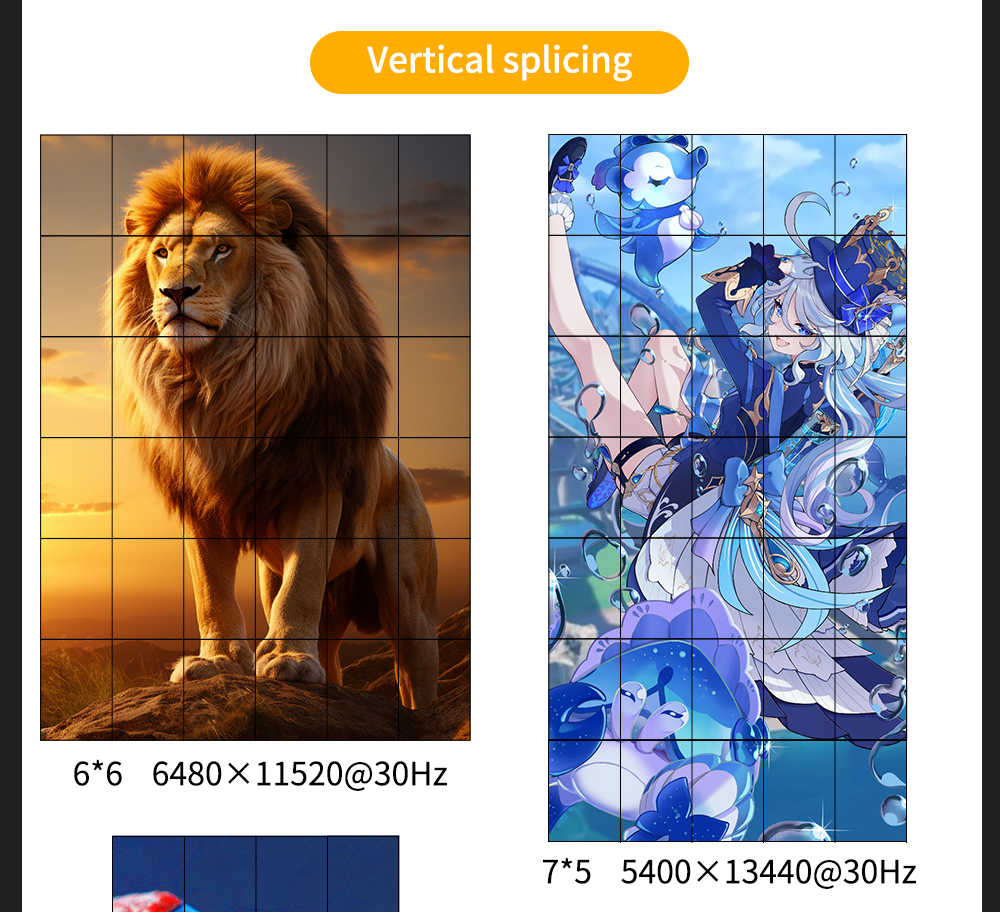

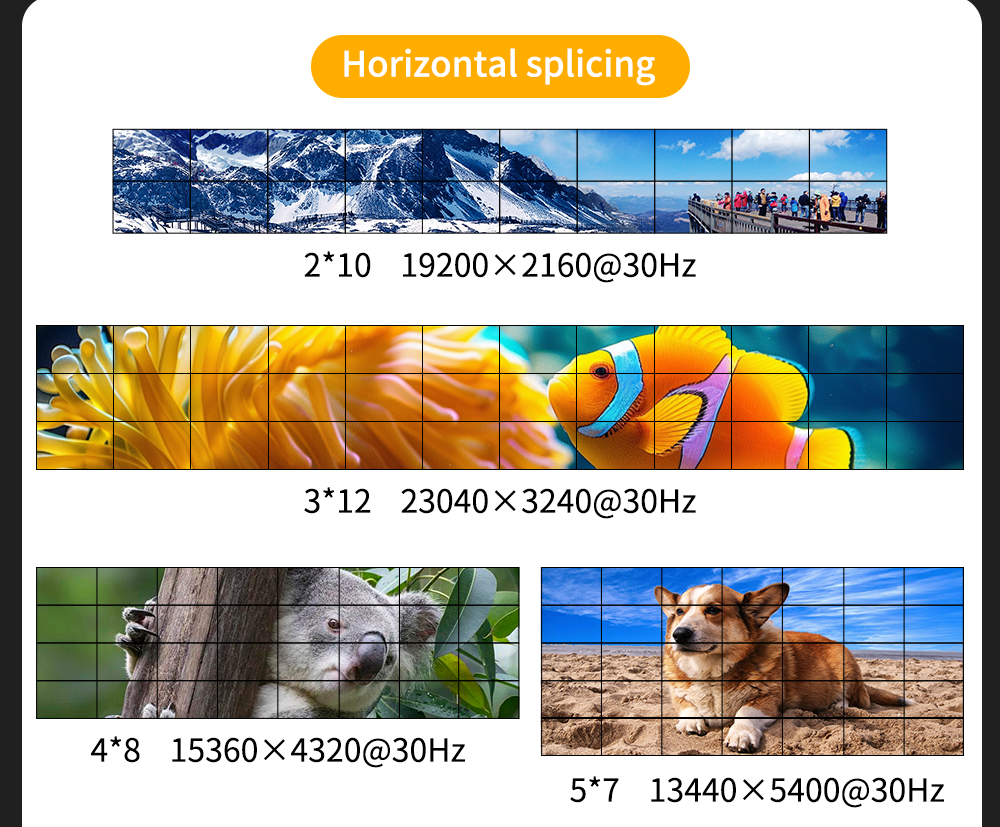

* A single device, 4 in 36 out, can be any combination of multiple splicing modes: horizontal screen / vertical screen / field
shape, and support large-scale parallel use;
* Input maximum support 17280 × 4320P30, 11520 × 6480P30, backward compatible. Output maximum single channel support 1920 ×1080P60;
* Support for fixed EDID, can also be customized resolution of independent graphics cards;

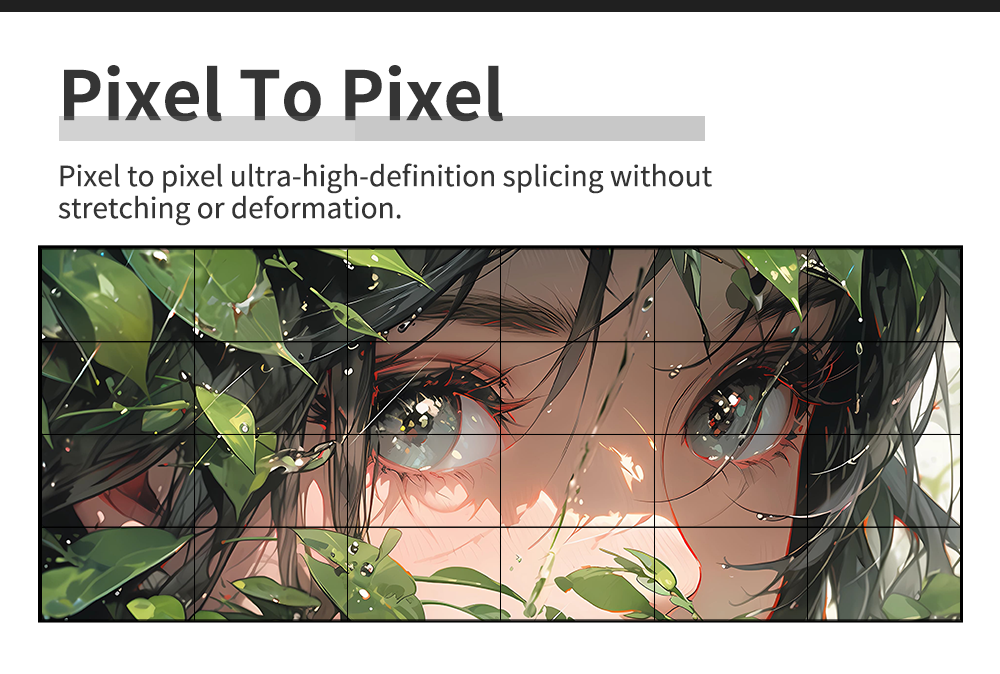

* Point-to-point splicing, no stretching, no distortion, no need for compression processing of the input source, clear picture.

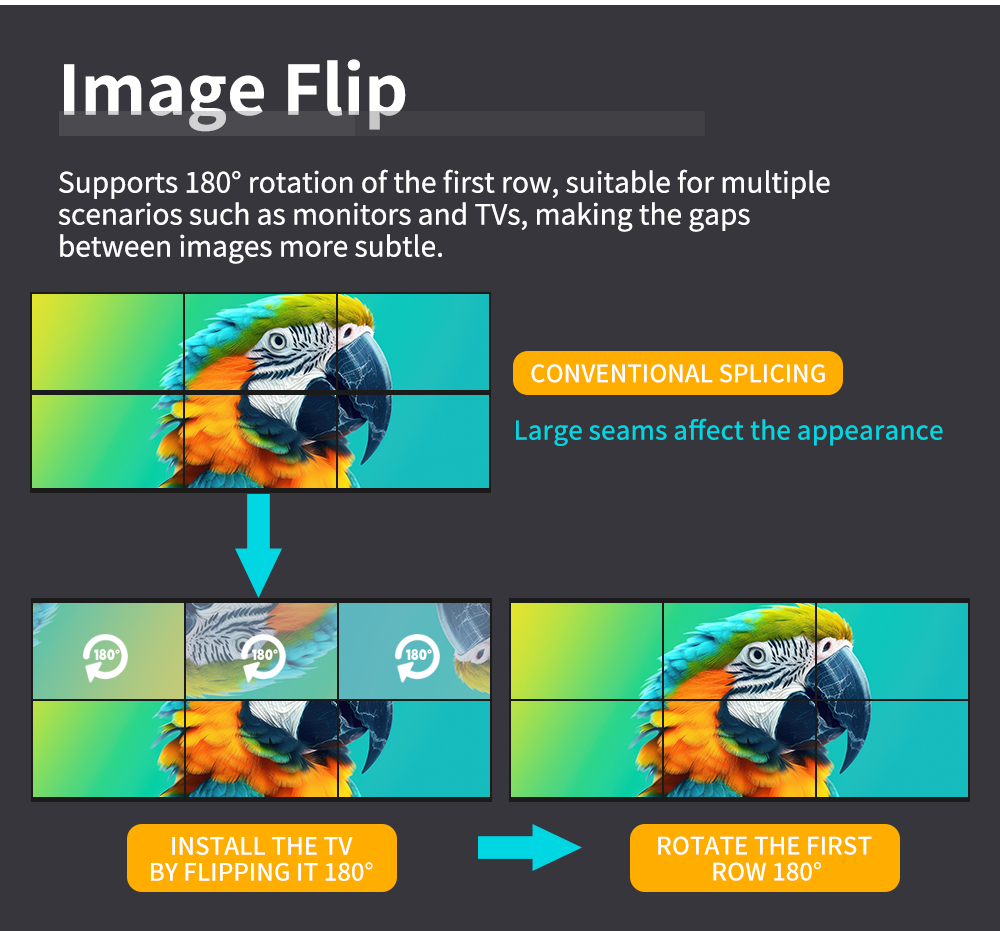

* Output support for the first line of rotation 180 °;
* Support infrared remote control, serial RS232, network interface WEB interface control;
* Support software standby, better control and management, improve life and safety;
* With the use of open window software, to achieve large screen splicing at the same time, to meet the multi-screen display on the wall at the same time;
* Using 28nm process high-end programmable FPGA chip, full hardware real-time processing architecture, ultra-fast processing speed without delay.
* Low power consumption, energy saving and environmental protection design, without any external cooling measures, extremely high reliability.
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
8K60 Video Wall Processor with Modular Card Design and 32 Output Channels for Seamless Multi-Screen Display
Specification
Product Name
BIT-VWC-U2-436
Input Interface
4×HDMI 2.0、4×DP 2.0（HDMI/DP Either/or input）

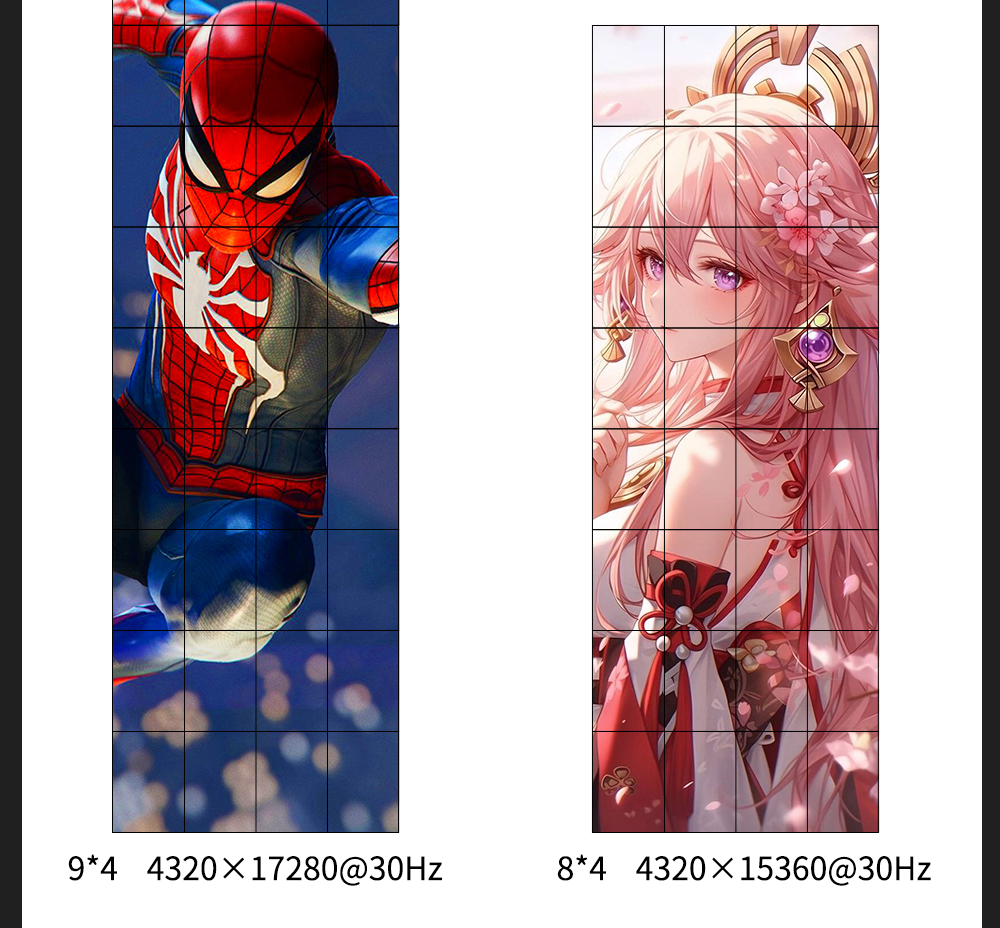

Input Maximum Resolution
4×9：17280×4230P30
5×7：13440×5400P30
6×6：115200×6480P30
Color format
RGB444、YUV444、YUV422、YUV420
Output Interface
36×HDMI 1.3
Output Resolution
1920×1080P60
Control Method
Remote Control, RS232 Serial Port, Web
Audio
HDMI Audio Follow-Out, 3.5MM Audio Separation
Power supply
220V
Power Consumption
80W
Product Dimensions
L×W×H: 483mm×200mm×100mm
Package Weight
7.5KG
Accessory List
1×220V power cord, 4×HDMI cable or DP cable, 1×Phoenix terminal, 1×Blue network cable, 1×IR infrared head, 1×Remote control
After-sales service
3 years
