Specifications
Brand Name :
Bitvisus
Place of Origin :
CHINA
MOQ :
1
Price :
Contact us！
Description
Large Canvas Creative Center 8K60 for 15-Screen Splicing
Professional 8K video wall processor supporting 6-video playback with scrolling subtitle capability for immersive exhibition experiences.
8K Profiled Video Wall Processor
  • Supports ultra-high resolution 8K60 (7680x4320P60Hz)

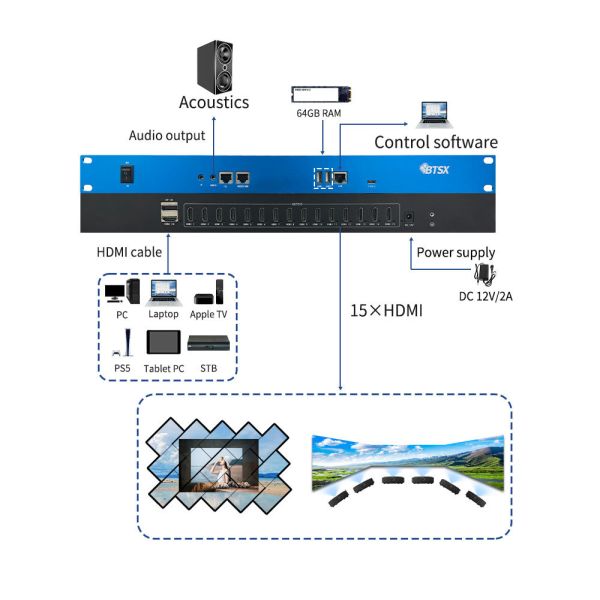

  • HDMI/DP input interface, HDMI output interface
  • 1 HDMI2.0 capture input, 15 HDMI1.3 outputs
  • Supports any splicing mode within 9 screens
  • Fixed EDID design with customizable input resolution

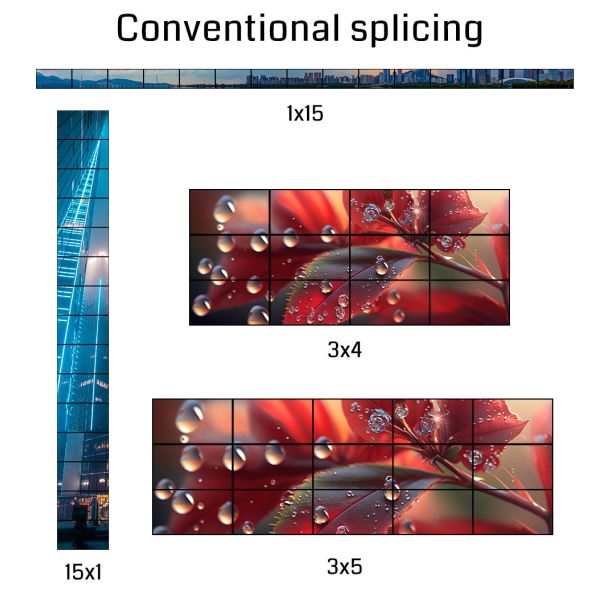

  • Supports 1xN, Nx1, NxN, point-to-point display
  • No stretching, no deformation, no compression
  • FPGA chip for real-time data processing with zero delay

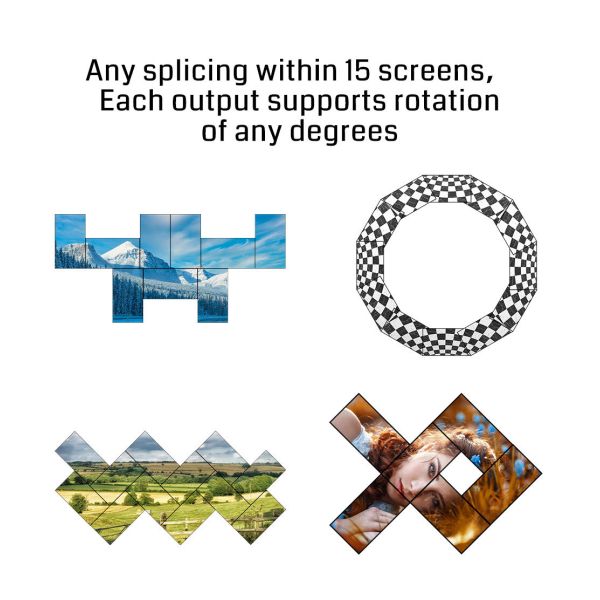

  • 15-screen splicing at any angle and any shape

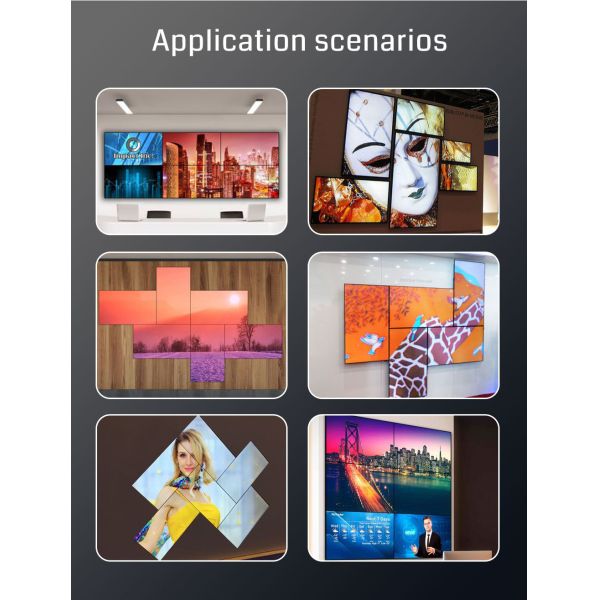

Application Scenarios
Multi-screen liquid crystal display showroom exhibition, video projector showroom exhibition, monitoring or command center, multimedia video teaching, engineering conference room, digital medical display, and more.
Product Images
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
8K60 Video Wall Controller with FPGA Chip for 15-Screen Splicing and Seamless Multi-Screen Display
Technical Specifications
Input Specifications
Input Interface 2 HDMI 2.0/DP 1.2 (either one)
HDCP Function Supports HDCP 2.2
Transmission Distance ≤5 meters
Input Maximum Pixel Clock 600MHz
Input Single Port Resolution 3840x2160@60Hz/3840x2400@60Hz
5760x3240@30Hz/7680x2160@30Hz
(Resolution 4Kx2K@60Hz)
Input Color Format RGB888, 24bit
Output Specifications
Output Interface 9 HDMI 1.3
Transmission Distance ≤15 meters
Output Maximum Pixel Clock 165M
Output Single Port Resolution 1920x1080@60Hz
1920x1200@60Hz
(customizable)
Audio Specifications
Audio Output HDMI follow-through, 3.5mm audio jack (audio split)
General Specifications
Power Supply DC 12V/2A
Maximum Power Consumption 22W
Storage/Working Temperature -10～50ºC/0～50ºC

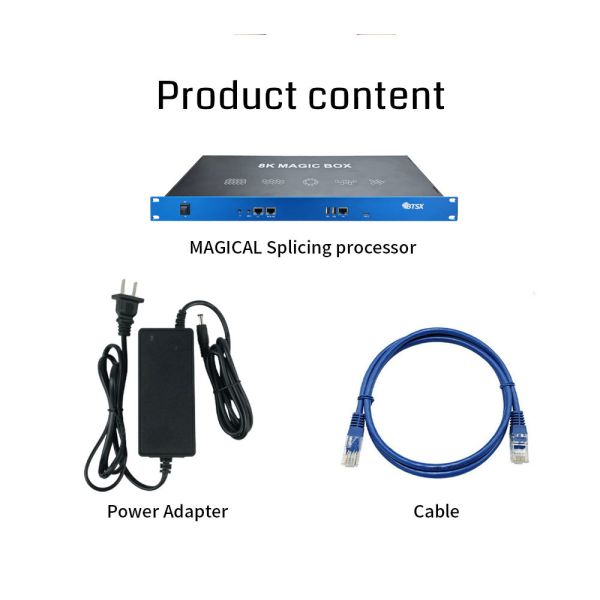

List of Accessories 12V/2A Power Supply*1, HDMI/DP Cable*2, Certificate of Conformity*1, Warranty Card*1
