Specifications
MOQ :
1
Price :
$683-820
Packaging Details :
482.6mm X 250mm X 59mm
Dimension :
482.6mm X 250mm X 59mm
Power :
220V
Input Pixel Frequency :
600MHz
Color Depth :
8bit
Output Interface :
16xHDMI 1.4
Output Resolution :
1920x1080 P60
Storage Temperature :
-10～50ºC
Product Weight :
2KG
Material :
Metals
Input Interface :
4xHDMI 2.0, 2xDP 1.2
Input Resolution :
3840x2160 P60
Color Format :
RGB444, YUV444, YUV422, YUV420
Output Pixel Frequency :
148.5MHz
Power Consumption :
50W
Operating Temperature :
0～50ºC
Description
Industrial 4x4 Video Processor with Internal Heat Dissipation Audio De-embedding 12+ Screen Support
Bitvisus Professional Audio Video & Lighting 4K Video Processor

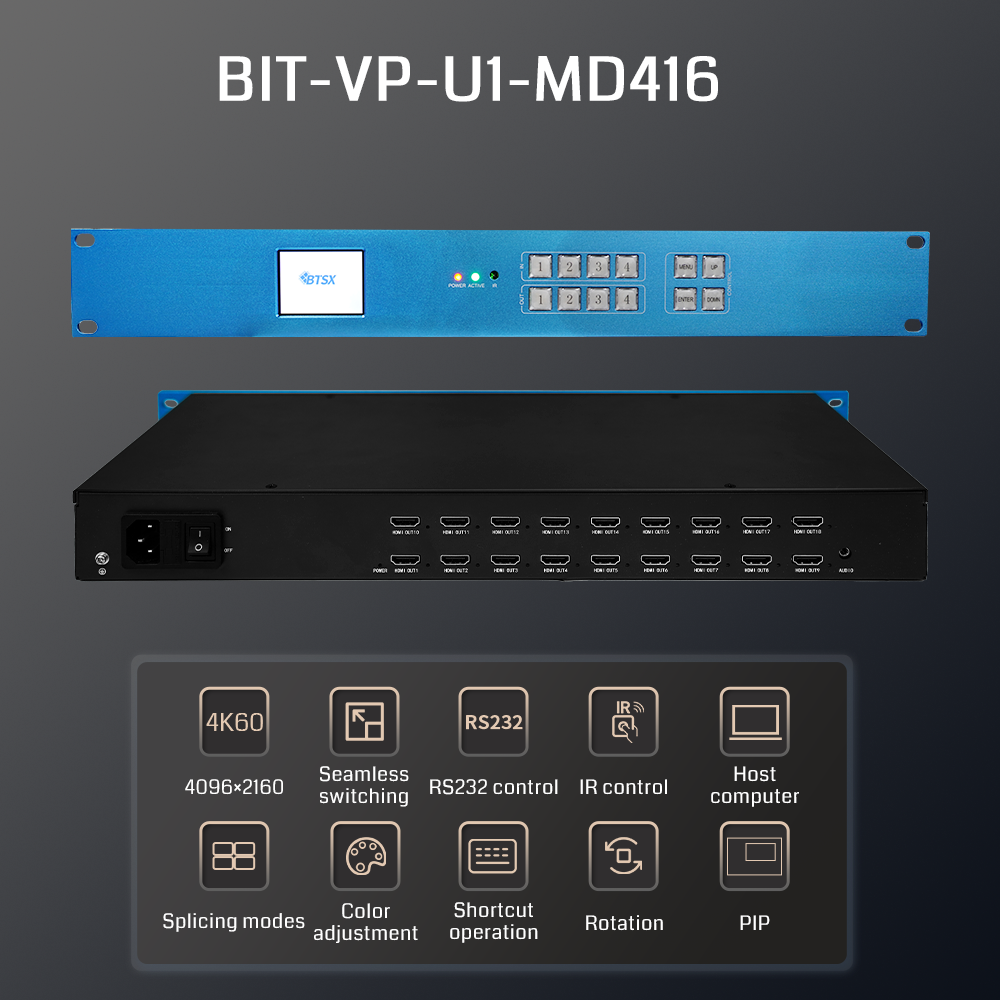

The BIT-VP-U1-MD416 is a high-performance 4K60 video processor developed and manufactured by Bitvisus. Featuring 4-channel 4K60 inputs and 16-channel 1080P60 outputs, this processor enables seamless multi-display splicing and simultaneous display of four different images. Designed for professional applications, it delivers exceptional visual quality for commercial displays, monitoring systems, command centers, and control rooms.

Key Features
  • 4-channel 4K60 HDMI 2.0 and 2-channel DP 1.2 inputs
  • 16-channel 1920×1080P60 HDMI 1.4 outputs

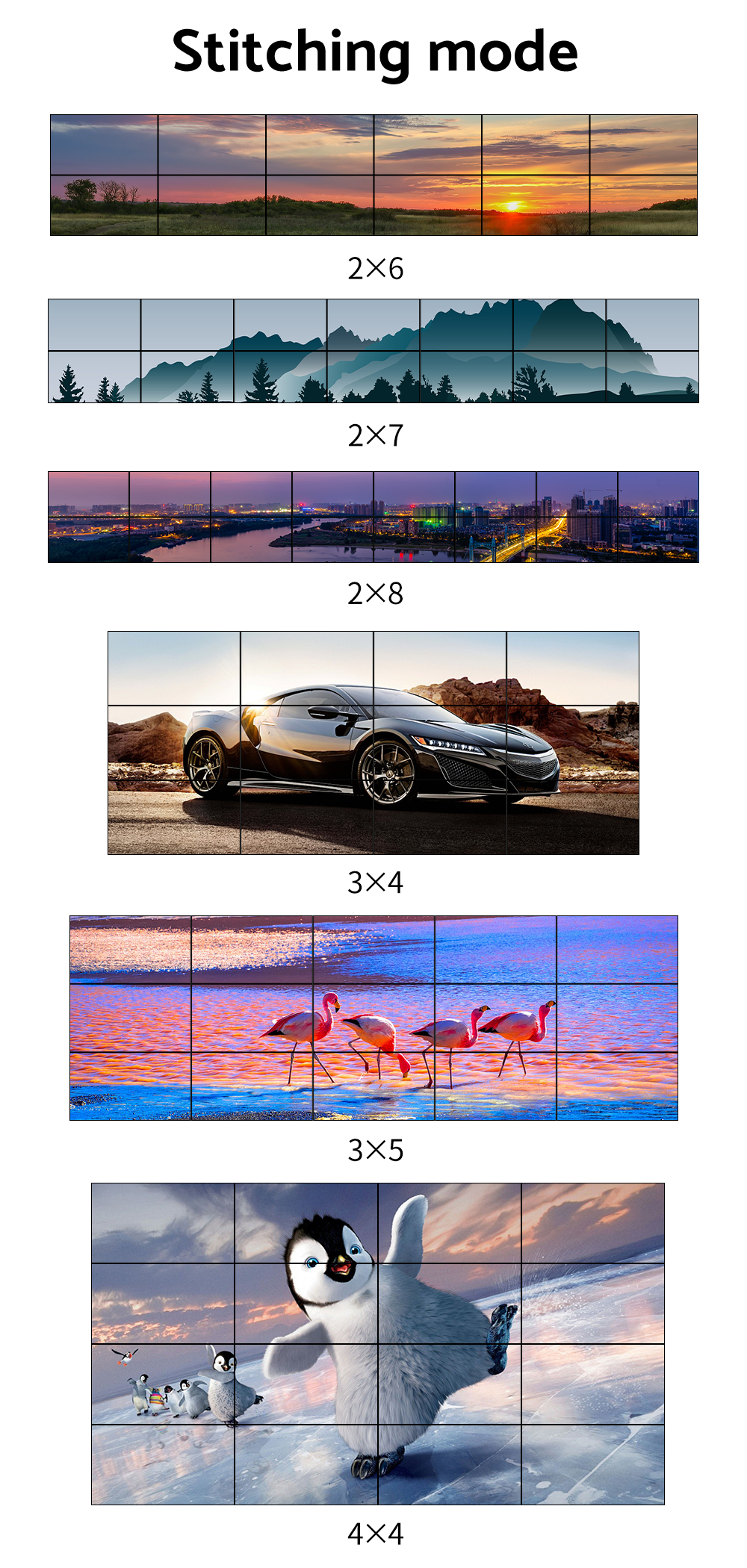

  • Advanced multi-display splicing capabilities

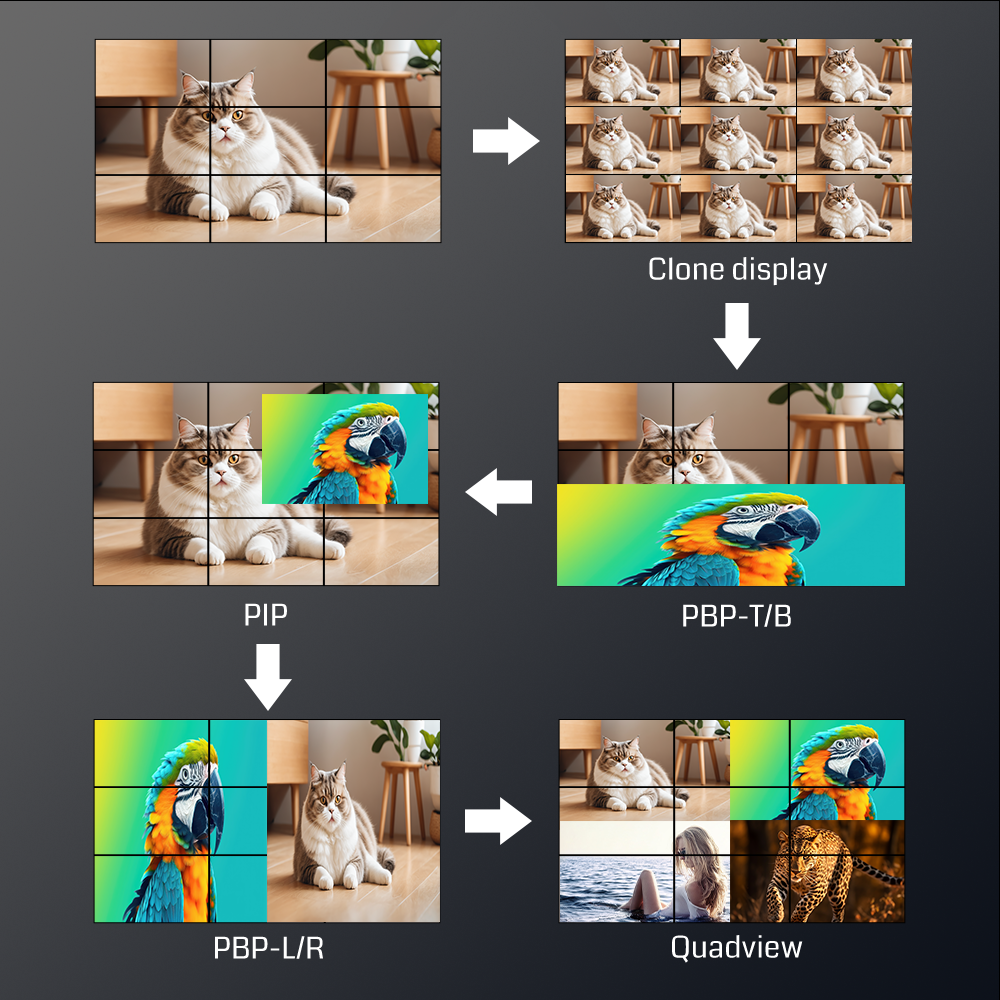

  • Simultaneous display of four different images
  • HDMI Audio Follow-On with 3.5mm audio separation

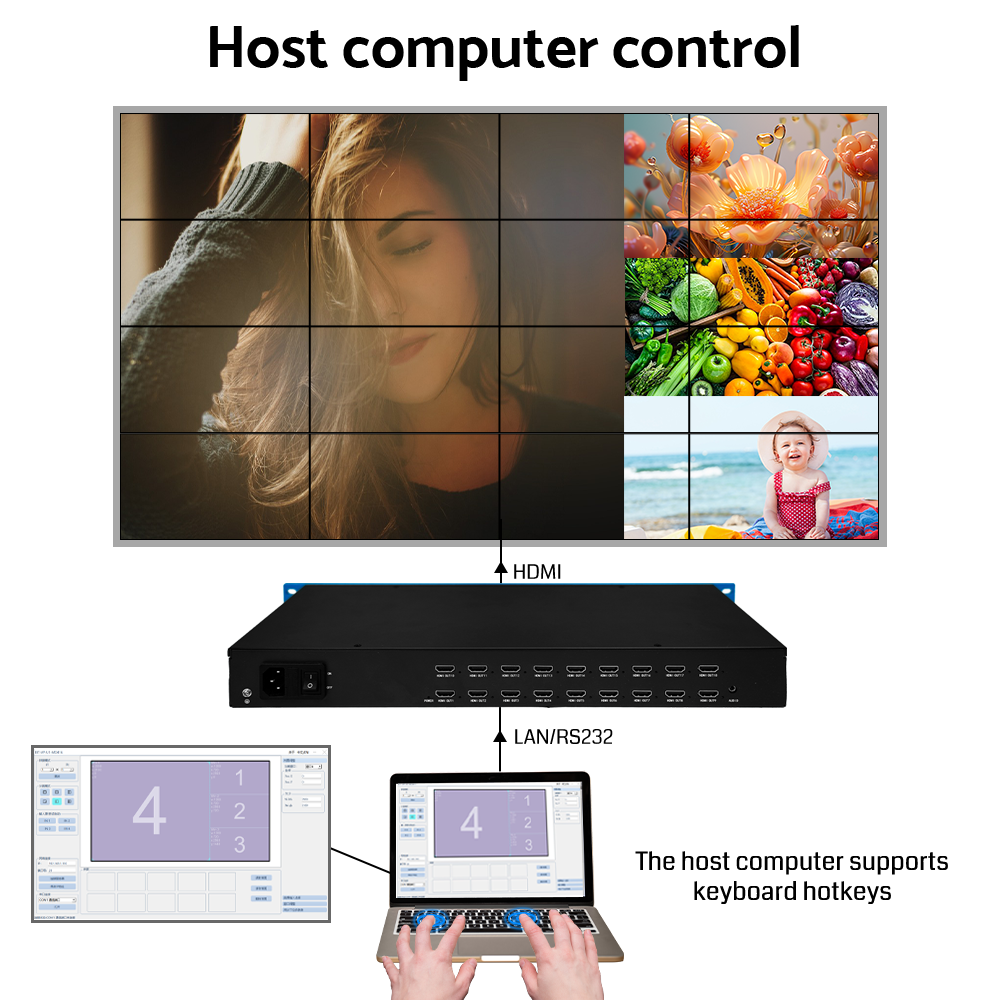

  • Multiple control methods: remote control, pushbutton, RS232, Windows host computer
  • Internal heat dissipation technology
  • Professional-grade construction for operation centers
Product Images
16-Port 4K60 Video Wall Controller with HDMI Outputs and Efficient Heat Dissipation for Multi-Screen Display
16-Port 4K60 Video Wall Controller with HDMI Outputs and Efficient Heat Dissipation for Multi-Screen Display
Technical Specifications
Input Interface 4×HDMI 2.0, 2×DP 1.2
Input Maximum Pixel Clock Frequency 600MHz
Input Resolution 3840×2160P60
Color Depth 8bit
Color Format RGB444, YUV444, YUV422, YUV420
Output Interface 16×HDMI 1.4
Output Maximum Pixel Clock Frequency 148.5MHz
Output Resolution 1920×1080P60
Control Method Remote control, Pushbutton, RS232, Windows host computer
Audio HDMI Audio Follow-On, 3.5MM Audio Separation
Power Supply 220V
Power Consumption 50W
Storage/Operating Temperature -10～50ºC/0～50ºC
Product Dimensions 482.6mm×250mm×59mm
Packaging Dimensions 545mm×465mm×120mm
Product Weight 2KG
Package Weight 3KG
Package Contents
1 × 220V Power cable
1 × HDMI cable or DP cable
1 × Blue network cable
1 × IR infrared head
1 × Remote control
1 × USB A-B cable
Warranty & Support
3 Years Warranty with comprehensive after-sales service support

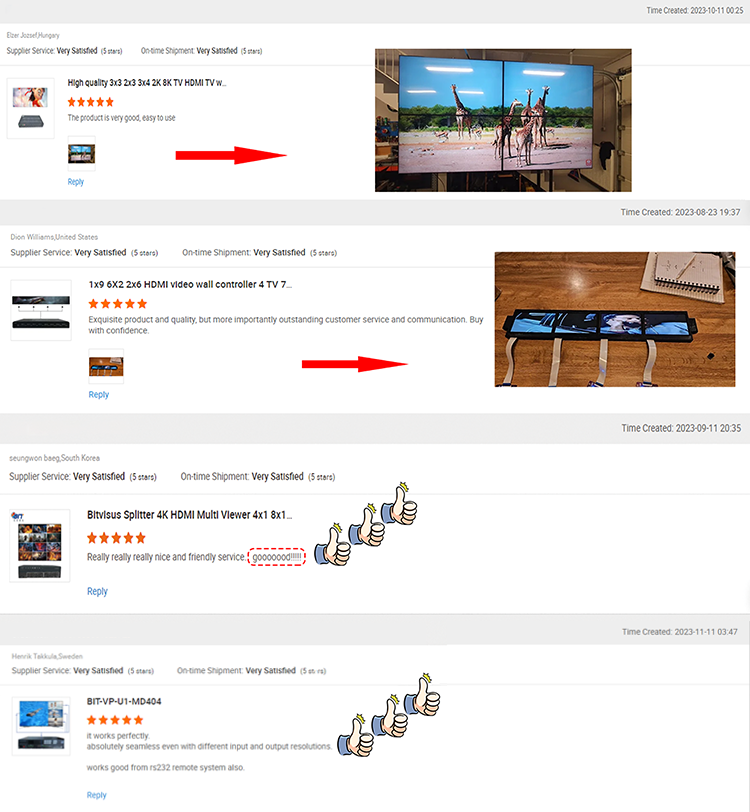

Customer Reviews
