Specifications
Model Number :
BIT-VWC-U2-436
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$1,093-1,513
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
483mm × 200mm × 100mm
Input Interface :
4 X HDMI 2.0, 4 X DP 2.0 (HDMI/DP Either/or input)
Input Max Resolution :
17280 × 4320P30, 11520 × 6480P30
Output Interface :
36xHDMI 1.3
Output Resolution :
1920 × 1080P60
Color Format :
RGB444, YUV444, YUV422, YUV420
Input Pixel Clock :
600MHz
Output Pixel Clock :
154MHz
Power Supply :
220V
Power Consumption :
80W
Product Dimensions :
483mm × 200mm × 100mm
Package Dimensions :
570mm × 340mm × 180mm
Package Weight :
8.1KG
Control Method :
Remote Control, RS232 Serial Port, Web
Audio Output :
HDMI Audio Follow-Out, 3.5MM Audio Separation
Material :
Metal
Description

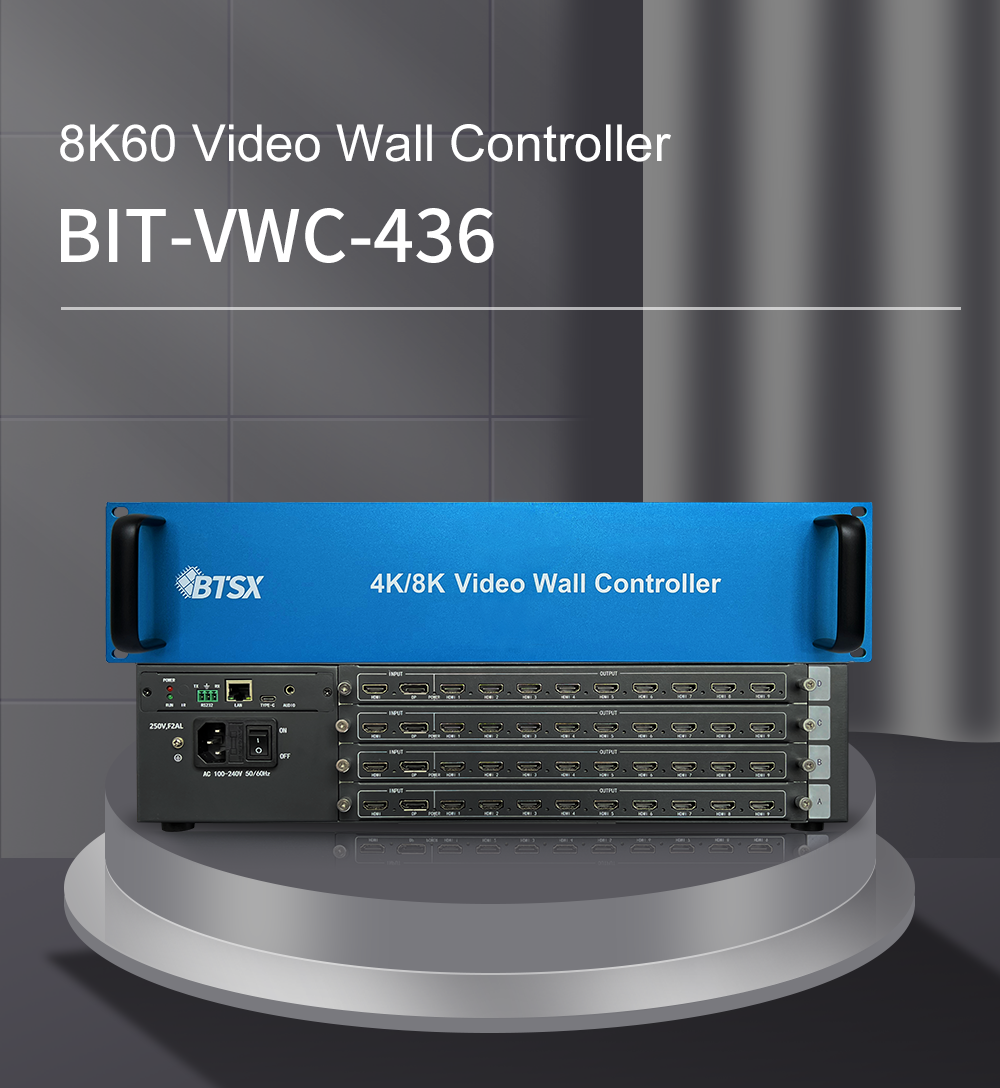

BIT-VWC-436 8K Video Wall Processor
The BIT-VWC-436 is a professional 8K60 video wall processor developed by Bitvisus, featuring independent graphics card input with 4-way 4K60 support via HDMI or DP interfaces. This advanced processor delivers 32-way 1080P60 HDMI output and supports plug-in card structure design for flexible configuration. With remote control, serial port, and network port control interfaces, it offers ultra-high picture quality, exceptional stability, and simple operation.
8K60 Video Wall Processor with 4-way 4K60 Input and 36-way HDMI Output for Multi-Screen Display


Key Applications
Ideal for meeting rooms, conference centers, command centers, monitoring rooms, commercial displays, advertising systems, public information dissemination, museums, and exhibition halls.
Product Features
  • Supports 4-way HDMI/DP input and 36-way HDMI output
  • Single device configuration: 4 inputs, 36 outputs with multiple splicing modes including horizontal screen, vertical screen, and field shapes
  • Supports large-scale parallel use for expanded display systems
  • Maximum input support: 17280 × 4320P30, 11520 × 6480P30 with backward compatibility
  • Single channel output maximum: 1920 × 1080P60
  • Fixed EDID support with customizable resolution for independent graphics cards
  • Point-to-point splicing without stretching, distortion, or compression processing
  • Output supports first line rotation 180°
  • Control via infrared remote, RS232 serial port, and network WEB interface
  • Software standby function for better control, management, and improved lifespan
  • Compatible with open window software for multi-screen display on video walls
  • 28nm process high-end programmable FPGA chip with full hardware real-time processing
  • Ultra-fast processing speed with zero delay
  • Low power consumption, energy-saving design without external cooling requirements
  • Exceptional reliability for continuous operation
8K60 Video Wall Processor with 4-way 4K60 Input and 36-way HDMI Output for Multi-Screen Display
Technical Specifications
Product Name BIT-VWC-436
Input Interface 4×HDMI 2.0, 4×DP 2.0 (HDMI/DP either/or input)
Input Maximum Resolution 4×9: 17280×4320P30
5×7: 13440×5400P30
6×6: 11520×6480P30
Color Format RGB444, YUV444, YUV422, YUV420
Output Interface 36×HDMI 1.3
Output Resolution 1920×1080P60
Control Method Remote Control, RS232 Serial Port, Web
Audio HDMI Audio Follow-Out, 3.5MM Audio Separation
Power Supply 220V
Power Consumption 80W
Product Dimensions L×W×H: 483mm×200mm×100mm
Package Weight 7.5KG
Accessory List 1×220V power cord, 4×HDMI cable or DP cable, 1×Phoenix terminal, 1×Blue network cable, 1×IR infrared head, 1×Remote control
After-sales Service 1 years

8K60 Video Wall Processor with 4-way 4K60 Input and 36-way HDMI Output for Multi-Screen Display


Frequently Asked Questions

Why Choose Bitvisus?
  • Own warehouse ensuring shipping within 48 hours after payment (excluding weekends and holidays)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in the video wall processor industry
How to Order?
  • Contact us via email, chat, TM, WhatsApp, or Skype with your order requirements
  • We will provide a proforma invoice based on your request
  • After payment confirmation, goods will be delivered promptly
Warranty & After-sale Service
  • 12 months warranty with lifetime service support
  • Return or exchange available for faulty, damaged, or incorrect model items
Shipment & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
