4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
Specifications
Model Number :
BIT-VP-U1-MD416
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
CN¥4,713.59-5,659.07
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8days
Packaging Details :
482.6mm x 250mm x 59mm
Dimensions :
482.6mm x 250mm x 59mm
Material :
Metals
Power supply :
220V
Input Interface :
4xHDMI 2.0, 2xDP 1.2
Input Pixel Clock :
600MHz
Input Resolution :
3840x2160 P60
Color depth :
8bit
Color Format :
RGB444, YUV444, YUV422, YUV420
Output Interface :
16xHDMI 1.4
Output Pixel Clock :
148.5MHz
Output Resolution :
1920x1080 P60
Power Consumption :
50W
Operating Temperature :
0～50ºC
Storage Temperature :
-10～50ºC
Product Weight :
2KG
Description
4K60 4x4 Multi-Task Video Processor

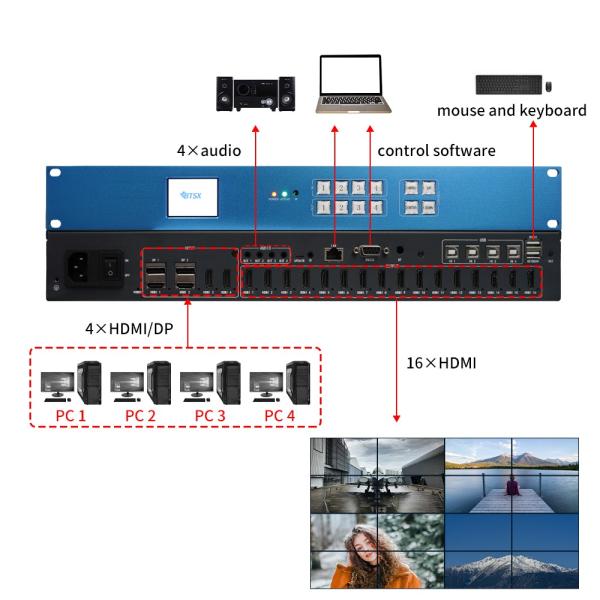

Professional 4-screen simultaneous display with 1-KVM control for seamless switching of 4 PCs in control room environments
Bitvisus Professional Audio Video & Lighting 4K Video Processor

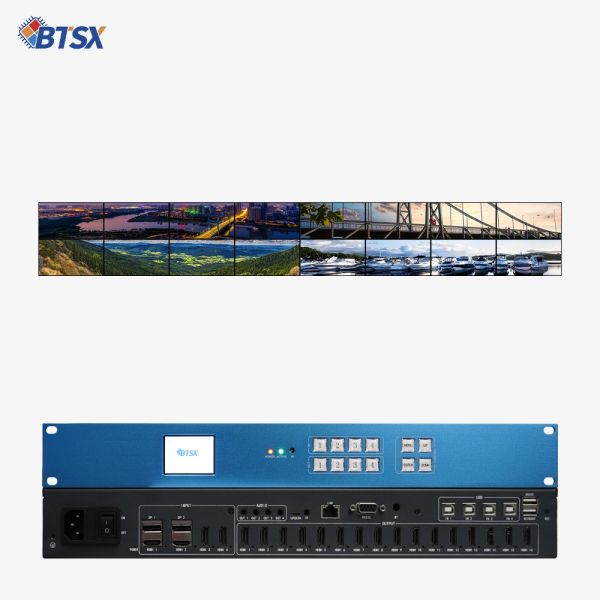

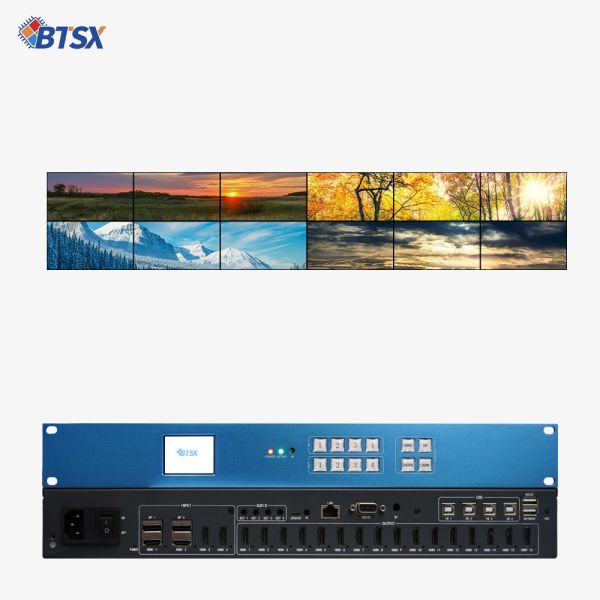

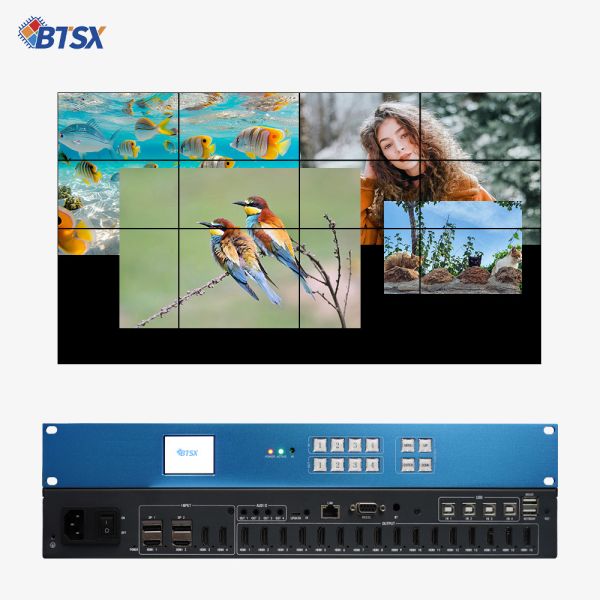

The BIT-VP-U1-MD416 is a high-performance 4K60 video processor developed and manufactured by Bitvisus. Featuring 4-channel 4K60 inputs and 16-channel 1920×1080P60 outputs, this processor enables seamless splicing of multiple displays while processing and controlling four different images simultaneously. Delivering exceptional visual quality, it's ideal for commercial display, monitoring, command and control applications.
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing 4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
Technical Specifications
Product Name 4×HDMI 2.0, 2×DP 1.2
Input Maximum Pixel Clock Frequency 600MHz
Input Resolution 3840×2160P60
Color Depth 8bit
Color Format RGB444, YUV444, YUV422, YUV420
Output Interface 16×HDMI 1.4
Output Maximum Pixel Clock Frequency 148.5MHz
Output Resolution 1920×1080P60
Control Method Remote control, Pushbutton, RS232, Windows host computer
Audio HDMI Audio Follow-On, 3.5MM Audio Separation
Power Supply 220V
Power Consumption 50W
Storage/Operating Temperature -10～50ºC/0～50ºC
Product Dimensions 482.6mm×250mm×59mm
Packaging Dimensions 545mm×465mm×120mm
Product Weight 2KG
Package Weight 3KG

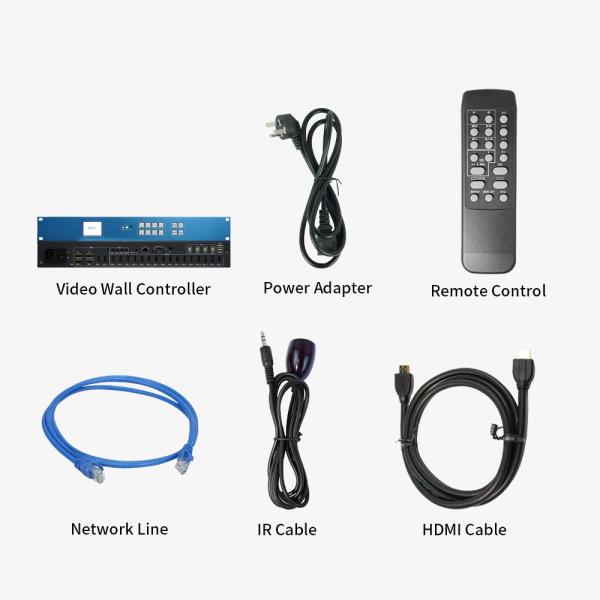

4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video ProcessingPackage Contents
  • 1 × 220V Power cable
  • 1 × HDMI cable or DP cable
  • 1 × Blue network cable
  • 1 × IR infrared head
  • 1 × Remote control
  • 1 × USB A-B cable
After-sales service: 1 Years Warranty
Customer Reviews
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
Manufacturer Profile
Bitvisus is a leading manufacturer in professional audio video and lighting solutions, offering comprehensive OEM/ODM services with rapid shipping capabilities.
4K60 4-Screen Simultaneous Display Video Wall Controller with 1-KVM Control for Seamless Multi-Task Video Processing
Frequently Asked Questions
Why Choose Bitvisus?
  • Own warehouse ensuring shipping within 48 hours after payment (weekends and holidays excluded)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in professional AV solutions
How to Order?
  • Contact via email, TM, WhatsApp, or Skype with your order requirements
  • Receive proforma invoice based on your order request
  • Review and confirm PI for prompt delivery after payment
Warranty & After-sale Service
  • 12 months warranty with lifetime service support
  • Return or exchange available for faulty, damaged, or incorrect items
Shipment & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
