Specifications
Brand Name :
Bitvisus
Model Number :
BIT-MV-4K60-401
Certification :
CE/FCC/RoHS
Place of Origin :
Guangdong China
MOQ :
1
Price :
USD125-172
Payment Terms :
T/T
Supply Ability :
1 unit,3 days;10 units,15 days
Delivery Time :
7 days
Packaging Details :
37cm*23cm*9cm
Product Name :
BIT-MV-4K60-401
Input Interface :
4 HDMI Inputs
Output Interface :
1 HDMI Output
Function :
Picture Segmenter
Factory Default Resolution :
1920x1080@60Hz
Size :
Length, Width, Height (233mm*108mm*28.7mm)
Weight :
1.8kg
Power Supply :
12V@2A AC-DC Power Supply
Warranty :
1 Year
Description
BIT-MV-4K60-401 4K60 Multi Viewer HDMI 4 in 1 Out Video Splitter

Product Overview:


Introducing the BIT-MV-4K60-401, a revolutionary high-performance image segmentation processor designed to elevate your visual experiences to new heights. Equipped with advanced high-definition processing capabilities, this versatile device seamlessly handles 1080P signal input and delivers stunning 4K60/1080P output via HDMI interfaces. Ideal for a wide range of applications from playrooms to multi-screen surgical theaters, the BIT-MV-4K60-401 is the perfect addition to any project requiring unparalleled image clarity and flexibility.


Product Features


1. The input supports HDMI 1.3, HDCP 1.4;

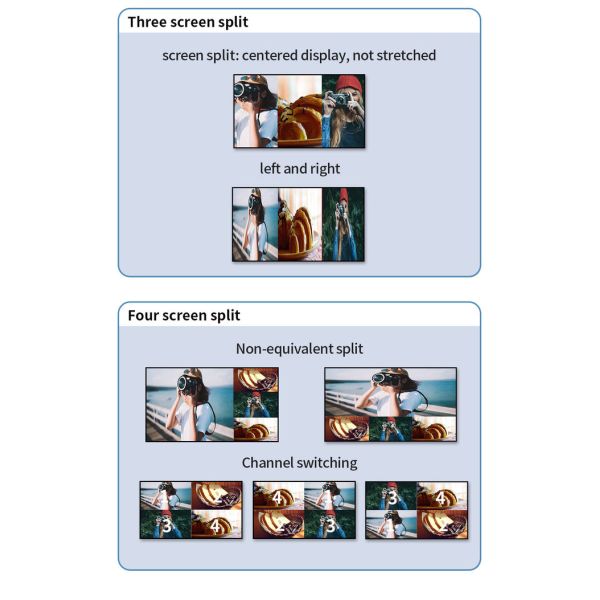

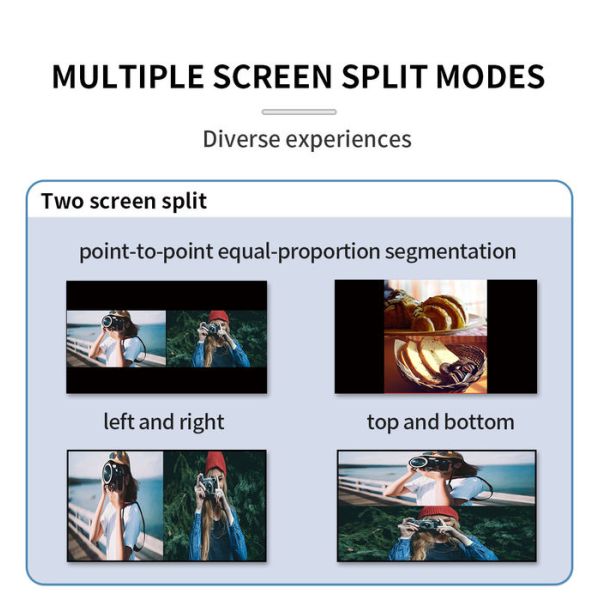

2. Supports single-screen rotation, left-right screen splitting, top-bottom screen splitting, four-screen splitting, equal-ratio splitting, one big and three small splits;
3. Pure hardware design, plug and play, no software required;

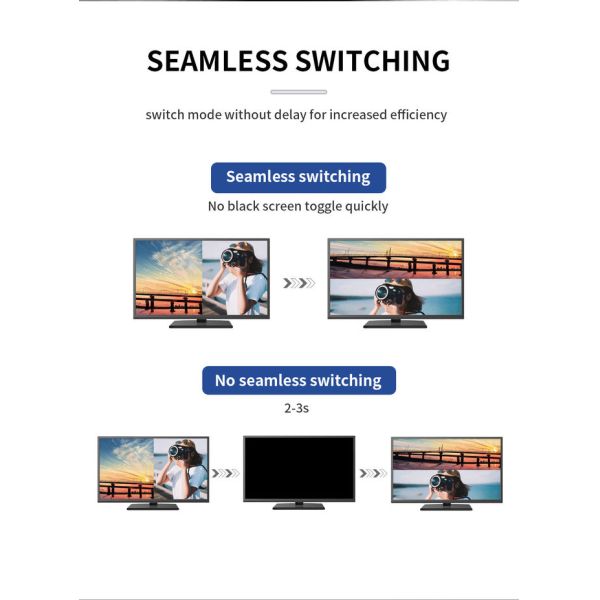

4. Support seamless switching and overall brightness adjustment;
5. Support button control, remote control, serial port control;
6. Support audio channel switching, audio separation;
7. Low power consumption, energy saving and environmental protection design, the internal use of conduction heat dissipation,
without any external heat dissipation measures, reliable sex is very high.

8. Using the mobile phone adapter cable, it can support 3 mobile phone screen projection at the same time.


BIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless SwitchingBIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless SwitchingBIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless SwitchingBIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless SwitchingBIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless SwitchingBIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless SwitchingBIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless SwitchingBIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless SwitchingBIT-MV-4K60-401 4K60 Multi Viewer HDMI Video Wall Controller with 4 HDMI Inputs and Seamless Switching

specification
Product Name BIT-MV-4K60-401
Input interface maximum video pixel frequency 165MHz
Output interface maximum video pixel frequency 594MHz
Input maximum resolution 1920x1080@60Hz
Maximum output resolution 3840x2160@60Hz
HDMI input interface 4 x HDMI1.3
HDMI output interface 1 x HDMI2.0
Control Mode Remote Control, Button, RS232
Factory default resolution 1920x1080@60Hz
Input connector type 4 HDMI inputs
Output interface type 1 HDMI output

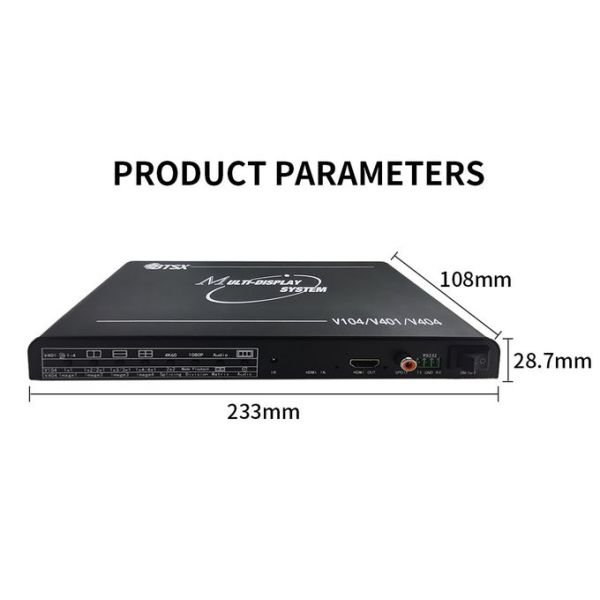

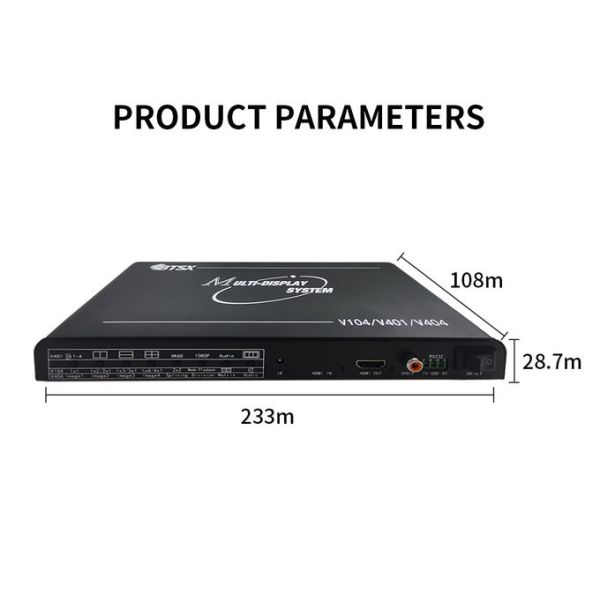

Size Length, Width, Height (233mm*108mm*28.7mm)
Weight 1.8KG
Power Supply 12V@2A AC-DC power supply
Warranty one year



FAQ


Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We are one of leading Manufacturer in this field.
How to order ?
1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale
1.Our products come with 12 months warranty and life-time service support.
2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.
Shipment & payment
1.T/T, Visa, PayPal, HSBC,.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
