Specifications
Model Number :
BIT-MV-U1-MD403
Brand Name :
Bitvisus
Certification :
CE,HDMI,HDCP,RoHS,FCC
Place of Origin :
CHINA
MOQ :
1
Price :
Contact Us！
Supply Ability :
1000
Description
Product Details
Highlight:

4K60 Resolution Multi-Viewer Processor

,

4 HDMI Inputs Video Wall Controller

,

Multi-Window Display KVM Multi-Viewer

Material:
Metal
Input Port:
4xHDMI 2.0
Max Resolution:
4096x2160P60Hz
Output Port:
3xHDMI 2.0(One Loop Output)
Control Methods:
Keyboard And Mouse,remote Control,panel Buttons,RS232
Audio Support:
HDMI Audio Follow,3.5mm Audio Separation
Packing Dimensions:
550mm X 320mm X 120mm
Packaging Weight:
2.3KG
Power Supply:
220V
USB Inputs:
4 Computer USB/BM Inputs
USB Outputs:
2 USB/AM Mouse And Keyboard Outputs
Output Resolutions:
3840x2160P60, 4096x2160P60, 1920x1200P60, 1920x1080P60
Window Display:
Dual-screen Simultaneous Display Of 4 Windows, 3 Windows, 2 Windows, Single Window
Window Control:
Supports Control Of Window Size, PIP Transparency, Signal Switching
Hardware Structure:
Pure Hardware Structure, Closed System
















Product Description

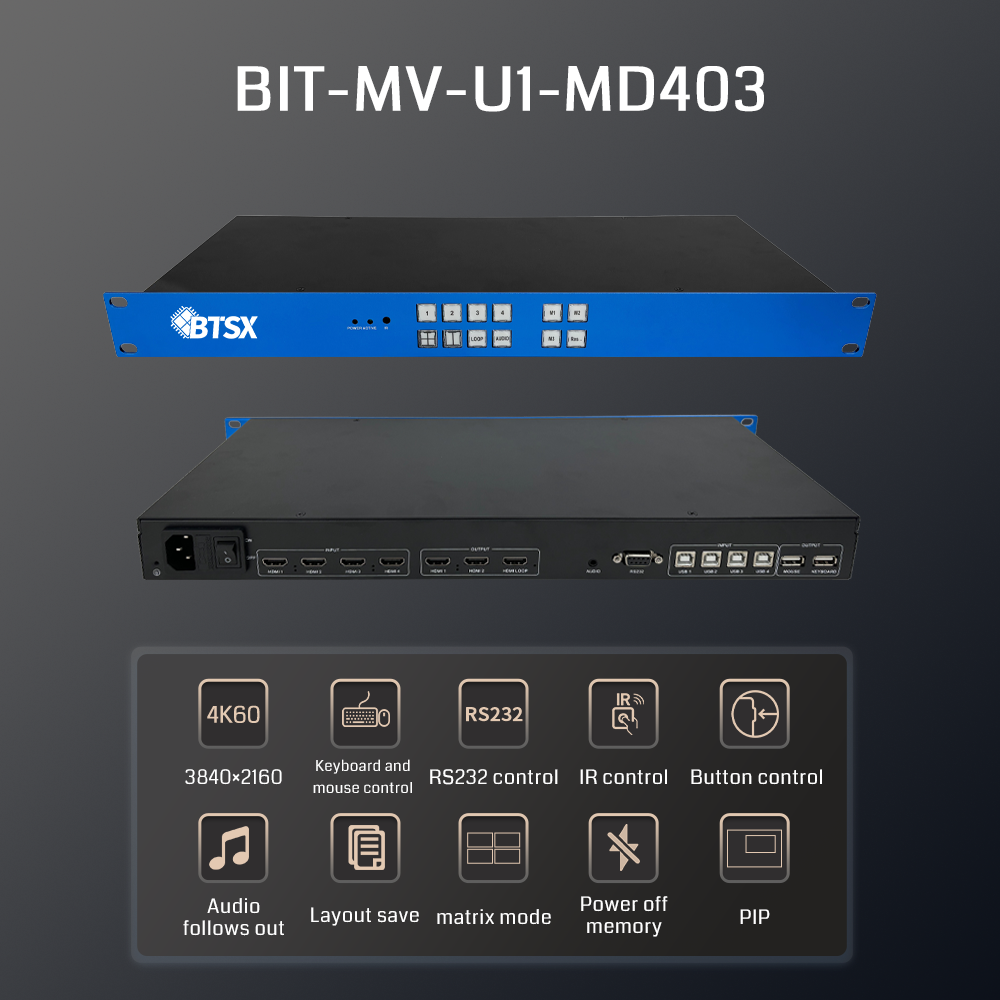

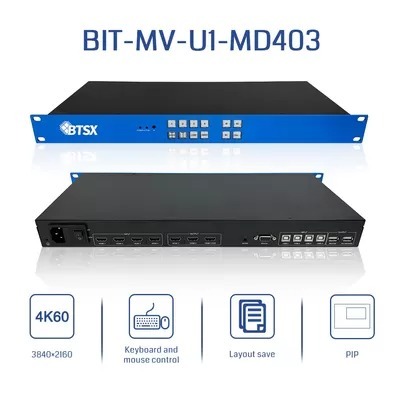

BIT-MV-U1-MD403 Multi-Viewer Processor

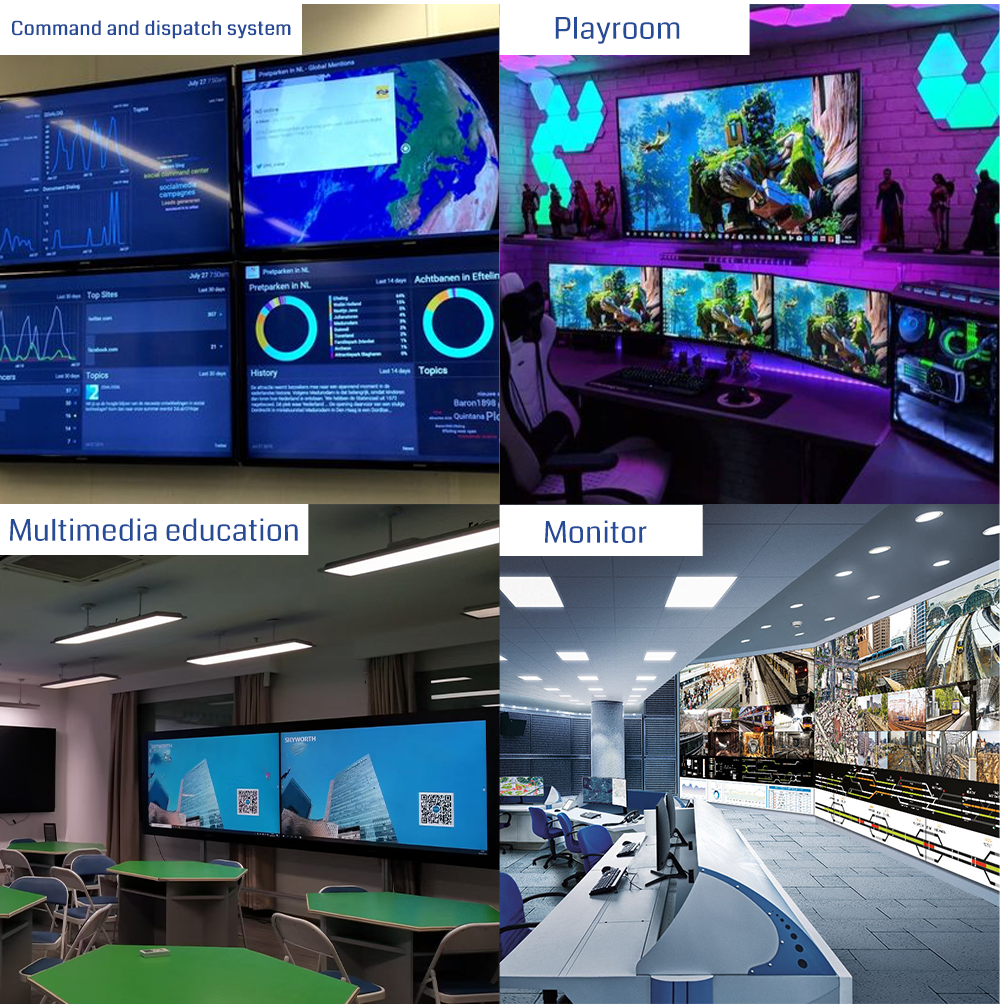

The BIT-MV-U1-MD403 is a professional KVM multi-viewer processor designed for advanced video processing and control. This powerful device enables simultaneous display of multiple high-definition images on ultra-high-definition 4K60 resolution displays including flat-panel TVs and projectors. Ideal for security monitoring, conference rooms, stage performances, TV broadcasts, multimedia teaching, and remote education applications.
Key Features

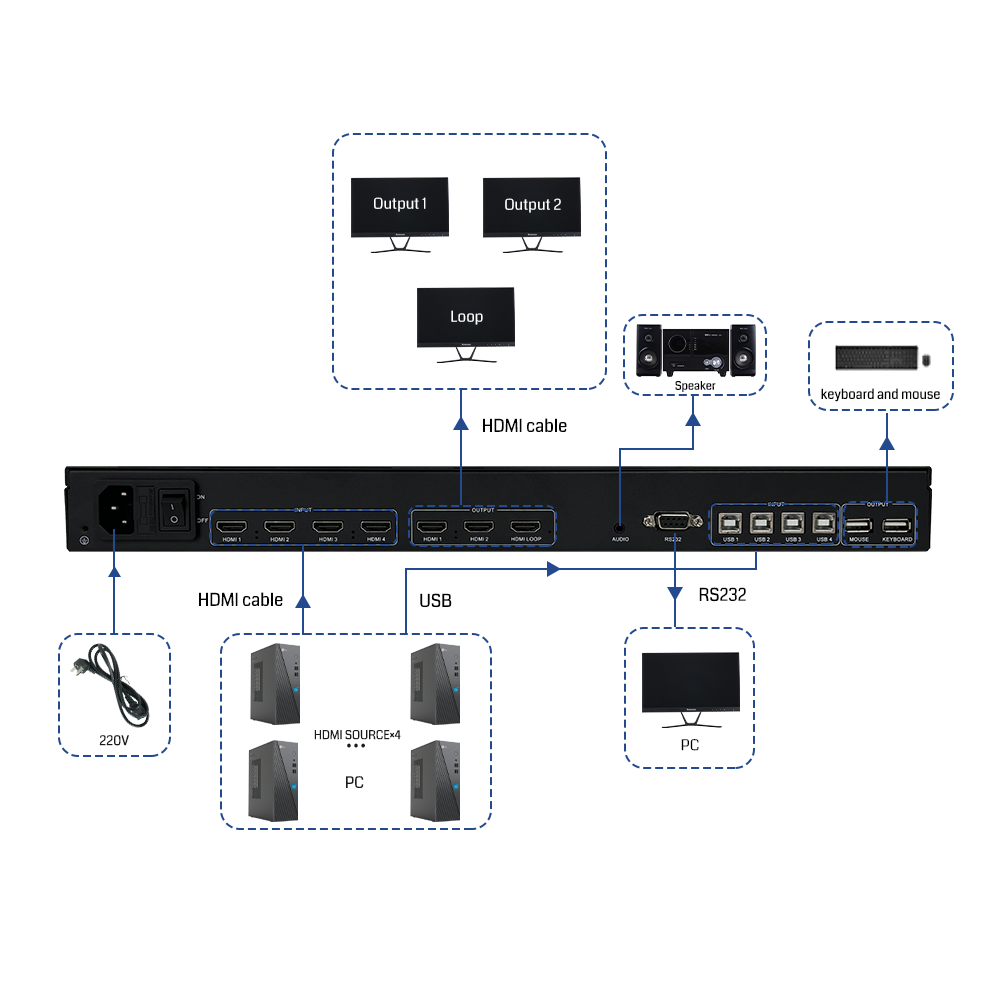

  • 4 HDMI 2.0 signal inputs and 3 HDMI 2.0 signal outputs
  • 4 computer USB/BM inputs and 2 USB/AM mouse and keyboard outputs
  • Supports 11 common output resolutions including 3840x2160P60, 4096x2160P60, 1920x1200P60, and 1920x1080P60

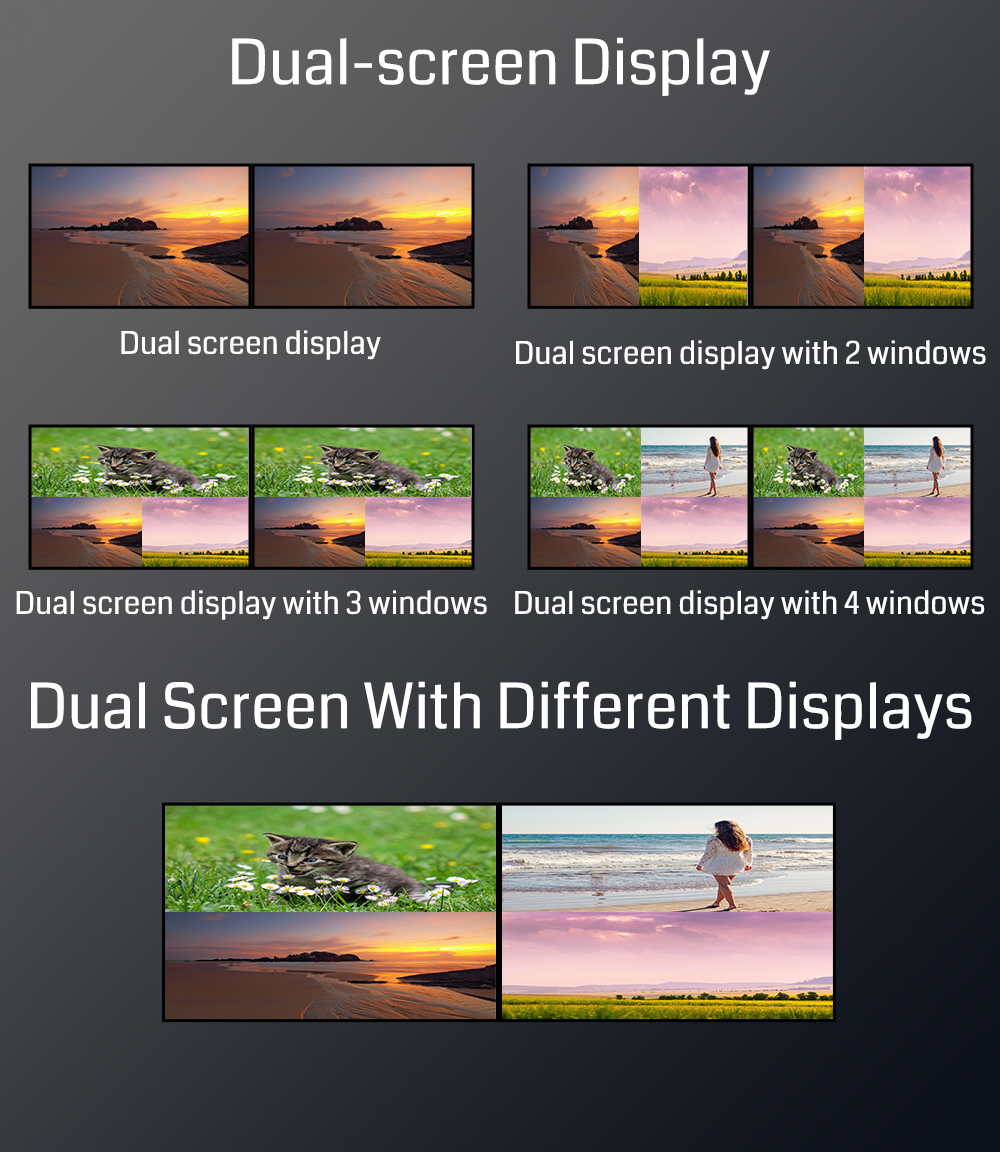

  • Dual-screen simultaneous display of 4 windows, 3 windows, 2 windows, single window, and various window combinations
  • Dual-screen independent display of 2 windows, single window, and multiple window combinations
  • Control window size, PIP transparency, and signal switching via mouse and keyboard
  • Asynchronous or synchronous operation of 4 computers with one set of mouse and keyboard
  • Multiple control methods: mouse, buttons, infrared remote control with full-screen switching capabilities
  • Pure hardware structure ensures simplicity, stability, and high output graphic quality
  • No software required - all signal switching performed easily using mouse and keyboard
Product Images
4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control
Technical Specifications
Product Name BIT-MV-U1-MD403
Input Port 4x HDMI 2.0
Max Input Resolution 4096x2160P60Hz
Output Port 3x HDMI 2.0 (One loop output)
Control Methods Keyboard and mouse, remote control, panel buttons, RS232
Audio HDMI audio follow, 3.5mm audio separation
Packing Dimensions LxWxH: 550mm x 320mm x 120mm
Packaging Weight 2.3KG
Power Supply 220V

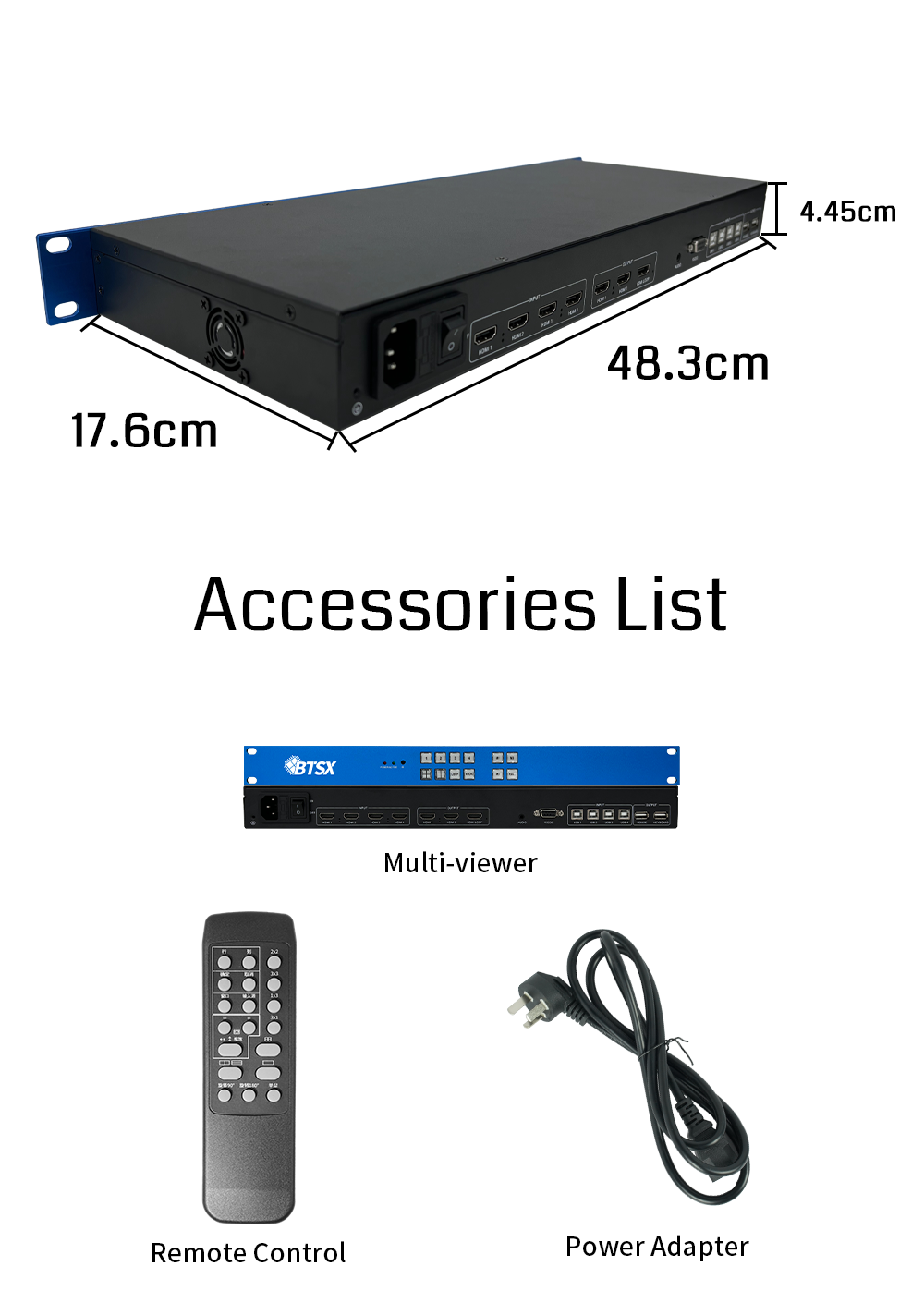

Accessories List 220V power cable x1, remote control x1
Warranty 1 year
Manufacturer Information
We are a professional manufacturer specializing in the development, production, and sales of FPGA image processing technology and high-definition audio and video signal transmission products.
4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control 4K60 Resolution Multi-Viewer Processor with 4 HDMI Inputs and Multi-Window Display for Video Wall Control
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer focusing on the development, production and sales of series products with FPGA image processing technology and high-definition audio and video signal transmission as the core. We have our own factory.
What is your after-sale service?
We offer 100% guarantee on our product.
What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
How long is your delivery time?
We are manufacturer. For products without customization, we usually ship them within 3 working days.
Can you customize the product?
Yes, we have a team of professional engineers to customize the product.
Can you provide samples?
We are honored to provide you with samples, but we need to pay for them.
