Specifications
Brand Name :
Bitvisus
Model Number :
BIT-Ma-U1-MC0808
Certification :
CE/FCC/RoHS
Place of Origin :
Guangdong China
MOQ :
1
Price :
USD423-583
Payment Terms :
T/T,D/P,D/A,L/C,PayPal
Supply Ability :
1 unit,3 days;10 units,15 days
Delivery Time :
7 dasys
Product Name :
BIT-Ma-U1-MC0808
Private Mold :
Yes
Color :
Black
Control Method :
RS232/RJ45,push-button, IR Remote Control
HDCP Compatible :
HDCP 2.2/1.4
HDMI Compatible :
HDMI 2.0
Input Port :
8xHDMI TypeA,1xIREXT
Output Port :
8xHDMI TypeA,8xCoax Audio(RCA),8xL/R Audio
Warranty :
1 Year
Description

Newest New HDMI matrix 8x8 4x4 2x2 support 3D video RS232 8 In 8 Out hdmi matrix switcher

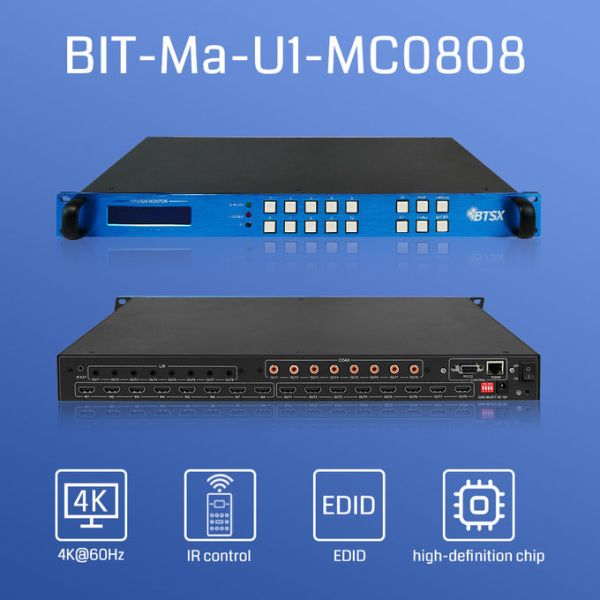

The BIT-Ma-U1-MC0808 matrix switcher supports high-resolution video transmission up to 4K2K@60Hz and multi-channel digital audio from 8 HDMI signal sources to 8 HDMI display devices. It also supports stripping audio from HDMI sources to coaxial audio outputs.


8x8 HDMI Matrix Switcher 4K60Hz Video Wall Controller with HDCP 2.2 Support


Key Features:

4K60 Video Transmission: Supports up to 4K2K@60Hz video resolution for crystal-clear visuals.
Multi-Channel Audio: Compatible with various HDMI audio formats including LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X.
Flexible Switching: Allows switching between 8 input and 8 output channels with ease.

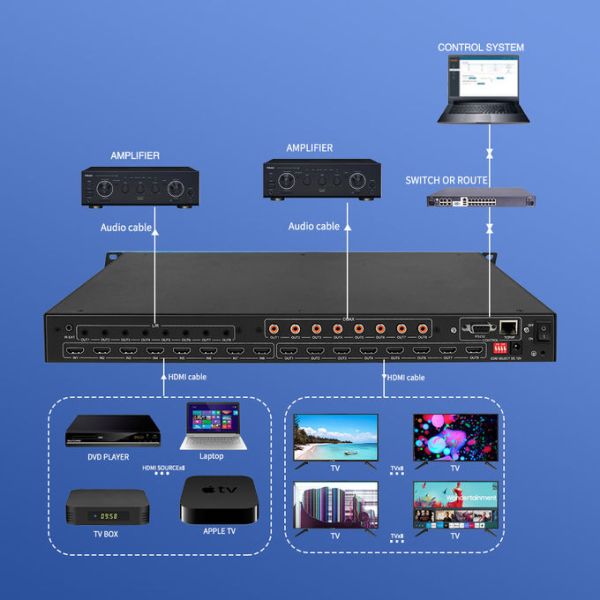

Extensive Connectivity: Features coaxial and analog audio outputs, RS-232, TCP/IP control interfaces, and an IR EXT interface for enhanced flexibility.


Specifications:


HDMI Audio Formats: LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Power Supply: Input: AC 100~240V 50/60Hz; Output: DC 12V/2-3A (US/EU standard, CE/FCC/UL certification)



8x8 HDMI Matrix Switcher 4K60Hz Video Wall Controller with HDCP 2.2 Support

Specification Parameters

Product model BIT-Ma-U1-MC0808
shell metal shell
color black
size 440mm(L)×200mm(W)×44.5mm(H)
weight 4kg
Power supply
nput:AC100~240V50/60Hz
Output:DC12V/2-3A(US/EUstandard,CE/FCC/ULcertification)
power consumption 43W
operating temperature -10°C~45°C/14°F~113°F
Storage temperature -20°C~60°C/-4°F~140°F
Relative humidity 20~90%RH(non-condensing)
Warranty One year



Product Features:

1. Comply with HDMI2.0 and HDCP2.2/1.4 specifications.
2. Video resolution up to 4Kx2K@60Hz.
3. Support 18Gbps video bandwidth.
4. Support Dolby Vision,HDR10+ and HLG.
5. All HDMI output ports support 4K->1080P video scaling function.
6. Supported HDMI audio formats up to 7.1 high-definition audio channels.
7.Support stripping audio from HDMI source to coaxial audio port and analog audio port output.
8.Support dial code for EDID selection.
9.1U rack mount design with front panel LCD display.
10.Control by front panel buttons,infrared remote control,host computer(RS-232andRJ45)
