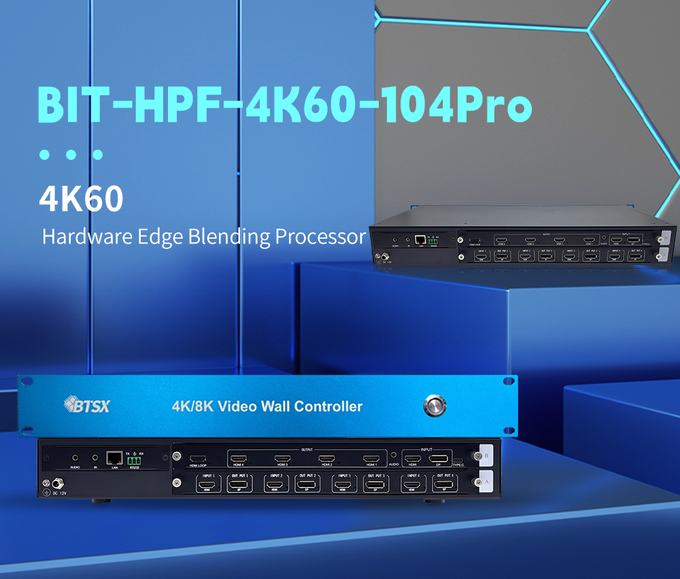

Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays
Specifications
Brand Name :
Bitvisus
Model Number :
BIT-HPF-4K60-104Pro
Certification :
CE/FCC/RoHS
Place of Origin :
Guangdong China
MOQ :
1
Price :
USD1715
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
7 days
Packaging Details :
540mm×325mm×155mm
Product Name :
BIT-HPF-4K60-104Pro
HDCP :
HDCP2.2
Input Interface :
1×HDMI 2.0、1×DP 1.2（Copper Wire≤3m）
Input The Highest Pixel Clock Frequency :
600MHz
Output Interface :
4×HDMI 1.3（Copper Wire≤15 M）
Output The Highest Pixel Clock Frequency :
154MHz
Enter Color Format :
RGB444、YUV444、YUV422、YUV420
Package Weight :
4.25KG
Description

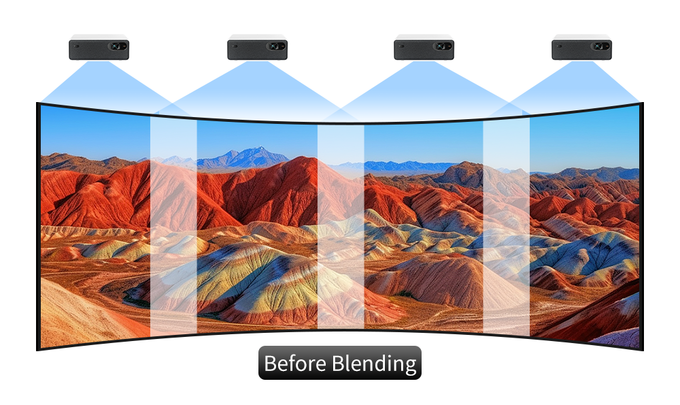

4K60 Projection Blender Multi-Projector Edge Blending
The BIT-HPF-4K60-104Pro 4K60 projection blender is designed for multi-channel projection blending, achieving seamless edge blending. It supports one 4K60 input with both HDMI and DP inputs, and features four 2K HDMI outputs, backwards compatible with conventional resolutions for stable output of clear, smooth images. Ideal for engineering projection displays, multi-channel 4K projection blending, exhibition halls, virtual reality, and surround-screen cinemas.

Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays

Product Features:
Ⅰ. Core Processing Performance: Superior Input, Powerful Output
  • UHD Signal Input: Supports one 4K60 (4096x2160@60Hz) UHD signal input with dual HDMI and DisplayPort options (automatic HDMI priority) for lossless transmission of high-bandwidth signals
  • Multi-Channel Output: Four independent 2K (2048x1080@60Hz) HDMI outputs for large-scale, multi-projector hybrid display systems
Ⅱ. Professional Fusion and Calibration
  • Pure Hardware Architecture: No operating system for instant boot-up, eliminating software freezes and virus issues
  • High-Precision Geometric Correction: Supports complex projection surfaces including flat, curved, and folded surfaces
  • Ultra-Fine Grid Correction: Adjustable grid with multiple columns/rows for pixel-precise image warping
  • Wide-Range Blending: Adjustable blending band (0-1200 pixels) with advanced feathering algorithms
III. Image Quality and Color Engine
  • Professional Color Management: Full color gamut support with built-in color matching technology
  • Intelligent Signal Enhancement: Image line scaling and dynamic frame doubling technologies
  • Customizable EDID Management: Supports custom EDID writing for optimal compatibility
  • Screen Roaming and Overlay: Customizable screen positioning for flexible presentation
IV. Industrial-Grade Quality Assurance
  • High-End Chip Solution: Industrial-grade main control chips on 28nm process
  • Excellent Heat Dissipation: Professional thermal design for long-term stability
  • Advanced Protection: 6-layer PCB with 16KV ESD protection and strong interference resistance

Bitvisus 4K60 Input Seamless Edge Blending Pure Hardware Video Wall Controller for Multi-Projector Displays

Product Name BIT-HPF-4K60-104Pro
Input interface 1*HDMI 2.0, 1*DP 1.2 (Copper wire ≤ 3 m)
Output Interface 4*HDMI 1.3 (Copper wire ≤15 m)
Output the highest pixel clock frequency 154MHz
Output color depth 10bit
Color depth 8bit, 10bit
Package Weight 2.6KG
