Specifications
Brand Name :
Bitvisus
Model Number :
BIT-MSE-8K60D-104Pro
Certification :
CE,HDMI,HDCP,RoHS,FCC
Place of Origin :
China
MOQ :
1
Price :
Contact us！
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
36*24*9CM
Prduct Name :
BIT-MSE-8K60D-104Pro
Input lnterface :
1*DP 2.1(Copper wire≤3Meters)
Input Maximum Resolution :
2*2:7680*4800P60,7680*4320P60
Output Interface :
4*HDMI2.0(Copper wire≤5Meters)
Output Resolution :
3840*2400P60,3840*2160P60 3840*2400P50,3840*2160P50
Input/Output Color Format :
RGB444
Power Supply :
12V5A
Packaging Dimensions :
350mm*240mm*80 mm
Package Weight :
1.3 KG
After-sales Service :
1 years
Description
8K60 DP Input 4K60 HDMI Output Video Wall Controller

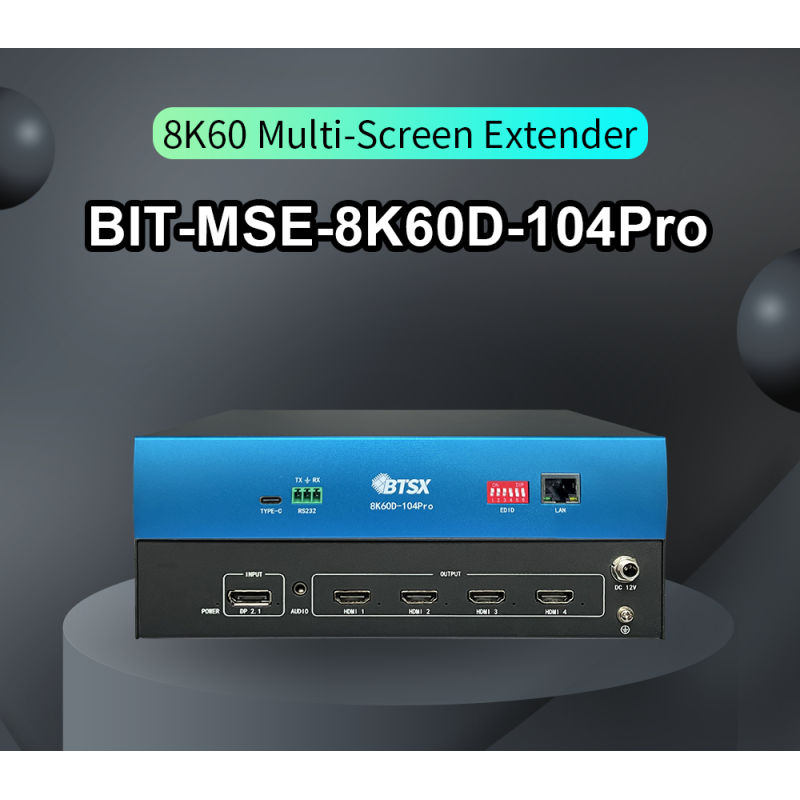

The BIT-MSE-8K60D-104Pro is an 8K60 multi-screen extender independently developed by Bitvisus. This industrial-grade high-performance product is specially designed for multi-desktop operation and multi-channel image processing display requirements. The controller supports 1-channel DP interface for 8K60 input and 4-channel HDMI interfaces for 4K60 output, with backward compatibility for conventional resolutions. Whether connecting to 4K large-screen projectors or high-definition displays, it delivers stable, clear, and smooth image output.
8K60 DP Input 4K60 HDMI Output Video Wall Controller with RS232 IR Control for Exhibition Hall
Key Features
  • 1-channel DP interface supporting 8K60 input for clear images with rich detail
  • 4-channel HDMI ports supporting 4K60 output
  • Ultra-high resolution input supporting up to 7680x4800P60/7680x4320P60
  • 2x2 pixel-to-pixel splicing without stretching or distortion for wider field of view
  • EDID management with DIP switch selection, no software operation required
  • Industrial-grade design with thickened 8-layer PCB board and 16KV super anti-static capability
  • Low-power, energy-saving design with overheat protection and anti-interference features
  • Chassis combination design with 2 half-width boxes combined into full-width 1U structure with tray
8K60 DP Input 4K60 HDMI Output Video Wall Controller with RS232 IR Control for Exhibition Hall
Technical Specifications
Product Name BIT-MSE-8K60D-104Pro
Input Interface 1×DP 2.1 (Copper wire ≤ 3 Meters)
HDCP Support HDCP1.4/HDCP 2.3
Input Maximum Pixel Clock Frequency 2400MHz
Input Maximum Resolution 2×2: 7680×4800P60, 7680×4320P60
Input Color Format RGB444
Input Color Depth 8bit
Output Interface 4×HDMI2.0 (Copper wire ≤ 5 Meters)
Output Maximum Pixel Clock Frequency 600MHz
Output Resolution 3840x2400P60, 3840×2160P60, 3840x2400P50, 3840×2160P50
Output Color Format RGB444
Output Color Depth 8bit
Accessory List 1×12V5A power adapter, 8K60 DP cable
8K60 DP Input 4K60 HDMI Output Video Wall Controller with RS232 IR Control for Exhibition Hall
Why Choose Bitvisus?
  • Own warehouse ensuring shipment within 48 hours after payment (weekends and holidays excluded)
  • OEM/ODM services available for custom requirements
  • Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, Embedded Projector Fusion systems
  • Proven R&D experience and product quality assurance
Shipping & Payment
Payment Methods: T/T, Visa, PayPal, Western Union, L/C available.
Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
