Specifications
Brand Name :
Bitvisus
Model Number :
BIT-VWC-106
Certification :
CE、FCC、GB
Place of Origin :
Guangdong China
MOQ :
1
Price :
226
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
2KG, 36cm*21.5cm*7cm
Product name :
BIT-VWC-106
Product type :
1x6 4k60 LCD LED Video Wall Controller
Resolution :
4K@60Hz
Feature :
1 in 6 out
Function :
Stitching
Input :
1 HDMI2.0/1 DP 1.2
Output :
6 HDMI1.3
Input Interface :
600MHz
Output Interface :
165MHz
Warranty :
3 Years
Description
4K60 UHD Zero-Latency Video Processor 1 in 6 Out
Video Wall Controller for Exhibition Display
Product Overview

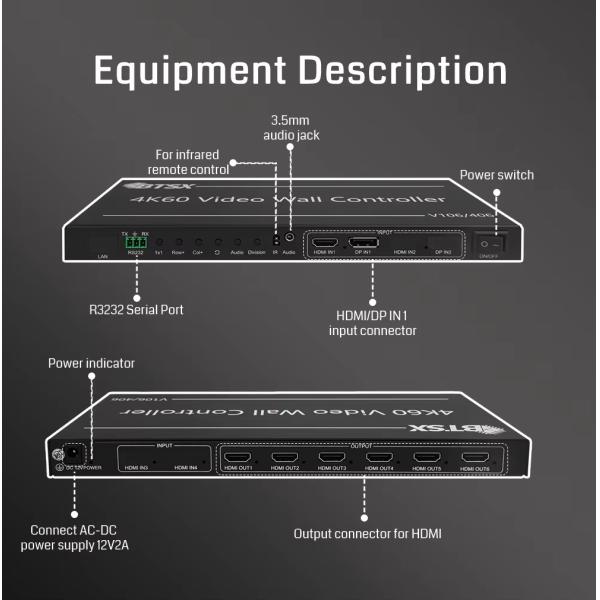

The VWC-106 is an Ultra HD splicer featuring:

  • 1 HDMI/DP input interface with 6 HDMI output interfaces

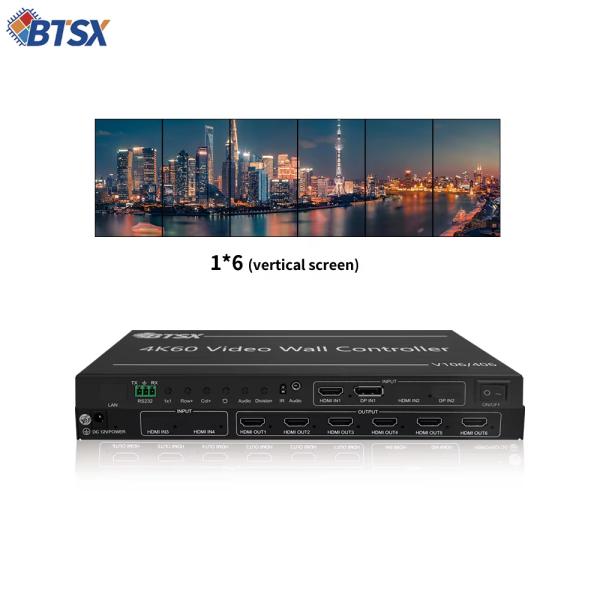

  • Flexible display configurations: horizontal/vertical/field shape combinations across 6 screens
  • Input supports 3840x2400@60Hz, output supports 1920x1200@60Hz (custom resolutions available)
  • Output supports 180° rotation capability
  • Zero distortion processing with no compression of input source
  • Multiple control options: key control, infrared remote, RS232 serial port
  • Compatible with computers, Android boxes, game consoles and other devices
  • Powered by 40nm process FPGA chip for real-time, delay-free processing
Application Scenarios

Ideal for ultra-high-definition video surveillance, large screen walls, retail advertising displays, exhibition halls, and other professional applications.

Contact us for project-specific product consultations!
Product Specifications
Model VWC-106
Input Interface HDMI 2.0/DP 1.2, HDCP2.2
Input Video Pixel Frequency 600MHz
Input Resolution 2x3: 5760x2160@30Hz
3x2: 3840x3240@30Hz
5x1: 1920x5400@30Hz
6x1: 1920x6480@30Hz
Output Interface HDMI 1.3x6 (≤15m)
Output Resolution 1920x1080@60Hz / 1920x1200@60Hz
Audio HDMI follow out, 3.5mm audio splitter connector
Control Methods Pushbutton, infrared remote control, serial port RS232
Power Supply DC 12V 2A
Power Consumption 12W
Operating Temperature 0～50ºC
Product Dimensions 270x128x35mm
Package Weight 1.6KG
Included Accessories 12V power supply x1
Remote control x1
IR receiver head x1
HDMI or DP cable x1
USB to RS232 serial cable x1 (optional)
Warranty 3 years
Product Features
4K60 Video Wall Controller with HDMI2.0/DP1.2 Input and 6 HDMI Outputs Powered by 40nm FPGA Chip 4K60 Video Wall Controller with HDMI2.0/DP1.2 Input and 6 HDMI Outputs Powered by 40nm FPGA Chip 4K60 Video Wall Controller with HDMI2.0/DP1.2 Input and 6 HDMI Outputs Powered by 40nm FPGA Chip
Frequently Asked Questions
Why Choose Bitvisus?
  • 48-hour shipping from our own warehouse (excluding weekends/holidays)
  • OEM/ODM services available
  • Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion solutions
Shipment & Payment

Payment Methods: T/T, Visa, PayPal, Western Union, L/C

Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight

How to Order
  1. Contact us via email or chat (TM, WhatsApp, Skype) with your requirements
  2. We'll provide a proforma invoice based on your order
  3. After payment confirmation, we'll ship your order promptly
