Specifications
Brand Name :
Bitvisus
Model Number :
BIT-VWC-409R
Certification :
CE、FCC、GB
Place of Origin :
Guangdong China
MOQ :
1
Price :
360
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
2KG, 36cm*21.5cm*7cm
Product name :
BIT-VWC-409R
Product type :
4K Multi-sereen processor
Function :
Multi-sereen processor
Feature :
Simultaneously showing 6 different screens
Input :
3 x HDMI1.4, 1 x HDMI2.0 ,1 x DP 1.2(≤ 5 m), support HDCP2.2
Output :
9 x HDMI 1.3(≤ 15 m), 1 x DP 1.2 loop out
Input resolution :
4K60/4K30
Ouput resolution :
1920x 1080@60hz
Color :
Balck
Warranty :
3 Years
Description
4K60 Video Wall Controller HDMI Video Processor 4-in 9-out Video Switcher
Professional seamless switching video matrix switcher with 4K CEC & Web Control capabilities. The BIT-VWC-409R is an ultra HD Rotary Splicer supporting multiple input and output configurations for versatile video wall applications.
Product Overview
The BIT-VWC-409R by Shenzhen Bitvisus Technology Limited features:
  • 4 channels HDMI input (1 channel 4K@60Hz, 3 channels 4K@30Hz)
  • 1 channel DP input (4K@60Hz)
  • 9 channels HDMI output (1080p@60Hz)
  • 1 channel DP loop out
Key Features
  • Input supports full screen rotation of 90° (single-picture mode only)
  • Output supports 180° rotation of the first line (when stitching mode is two lines)
  • Single display mode (1x1) supported
  • Infrared remote control and serial RS232 control
  • Low power consumption with conductive heat dissipation
  • Compatible with computers, Android boxes, game consoles and other input sources
  • DHCP function for automatic IP address assignment
Contact us to discuss your project requirements!
Product Specifications
Product Name BIT-VWC-409R
Input interface maximum video pixel frequency 600MHz
Output interface maximum video pixel frequency 165MHz
Maximum input resolution 3840*2160@60Hz
Maximum output resolution 1920*1080@60HZ

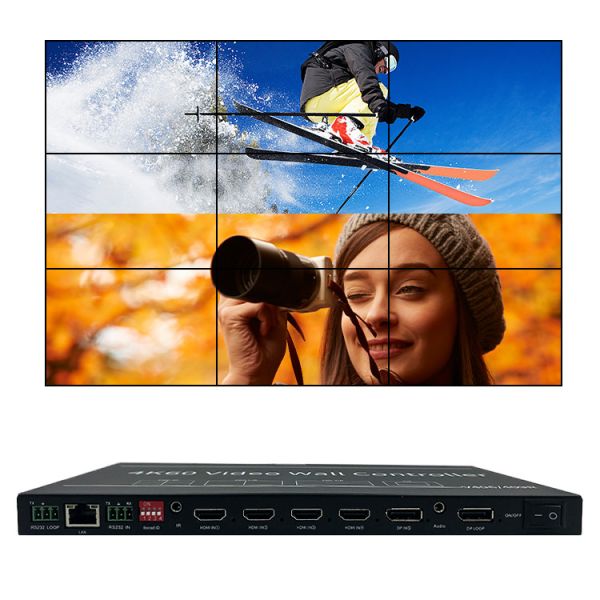

Input Interface 1*DP1.2, 1xHDMI2.0, 3xHDMI1.4
Output Interface 9xHDMI1.3
Factory default resolution HDMI:3840*2160@30Hz DP:3840*2160@60Hz
Control Mode IR Control, RS232, PC
Power Specification 12V@2A
Size 270mm*143.5mm*20.5mm (L*W*H)
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Features at a Glance
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Company Profile
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
Ultra HD 4K60 Video Wall Controller with 4-in 9-out Rotary Splicer for Professional Multi-screen Displays
FAQ
Why Choose Bitvisus?
  • Own warehouse for fast shipping (within 48 hours after payment)
  • OEM/ODM services available
  • Extensive product range including Video Wall controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems
Shipment & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
How to Order?
  1. Contact us via email or chat (TM, WhatsApp, Skype) with your requirements
  2. We'll provide a proforma invoice based on your order
  3. After payment confirmation, we'll ship your order promptly
