Specifications
Brand Name :
Bitvisus
Model Number :
BIT-MSE-8K60Y-104Pro
Certification :
CE、FCC、GB
Place of Origin :
Guangdong China
MOQ :
1
Price :
715
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
2KG, 38cm*25cm*10cm
Product name :
BIT -MSE-8K60Y-104Pro
Product type :
8K60 Multi-Screen Expander
Feature :
Horizontal and vertical compatible version
Function :
Pixel-to-pixel Splicing
Input :
HDMl 2.1, DP 1.4 (aiternative, HDMl preferred)
Output :
4 HDMI 2.0 ;13.5mm audio output interface
Input Interface :
1200MHz
Ouput Interface :
600MHz
Input resolution :
8K60
Warranty :
3 Years
Description
8K60 Multi Screen Expansion Unit FCC CE FPGA Real Time Processing 1 in 4 Out for VR Immersive Display
Product Overview
  • Supports 1 channel of 8K60 YUV420 signal input, with HDMI or DP options (HDMI interface priority)
  • Supports 4-channel 4K60 output via HDMI ports

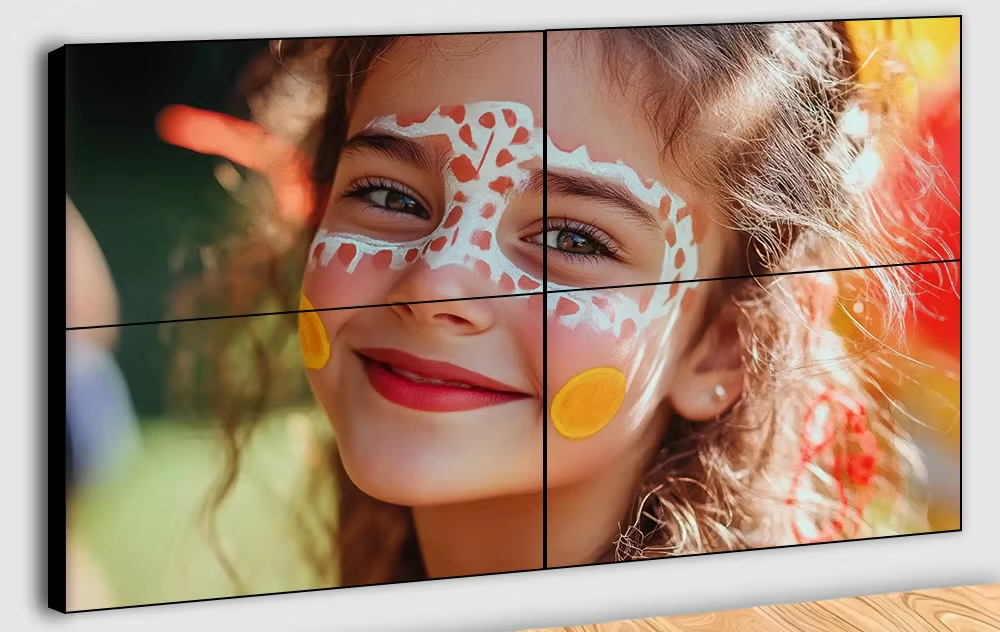

  • Supports 2×2, 3×1 pixel-to-pixel splicing without stretching or deformation

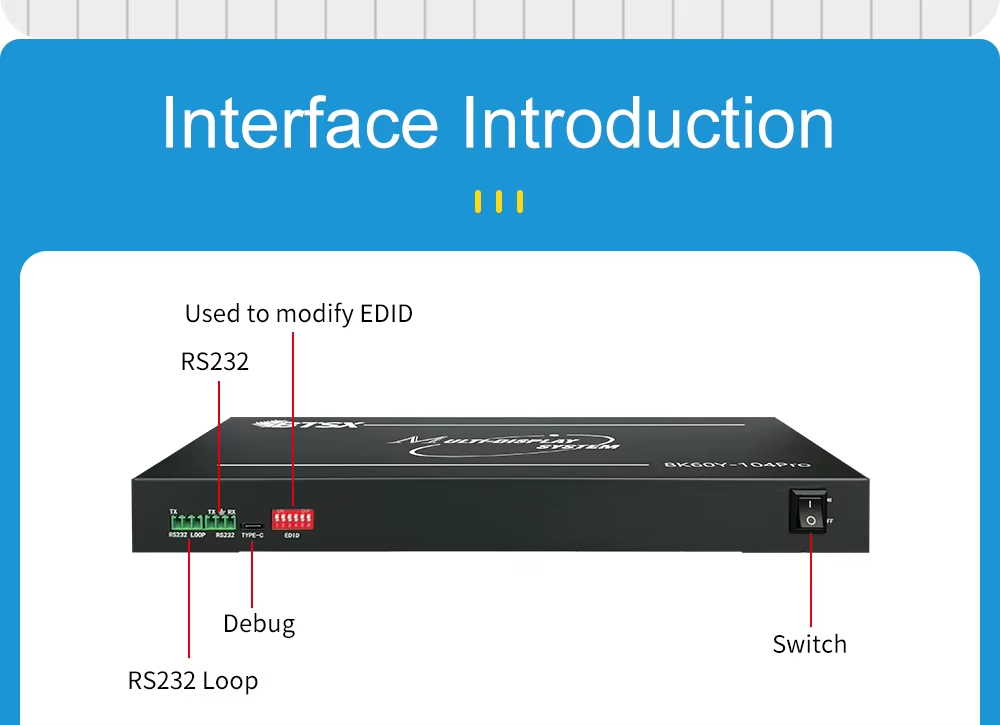

  • Features EDID management with flexible selection via dip switch

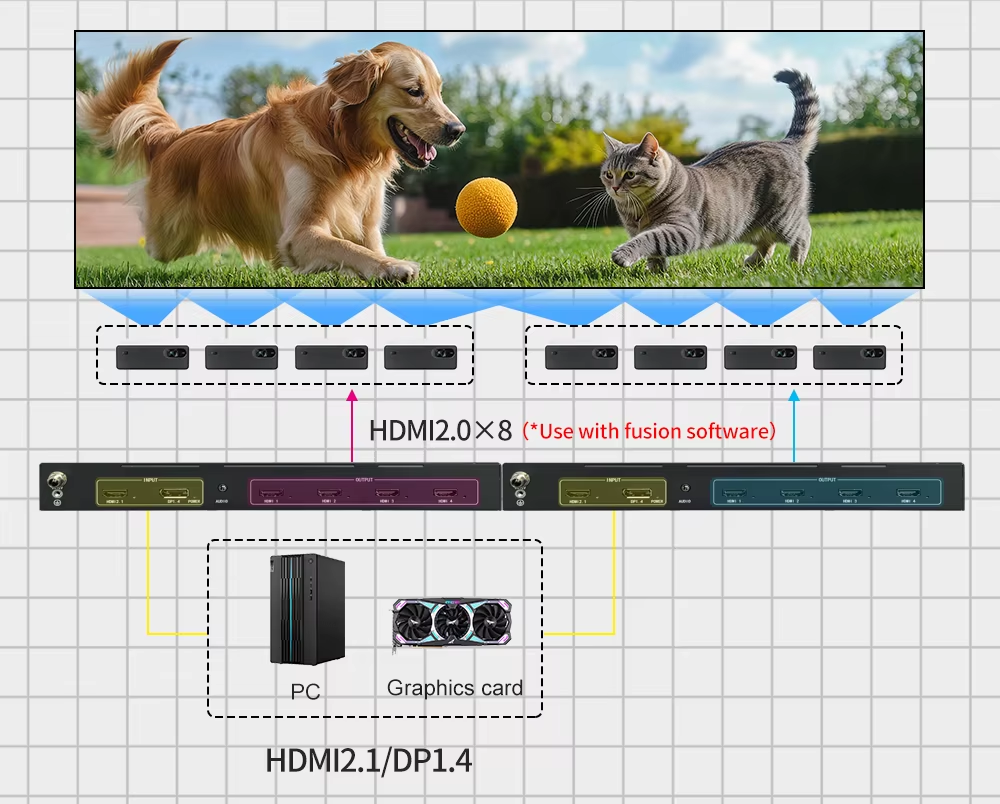

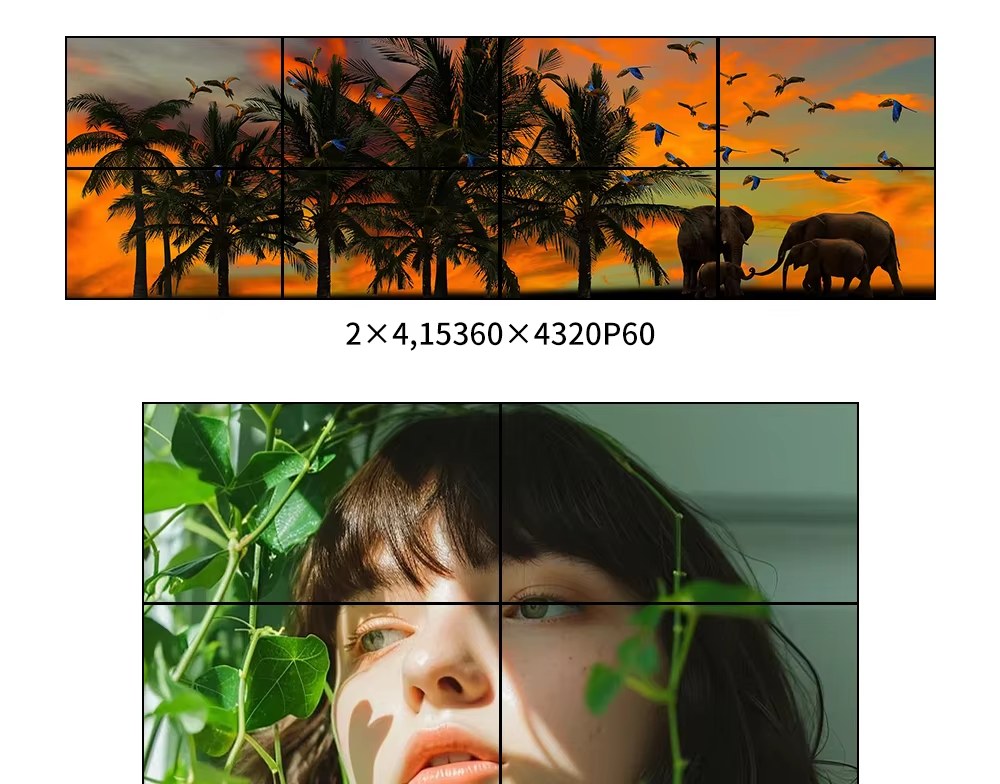

  • Enables parallel use of multiple devices for large screen real-time display requirements
  • High-end programmable FPGA chip with 28nm technology for ultra-fast processing without delay
  • Industrial-grade design with 6-layer PCB board and 16KV anti-static protection
  • Low power consumption (20W) with overheating protection and anti-interference design
  • Modular design supports desktop use or 1U/2U rack mounting configurations
  • Compatible with Bit Window Opening Software for 8K60 multi-screen display
Welcome to contact us to consult about the products required by your project!
Product Specifications
Product Name BIT-MSE-8K60Y-104Pro

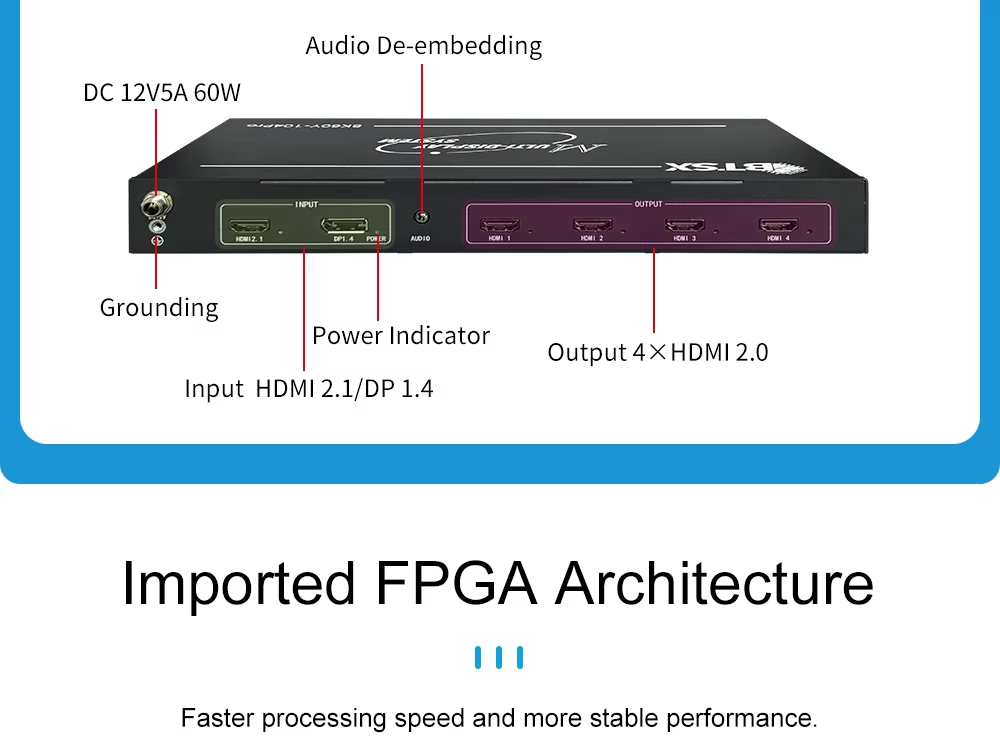

Input interface 1×HDMI 2.1, 1×DP 1.4 (Copper wire ≤ 3Meters)
HDCP Support HDCP 2.2

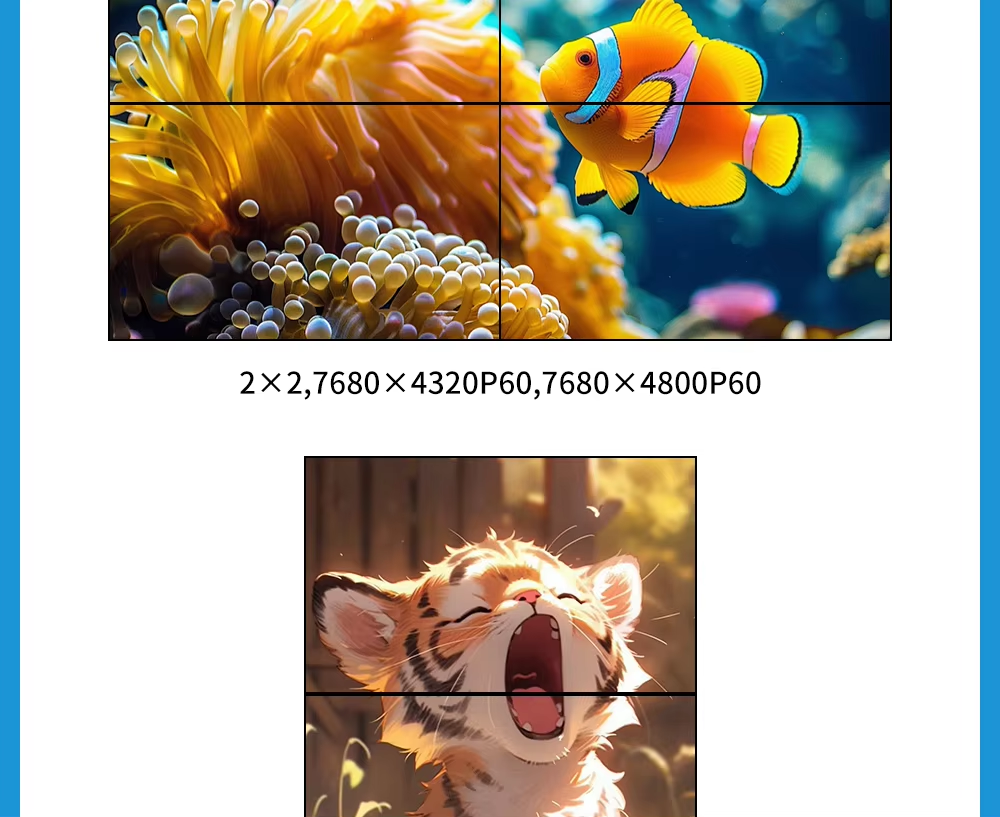

Input maximum resolution 2×2: 7680×4320P60 YUV 420, 7680×4800P60 YUV 420

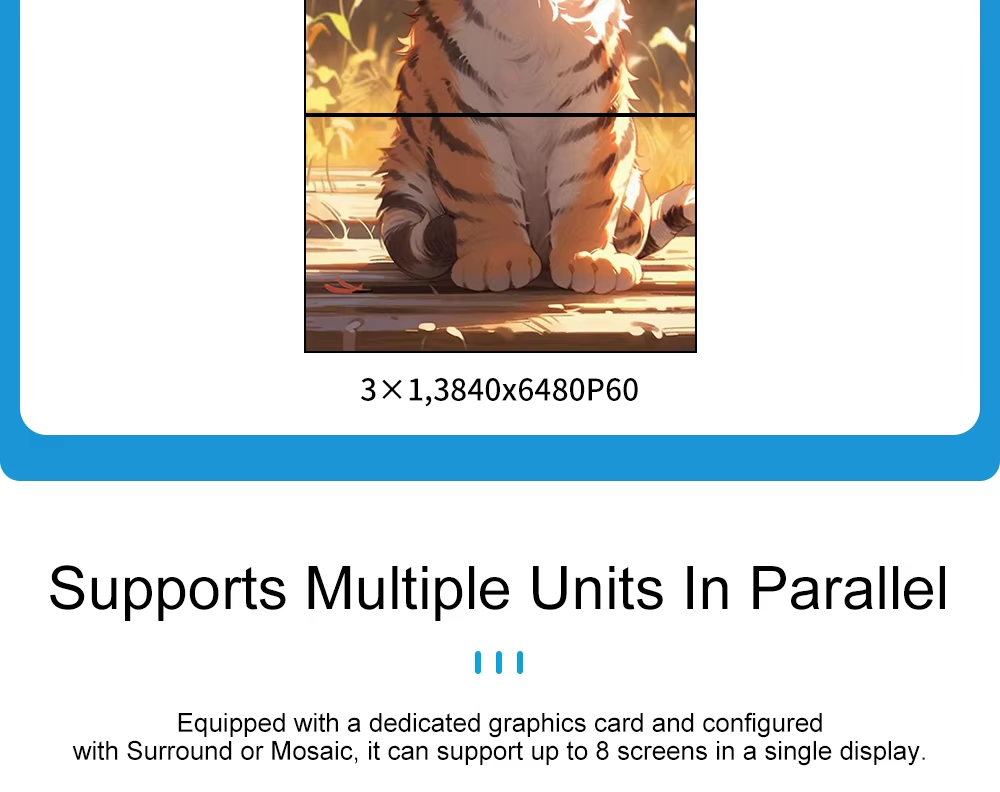

3×1: 3840×6480P60 YUV420, 3840×7200P60 YUV420
Output interface 600MHz
Output maximum resolution 3840×2160P60 RGB444, 3840×2400P60 RGB444
Color depth 8bit
Audio 3.5MM Audio separation, HDMI Audio Pass-Through
Power supply 12V5A
Power consumption 20W
Storage/working temperature -10～50ºC/0～50ºC
Product dimensions 290mm×143mm×35mm
Product weight 1.2KG
Package dimensions 370mm×230mm×90mm
Package weight 1.7KG
Attachment List 1×12V5A power adapter, 1×HDMI 2.1 or DP 1.4 cable, 2×1U hanging ears (optional), 2×desktop small hanging ears (optional)
After-sales service 3 years
Features at a Glance
8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs 8K60 Multi-Screen Expander Video Wall Controller with HDMI 2.1 Input DP 1.4 Input and 4 HDMI 2.0 Outputs
FAQ
Why Choose Bitvisus?
  • Own warehouse ensures shipping within 48 hours after payment (excluding weekends/holidays)
  • OEM/ODM services available
  • Extensive product range including Video Wall controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems
Shipment & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
How to Order?
  1. Contact via email, TM, WhatsApp, or Skype with your requirements
  2. We will provide a proforma invoice based on your order
  3. After payment confirmation, goods will be shipped promptly
