4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
Specifications
Model Number :
BIT-MV-4K60-801
Brand Name :
Bitvisus
Place of Origin :
China
MOQ :
1
Price :
Contact us
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
360x215x70mm
Input channels :
8
Input resolution :
4K60, 1080P60
Output resolution :
3840x2160@60Hz
Input interface :
HDMI 2.1, DP 1.2
Output interface :
1XHDMI 2.0
Refresh rate :
60 Hz
Color format :
RGB444, YUV444
Power supply :
12V2A
Power wastage :
12W
Dimensions :
360x215x70mm
Weight :
1.2KG
Control method :
Remote, RS232, Web
Max pixel frequency :
600MHz
Interface protocol :
HDCP 2.2, HDCP 1.2

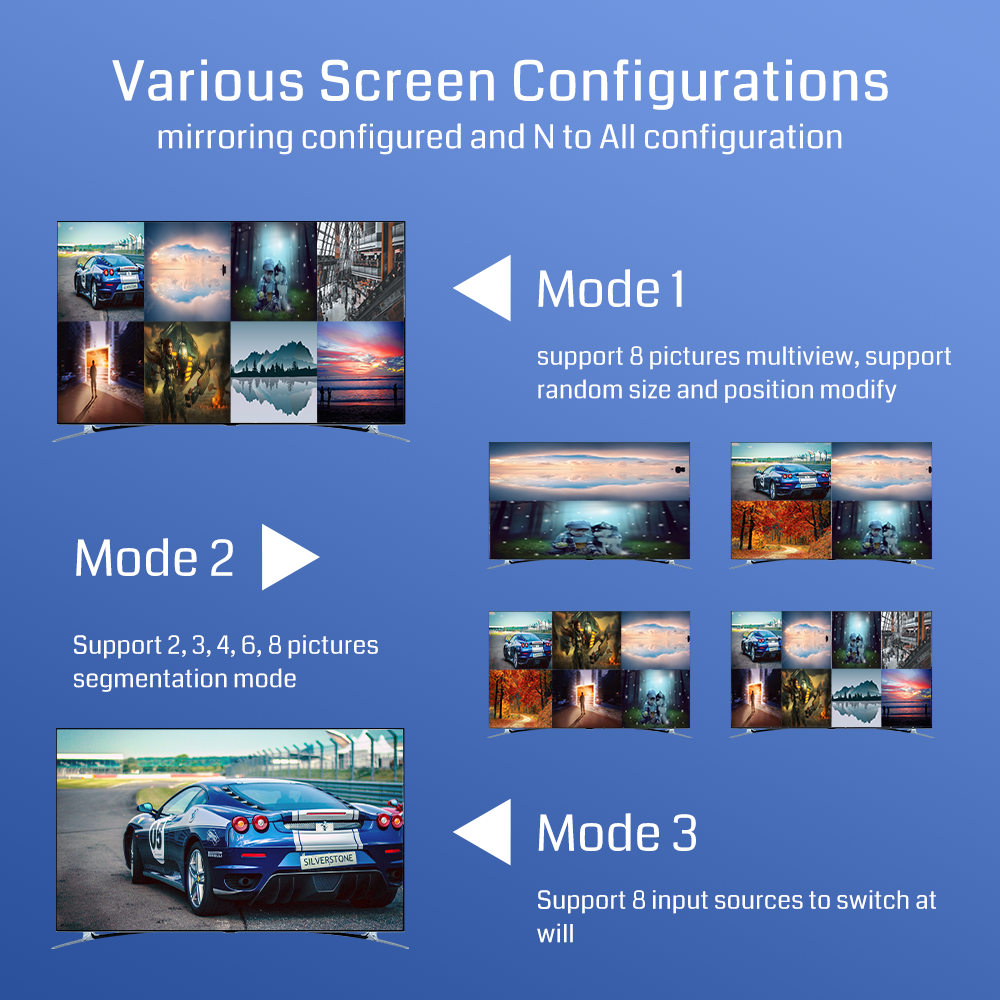

Split modes :
Single, four, six, seven, eight-screen
Description
Products Description
Product Features

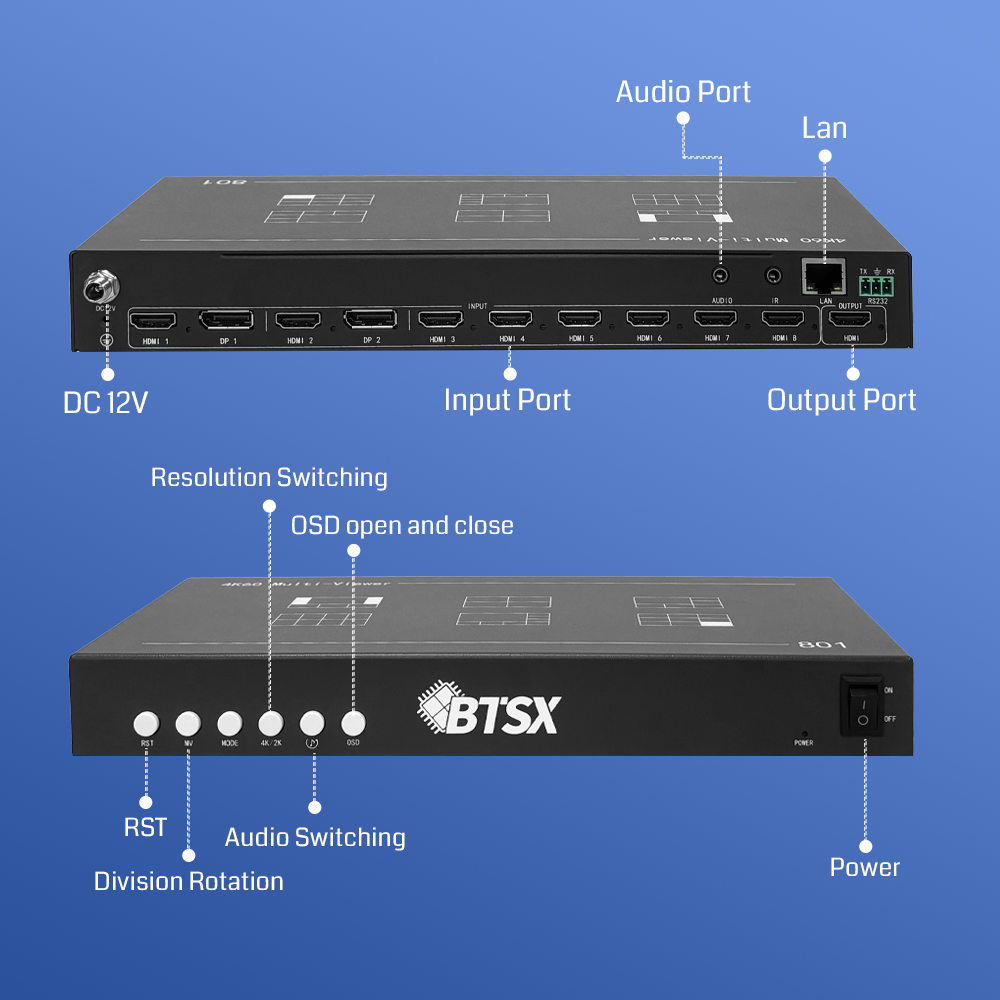

☞There are 8 input channels, of which the first 4 channels support 4K60, and 2 channels support HDMI/DP either, and the last 4channels support 1080P60;
☞2. Output 1 channel 4K60, HDMI interface, support 4K60, 4K30, 1080P60 three output resolutions;
☞ Support remote control, button,RS232, web control;
☞Support audio out, 3.5mm audio separation;
☞Support custom modification of IP address and DHCP;
☞Supportseamless switching of input, seamless switching of 9 splitting modes;
☞There are 2 kinds of hanging ears, which can bewall-mounted on the wall or fixed in the cabinet.

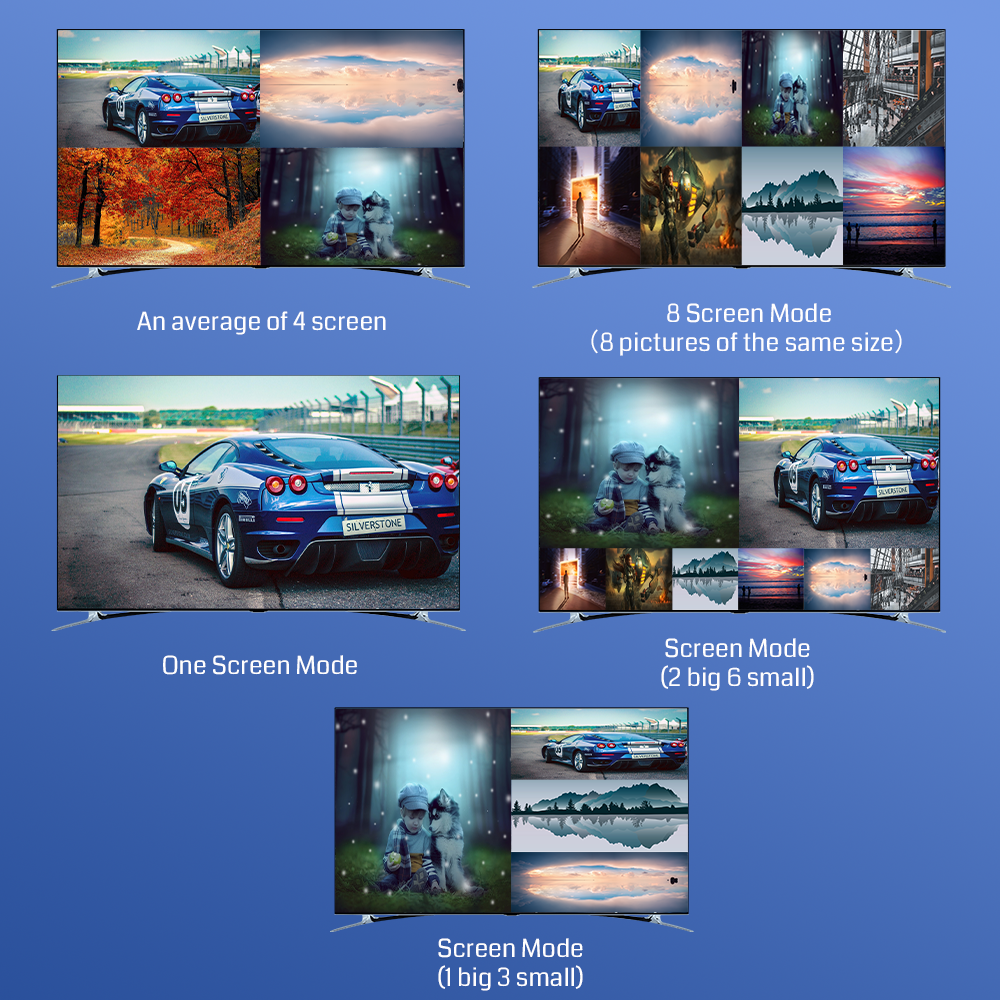

The BIT-MV-4K60-801 is an advanced 4K60 eight-screen splitter developed by Shenzhen Bitvisus Technology Co.,Ltd. It enables the
display of eight screens on a single display device. Besides the standard eight-screen split display, it offers various display
modes such as single-screen, four-screen, six-screen, and seven-screen. Each screen allows seamless switching of the input source
without black screen flickering during mode transitions.

4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
4K60 Multi-viewer Video Wall Controller with 8 Input Channels Seamless Switching and Remote Control
Specification
Product name
4K60 8 input 8 output seamless switching HDMI Multiviewer Switch
Product features
Supports any split screen mode within 8 images
Input
8 HDMI
Output
1 HDMI and DVI
Max input resolution
1920x1080@60Hz
Max output resolution
3840x2160@30Hz
Split model
Single-screen,four-screen,four-screen 1 big and 3 small,eight-screen 2 big and 6 small,eight-screen grid,etc.
Sound frequency
Supports 8 HDMI audio inputs,1 HDMI audio output (8select1)
Control mode
Pushbutton, Infrared Remote Control
Power supply
12V@2A AC-DC Power Supply
Power wastage
12W
Size
29cm*14.3cm*3.5cm
Weight
1.2KG
Certification
CE,FCC,HDMI
Warranty
12months-1year
