4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-Ma-U1-MC0808
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
440mm x 200mm x 44.5mm
Material :
Metal
Product Model :
BIT-Ma-U1-MC0808
Video Resolution :
4K X 2K@50/60Hz
Color Space :
RGB, YCbCr 4:4:4/4:2:2/4:2:0
Coaxial Audio Format :
LPCM 2.0, Dolby Digital / Plus
HDR Format :
HDR10, HDR10+, Dolby Vision, HLG
Size :
440mm x 200mm x 44.5mm
Weight :
4kg
Power Consumption :
43W
HDMI Compatible :
HDMI 2.0
HDCP Compatible :
HDCP 2.2/1.4
Video Bandwidth :
18Gbps
Power Supply :
AC 100~240V 50/60Hz, DC 12V/ 2-3A
Control Interface :
RS-232, RJ45, IR remote
Video Scaling :
4K->1080P
Description
4K60 8x8 HDMI Matrix Switcher with Video Wall Capability

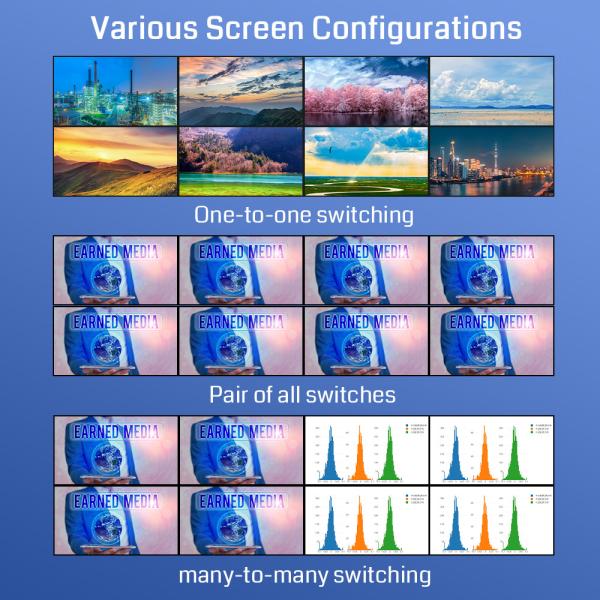

Professional 8x8 HDMI matrix switcher supporting 4K60 video wall configurations including 2x2, 2x3, and 2x4 layouts for multimedia conference halls and multi-display applications.

4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty

Key Features
  • Ultra HD resolution up to 4Kx2K@60Hz, RGB 4:4:4
  • Advanced matrix switching capability
  • Scene save and recall functionality
  • Support for Dolby Vision, HDR10+, and HLG
  • 4K to 1080P video scaling on all HDMI output ports
  • EDID management for optimal display device compatibility
  • Audio Follow-On and Audio Separation features

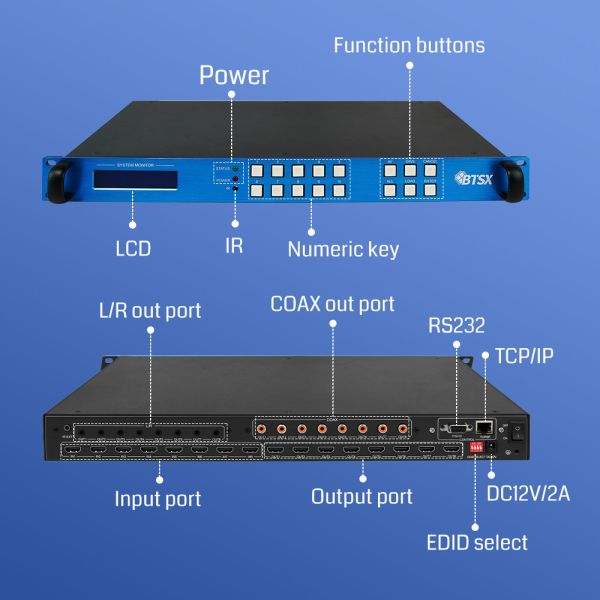

  • Multiple control options: front panel buttons, infrared remote, RS-232, and RJ45

    4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty

Applications
Ideal for conferencing systems, radio & television projects, multimedia conference halls, large screen display projects, television teaching, and command control centers.
Technical Specifications
Product Name 4K60 8x8 HDMI Matrix Switcher
HDMI Compatibility HDMI 2.0
HDCP Compatibility HDCP 2.2/1.4
Video Bandwidth 18Gbps
Power Supply Input: AC 100~240V 50/60Hz
Output: DC 12V/ 2-3A
Resolution / Cable Length 4K@60Hz: 5 meters
4K@30Hz: 10 meters
1080P@60Hz: 15 meters
Power Consumption 43W
Product Dimensions 440mm (L) × 200mm (W) × 44.5mm (H)
Product Weight 4KG
Certifications CE, FCC, ROHS
Support Services ODM, OEM
Warranty 3 Years

4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty


Company Information
Bitvisus is a leading manufacturer in the video wall controller field with our own warehouse ensuring fast shipping within 48 hours after payment.
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty 4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
Customer Reviews
4K60 8x8 HDMI Matrix Switcher Video Wall Controller with Multi Display Processor and 3-Year Warranty
Frequently Asked Questions
Why Choose Bitvisus?
  • Own warehouse ensures shipping within 48 hours after payment
  • OEM/ODM services available
  • Leading manufacturer in the field
How to Order
  • Contact us via email, TM, WhatsApp, or Skype with your requirements
  • We provide proforma invoice based on your order request
  • Fast delivery after payment confirmation
Warranty & After-sale Service
  • 12 months warranty with lifetime service support
  • Return or exchange available for faulty, damaged, or wrong models
Shipping & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping carriers: DHL, UPS, EMS, FedEx, Air freight, Sea freight
