Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :

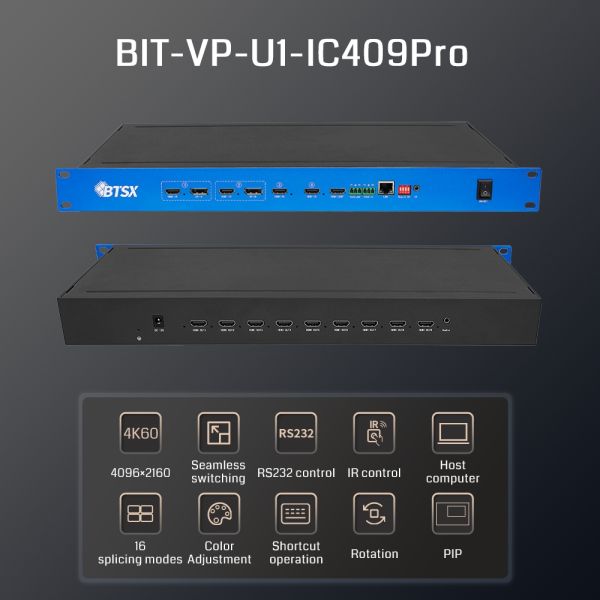

BIT-VP-U1-IC409Pro
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
540mmx290mmx110mm
Material :
Metal
Input interface :
HDMI 2.0X4,DP 1.2X2
Input resolution :
4096X2160@60Hz
Input color depth :
24bit
Output interface :
HDMI 1.3X9 (≤15m),HDMI 2.0X1
Output resolution :
1920X1080@60Hz/1920X1200@60Hz
Control methods :
Infrared, RS232, TCP/IP
Package dimensions :
540mmx290mmx110mm
Package weight :
3.7KG
Splicing modes :
16
Rotation support :
90°,180°,270°
Color adjustment :
Saturation, gamma
Audio output :
3.5mm audio port
Power supply :
12V/5A
Pixel format :
RGB444
Description
Product Details
Any splicing roaming seamless switching switcher video processor
☞Supports 4 channels of 4Kx2K@60 input,each input port burns different resolutions,and supports EDID management;

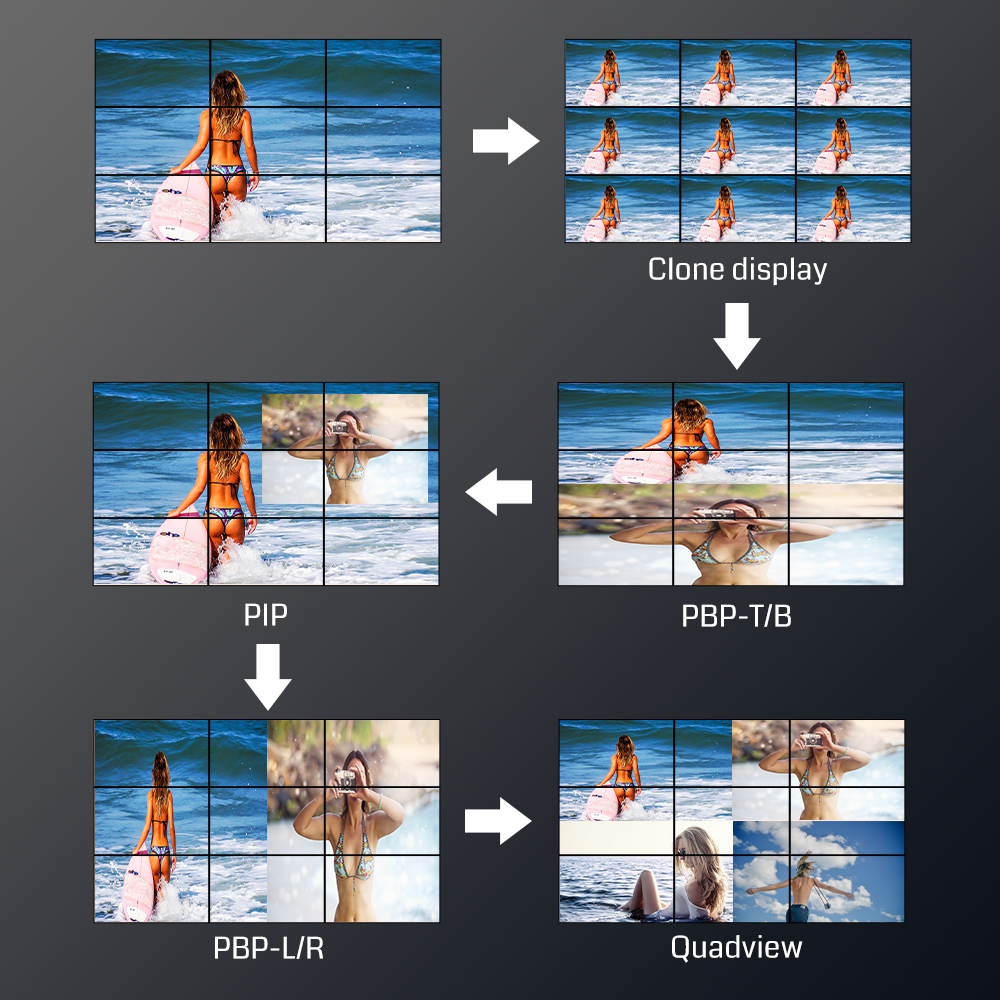

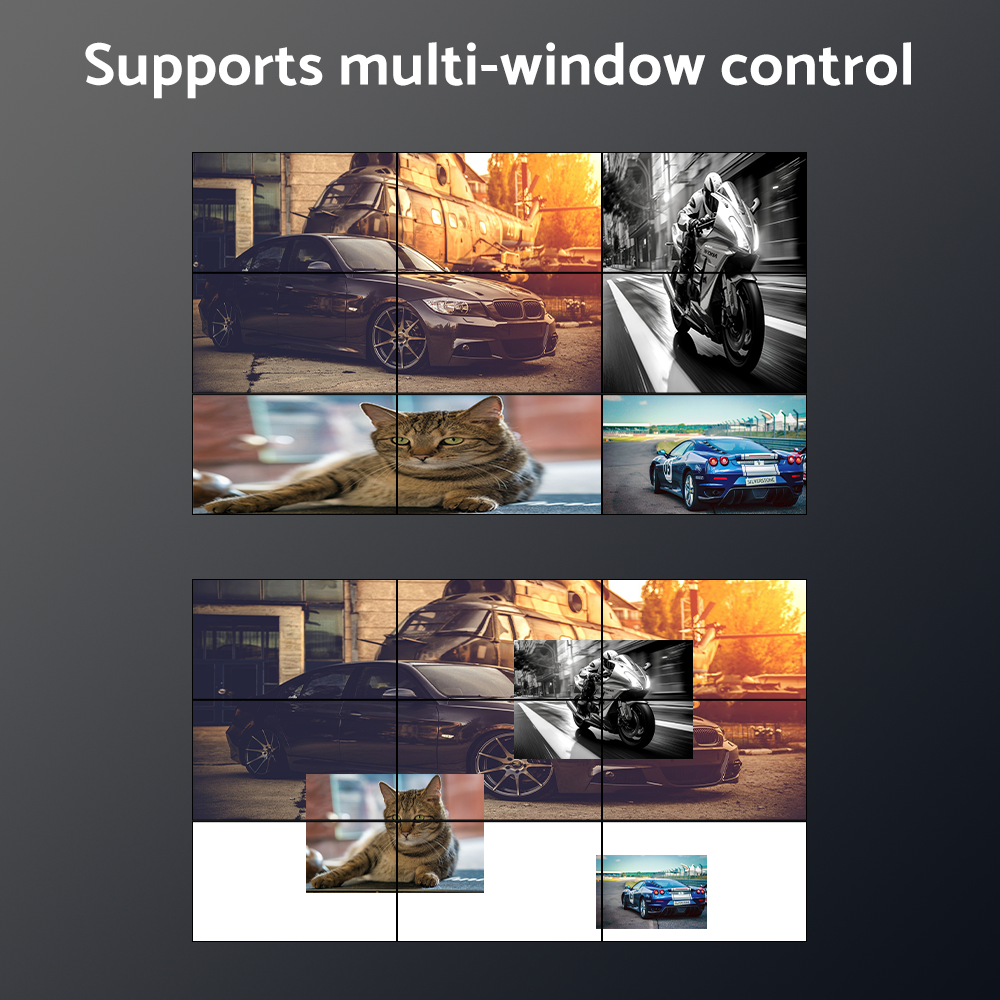

☞Supports multi-window control,can realize various functions such as POP tile mode,PIP overlay mode,arbitrary picture overlay,roaming,cross-screen,zoom,etc;

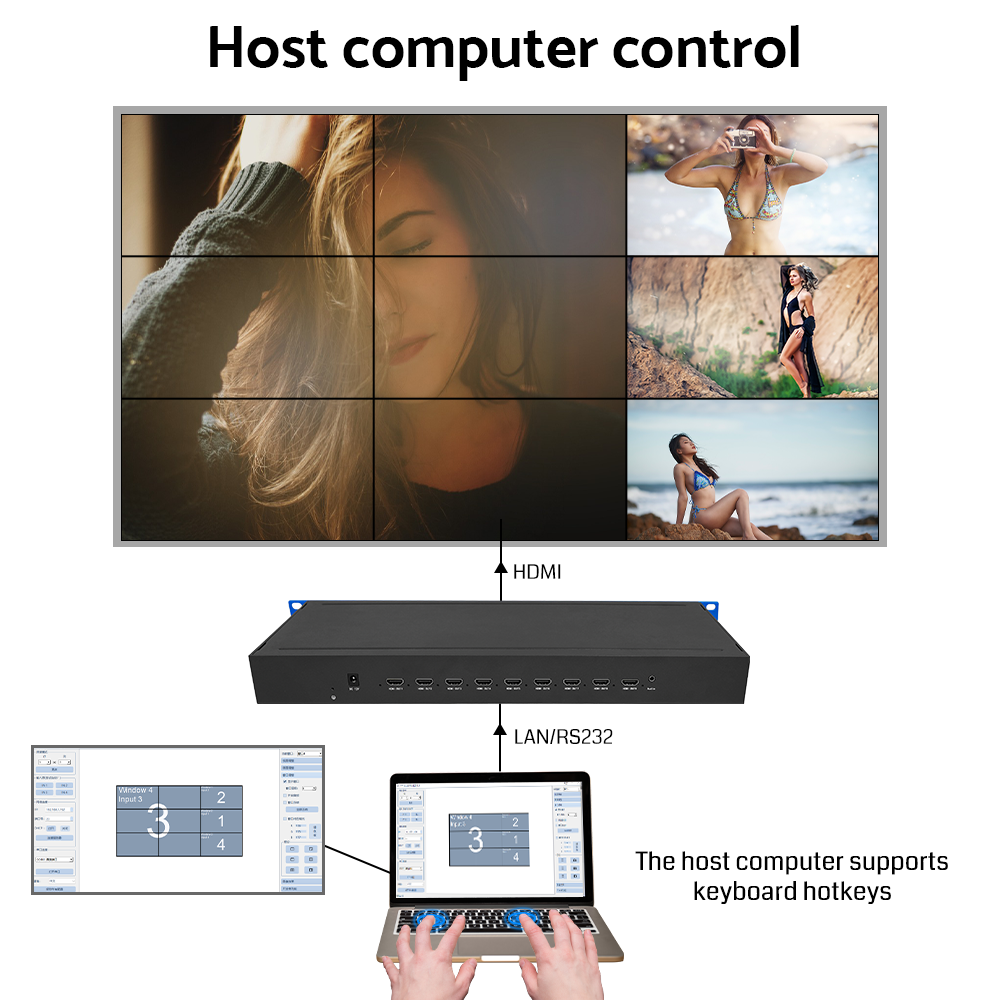

☞Flexible control (infrared remote control, RS232 serial port control,TCP/IP control methods,Upper computer software control)with keyboard shortcuts, fast operation;

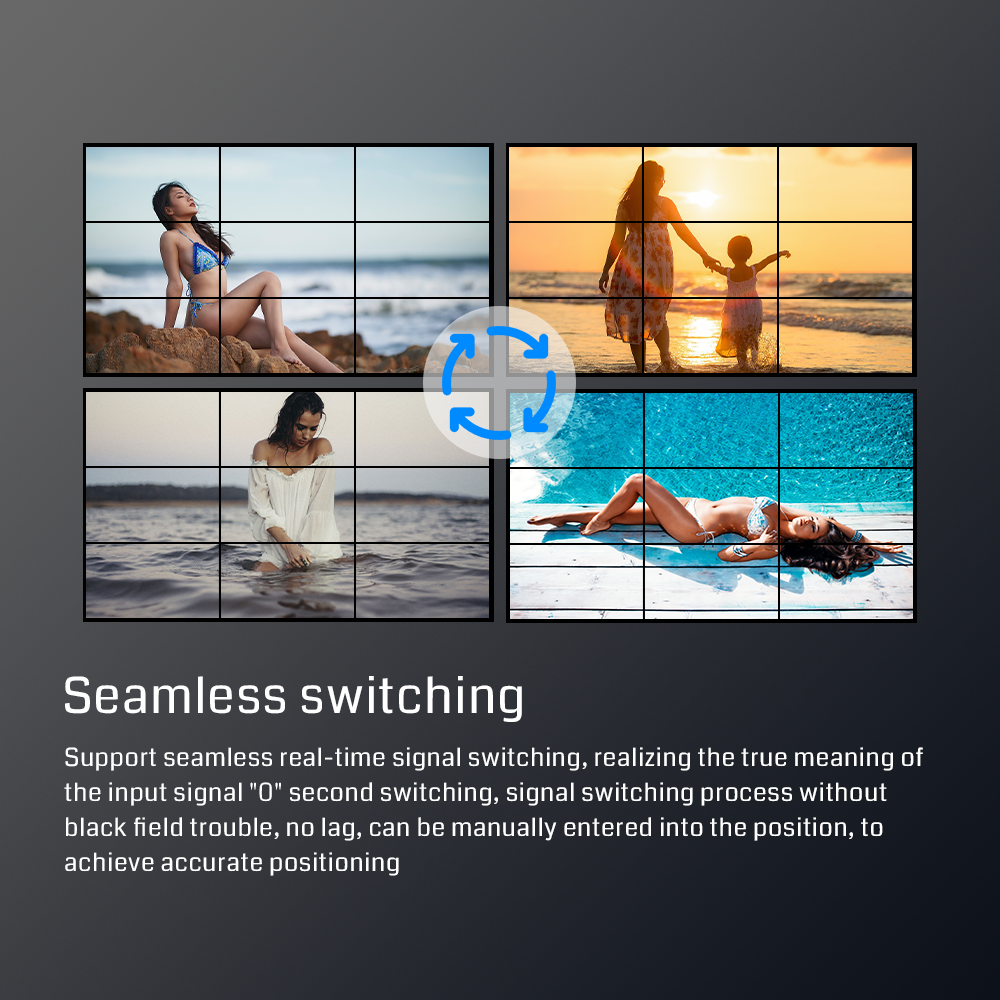

☞One key to switch the signal source，Supports seamless real-time switching of signals;

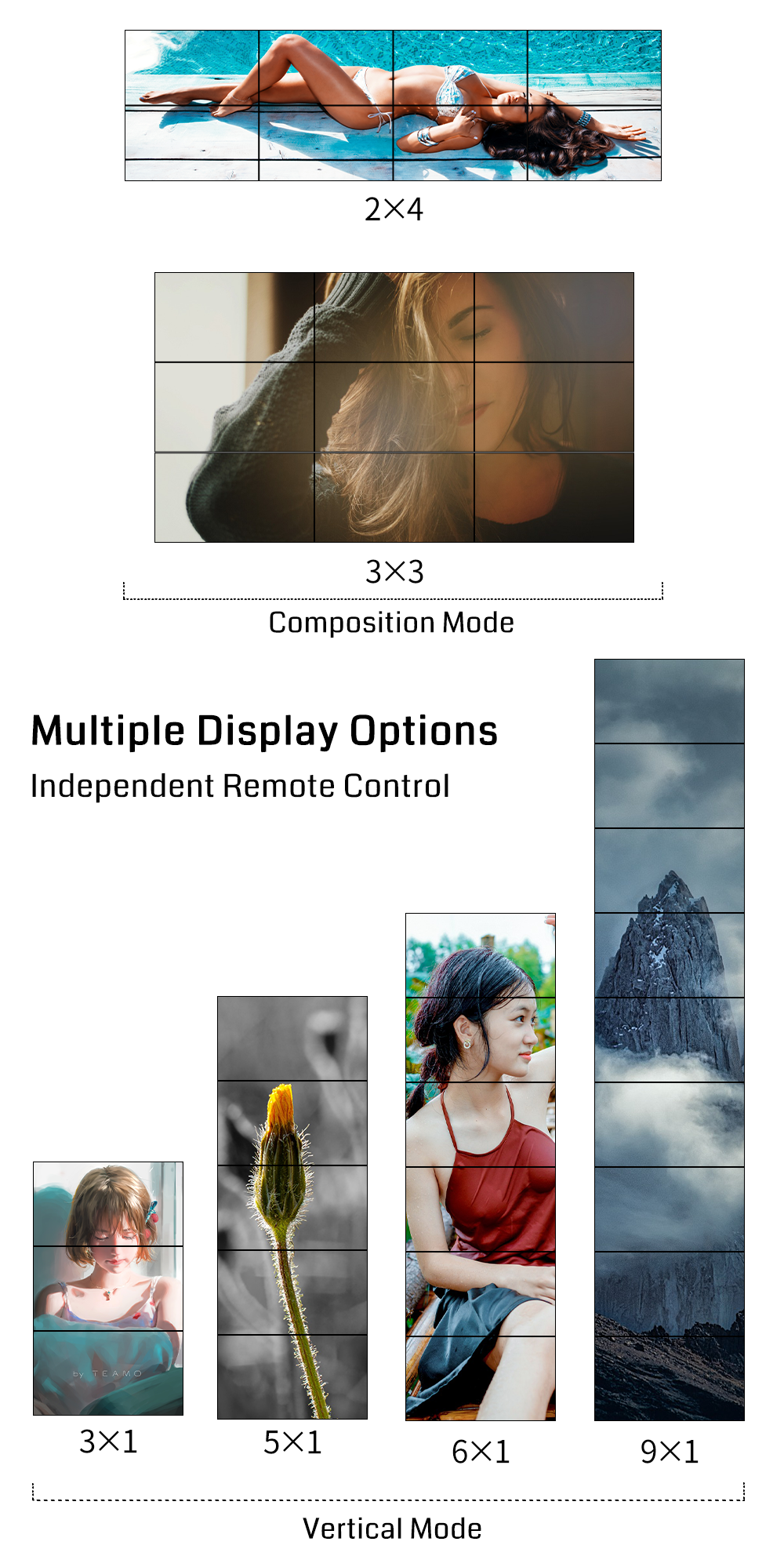

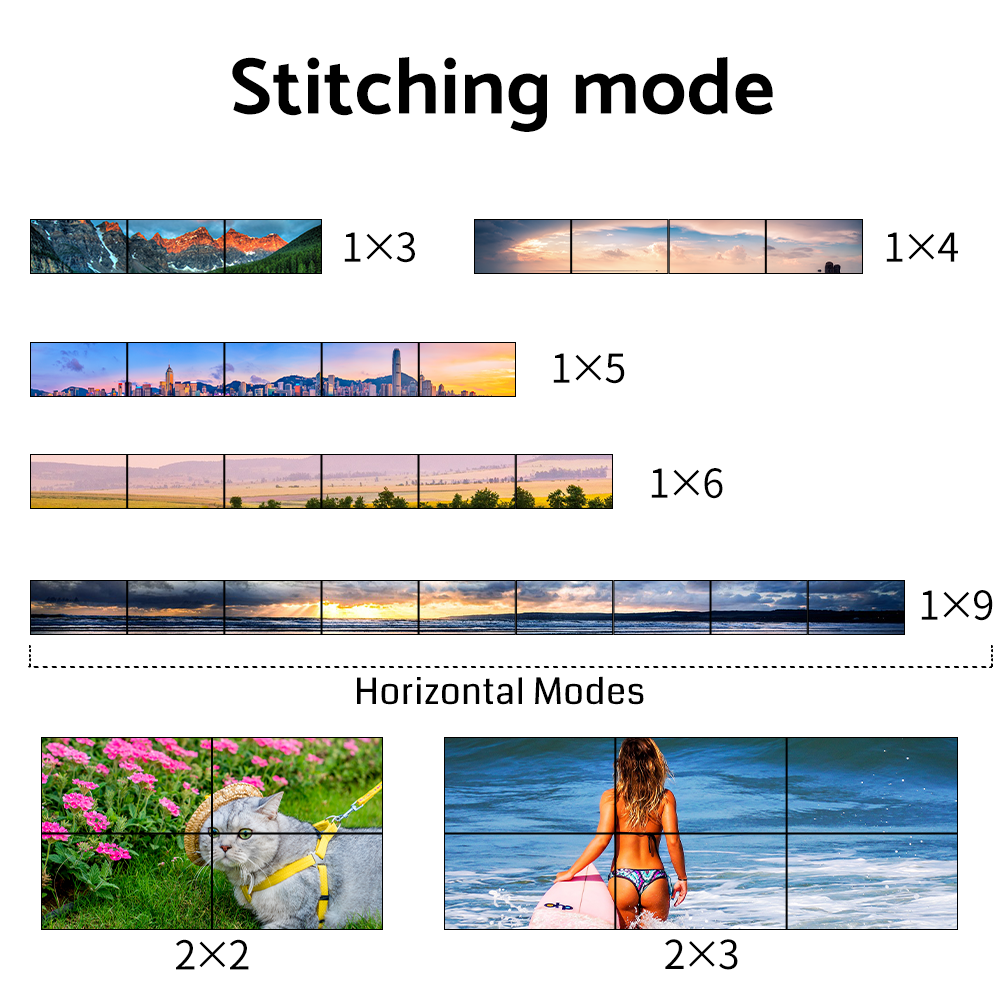

☞Supports 16 splicing modes such as horizontal screen,vertical screen,etc;

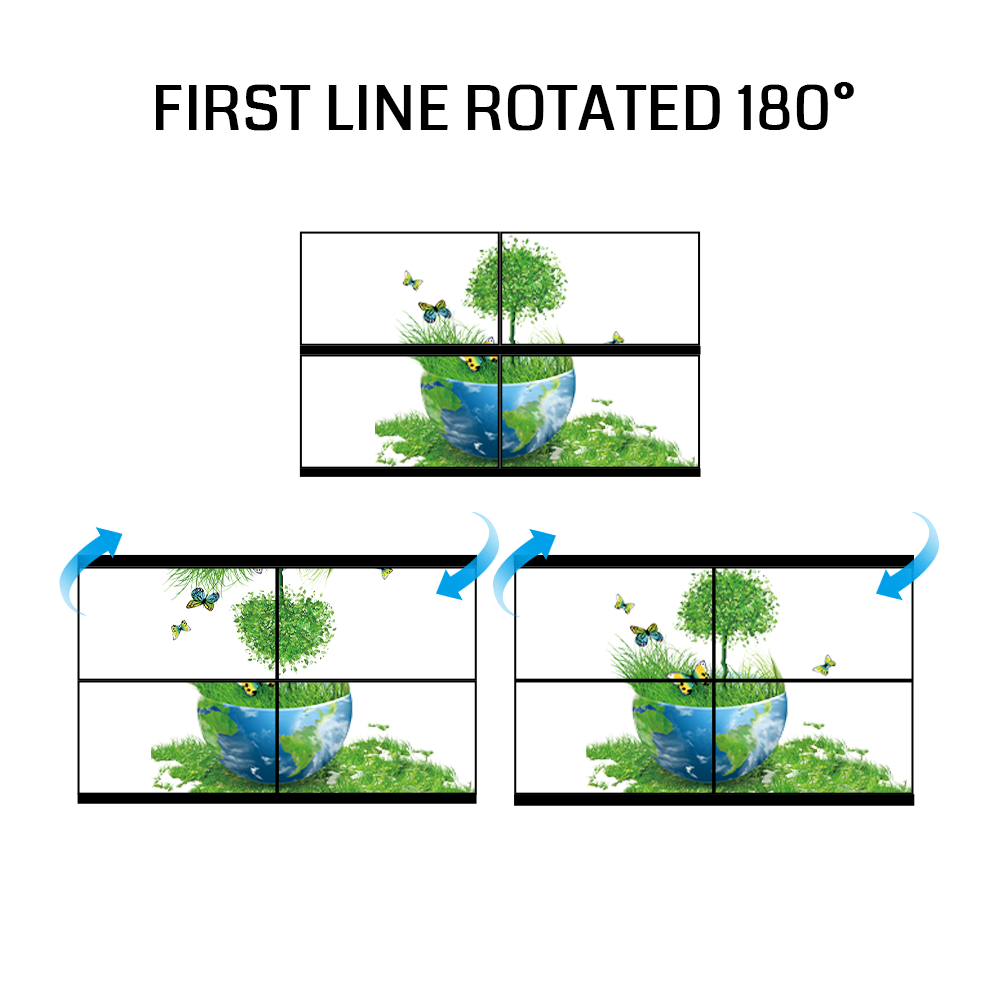

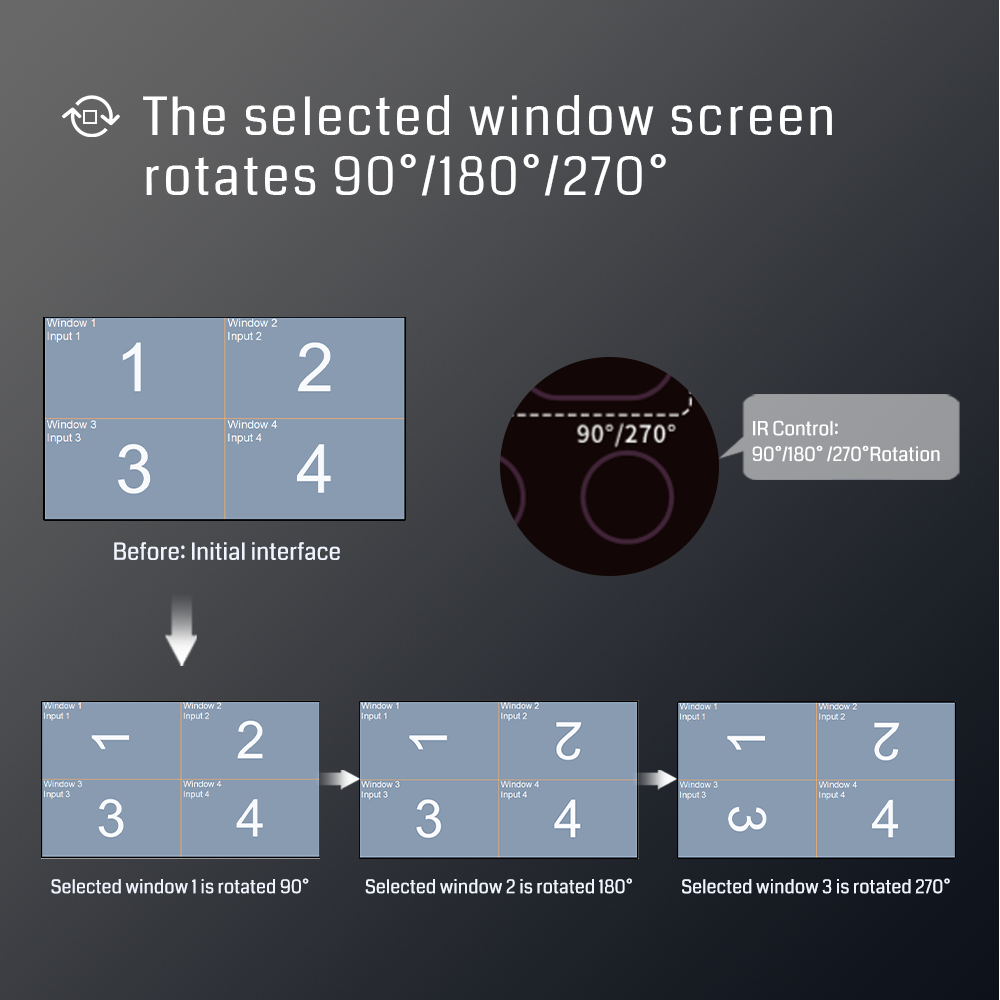

☞Support DHCP，Support input can be rotated 90°,180°,270°,and the first line of output can be rotated 180°;

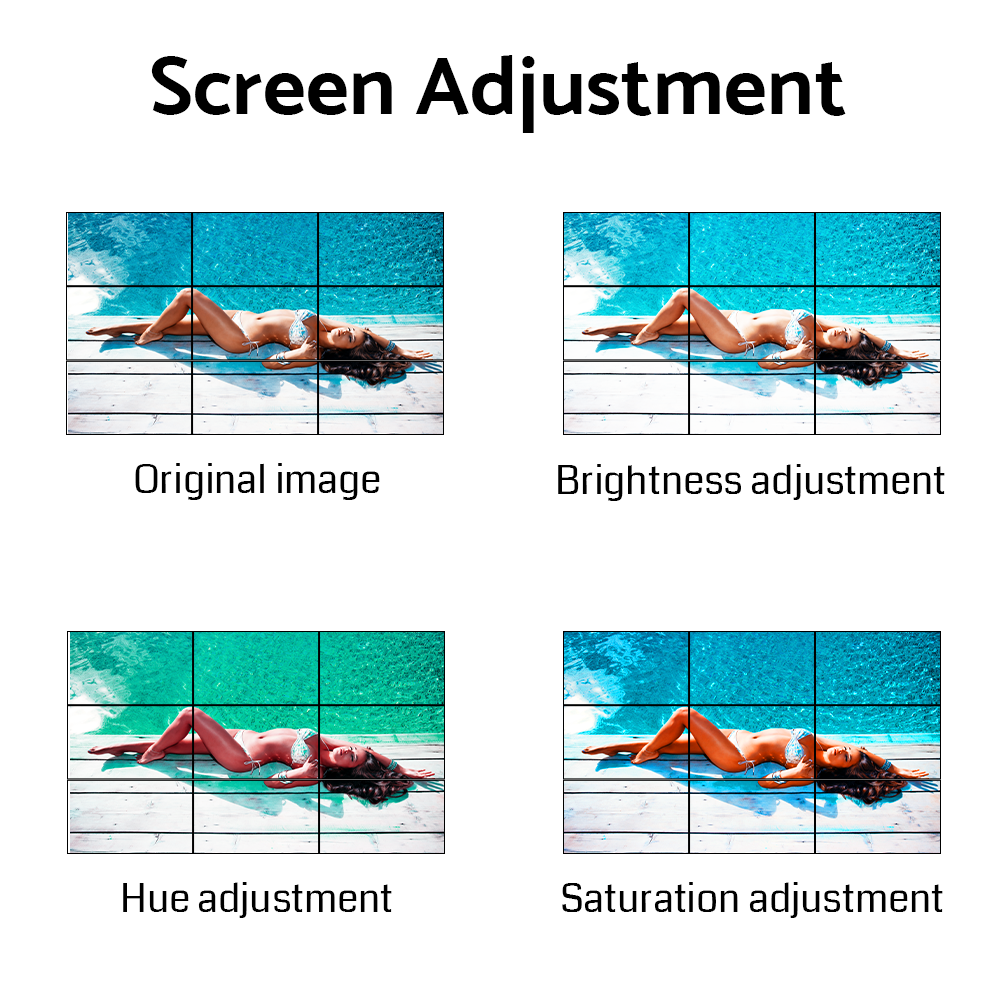

☞Supports image effect color,saturation and other parameter adjustment functions;
☞Full channel color depth 24bit, pixel format RGB444;
☞Audio separation (3.5mm audio port) + audio follow out;
☞With screen freezing function and screen mirroring function,gamma mode and panel;

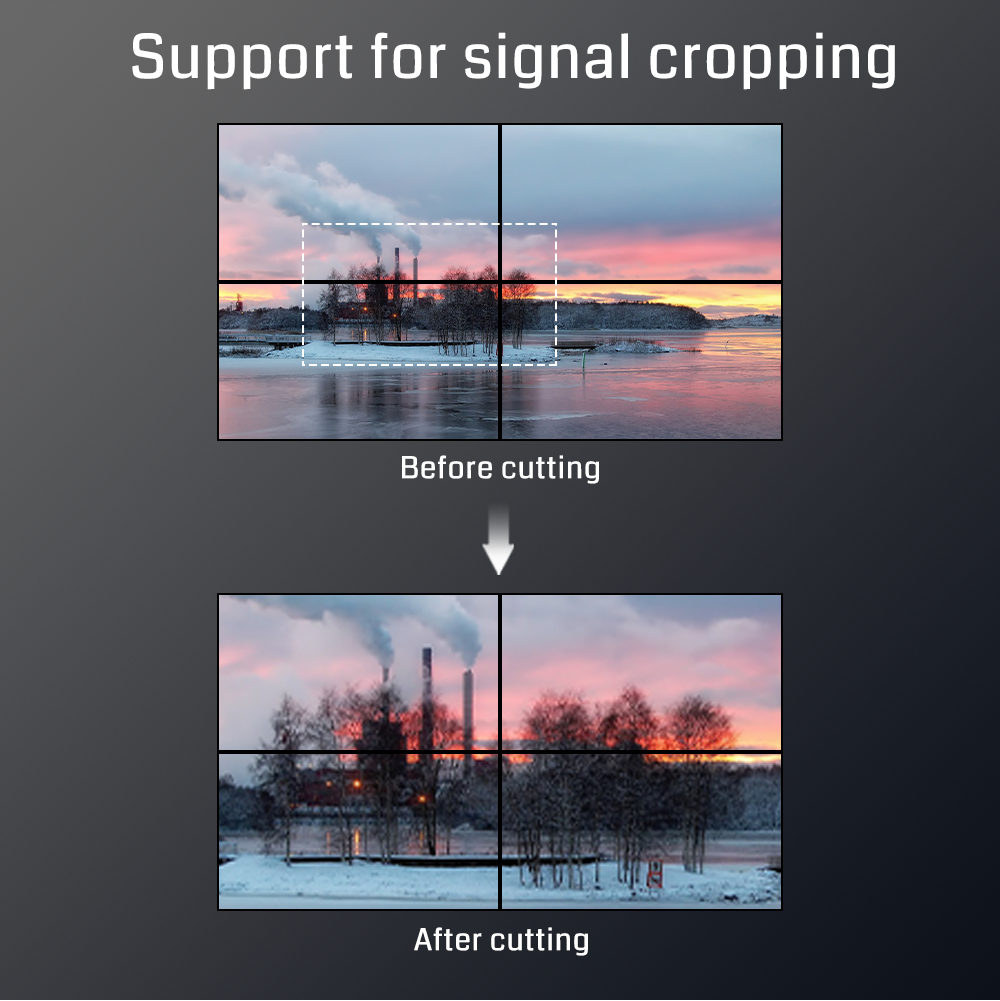

☞Support signal cropping function, can remove the black edge of the input signal, local amplification of the signal;

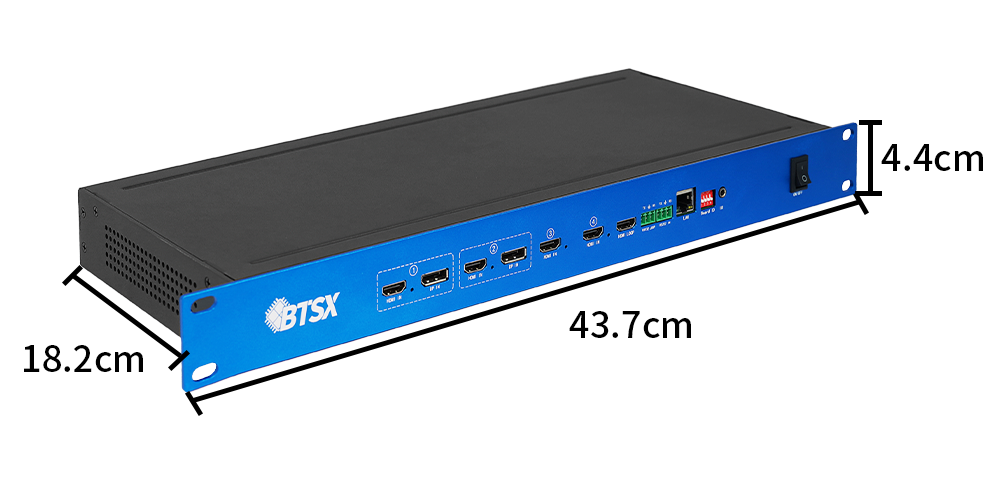

☞Flexible mounting options (desktop/wall mounting optional);
☞Can be used with our self-developed window software, can realize any open more open window function.

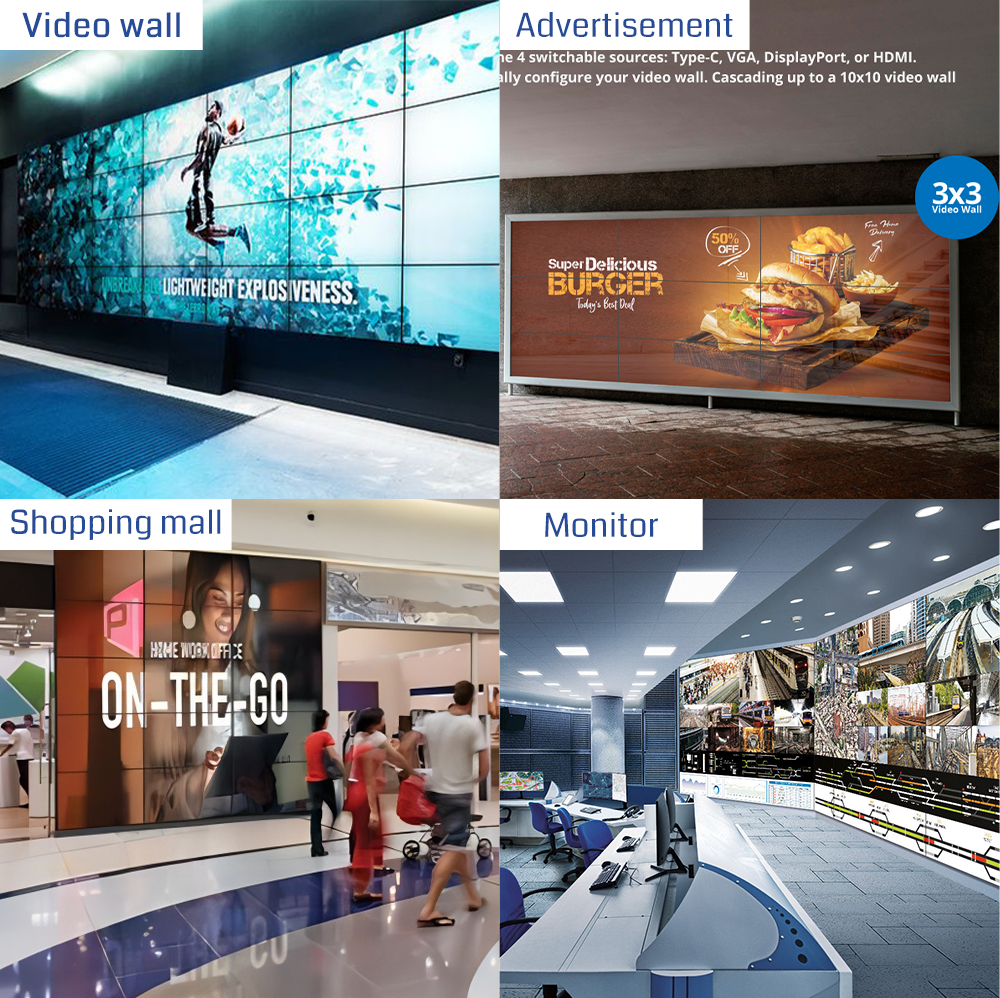

Typical application Mainly used in ultra-high-definition video surveillance,ultra-large screen walls,large advertising screens in stores,large exhibition screens and other industry applications.

☞Contact customers
Welcome to consult the project function requirements!
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
Specification
Product name
3x3 4k60 LED/LCD video wall controller switcher
Product features
1.Support EDID management 2.Seamless switching
3.Supports signal cropping function
4.Supports functions such as hot swapping，power-off memory
5.Supports host computer readback,plan saving
6.Supports input and output signal rotation
7.Supports multi-window control
8.Support image adjustment function
9.Supports multiple control methods
10.Support audio follow out, audio separation

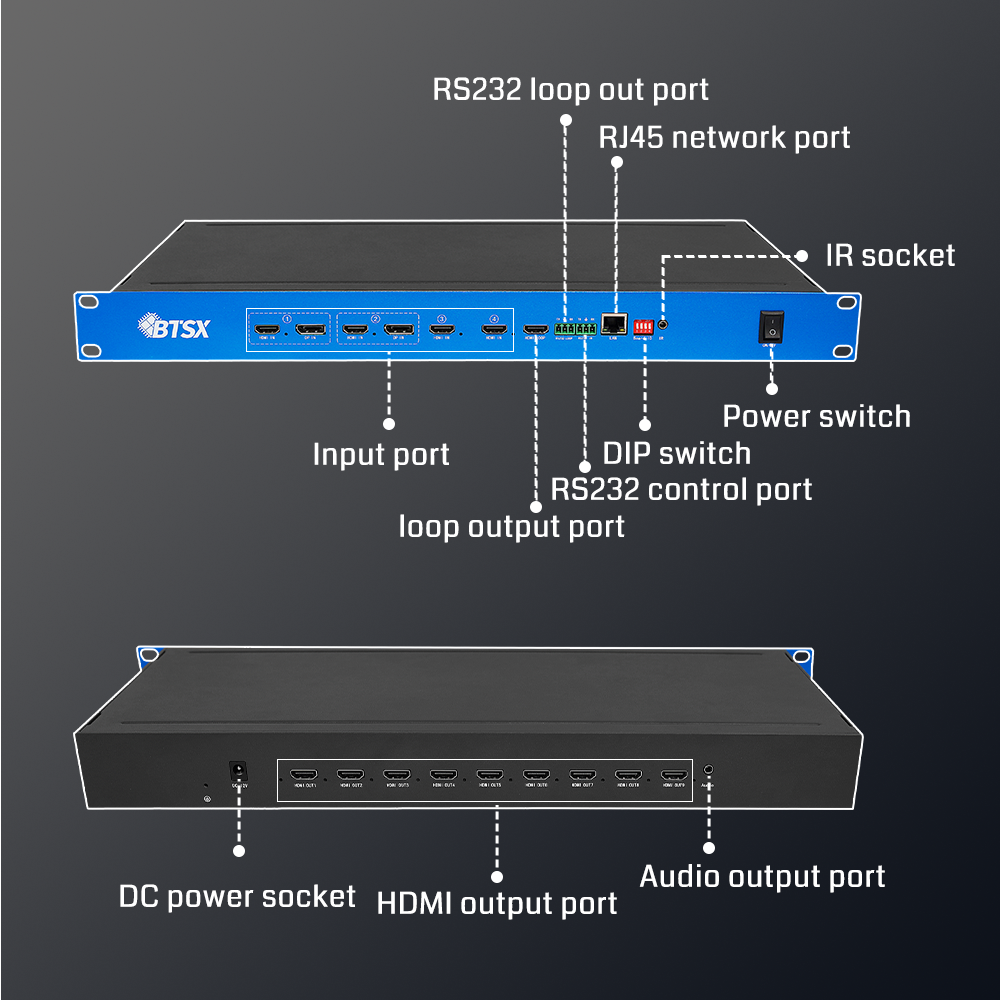

Input interface type
HDMI 2.0x4,HDCP 2.2,DP 1.2x2
Output interface type
HDMI 1.3x9 (≤15m)HDMI 2.0x1 (ring out)
Certification
CE,FCC,ROHS
Resolution
4096X2160@60Hz

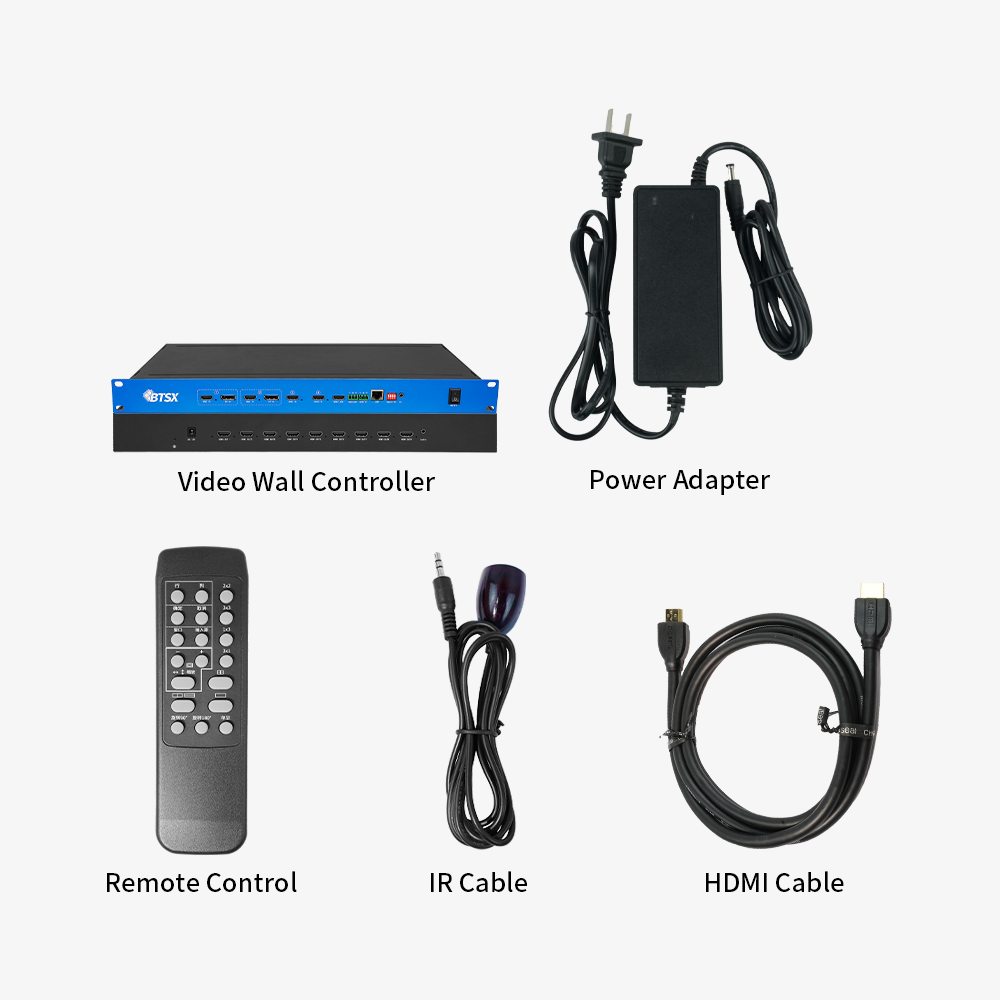

Accessories list
12V/5A power supply x1; IR receiver x1; Remote control x1; Certificate x1;
Warranty card x1; USB to RS232 serial cable(optional)
Support
ODM,OEM
Warranty
3year
