Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-MSE-4K60-103HD
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
370X230X90mm
Material :
Metal
Input Pixel FPS :
600MHz
Output Pixel FPS :
165MHz
Max Resolution :
3840X2160@60Hz 3840X2400@60Hz
Input Interface :
HDMI/DP(HDMI has priority) HDCP2.2
Output Interface :
3 HDMI outputs
Power Supply :
12V@2A AC-DC power cable
Output Distance :
15 meters
Packaging Dimensions :
370X230X90mm
Highest Resolution :
3x1920x1200@60Hz (horizontal screen) 3x1920x1080@60Hz (vertical screen)
Default Resolution :
3072x768@60Hz
Input Video Frequency :
600MHz
Output Video Frequency :
165MHz
HDCP Support :
HDCP2.2
Plug and Play :
Yes
Description

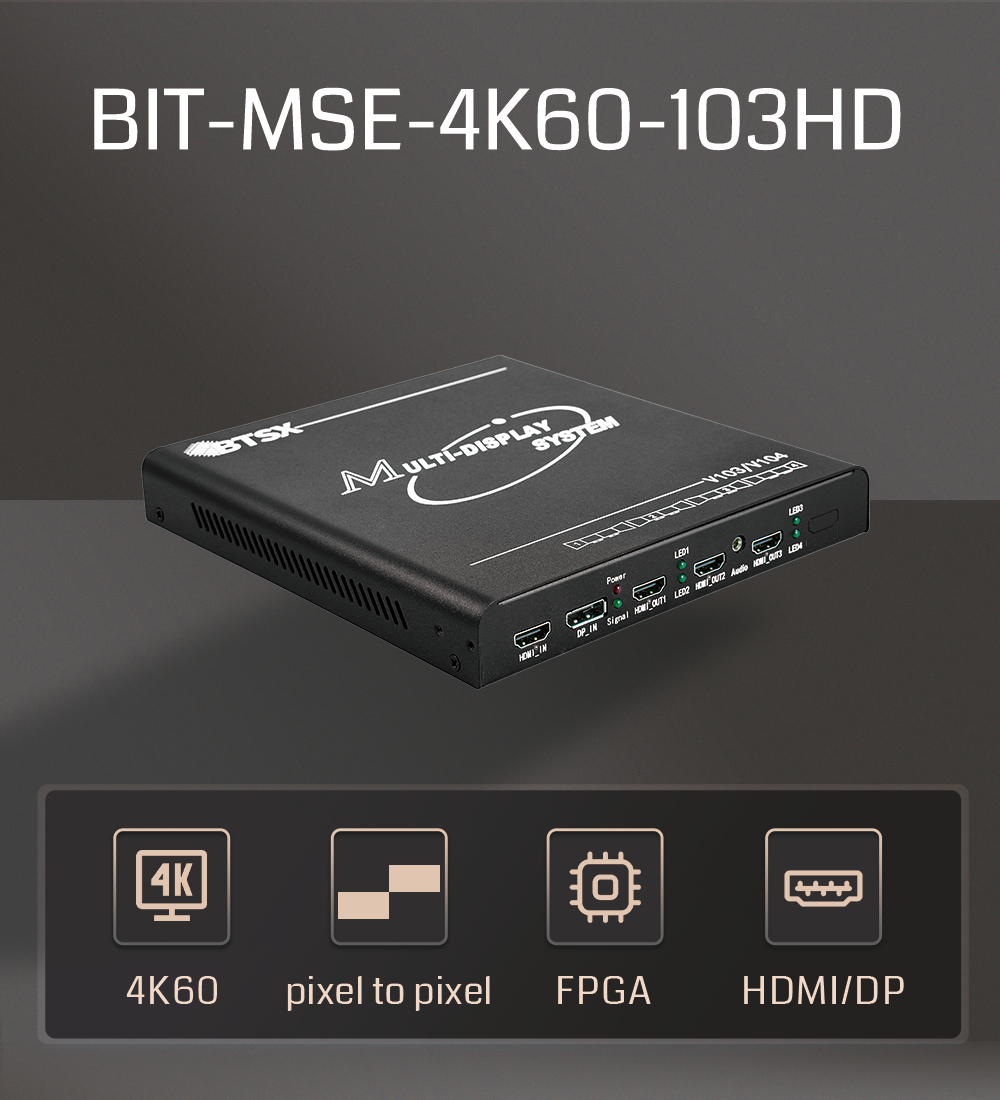

4K60 Multi-Screen Expander 103HD
Plug and Play 1 in 3 Out 1X3 Video Wall Controller for Multi-screen Display and Presentation
4K60 Plug and Play 1 in 3 Out Video Wall Controller Multi-Screen Expander for Ultra HD Displays


Multi-Screen Extender
An industrial-grade, high-performance product developed specifically for multi-desktop operation and multi-channel projection fusion requirements.
  • 4K Ultra HD: Ultra HD resolution up to 1920x1200@60Hz, downward compatible to ensure clear image quality
  • Point to Point: Supports uncompressed, latency-free processing of input sources for point-to-point and distortion-free displays
  • Parallel Application: Supports parallel connection of multiple devices, combined with a multi-screen display card for larger resolution signal acquisition and processing
  • EDID Management: Supports EDID modification via USB interface
  • Multi-Function Interface: 1 channel HDMI2.0, 1 channel DP1.2 input, 3 channel HDMI output
  • Safe and Reliable: Supports HDCP2.2, ensuring data transmission security

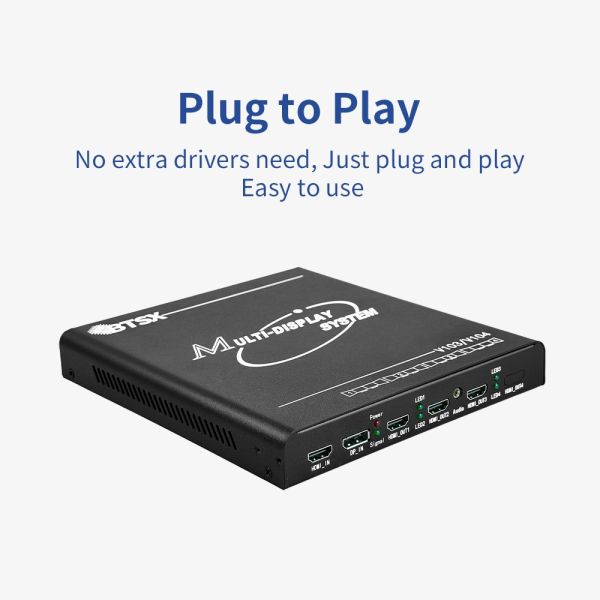

  • Plug & Play: Compact form factor, pure hardware, rugged design, easy to install and use, no software drivers required
  • Strong Anti-Interference: Unaffected by electromagnetic interference, ensuring stable signals
  • Eco-friendly and Energy-efficient: Low power consumption design with CE, RoHS, FCC certification

    4K60 Plug and Play 1 in 3 Out Video Wall Controller Multi-Screen Expander for Ultra HD Displays


Typical Applications
Ultra-high resolution desktop application display, super-large advertising wall, command and dispatch system, multi-screen video monitoring, multi-channel projection fusion, ring screen theater, LCD/LED multi-screen systems.
Contact Us
Welcome to consult about project function requirements!
Product Images
4K60 Plug and Play 1 in 3 Out Video Wall Controller Multi-Screen Expander for Ultra HD Displays
Technical Specifications
Highest resolution 3x1920x1200@60Hz (horizontal screen)
3x1920x1080@60Hz (vertical screen)
Factory default resolution 3072x768@60Hz
Input interface type HDMI/DP (Choose one, HDMI has priority)
HDCP2.2
Output interface type 3 HDMI outputs
Input video pixel frequency 600MHz
Output video pixel frequency 165MHz
Company Profile
4K60 Plug and Play 1 in 3 Out Video Wall Controller Multi-Screen Expander for Ultra HD Displays
Frequently Asked Questions
Why Choose Bitvisus?
  • We have our own warehouse, which can ensure shipping orders within 48 hours after payment (weekends and holidays excluded)
  • OEM/ODM services offered for our customers
  • We are one of the leading manufacturers in this field
How to Order?
  • Please send email or chat with us via TM, WhatsApp, Skype, and let us know your requirements
  • We will reply with a proforma invoice based on your order request
  • Kindly check the PI, and if everything is ok, goods will be delivered as soon as we receive your payment
Warranty & After-sale Service
  • Our products come with 12 months warranty and lifetime service support
  • You can return or exchange items in any of the following circumstances: faulty items, damaged items, or wrong models
Shipment & Payment
  • T/T, Visa, PayPal, Western Union, L/C available
  • DHL, UPS, EMS, FedEx, Air freight, Sea freight supported
