Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-VWC-106
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
37*24*7
Input interface :
HDMI 2.0/DP 1.2, HDCP2.2
Output interface :
HDMI 1.3x6 (≤15m)
Input pixel frequency :
600MHz
Output pixel frequency :
165MHz
Input resolution :
3840x2400@60Hz
Output resolution :
1920x1080@60Hz/1920x1200@60Hz
Sound frequency :
HDMI follow out, 3.5mm audio splitter connector
Control method :
Pushbutton, infrared remote control, serial port RS232
Power supply :
DC 12V 2A
Power wastage :
12W
Storage temperature :
-10～50ºC
Working temperature :
0～50ºC
Package weight :
1.6KG
Material :
Metal
Rotation support :
180°
Description

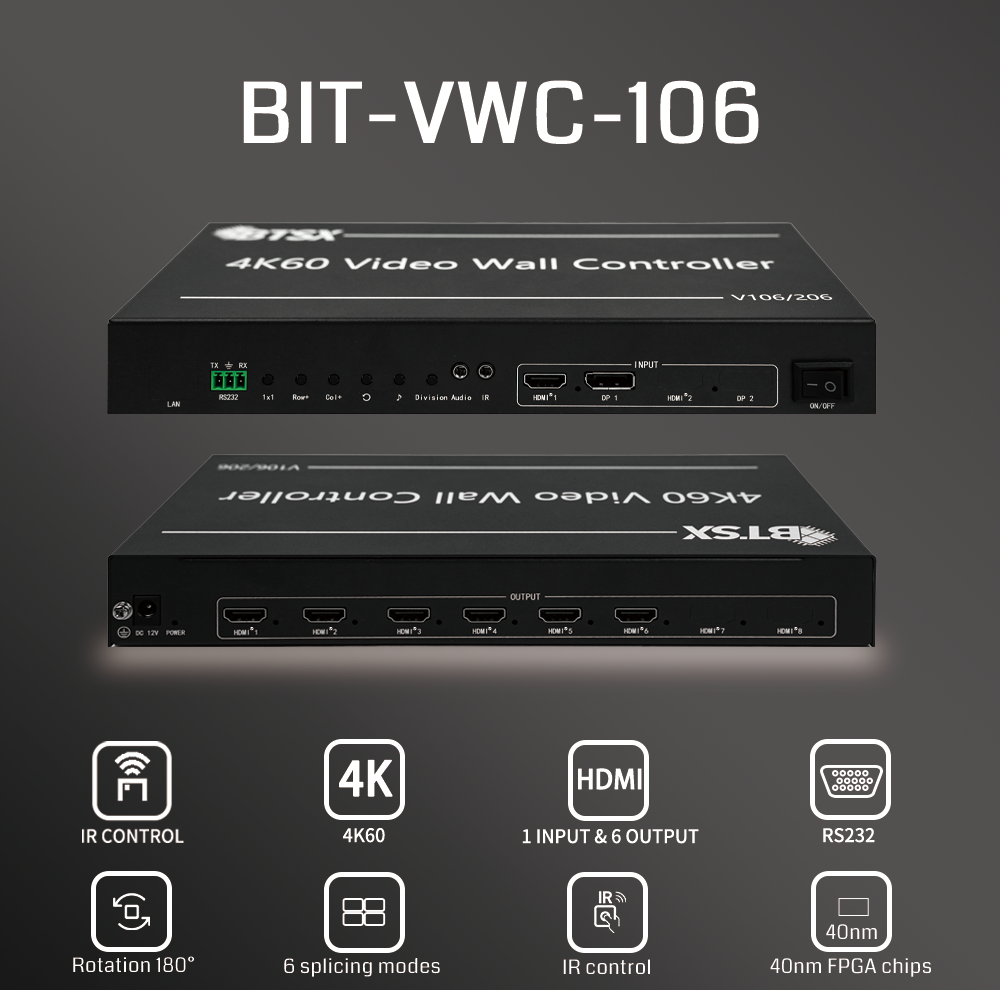

BIT-VWC-106 Video Wall Controller
Factory Direct 2x2 2x3 Video Wall with 1 HDMI/DP Input, 6 HDMI Outputs, Zero Delay 4K60 Video Wall Controller for Exhibition Display Large Screen
4K60 Zero Delay Video Wall Controller with 1 HDMI/DP Input and 6 HDMI Outputs for Multi-Screen Display


Product Features

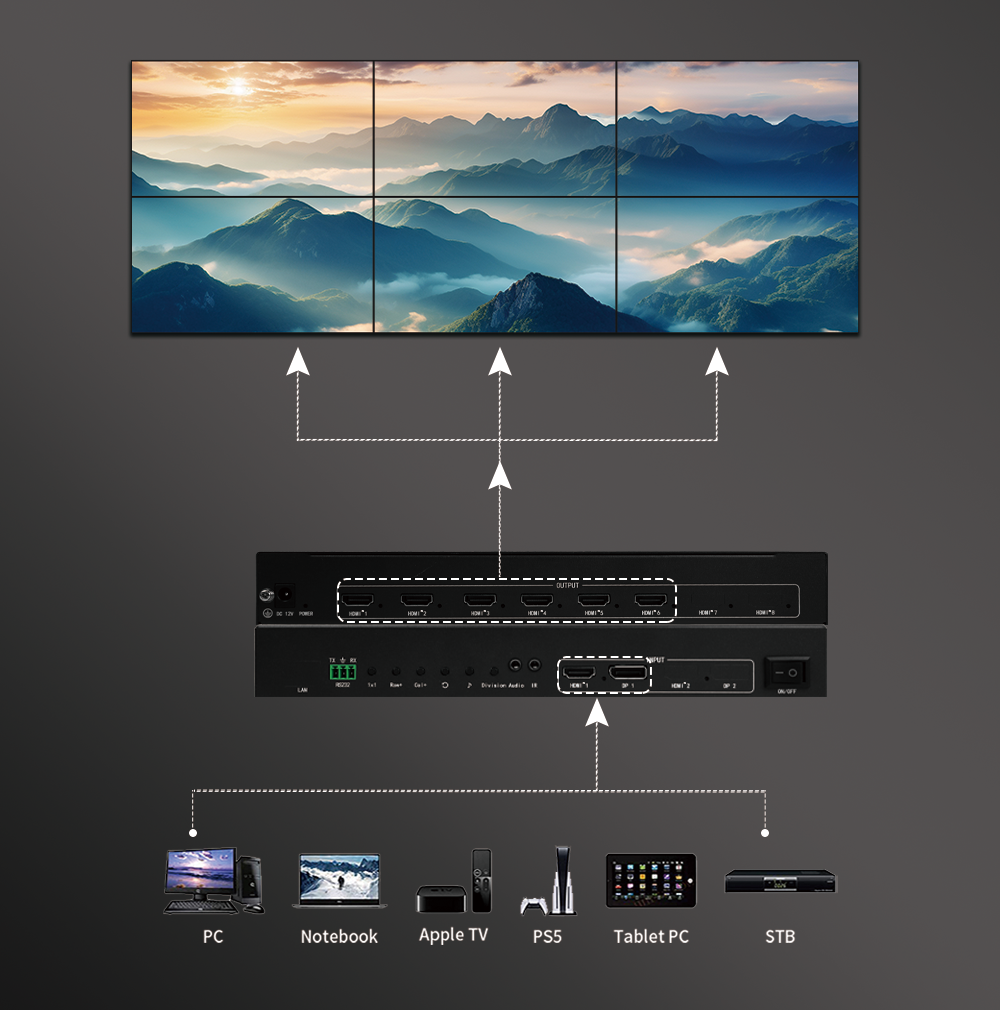

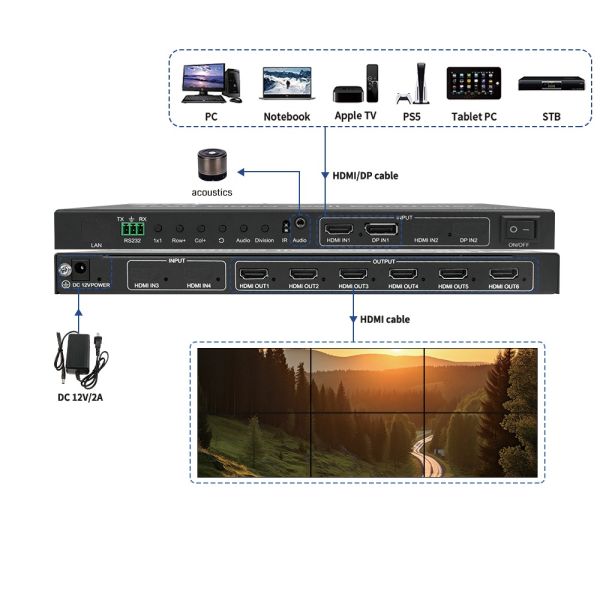

  • 1 HDMI/DP input interface with 6 HDMI output interfaces

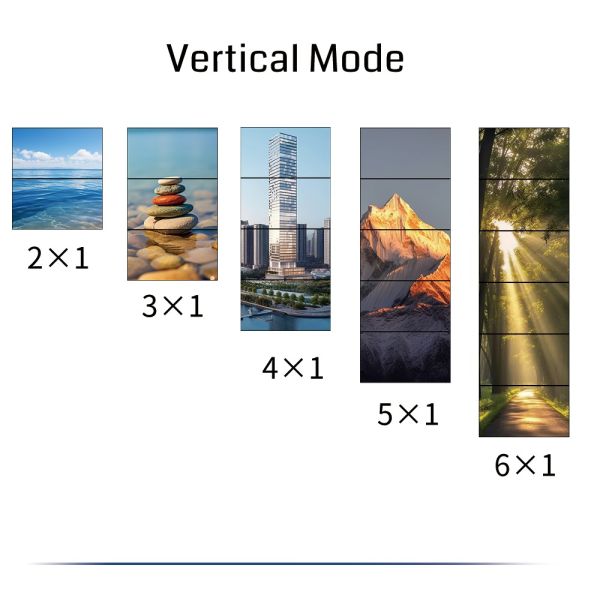

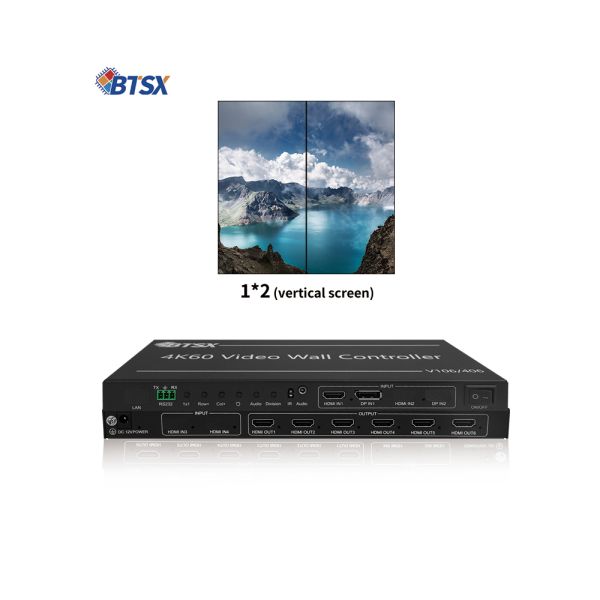

  • Supports various splicing modes: horizontal, vertical, and field shape combinations
  • Input supports up to 3840x2400@60Hz with backward compatibility
  • Output supports single channel up to 1920x1200@60Hz
  • 180° rotation capability for first line output
  • No stretching, distortion, or compression of input source
  • Supports single display mode (1x1)
  • Multiple control methods: pushbutton, infrared remote control, RS232 serial port
  • Low power consumption with internal conduction heat dissipation
  • Compatible with computers, Android boxes, game consoles, and other devices
  • 40nm process high-end programmable FPGA chip for ultra-fast processing without delays
Product Images
4K60 Zero Delay Video Wall Controller with 1 HDMI/DP Input and 6 HDMI Outputs for Multi-Screen Display
Technical Specifications
Product Name BIT-VWC-106
Input Interface HDMI 2.0/DP 1.2, HDCP2.2
Output Interface HDMI 1.3 x 6 (≤15m)
Input Video Pixel Frequency 600MHz
Output Video Pixel Frequency 165MHz
Input Resolution 2x3: 5760x2160@30Hz
3x2: 3840x3240@30Hz
5x1: 1920x5400@30Hz
6x1: 1920x6480@30Hz
Output Resolution 1920x1080@60Hz / 1920x1200@60Hz
Audio HDMI follow out, 3.5mm audio splitter connector
Control Method Pushbutton, infrared remote control, serial port RS232
Power Supply DC 12V 2A
Power Consumption 12W
Storage/Working Temperature -10～50ºC / 0～50ºC
Package Weight 1.6KG
Warranty 3 Years
