8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-MSE-8K-106Pro
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
360mm × 215mm × 70mm
Input Interface :
1 X HDMI 2.1, 1 X DP 1.4 (Copper wire≤3M)
Output Interface :
6 X HDMI 1.4 (Copper wire≤10M)
Input Pixel Frequency :
1200MHz
Output Pixel Frequency :
330MHz
Power Supply :
12V5A
Product Dimensions :
290mm × 143mm × 35mm
Package Dimensions :
360mm × 215mm × 70mm
Net Weight :
1.2KG
Package Weight :
1.7KG
Input Resolution :
7680x4320P30
Output Resolution :
3840x2160P30, 1920x1080P120
Color Depth :
8bit
Color Format :
RGB444, YUV444, YUV422, YUV420
Power Consumption :
50W
Working Temperature :
0～50ºC
Description
Product Overview

8K Ultra-high Resolution Multi-Screen Viewer

⇒Support 1-way 8K input, HDMI and DP two options, interface support diversification, to ensure a clear image and rich details;
⇒Support 4K30、1080P60、1200P60、1080P120、1200P120 output, compatible with a variety of display devices and resolution requirements, can be flexibly adjusted according to specific application requirements and equipment configuration,providing more options and adaptability;
⇒Ultra-high resolution, input the highest supported resolution 7680x4320P30;

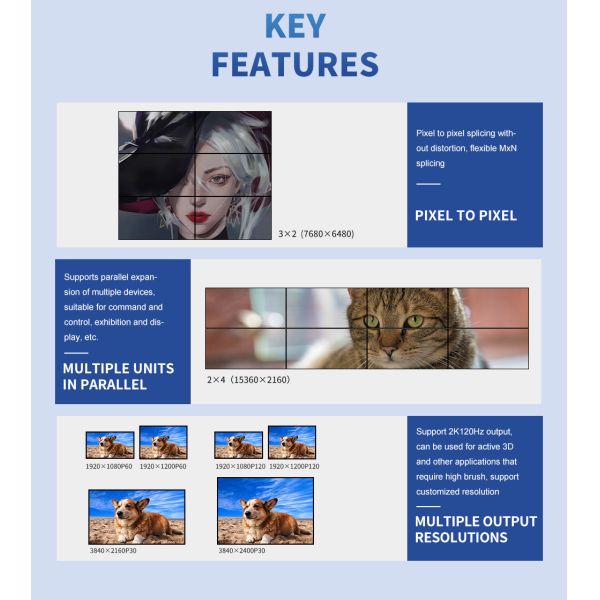

⇒Support 1XN, NX 1, MXN pixel-to-pixel splicing, no stretching, no deformation, wider field of view.
⇒Support EDID management, select EDlD by dialing code without any software operation;
⇒Support 3.5MM audio separation and HDMl audio follow out for diverse choices;
⇒Support for parallel use, to proteet the large sereen real-time display requirements;
⇒With Bitvisus's Window software, can achieve 8K multi-screen display.

⇒Welcome to contact us to consult about the products required by your project!
FEATURES AT A GLANCE
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
4K60 Video Wall Controller Seamless Switching Extension Slicing Roaming 4 in 9 out 1X2 2X2 1X3 3X3 HDMI Port
Display Video Processor 2X3 2X4 3X1 4X1 4X2 Roaming HDMI Switch for Audio Seamless Switching
PRODUCT SPECIFICATIONS
Product Name
BIT-MSE-8K-106Pro
HDCP
HDCP2.2
Input interface type
HDMI2.1x1,DP1.4x1（Copperwire ≤ 3M）
Input interface maximum video pixel frequency
1200MHz
Input Maximum resolution
2×2:7680×4320P30、2×3:5760×2160P60/5760×2400P60、3×2:7680×6480P20、6×1:1920× 6480P60/1920×7200P60
Input color depth
8bit
Color Format
RGB444 、 YUV444 、 YUV422 、 YUV420
Output interface type
HDMI1.4x6（Copperwire ≤ 10M）
Output interface maximum video pixel frequency
330MHz

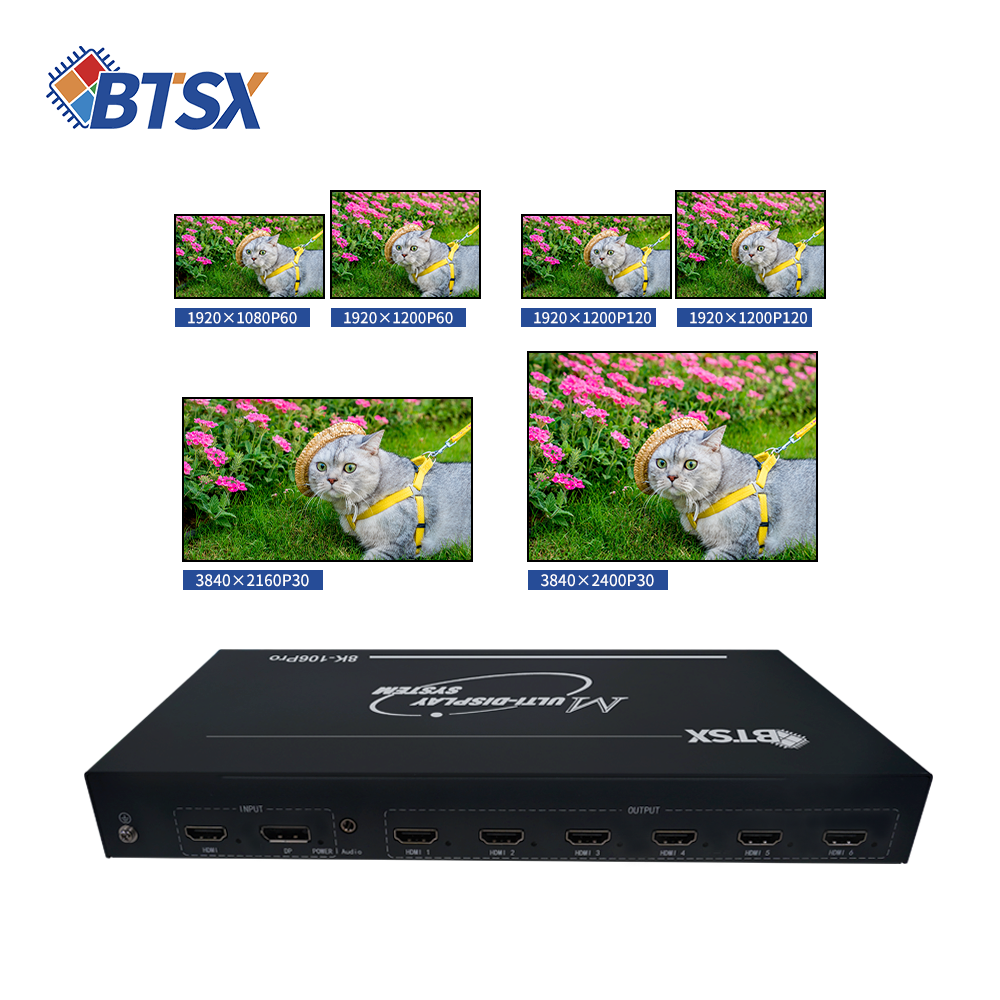

Output resolution
3840×2400P30、3840×2160P30、1920×1200P120 、1920×1080P120 、1920×1200P60、1920×1080P60
Audio
3.5MM audio separation, HDMl audio follow out
Power supply
12V5A
Power comsumption
50W
Storage/working temperature
-10～50ºC/0～50ºC

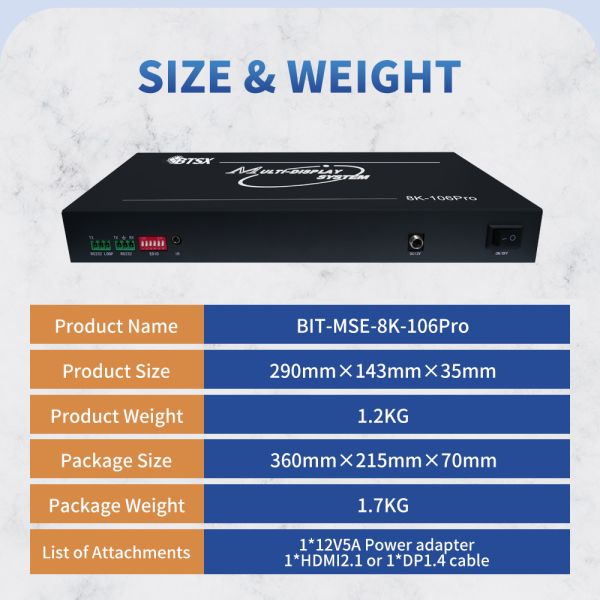

Product size
LxWxH:290 mm × 143 mm × 35 mm
Package size
LxWxH:360 mm × 215 mm × 70 mm
Net weight
1.2KG
Ix12V5A power adapter, 1 xHDMI 2.0 cable or DP1.4 cablePackage weight
1.7KG

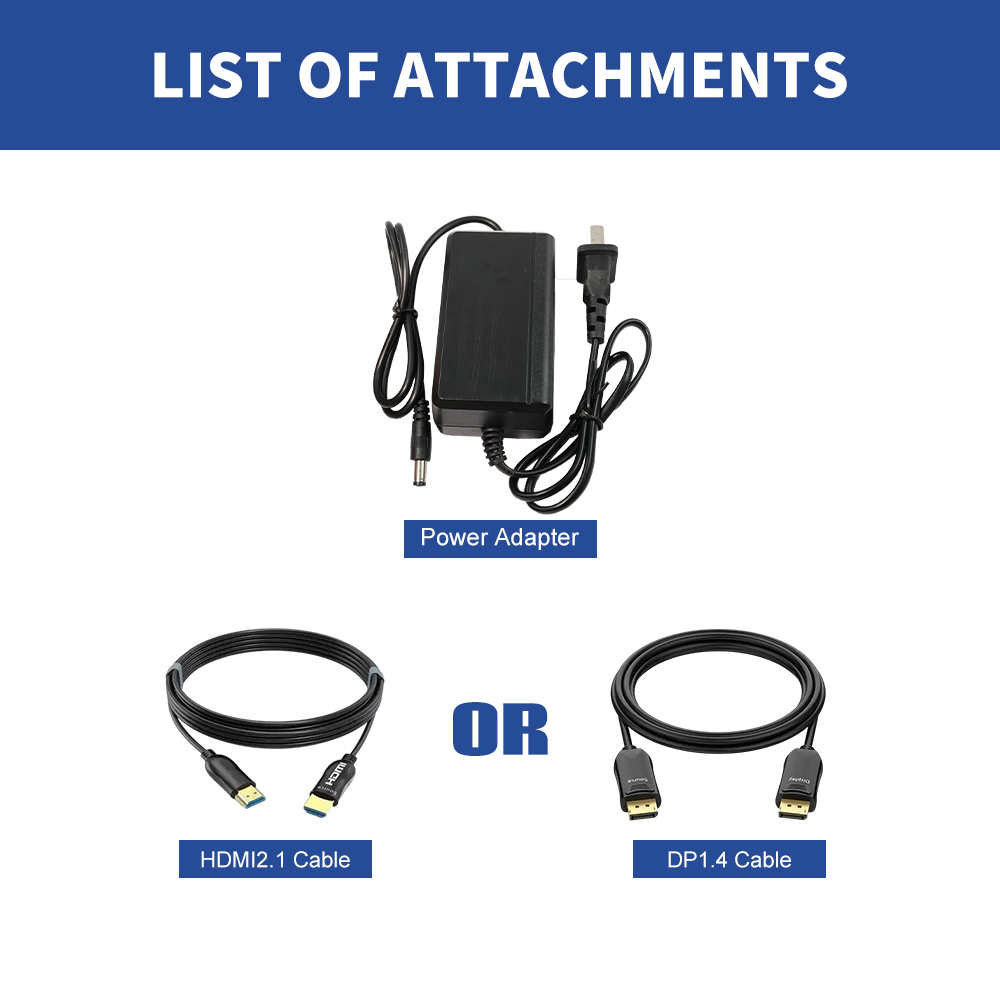

Accessories list
1 × 220V P ower cable 、1 × HDMI cable or DP cable 、1 × blue network cable 、1 × IR infrared head 、1 × remote control 、1 x USB A - B cable
After-saleswarranty
3 yearws warranty
PRODUCT CONFIGURATION
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
Arbitrary Picture Overlay Audio Separation Supports EDID Management Reading Modification and Customization of EDID
Video Processor 4K60 UHD Video Wall Controller 4-channel Signal Input Switching 9 Channel Output Port Expansion
Company Profile
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
8K Ultra-high Resolution Video Wall Controller 1 in 6 Out Multi-Screen Expander Plug and Play
Support Input and Output Rotation
FAQ
Why Choose Bitvisus ？
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.
