Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Specifications
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Brand Name :
Bitvisus
Model Number :
BIT-VWC-4K60-104
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
37*24*11
Input Pixel Frequency :
594MHz
Output Pixel Frequency :
165MHz
HDMI Input :
HDMI 2.0 X 1, HDCP 2.2
HDMI Output :
HDMI 1.3 X 4, HDCP 1.4
Control Method :
Remote Control, Button, RS232
Default Resolution :
3840X2160@60Hz
Power Supply :
12V@2A AC-DC
Power Consumption :
5.88W
Input Resolution :
1920x1080@30/60Hz, 3840x2160@30/60Hz
Output Resolution :
1920x1080@60Hz
Output Distance :
15 Meters
Splicing Modes :
1x1, 1x2/2x1, 1x3/3x1, 1x4/4x1/2x2
Material :
Metal
Input Interface Frequency :
600MHz
Output Interface Frequency :
165MHz
Description
Product Description
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Features
VWC-104 Video Wall Controller Features

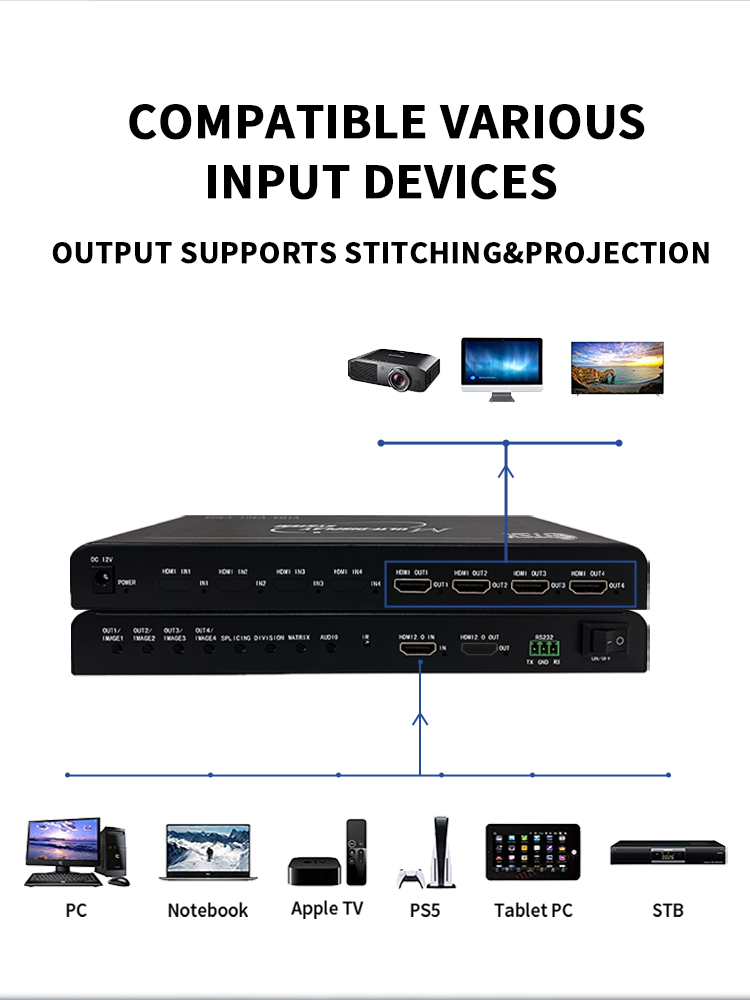

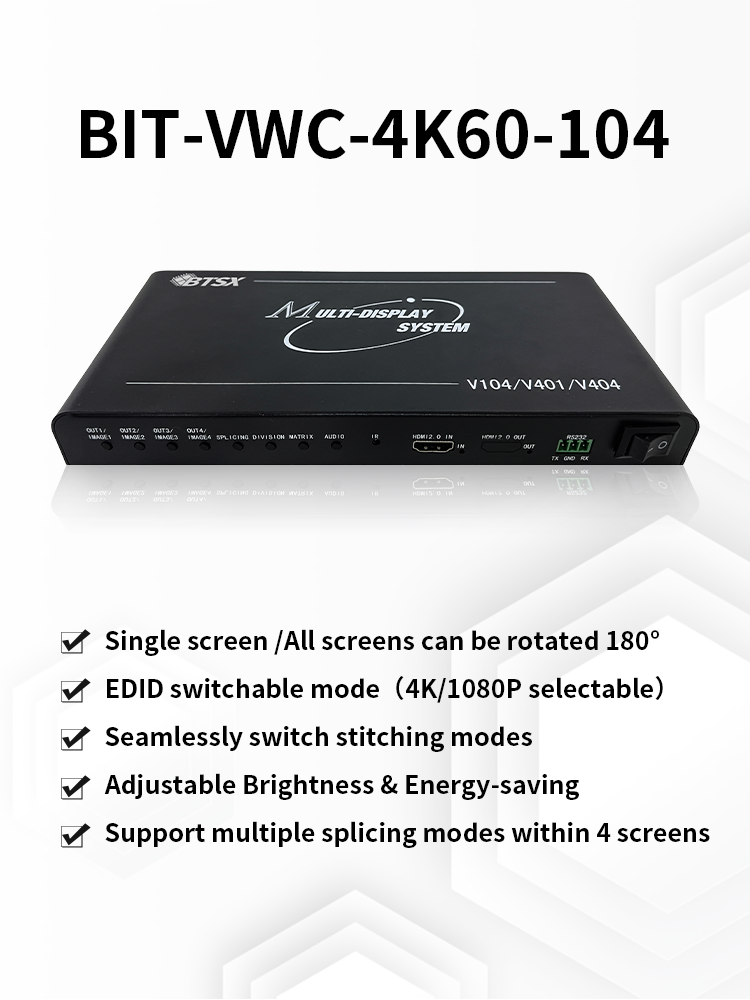

BIT-VWC-4K60-104 is a high-performance image splicer. The product has a high-definition processing chip, supports 4K60 signal input and 1080P signal output, and adopts HDMI input interface and HDMI output interface. It is suitable for high-resolution desktop applications, large screen walls, engineering display applications, large advertising walls, LCD multi-screens, etc.
●Input supports HDMI 2.0, HDCP 1.4.

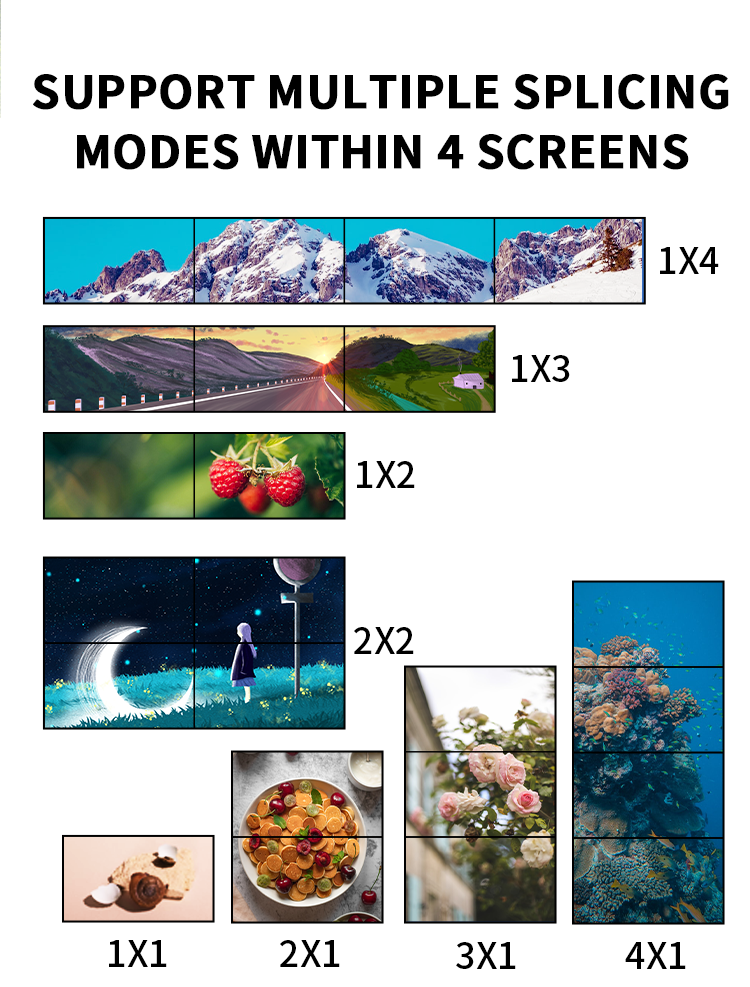

●Support any splicing mode below four screens.

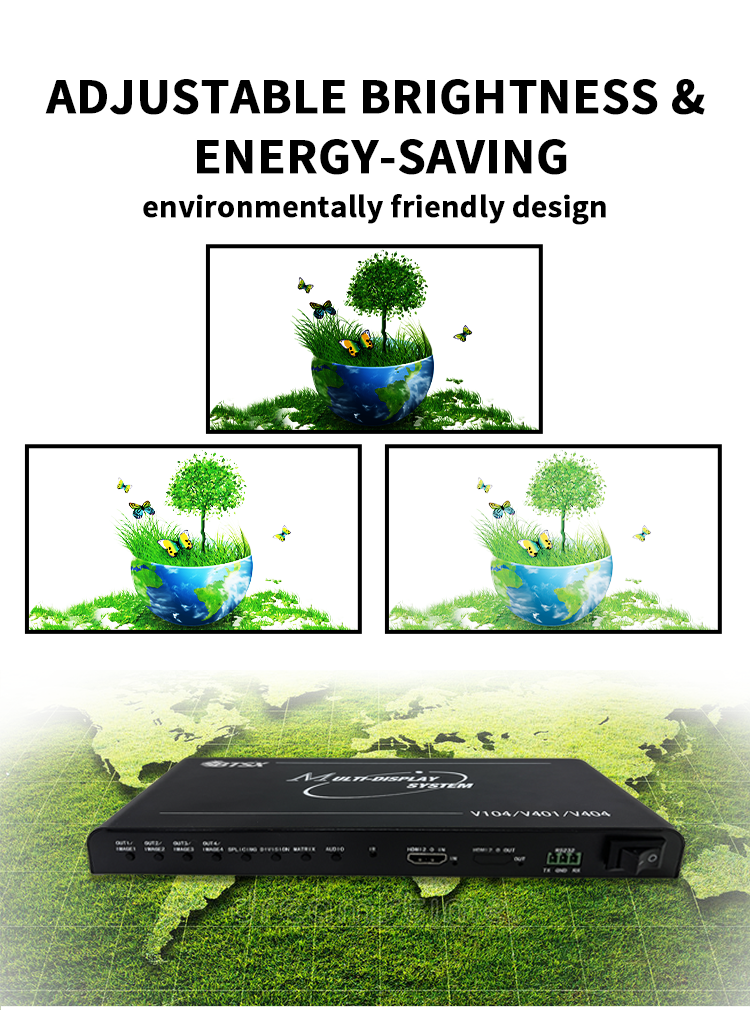

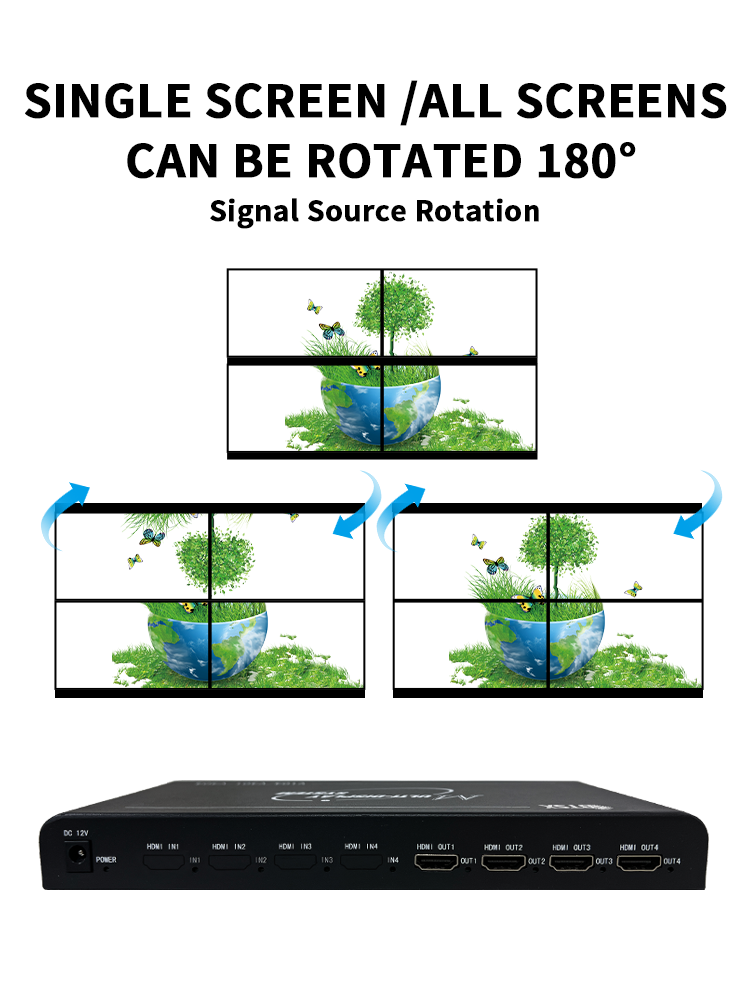

●Supports arbitrary output 180-degree rotation and overall brightness adjustment.

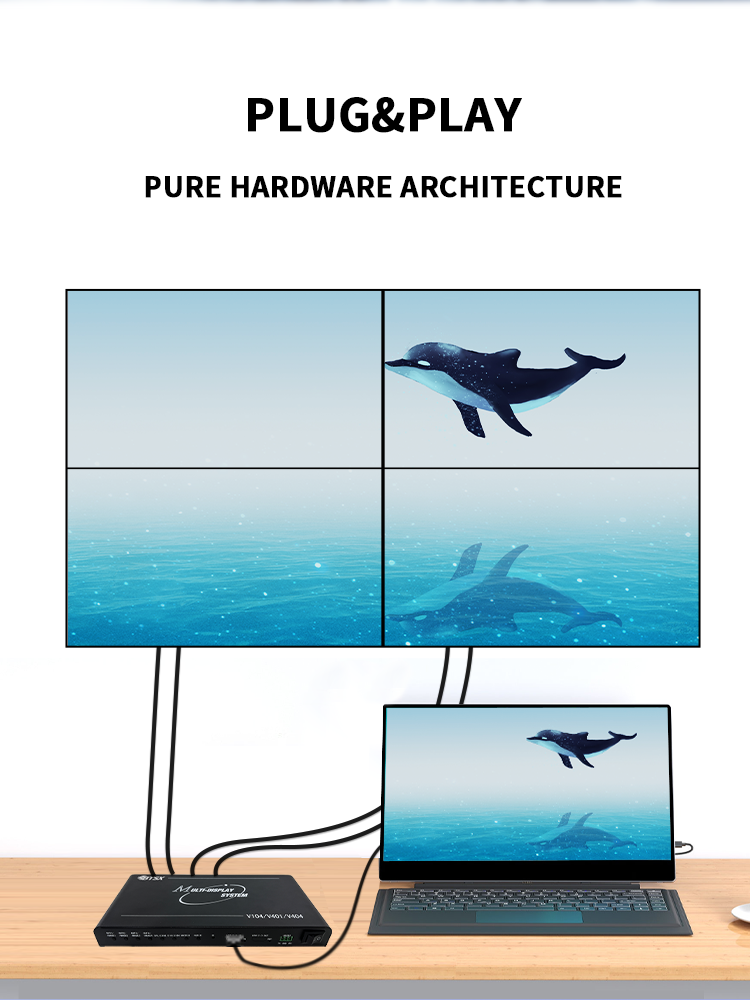

●Pure hardware design, plug and play, no software required.

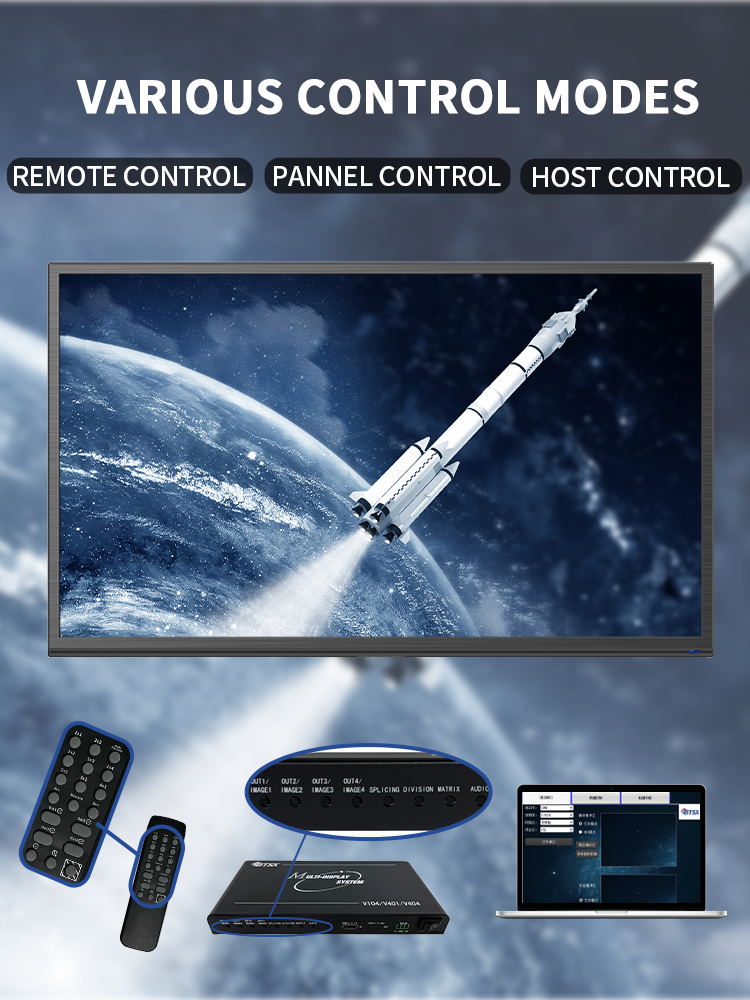

●Seamless switch splicing mode, button control, remote control.
●Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation is adopted, no external heat dissipation measures are required, and the reliability is extremely high.
Specification
Input Resolution
1920x1080@30/60Hz/3840x2160@30/60Hz
Factory Default Resolution
3840x2160@60Hz
Input Interface Maximum Video Pixel Frequency
600MHz
Output Resolution
1920x1080@60Hz
Output Interface Maximum Video Pixel Frequency
165MHz
Output Distance
15 Meters
IMAGE1 Button
1x1 Stitching Mode
IMAGE2 Button
1x2/2x1 Stitching Mode
IMAGE3 Button
1x3/3x1 Stitching Mode
IMAGE4 Button
1x4/4x1/2x2 Stitching Mode
SPLICING Button
Mode switching, looping through all modes

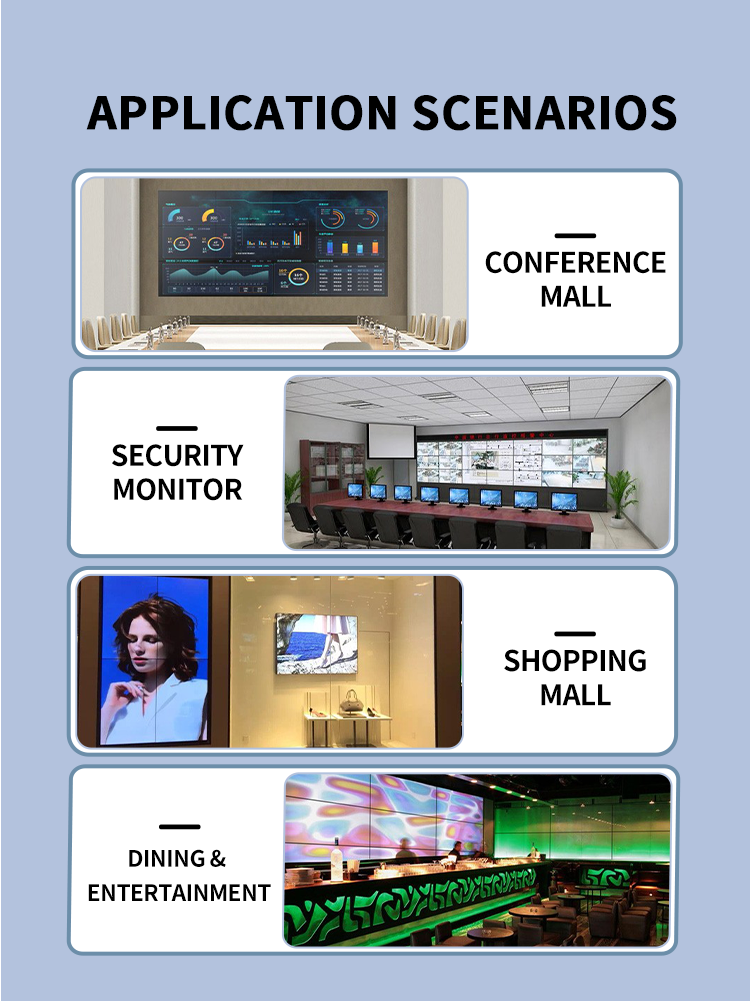

Application Scenarios
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
More Details
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Company Profile
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
Universal 4K60 Video Wall Controller with 1x4 HDMI Distribution and Remote Control for Multi-Display Tiling
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to North America(30.00%),Domestic Market(30.00%),Southeast Asia(20.00%),Mid East(10.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
TV Video Wall Controller,HDMI Extender,HDMI Matrix Switcher,Multi Viewer,HDMI Fiber Cable

4. why should you buy from us not from other suppliers?
Shenzhen biteshixun Co., Ltd. supplies: splicing processor, multi screen extender, multi screen fuser, image processor,
matrix,distributor, switcher, image divider, network / optical extender, optical transceiver, KVM extender.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW； Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal; Language Spoken:English,Chinese
