Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-MSE-8K60Y-104Pro
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
37*24*11
Input interface :
1 X HDMI 2.1,1 X DP 1.4
Output interface :
4X1280X960
Maximum output clock :
600MHz
Power supply :
12V5A
Power consumption :
20W
Package dimensions :
360X220X70 mm
Package weight :
1.8 kg
Input resolution :
7680x4320@60YUV 420
Output resolution :
3840x2160@60
Audio interface :
3.5mm Audio separation
Storage temperature :
-10~50℃
Working temperature :
0~50℃
PCB layers :
6-layer
Anti-static ability :
16KV
Heat dissipation :
18W thermal conductivity
Description
8K60 Multi Screen Expander Advanced 1 in 4 Out EDID Management 2x2 Video Wall Controller
Product Overview

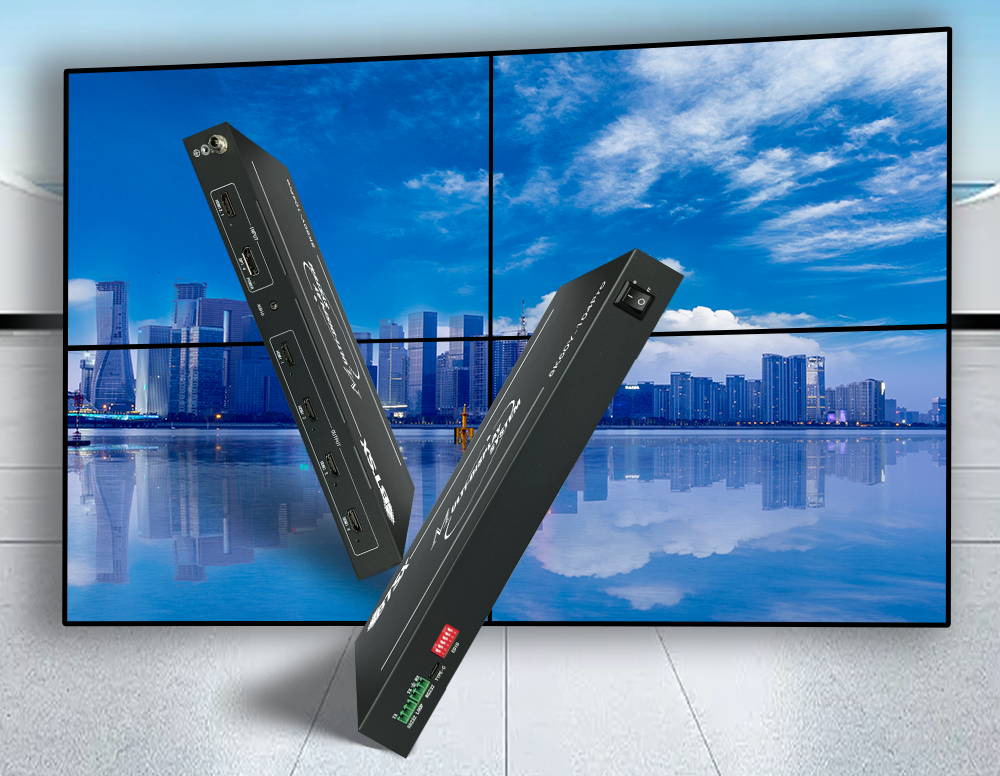

Advanced video wall controller designed for high-end commercial displays, featuring 8K60 input and 4K60 output capabilities with comprehensive EDID management.
8K60 Multi Screen Expander with EDID Management and 2x2 Video Wall Controller for High-End Displays

8K60 Multi Screen Expander with EDID Management and 2x2 Video Wall Controller for High-End Displays

8K60 Multi Screen Expander with EDID Management and 2x2 Video Wall Controller for High-End Displays

8K60 Multi Screen Expander with EDID Management and 2x2 Video Wall Controller for High-End Displays


Key Features
  • Supports 1 channel of 8K60 YUV420 signal input with HDMI or DP options (HDMI priority)
  • 4-channel 4K60 output via HDMI ports
  • Supports 2×2 and 3×1 point-to-point splicing without stretching or deformation
  • Advanced EDID management with flexible selection via dip switch
  • Parallel device support for real-time large screen display requirements
  • High-end programmable FPGA chip with 28nm technology and hardware real-time processing
  • Industrial-grade design with 6-layer PCB and 16KV anti-static protection
  • Low power consumption with overheating protection and anti-interference design
  • Modular design supporting desktop and rack mounting options
  • Compatible with Bit Window Opening Software for 8K60 multi-screen display
Product Images
8K60 Multi Screen Expander with EDID Management and 2x2 Video Wall Controller for High-End Displays 8K60 Multi Screen Expander with EDID Management and 2x2 Video Wall Controller for High-End Displays
Technical Specifications
Product Model BIT-MSE-8K60Y-104Pro
Input Interface 1xHDMI 2.1, 1xDP 1.4 (HDMI 2.1 copper wire ≤3m)
HDCP Support HDCP 2.2
Input Maximum Resolution 3x1: 3840x6480@60YUV 420, 3840x7200@60YUV 420
2x2: 7680x4320@60YUV 420, 7680x4800@60YUV 420
Output Interface 4x1280x960 (HDMI 2.0 copper wire ≤10m)
Output Resolution 3840x2160@60, 3840x2400@60, 3840x2160@30, 3840x2400@30, 2560x1440@60, 2560x1600@60, 1920x1080@60, 1920x1200@60, 1920x1080@120, 1920x1200@120
Audio 3.5mm Audio separation
Power Supply 12V5A
Power Consumption 20W
Storage/Working Temperature -10~50℃/0~50℃
Package Dimensions L×W×H: 360×220×70 mm
Package Weight 1.8 kg
Attachment List 1×12V5A power adapter, 1×HDMI 2.1 or DP 1.4 cable, 2×1U hanging ears (optional), 2×desktop small hanging ears (optional)
After-sales Service 3 years
