8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-VJ-106Pro
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
37*24*11CM
Input interface :
1xHDMI 2.0
Input Line length :
4K60:5m; 1080P60:10m
Output interface :
6xHDMI1.3
Output Line length :
1080P60:10m
Control method :
PC host computer RS232/RS485/TTL
Window layout :
Any window opening *10, overlay, roaming
Material management :
Video and picture playback control
Power supply :
DC 12V 2A
Size :
440x160x45mm
Operating temperature :
≤60℃
Power consumption :
≤14W
Product Weight :
1.8KG
Video resolution :
8K60 (7680x4320@60Hz)
Memory capacity :
64G
Material overlay layers :
30 layers
Description
8K60 Multi-Screen Magic Splicing Processor
Advanced 6-screen any angle shape PIP processor with 10 layers overlay and built-in player for commercial display applications.
Creative Irregular Splicing Video Processor
Comprehensive 8K/4K/2K playback control system featuring point-to-point and shaped splicing, multi-window scene layout switching, 30 layers of material overlay, roaming, slicing, and edge effects.

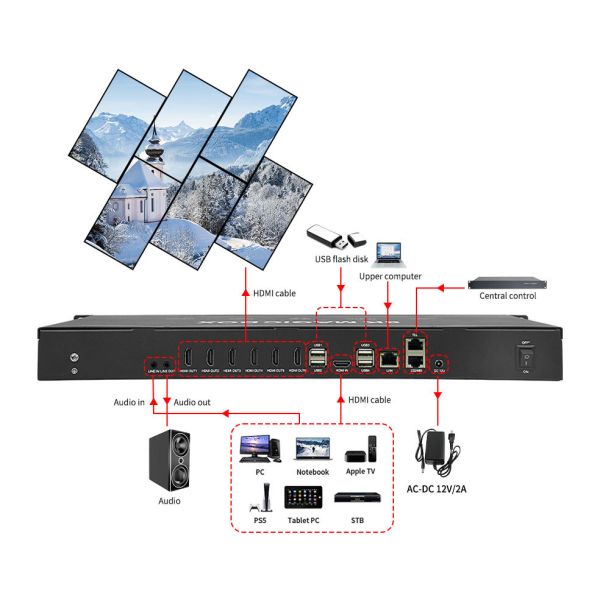

  • 6 screens in any angle and any shape splicing capability
  • Support for standard splicing layouts including 1×6, 6×1, 2×3 configurations
  • 8K60 (7680x4320@60Hz) video decoding with built-in 64GB memory for material storage
  • Multi-layer material overlay with picture-in-picture (PIP) functionality supporting up to 30 layers
  • RS232/RS485/TTL multiple control protocols and interfaces
  • Network screen display monitoring and scrolling subtitle functions
  • Advanced edge effects including edge indentation, blur degree, matte degree, zoom, and mirror

    8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control

Application Scenarios
Ideal for various audio and video applications including commercial display (splicing, LED), advertising media, bars, catering, entertainment, culture and tourism, and exhibition display industries.

Technical Specifications
Product Name 8K Creative Special-shaped Splicing Processor
Input Line Length 4K60: 5m, 1080P: 10m
Output Line Length 1080P: 10m
Audio 3.5mm audio separation interface
Control Method PC computer
Window Layout Any window opening ×30, overlay, roaming
Material Management Video and picture playback control
Operating Temperature ≤60℃
Power Supply DC12V2A
Power Consumption ≤14W

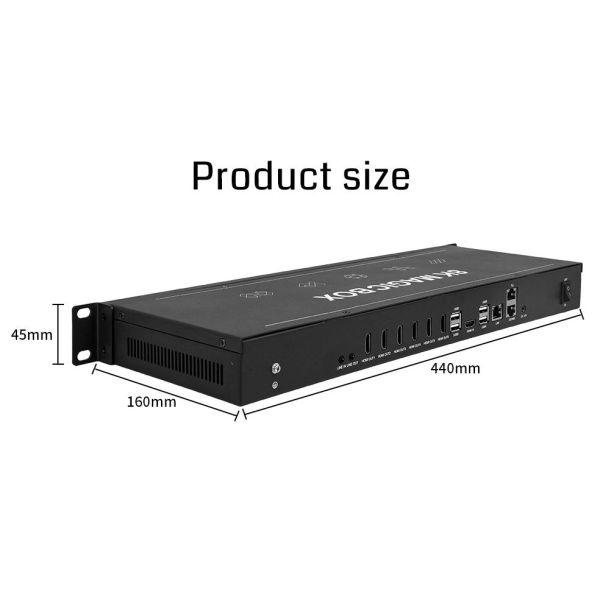

Product Size 440mm × 160mm × 45mm
Product Weight 1.8KG
Packing List Equipment ×1, Power supply ×1, Network cable ×1, Certificate ×1, Warranty card ×1
Certification CE, FCC, ROHS
Support ODM, OEM
Warranty 2 years

8K60 Multi-Screen Processor with 6 Screen Splicing and 30 Layers Overlay for Professional Video Wall Control
